0-27 — EXHAUST MANIFOLD (#22334) — 32 parça

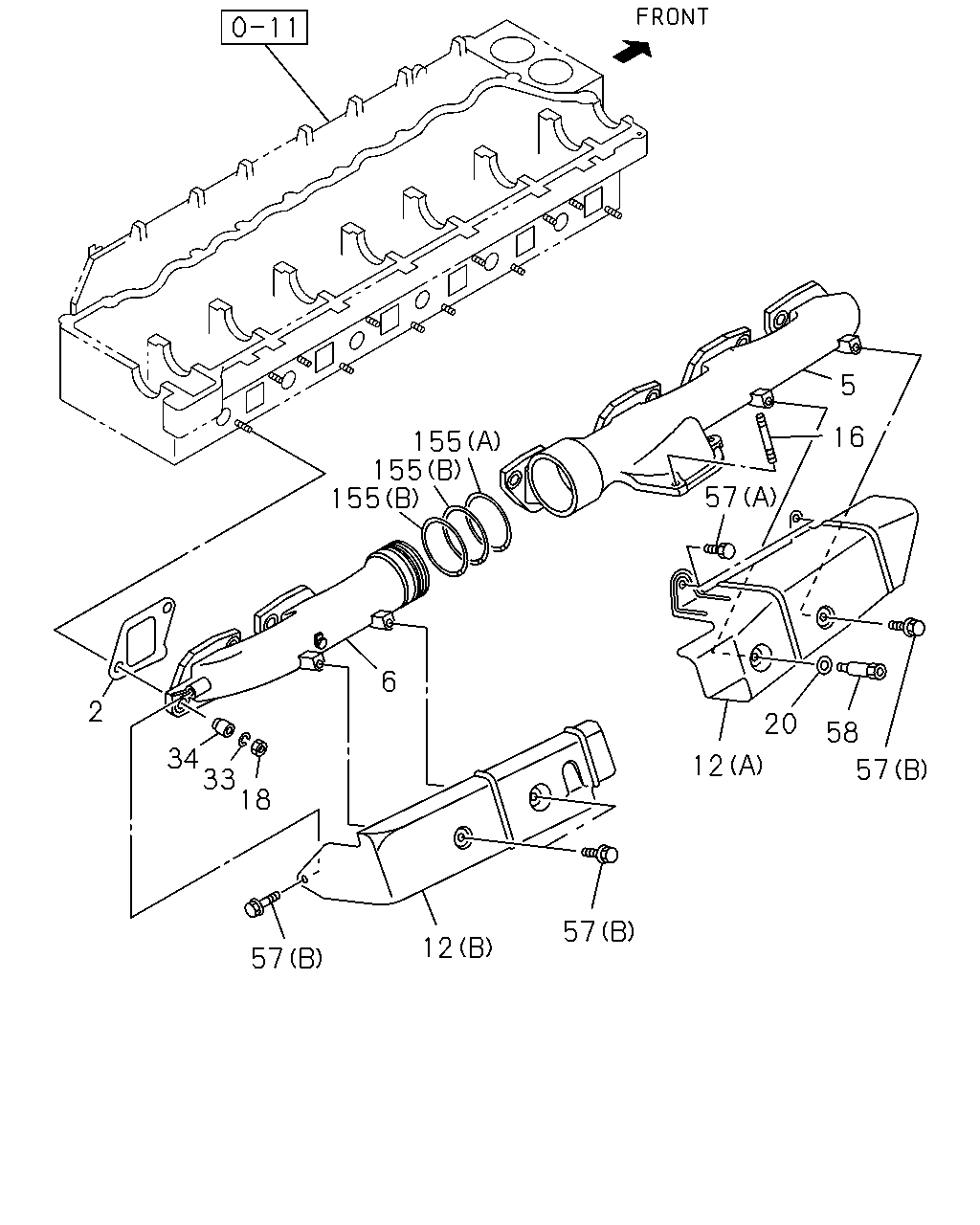

çizim 63461
5 16 155 155 155 57 6 2 20 58 34 33 18 12 57 57 12 57
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 9510-0102 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-1 06 1 0103-0210 ● ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 9510-0102 ●
5 MANIFOLD; EXH,FRT 8-94394-753-1 01 1 0103-0210 ● ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 9510-0102 ●
6 MANIFOLD; EXH,RR 8-94394-755-4 01 1 0103-0210 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 9510-0102 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 0103-0210 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94395-413-1 01 1 9510-9609 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94391-040-0 01 1 9610-9809 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94392-947-0 01 1 9810-0102 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94392-947-0 01 1 0103-0210 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9510-0102 ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 0103-0210 ● ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 9510-0102 ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 12 1 0103-0210 ● ●
20 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 01 1 9510-9803 ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 12 1 9510-0102 ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 12 1 0103-0210 ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-94395-679-0 12 1 9510-0102 ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-94395-679-0 12 1 0103-0209 ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0210-0210 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0102 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0103-0210 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 04 1 9510-9803 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 9804-0102 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
(B) M8X14 FLANGE 		8-94312-699-1 05 1 0103-0210 ● ●
58 STUD; HEAT PROTECTOR 8-94396-828-2 01 1 9510-9803 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 9510-0102 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 0103-0210 ● ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 9510-0102 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0103-0210 ● ●
