Isuzu WW
▶
TRUCKS
▶
FRR
▶
11414 - FRR RHD EURO5 SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#22329) — 44 parça
◀

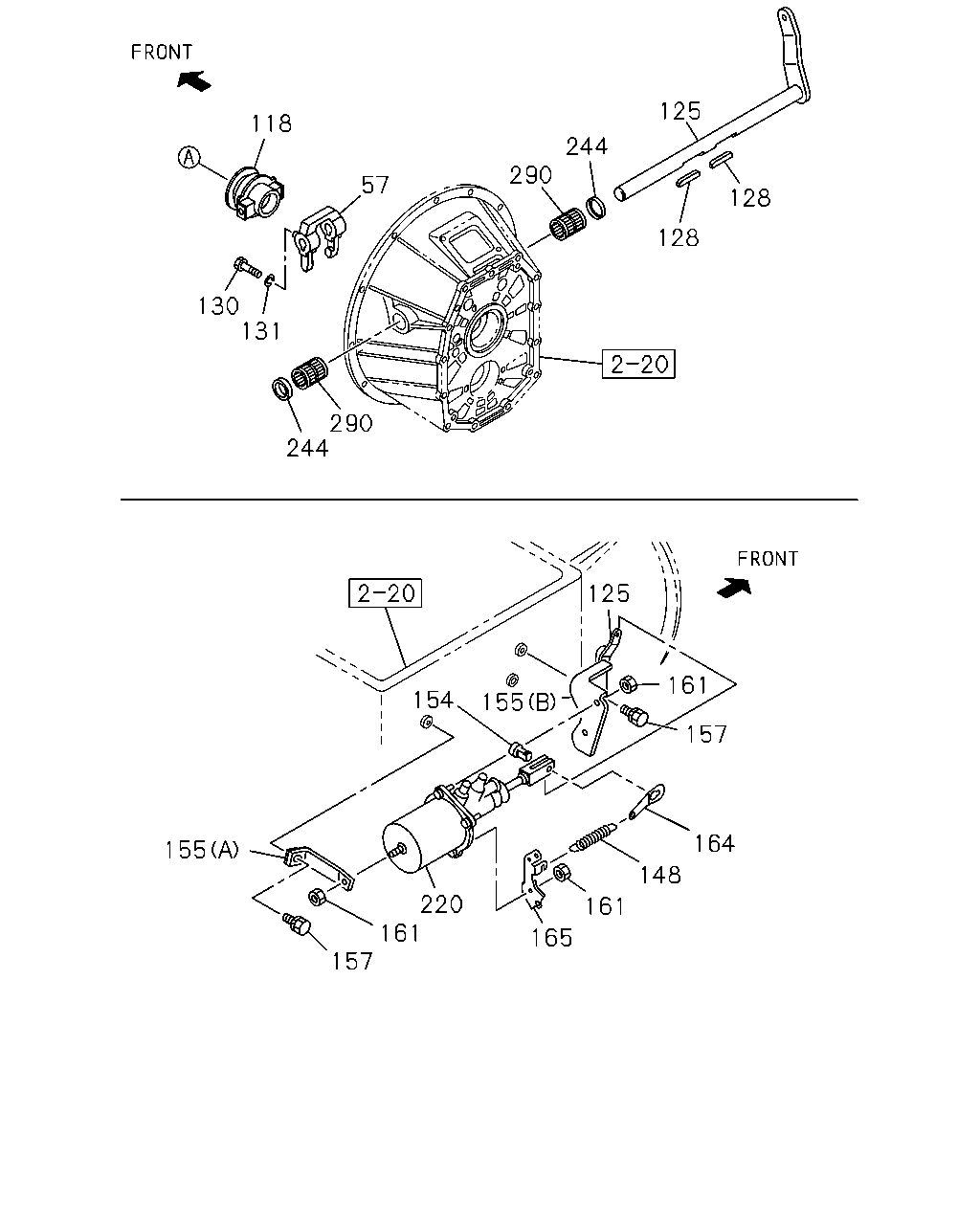

[201A] SHAFT AND CLUTCH BOOSTER (18 parça)

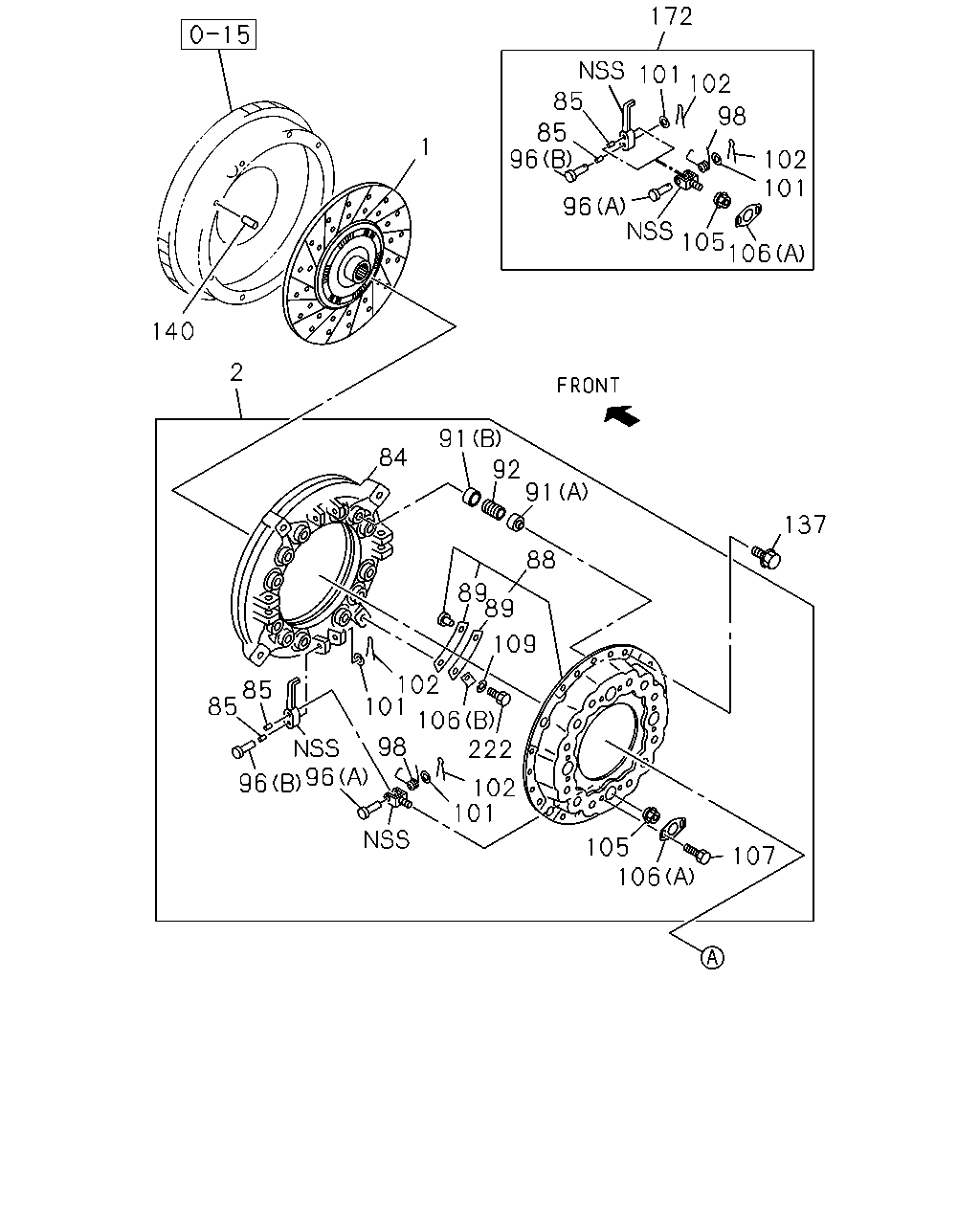

[201A] DISC AND PLATE (26 parça)
▶
125
118
244
290
57
128
128
130
131
290
244
125
161
155
154
157
164
155
148
220
161
157
161
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
1105-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
1105-
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
1105-
125
SHAFT; CLU
1-31342-335-0
01
1
1105-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
1105-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1105-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1105-
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1105-
154
PIN; JAW JOINT
1-31424-009-0
01
1
1105-
155
BRACKET; MINIPACK
(A)
1-31429-474-1
01
1
1105-
155
BRACKET; MINIPACK
(B)
1-31429-477-0
01
1
1105-
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
1105-
161
NUT; BRKT
M8 FLANGE
0-91180-208-0
05
1
1105-
164
EYE; SPRING
1-31426-041-0
01
1
1105-
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
1105-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-510-2
01
1
1105-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1105-
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
1105-
172
101
102
85
98
85
96
1
102
101
96
105
106
140
2
91
84
92
91
137
88
89
89
109
102
101
85
85
106
222
98
96
96
102
101
105
106
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
14"
1-31240-971-1
01
1
1105-1401
1
DISC; CLUTCH
14"
1-31260-040-1
01
1
1402-
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-140-0
01
1
1411-
2
PLATE ASM; PRESSURE,CLU
1-31220-411-0
01
1
1105-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-147-0
01
1
1105-
84
PLATE; PRESSURE
14"
1-31221-136-0
01
1
1105-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
1105-
88
COVER SUB ASM; CLU
1-31211-038-0
01
1
1105-
89
PLATE; STRAP
1-31229-001-0
08
1
1105-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
08
1
1105-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
08
1
1105-
92
SPRING; CLU
1-31214-095-0
08
1
1105-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
1105-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
1105-
98
SPRING; RETURN
1-31233-003-0
04
1
1105-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
1105-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
1105-
105
NUT; SUPPORT
1-31235-014-0
04
1
1105-
106
PLATE; LK,LEVER SUPPORT
(B)
1-31235-008-0
04
1
1105-
106
PLATE; LK,LEVER SUPPORT
(A)
1-31239-019-0
04
1
1105-
107
BOLT; LK PLATE
1-31239-061-0
08
1
1105-
109
WASHER; LK,STRAP
ID=10.2
0-91510-510-0
04
1
1105-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1105-
140
PIN; STRAIGHT
L=25
8-94410-361-0
02
1
1105-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
1105-
222
BOLT; STRAP
1-31239-059-0
04
1
1105-
