◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11414 - FRR RHD EURO5 SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#22326) — 145 parça

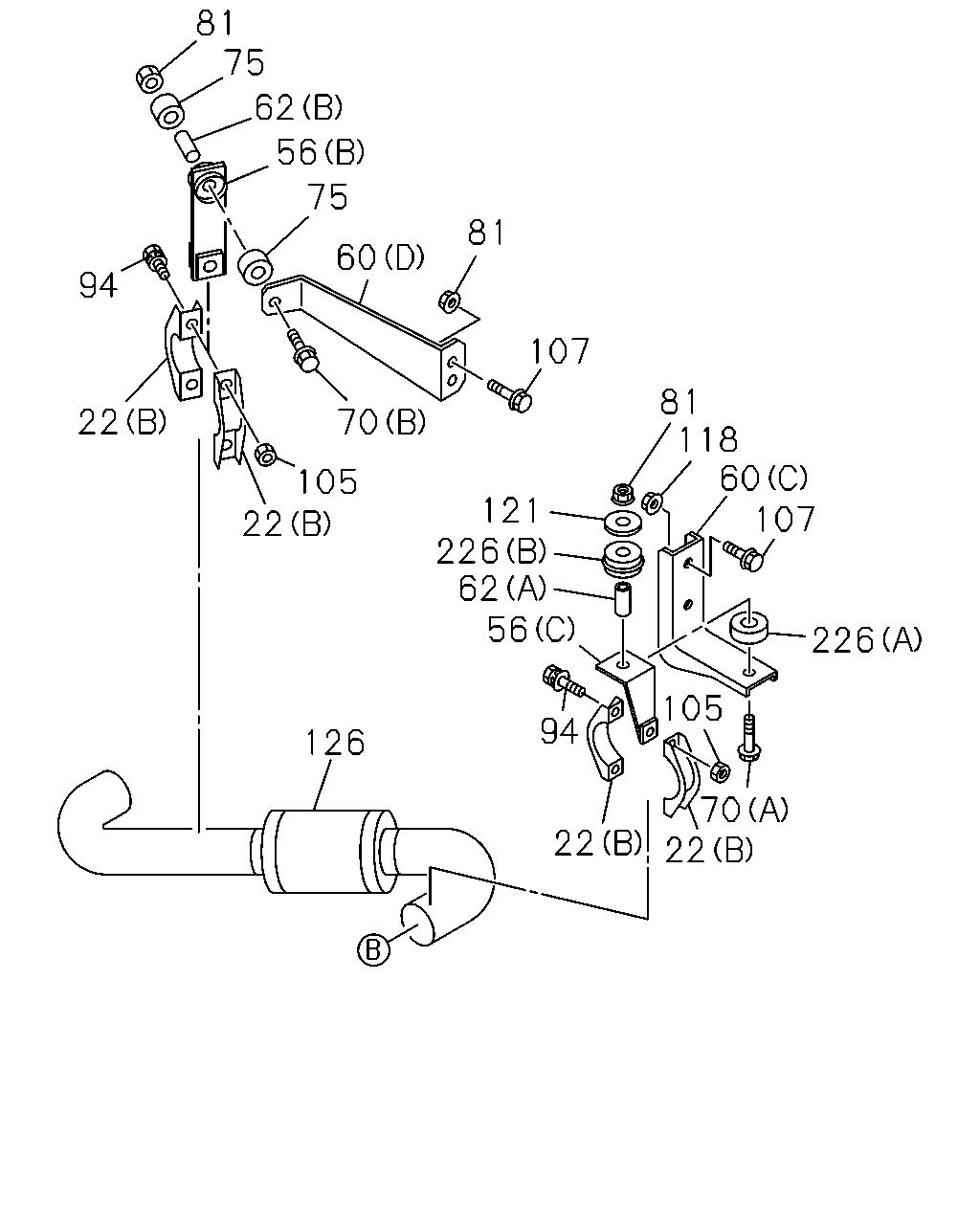

çizim 108775
81 75 62 56 75 60 81 94 107 81 118 60 107 22 70 105 22 121 226 62 6 226 105 94 126 70 22 22
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1105-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1105-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1105-
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 1105-1309
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 1105-1309
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 1105-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98074-824-1 01 1 1105-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-825-0 01 1 1105-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1105-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1105-
60 BRACKET; FRAME TO BRKT
(C) 		8-98059-753-1 01 1 1105-1309
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 1105-1309
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1105-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1105-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1105-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1105-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1105-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1105-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1105-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1105-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1105-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1105-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1105-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1105-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1105-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1105-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1105-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1105-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1105-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1105-
126 PIPE; EXH,RR 8-98043-365-2 01 1 1105-1309
126 PIPE; EXH,RR 8-98245-503-0 01 1 1310-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1105-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1105-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1105-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1105-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1105-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1105-

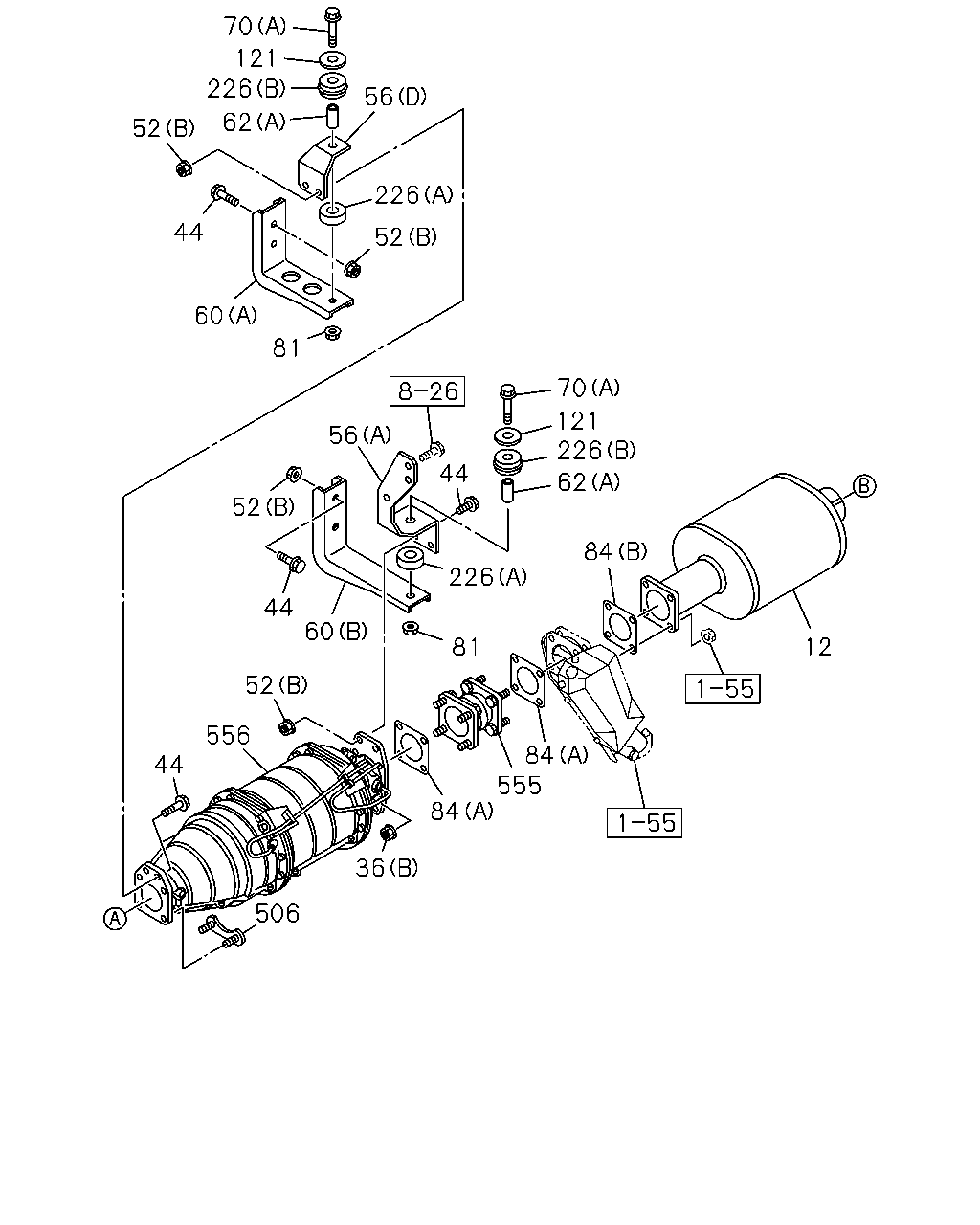

çizim 108779
70 121 226 56 62 52 226 44 52 60 81 70 121 226 56 44 52 62 84 226 44 60 12 81 52 556 84 555 44 84 36 506
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98041-921-0 01 1 1105-
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 1105-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1105-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1105-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1105-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 1105-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1105-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 1105-1309
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98059-755-0 01 1 1105-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98074-824-1 01 1 1105-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-825-0 01 1 1105-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 1105-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 1105-
60 BRACKET; FRAME TO BRKT
(C) 		8-98059-753-1 01 1 1105-1309
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 1105-1309
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1105-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1105-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 1105-
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1105-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1105-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1105-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1105-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1105-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1105-
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1105-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1105-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1105-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1105-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1105-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1105-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1105-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1105-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1105-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1105-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1105-
555 PIPE; EXH,DPD 8-98060-847-0 01 1 1105-
556 DPD ASM 8-97622-883-4 01 1 1105-

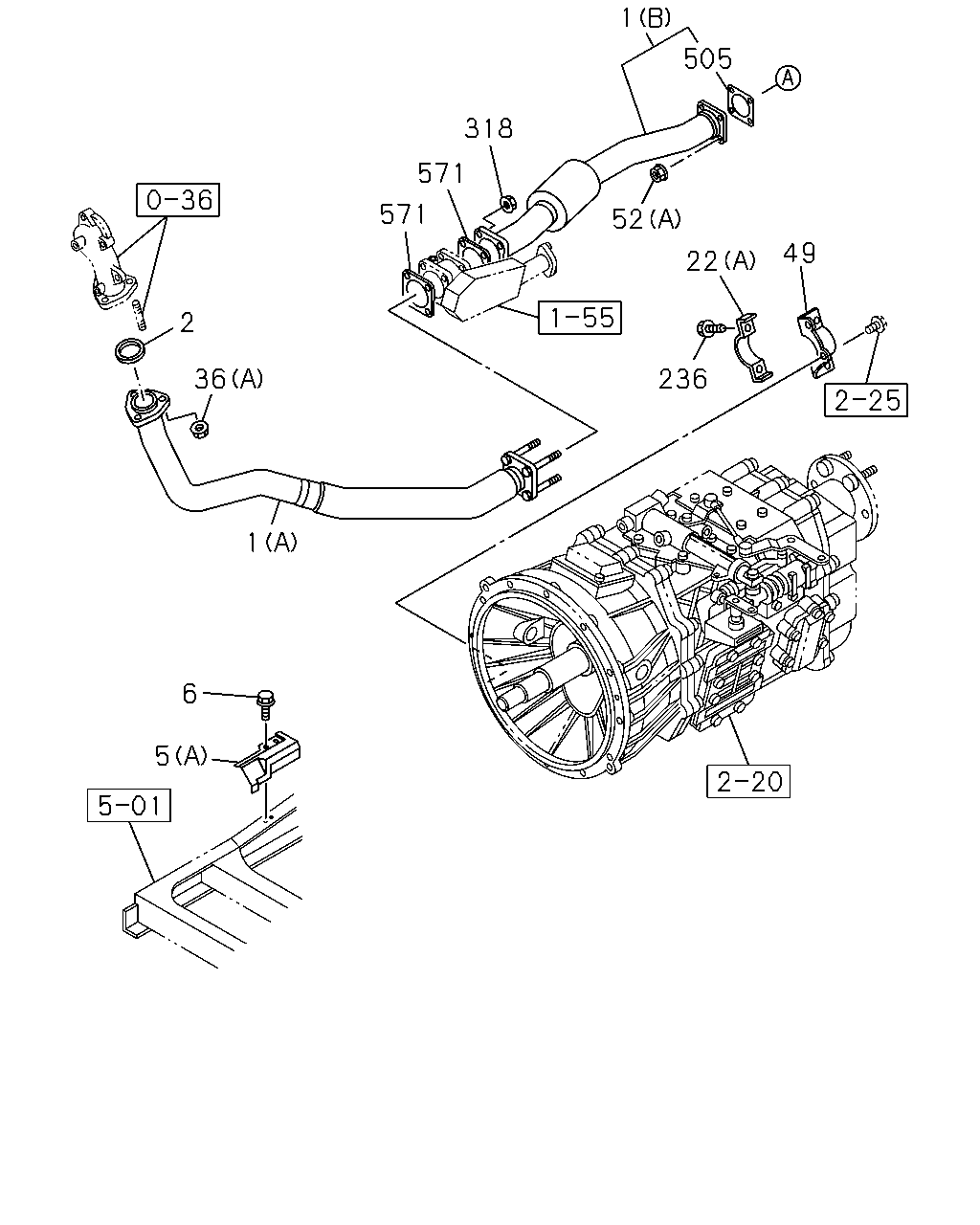

çizim 108781
1 505 318 571 571 52 49 22 2 36 236 1 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98035-936-4 01 1 1105-1107
1 PIPE; EXH
(B) 		8-98198-849-0 01 1 1108-
1 PIPE; EXH
(A) 		8-98161-196-0 01 1 1105-1202
1 PIPE; EXH
(A) 		8-98208-160-0 01 1 1203-1303
1 PIPE; EXH
(A) 		8-98243-546-0 01 1 1304-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1105-
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 1105-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1105-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1105-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1105-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1105-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1105-
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 1105-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1105-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1105-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1105-
22 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 1105-1309
22 CLAMP; EXH PIPE
(A) 		8-97646-674-0 01 1 1310-
36 NUT; EXH PIPE
(B) M10 		0-91110-510-0 04 1 1105-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1105-
49 BRACKET; EXH PIPE TO TRANS 8-98042-786-0 01 1 1105-1301
49 BRACKET; EXH PIPE TO TRANS 8-98234-530-0 01 1 1302-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1105-
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 06 1 1105-
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1105-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1105-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1105-
505 GASKET; CONV TO EXH PIPE
ID=87 		8-94394-391-0 01 1 1105-1107
571 GASKET
ID=64 		8-97373-108-0 02 1 1105-

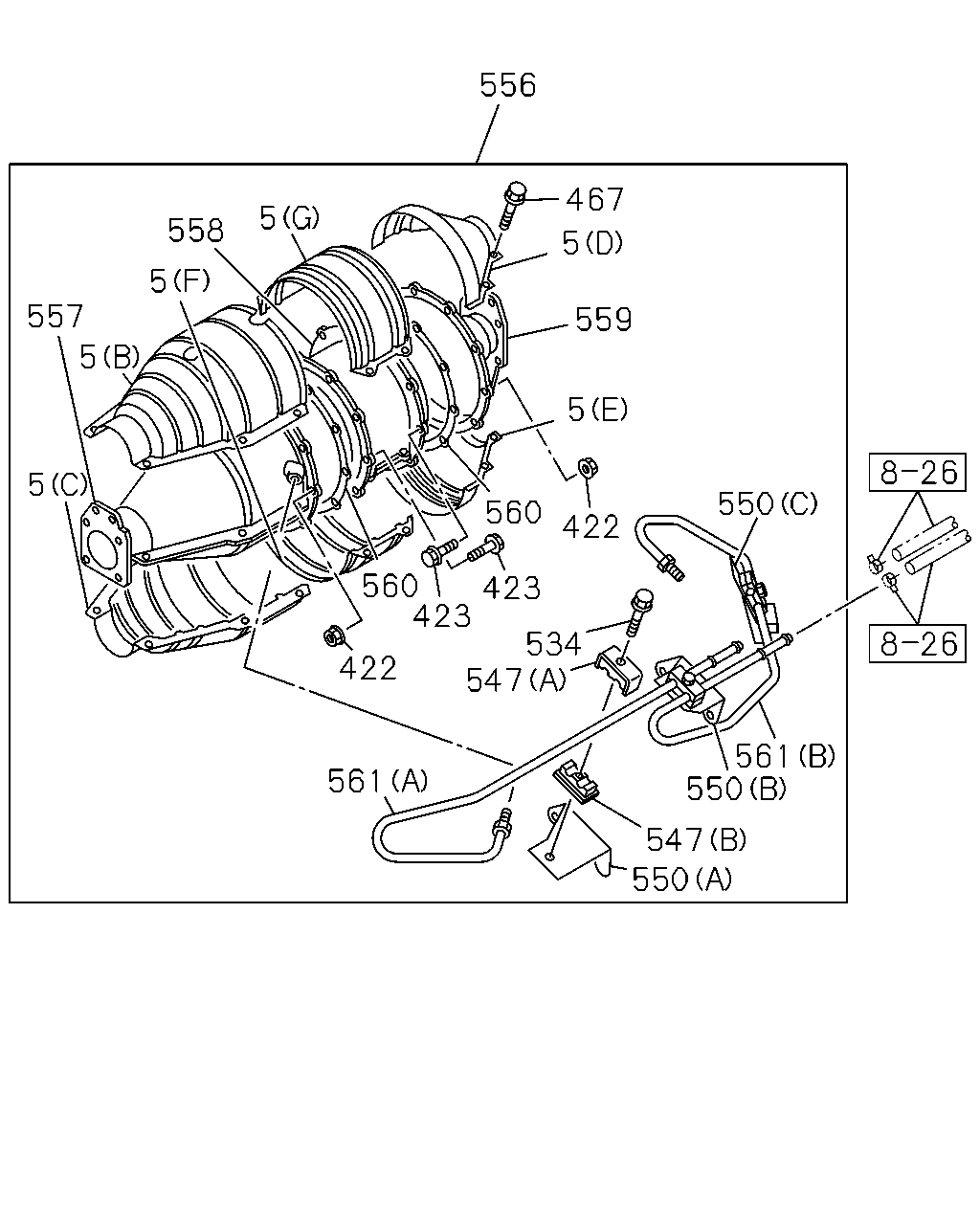

çizim 108783
556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(G) 		8-97605-172-0 01 1 1105-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1105-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1105-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1105-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1105-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1105-
5 PROTECTOR; HEAT
(A) 		8-98044-122-0 01 1 1105-
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1105-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1105-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1105-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1105-
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 1105-
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 1105-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1105-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1105-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1105-
556 DPD ASM 8-97622-883-4 01 1 1105-
557 CATALYST ASM 8-97608-055-8 01 1 1105-
558 FILTER ASM 8-97608-057-3 01 1 1105-
559 COVER; RR 8-97622-887-0 01 1 1105-
560 GASKET; DPD 8-97611-080-0 02 1 1105-
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1105-
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1105-
