Isuzu WW
▶
TRUCKS
▶
FRR
▶
11414 - FRR RHD EURO5 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

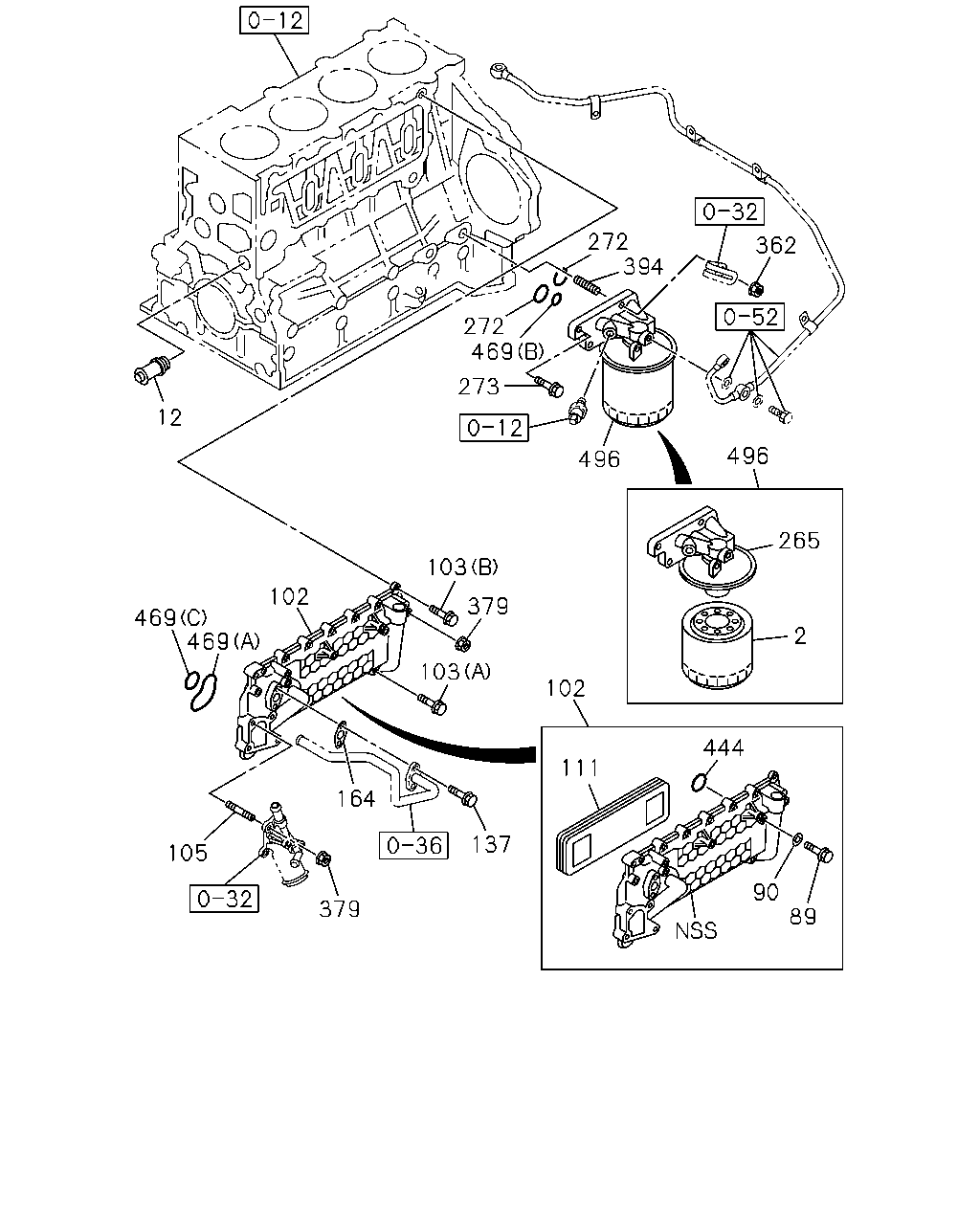

0-50 — OIL COOLER AND OIL FILTER
(#22307) — 25 parça
272
394
362
272
469
273
12
496
496
265
103
102
379
469
469
2
103
102
444
111
164
137
105
90
379
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-97148-270-1
01
1
1105-1509
2
ELEMENT; OIL FILTER
8-98328-207-0
01
1
1510-
2
ELEMENT; OIL FILTER
BEST VALUE PARTS
5-87610-117-0
01
1
1105-1509
12
VALVE ASM; BYPASS
8-97013-566-2
01
1
1105-
89
BOLT; ELEMENT TO CASE
M8X16 FLANGE
0-28050-816-0
04
1
1105-
90
GASKET; BOLT,OIL COOLER
1-21729-043-0
04
1
1105-
102
COOLER ASM; OIL
8-98085-312-5
01
1
1105-
103
BOLT; OIL COOLER
(A) M8X20 FLANGE
0-28050-820-0
08
1
1105-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28050-835-0
08
1
1105-
105
STUD; OIL COOLER
M8X52 L=63
8-97016-314-0
03
1
1105-
111
CORE; OIL COOLER
8-97334-100-2
01
1
1105-
137
BOLT
M8X20 FLANGE
0-28650-820-0
02
1
1105-
164
GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6
8-97146-684-0
01
1
1105-
265
BODY; OIL FILTER
8-97096-677-4
01
1
1105-
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
02
1
1105-
273
BOLT; OIL FILTER
M10X30
0-59331-030-0
03
1
1105-
362
NUT; OIL FILTER
M10 FLANGE
0-91180-110-0
01
1
1105-
379
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
03
1
1105-
394
STUD; OIL FILTER
M10X25 L=48.5
0-49241-025-0
01
1
1105-
444
GASKET; ELEMENT TO BODY
8-97384-130-0
02
1
1105-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94338-878-1
01
1
1105-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
1105-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE
8-98045-447-0
01
1
1105-
496
FILTER ASM; OIL
8-97148-268-4
01
1
1105-1509
496
FILTER ASM; OIL
8-98328-202-0
01
1
1510-
