Sayfa 0-42 - Isuzu EPC

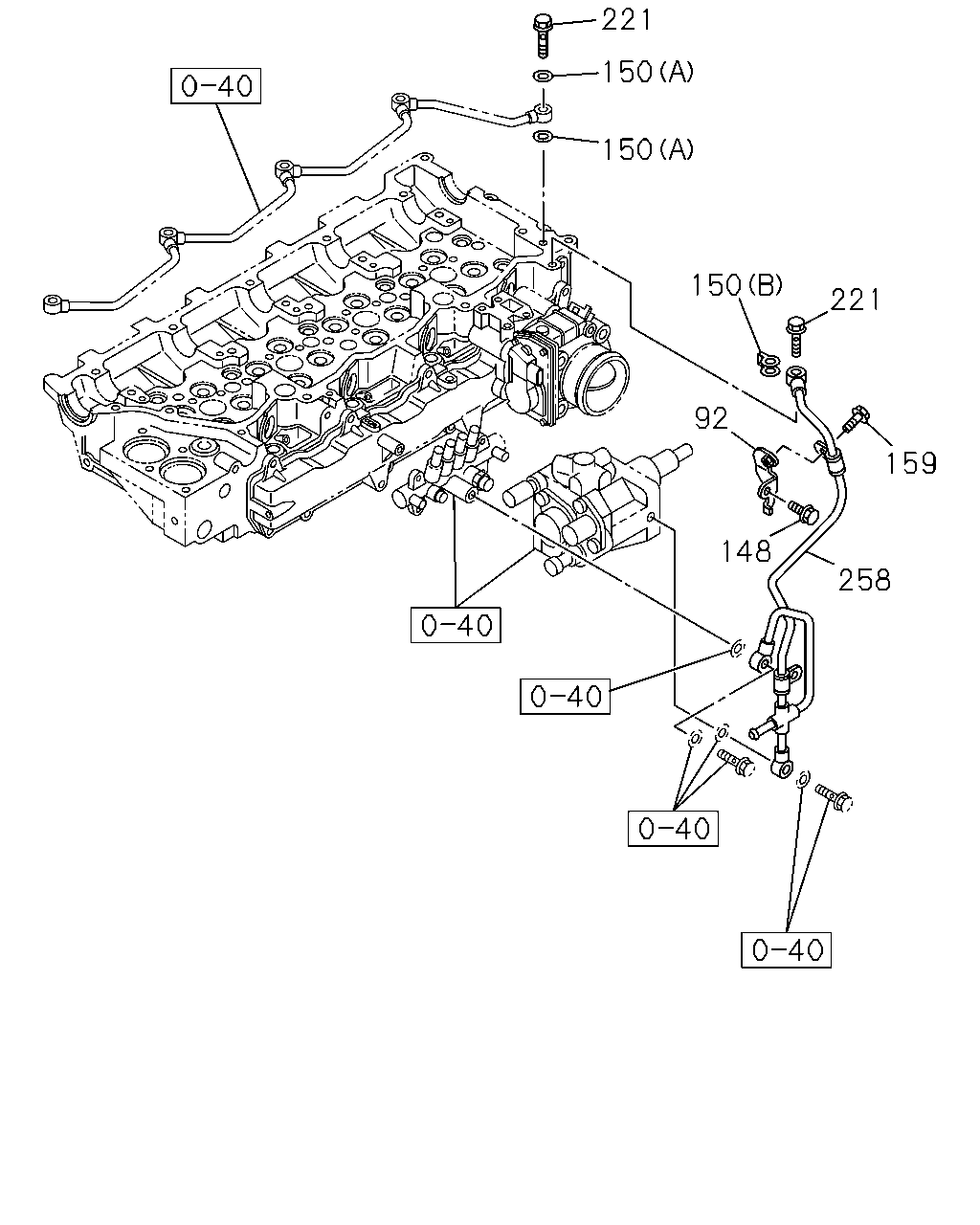

0-42 — FUEL PUMP AND PIPE (#22306) — 7 parça

221 150 150 150 221 92 159 148 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	BRACKET; FUEL PIPE	8-98045-008-1	01	1	1105-
148	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	01	1	1105-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1105-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	1105-
159	BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	1105-
221	BOLT; FUEL PIPE M10X21 FLANGE	8-94396-711-0	02	1	1105-
258	PIPE ASM; FUEL,LEAK OFF	8-98089-667-0	01	1	1105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
