4-40 — STEERING UNIT (#223) — 113 parça

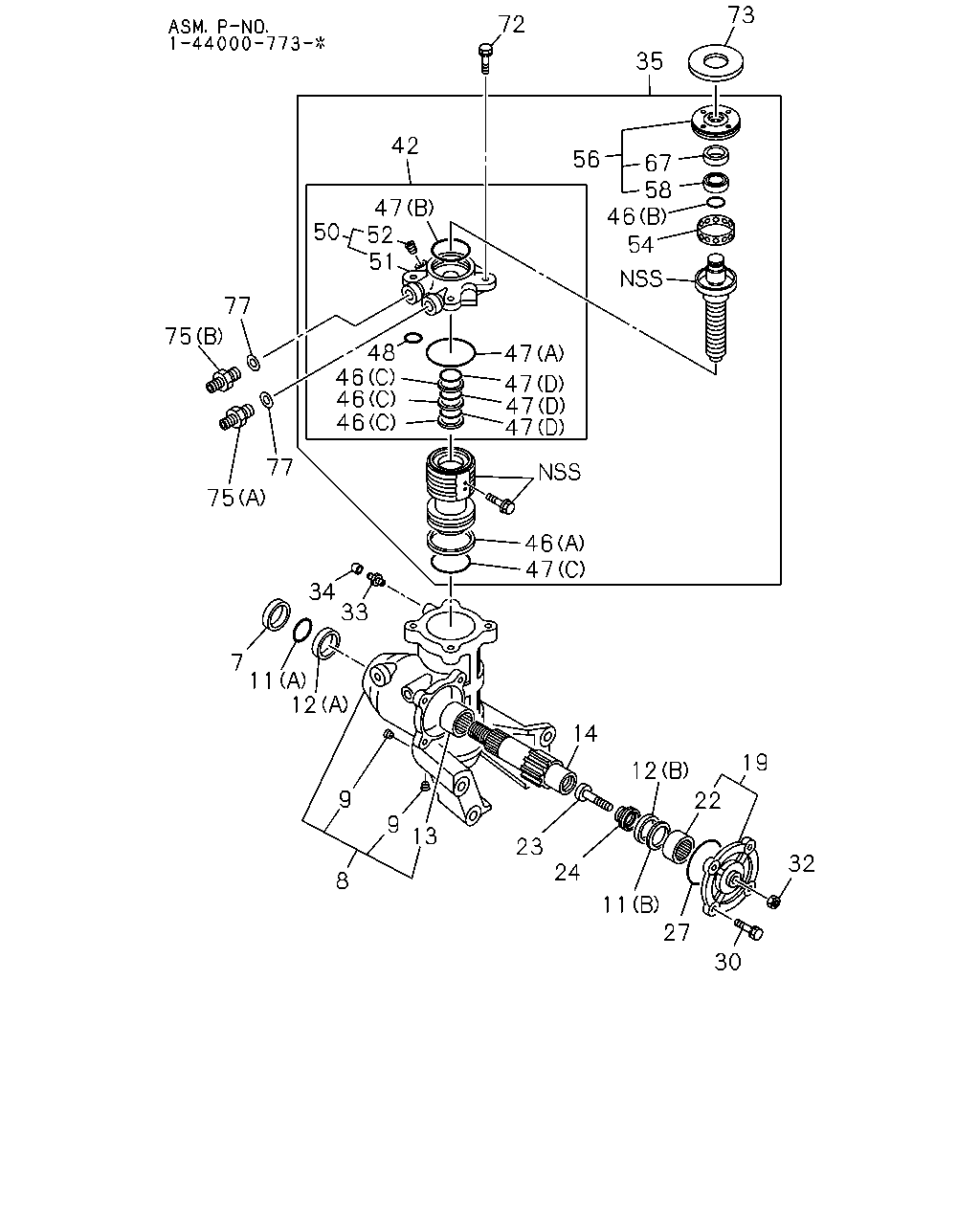

çizim 28017
73 72 35 42 56 67 58 46 54 47 52 51 50 77 75 48 46 46 46 47 47 47 47 77 75 46 47 34 33 7 11 12 14 19 12 9 22 9 13 23 32 24 8 11 27 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44240-078-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44241-119-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
M24 ASM PART: A = 1-44000-721-3 		9-99202-024-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-162-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-721-3 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-721-3 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-773-3 		9-99110-512-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-773-3 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-773-3 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44150-040-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-773-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-773-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-773-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44159-062-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-773-3 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-773-3 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-773-3 		9-89970-787-0 02 1 -

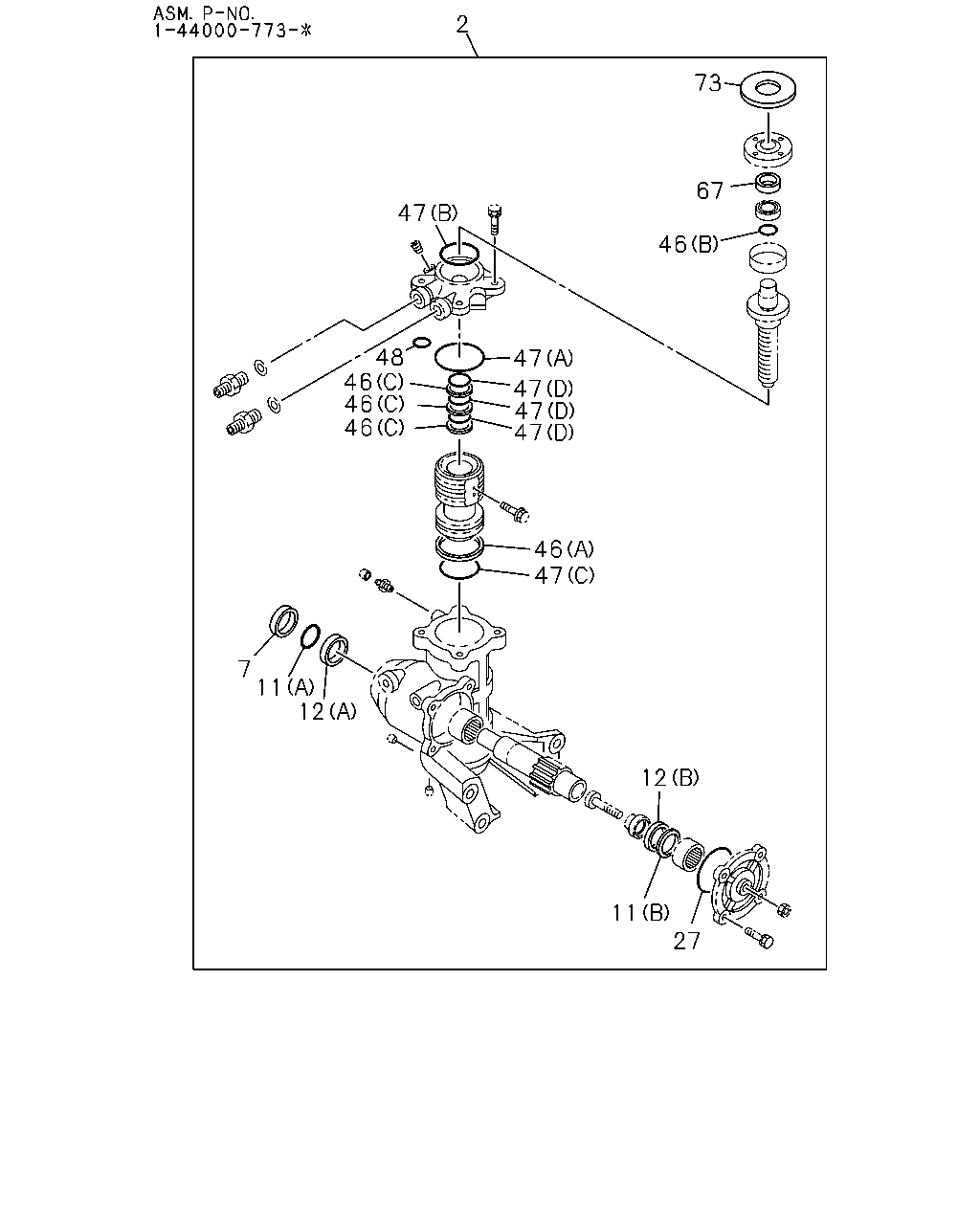

çizim 94624
2 73 67 47 46 48 46 46 46 47 47 47 47 46 47 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-773-3 		1-85574-024-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-157-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-773-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-773-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-773-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-773-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-773-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44159-062-0 01 1 -

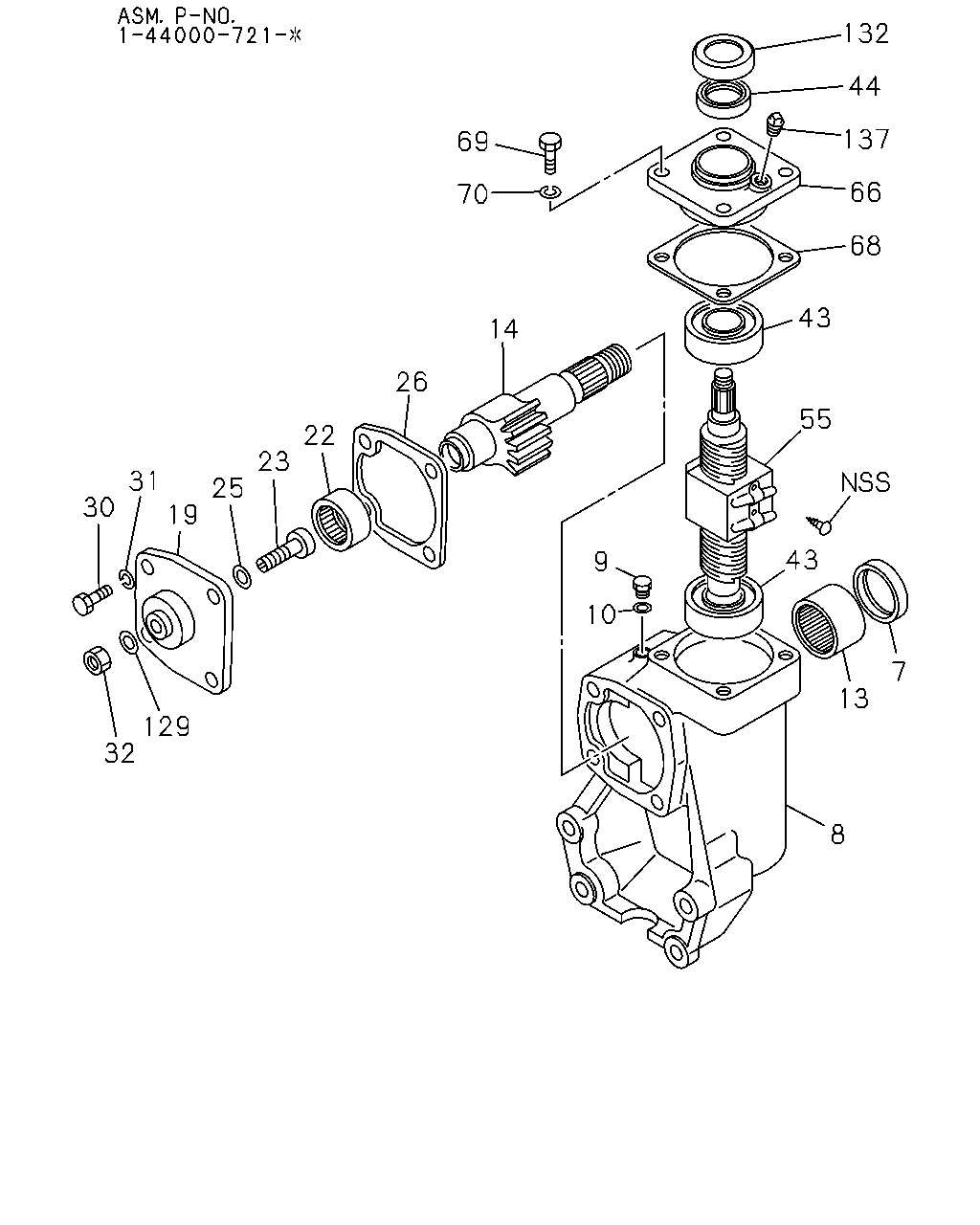

çizim 95846
132 44 137 69 66 70 68 43 14 26 55 22 23 31 25 30 19 43 9 10 7 13 129 32 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44240-078-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44241-119-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
M24 ASM PART: A = 1-44000-721-3 		9-99202-024-0 01 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: A = 1-44000-721-3 		9-09920-392-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.515-2.235 ASM PART: A = 1-44000-721-3 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.545-2.565 ASM PART: A = 1-44000-721-3 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.575-2.595 ASM PART: A = 1-44000-721-3 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.605-2.625 ASM PART: A = 1-44000-721-3 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.635-2.655 ASM PART: A = 1-44000-721-3 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-773-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-721-3 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ID=14.2 ASM PART: A = 1-44000-721-3 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-721-3 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-773-3 		9-99110-512-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09803-001-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-353-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44130-370-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44251-062-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.04 ASM PART: A = 1-44000-721-3 		1-44253-014-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.05 ASM PART: A = 1-44000-721-3 		1-44253-015-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.06 ASM PART: A = 1-44000-721-3 		1-44253-016-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.07 ASM PART: A = 1-44000-721-3 		1-44253-017-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.08 ASM PART: A = 1-44000-721-3 		1-44253-018-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.10 ASM PART: A = 1-44000-721-3 		1-44253-019-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.20 ASM PART: A = 1-44000-721-3 		1-44253-020-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.50 ASM PART: A = 1-44000-721-3 		1-44253-021-0 AR 1 -
69 BOLT; COVER FIX STRG UNIT
M14X35 ASM PART: A = 1-44000-721-3 		9-92051-435-0 04 1 -
70 WASHER; COVER FIX STRG UNIT
ID=14.2 ASM PART: A = 1-44000-721-3 		9-09150-514-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44139-053-0 01 1 -
137 PLUG; BREATHER STRG UNIT
PT3/8 ASM PART: A = 1-44000-721-3 		9-09204-517-0 01 1 -
