Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#22299) — 25 parça

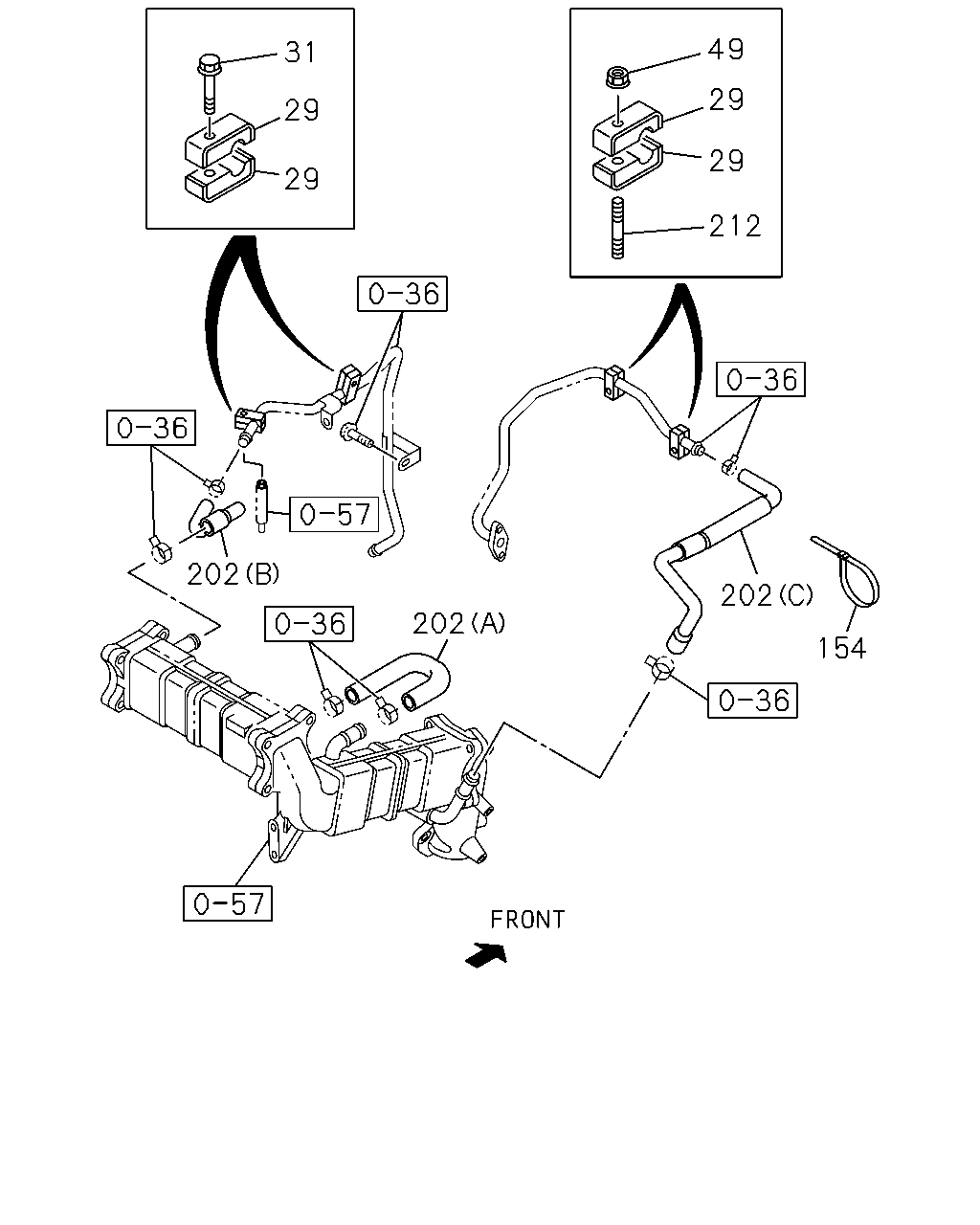

49 31 29 29 29 29 212 202 202 202 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	1105-
31	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	1105-
31	BOLT; CLIP M8X40 FLANGE	0-28050-840-0	02	1	1105-
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	1105-
154	CLIP; WATER HOSE L=170.3	1-09987-182-0	01	1	1105-
202	HOSE; RUBBER,EGR COOLER (B)	8-98028-170-0	01	1	1105-
202	HOSE; RUBBER,EGR COOLER (A)	8-98028-171-0	01	1	1105-
202	HOSE; RUBBER,EGR COOLER (C)	8-98097-717-0	01	1	1105-
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	1105-

148 2 89 148 10 17

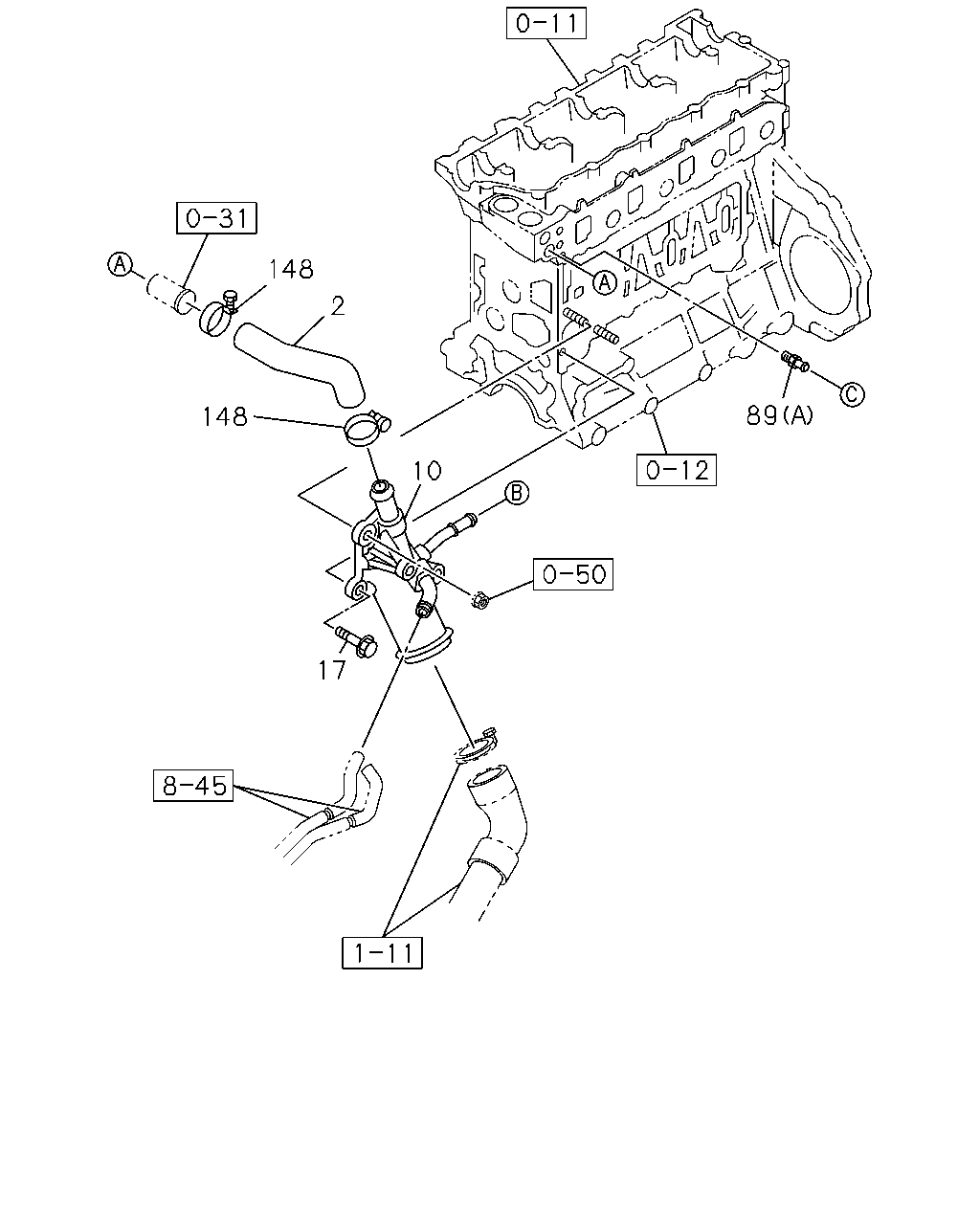

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1105-
10	PIPE; SUCTION	8-98166-995-0	01	1	1105-
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1105-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1105-
89	PIPE; WATER,AIR CMPR,IN (B)	8-98095-668-0	01	1	1105-
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1105-

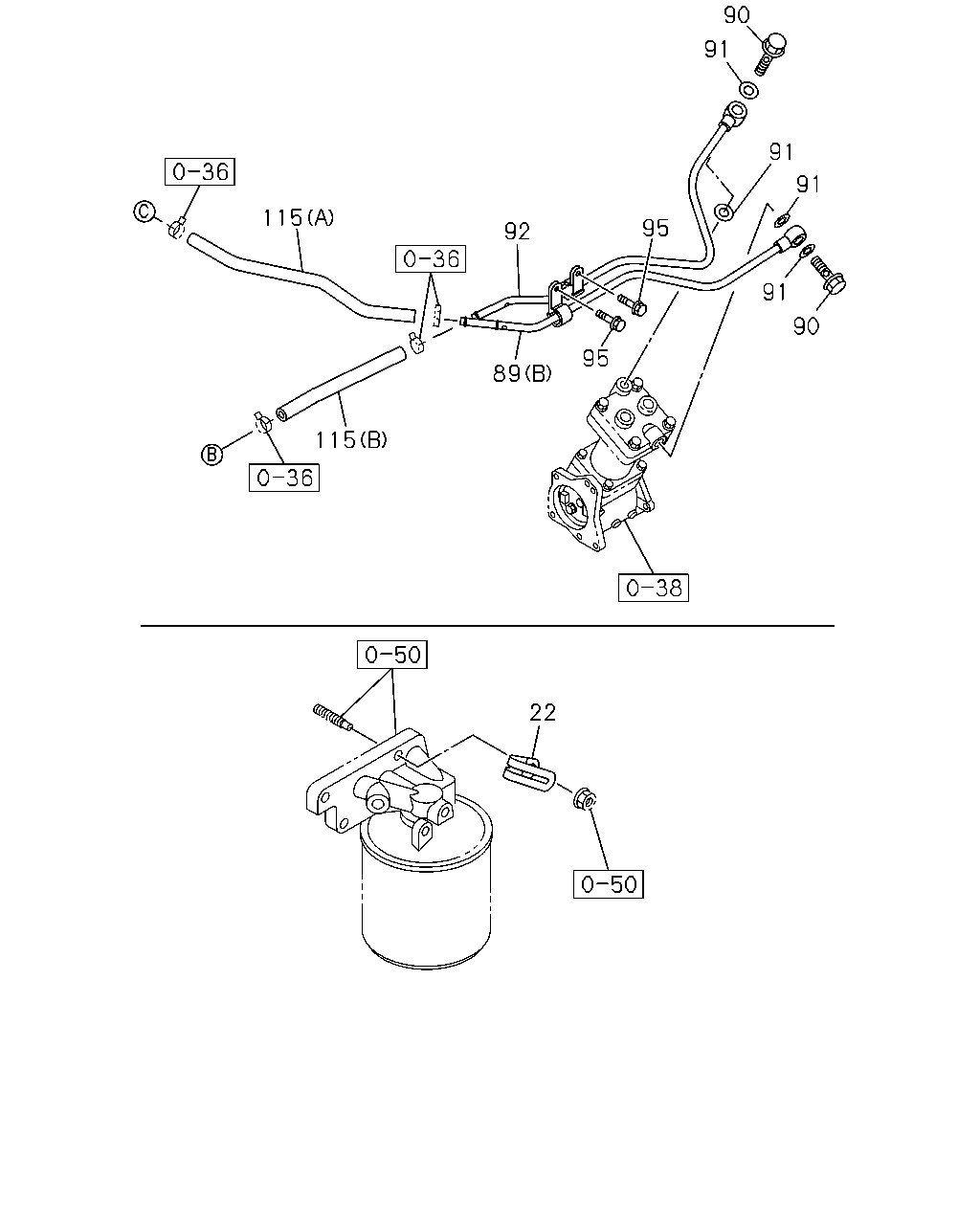

90 91 91 91 115 95 92 91 90 95 89 115 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLIP; WATER HOSE L=36	8-94224-891-1	01	1	1105-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1105-
89	PIPE; WATER,AIR CMPR,IN (B)	8-98095-668-0	01	1	1105-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	1105-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	1105-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
92	PIPE; WATER,AIR CMPR,OUT	8-98132-662-0	01	1	1105-
95	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1105-
115	HOSE; RUBBER (A)	8-98095-678-3	01	1	1105-
115	HOSE; RUBBER (B) L=130	8-98136-884-0	01	1	1105-
