Isuzu WW
▶
TRUCKS
▶
FRR
▶
11414 - FRR RHD EURO5 SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

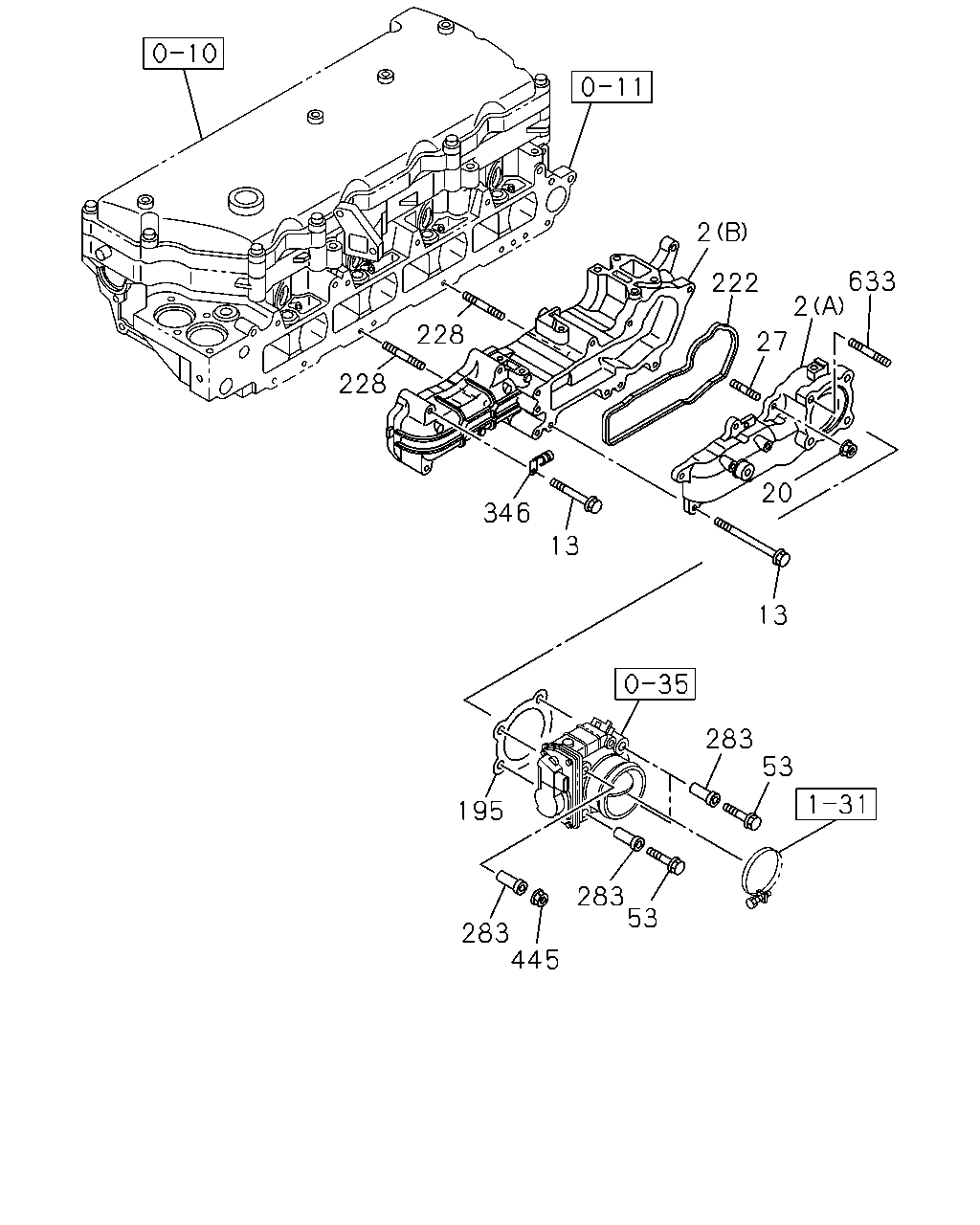

0-25 — INLET MANIFOLD
(#22294) — 16 parça
2
633
222
2
228
27
228
20
346
13
13
283
53
195
283
53
283
445
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
(A)
8-98085-730-1
01
1
1105-
2
COVER; INL
(B)
8-98115-667-1
01
1
1105-
13
BOLT; INL MANIF
M8X25 FLANGE
0-28050-825-0
02
1
1105-
13
BOLT; INL MANIF
M8X30 FLANGE
0-28050-830-0
02
1
1105-
13
BOLT; INL MANIF
M8X60 FLANGE
0-28050-860-0
05
1
1105-
13
BOLT; INL MANIF
M8X120 FLANGE
0-28055-812-0
03
1
1105-
20
NUT; INL MANIF
M8 FLANGE
0-91180-108-0
02
1
1105-
27
STUD; INL MANIF
M8X25 L=37
0-41010-825-0
02
1
1105-
53
BOLT; INL PIPE
M8X70 FLANGE
0-28050-870-0
02
1
1105-
195
GASKET; THROTTLE BODY INJECTOR
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98032-612-0
01
1
1105-
222
GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98032-611-0
01
1
1105-
228
STUD; INL COVER
M8X126 L=137
8-97378-069-0
02
1
1105-
283
RUBBER
L=58
8-97387-995-1
04
1
1105-
346
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1105-
445
NUT; THROTTLE BODY TO MANIF
M8 FLANGE
0-91180-108-0
02
1
1105-
633
STUD; THROTTLE BODY
M8X71 L=83
9-09830-212-0
02
1
1105-
