Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶

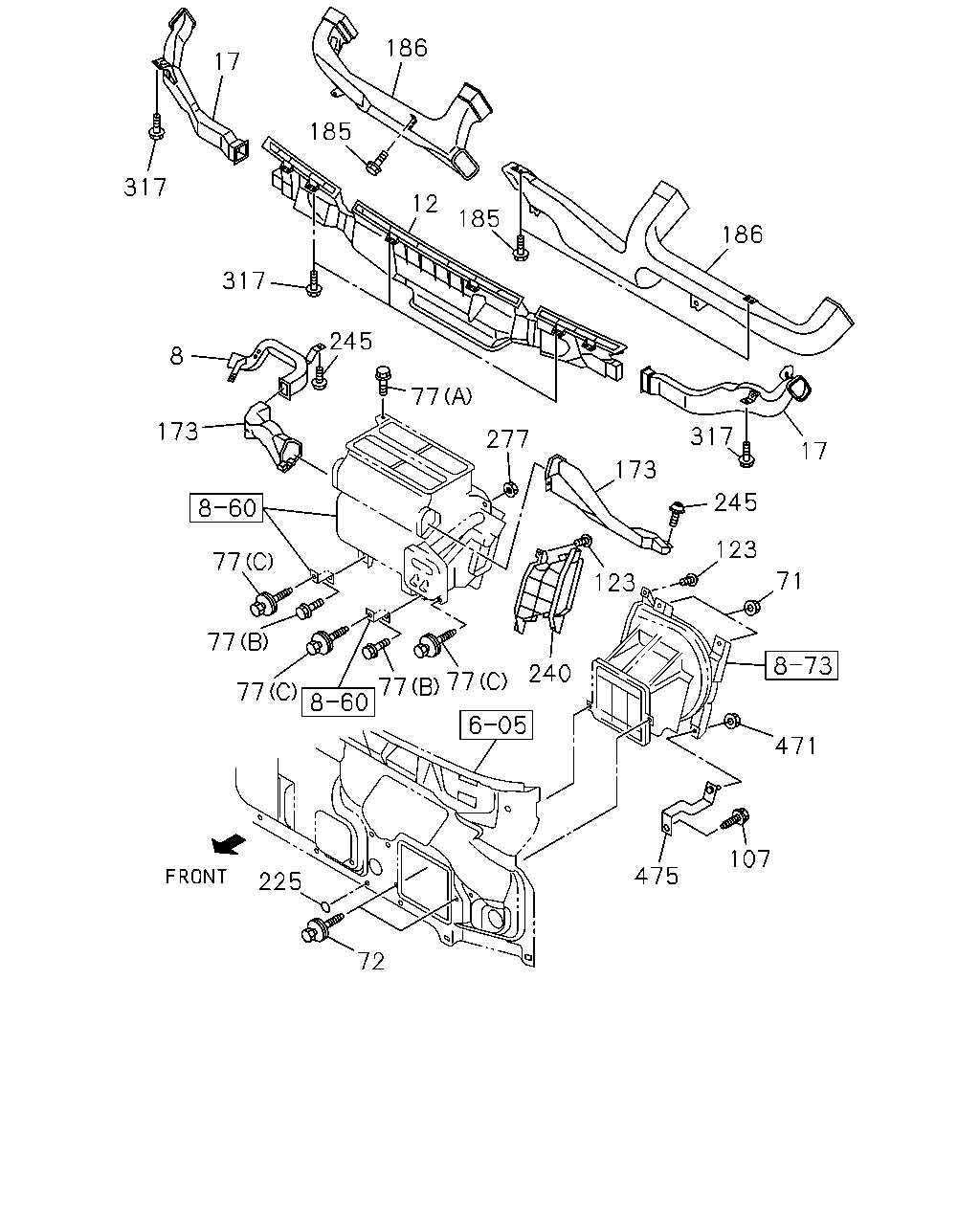

8-40 — HEATER SYSTEM
(#22280) — 36 parça
◀
[840A] DUCT (30 parça)
[840A] OTHER PARTS (6 parça)
▶
17
71
471
123
123
245
317
277
77
77
77
77
77
77
240
245
317
317
17
185
185
186
12
173
173
107
475
72
225
186
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
8-97585-499-1
01
1
1103-1410
8
DUCT; HTR AIR,DRIVER FOOT
8-98290-098-0
01
1
1411-
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1103-
17
NOZZLE; DEFROSTER,SIDE
8-98040-018-1
01
1
1103-
17
NOZZLE; DEFROSTER,SIDE
8-98040-013-1
01
1
1103-
71
NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA
0-91180-106-0
02
1
1103-
72
BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1103-
77
BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1302-
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE THA
0-28650-616-0
01
1
1103-
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE THA
0-28650-620-0
02
1
1103-
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1103-1301
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1302-
107
BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1103-
123
SCREW; DUCT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1103-
173
DUCT; FOOT,HTR
8-97585-506-2
01
1
1103-
173
DUCT; FOOT,HTR
8-98036-922-2
01
1
1103-1410
173
DUCT; FOOT,HTR
8-98290-097-0
01
1
1411-
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1103-
186
DUCT; VENTILATOR
8-97585-489-4
01
1
1103-1410
186
DUCT; VENTILATOR
8-98285-574-0
01
1
1411-
186
DUCT; VENTILATOR
8-98174-737-0
01
1
1103-1410
186
DUCT; VENTILATOR
8-98285-571-0
01
1
1411-
225
SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK THA
1-76798-019-0
01
1
1305-
240
DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98041-402-1
01
1
1103-
245
CLIP; FOOT DUCT
8-98056-059-0
03
1
1103-1410
245
CLIP; FOOT DUCT
8-98056-059-0
04
1
1411-
277
NUT; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA
0-91180-106-0
01
1
1103-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1103-
471
NUT; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA
0-91180-106-0
01
1
1103-
475
BRACKET; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98043-500-1
01
1
1103-
223
50
476
206
407
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
THA
8-97925-112-0
01
1
1103-
206
GROMMET; A/C PIPE TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98019-649-0
01
1
1103-
206
GROMMET; A/C PIPE TO BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-97037-392-0
01
1
1103-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1103-
407
JOINT; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98041-758-0
01
1
1103-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1103-
