Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#2228) — 252 parça

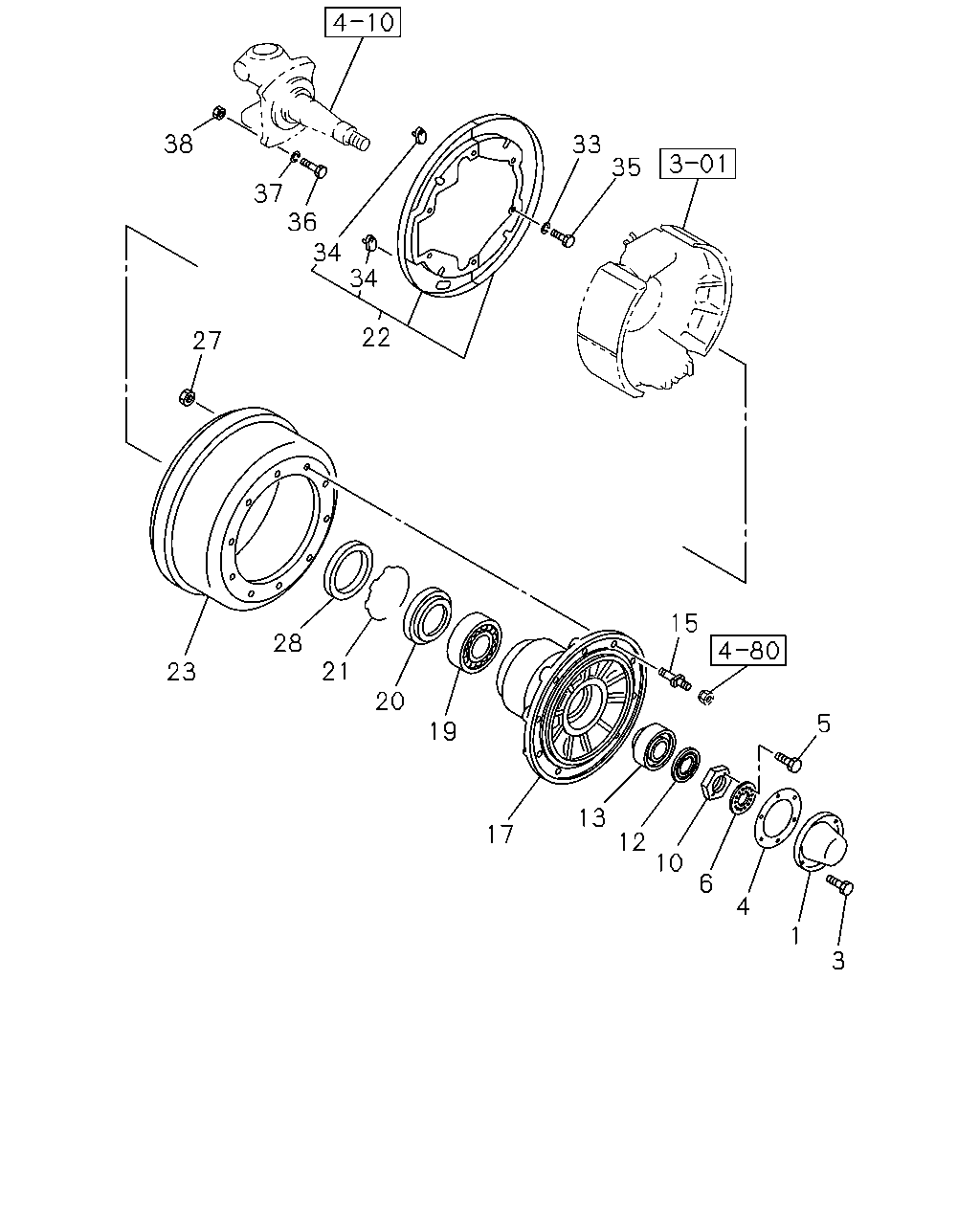

38 33 35 37 36 34 34 22 27 15 28 21 23 20 5 19 13 17 12 10 6 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=156	9-42313-123-2	02	1	9101-0107	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE F063<FS7> OD=156	9-42313-123-2	02	1	0108-0407	●	●
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	0408-	●	●
1	CAP; HUB,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=136	1-42313-007-1	02	1	9101-0107	●	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F063<FS7> OD=136	1-42313-007-1	02	1	0108-0203	●	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F063<FS7> OD=136	1-42313-007-1	02	1	0204-0407	●
3	BOLT; HUB CAP,FRT WHEEL M8X14 W/LK WASHER	9-01900-814-0	12	1	9101-9204	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X14 W/LK WASHER	0-50040-814-0	12	1	9205-9509	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	9510-	●	●
4	GASKET; HUB CAP,FRT WHEEL BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-029-0	02	1	9101-9906	●	●
4	GASKET; HUB CAP,FRT WHEEL BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-185-0	02	1	9907-0107	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F063<FS7>	1-42319-185-1	02	1	0108-0407	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-1	02	1	0408-	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-028-0	02	1	9101-0107	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. FRONT AXLE F063<FS7>	1-42319-028-0	02	1	0108-0203	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. FRONT AXLE F063<FS7>	1-42319-028-0	02	1	0204-0407	●
5	BOLT; LK WASHER BUS BODY FRAME TYPE HEAVY DUTY<B2D> M6X16 W/LK WASHER	0-50040-616-0	04	1	9101-9403	●	●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9404-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-	●	●
5	BOLT; LK WASHER EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M6X16 W/LK WASHER	0-50040-616-0	06	1	9101-9403	●	●
6	WASHER; LK,FRT HUB BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=48	1-09533-012-1	02	1	9101-0107	●	●
6	WASHER; LK,FRT HUB FRONT AXLE F063<FS7> ID=48	1-09533-012-1	02	1	0108-0407	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0408-	●	●
6	WASHER; LK,FRT HUB EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=39	1-09841-003-0	02	1	9101-0107	●	●
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F063<FS7> ID=39	1-09841-003-0	02	1	0108-0203	●	●
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F063<FS7> ID=39	1-09841-003-0	02	1	0204-0407	●
10	NUT; FRT HUB BRG BUS BODY FRAME TYPE HEAVY DUTY<B2D> M48	1-09840-012-3	02	1	9101-0107	●	●
10	NUT; FRT HUB BRG FRONT AXLE F063<FS7> M48	1-09840-012-5	02	1	0108-0407	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0408-	●	●
10	NUT; FRT HUB BRG EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M39	1-09840-018-1	02	1	9101-9403	●	●
10	NUT; FRT HUB BRG EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M39	1-09840-019-1	02	1	9404-0107	●	●
10	NUT; FRT HUB BRG EXC. FRONT AXLE F063<FS7> M39	1-09840-019-1	02	1	0108-0203	●	●
10	NUT; FRT HUB BRG EXC. FRONT AXLE F063<FS7> M39	1-09840-019-1	02	1	0204-0407	●
12	WASHER; LK,FRT HUB BRG BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=48	1-09533-016-0	02	1	9101-0107	●	●
12	WASHER; LK,FRT HUB BRG FRONT AXLE F063<FS7> ID=48	1-09533-016-0	02	1	0108-0407	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	0408-	●	●
13	BEARING; HUB OUTER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> NSK	1-09812-084-0	02	1	9101-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-234-0	02	1	9810-0107	●	●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-234-0	02	1	0108-0407	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	0408-	●	●
13	BEARING; HUB OUTER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-085-0	02	1	9101-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> NSK	9-00093-146-0	02	1	9101-0107	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> NSK	9-00093-146-0	02	1	0108-0203	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> NSK	9-00093-146-0	02	1	0204-0407	●
13	BEARING; HUB OUTER,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	9-00093-147-1	02	1	9101-0107	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-147-1	02	1	0108-0203	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-147-1	02	1	0204-0407	●
15	PIN; WHEEL,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-047-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M20X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-047-0	08	1	0108-0407	●	●
15	PIN; WHEEL,FRT AXLE M20X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-047-0	08	1	0408-	●	●
15	PIN; WHEEL,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5,M22X55.5 RH THREAD	1-42331-047-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M20X37.5,M22X55.5 RH THREAD	1-42331-047-0	08	1	0108-0407	●	●
15	PIN; WHEEL,FRT AXLE M20X37.5,M22X55.5 RH THREAD	1-42331-047-0	08	1	0408-	●	●
15	PIN; WHEEL,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-058-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-058-0	08	1	0108-0203	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-058-0	08	1	0204-0407	●
15	PIN; WHEEL,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5,M22X49.5 RH THREAD	1-42331-058-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5,M22X49.5 RH THREAD	1-42331-058-0	08	1	0108-0203	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5,M22X49.5 RH THREAD	1-42331-058-0	08	1	0204-0407	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-047-2	02	1	9101-9211	●	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-111-0	02	1	9212-9404	●	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-109-0	02	1	9405-9506	●	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-128-2	02	1	9507-0107	●	●
17	HUB; FRT AXLE FRONT AXLE F063<FS7>	1-42312-128-2	02	1	0108-0407	●	●
17	HUB; FRT AXLE	1-42312-128-2	02	1	0408-	●	●
17	HUB; FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-037-1	02	1	9101-9211	●	●
17	HUB; FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-113-0	02	1	9212-0107	●	●
17	HUB; FRT AXLE EXC. FRONT AXLE F063<FS7>	1-42312-113-0	02	1	0108-0203	●	●
17	HUB; FRT AXLE EXC. FRONT AXLE F063<FS7>	1-42312-113-0	02	1	0204-0407	●
19	BEARING; HUB INNER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> NSK	1-09812-142-0	02	1	9101-9809	●	●
19	BEARING; HUB INNER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-231-0	02	1	9810-0107	●	●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-231-0	02	1	0108-0407	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	0408-	●	●
19	BEARING; HUB INNER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-143-0	02	1	9101-9809	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	9-00093-114-0	02	1	9101-0107	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-114-0	02	1	0108-0203	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-114-0	02	1	0204-0407	●
20	COVER; HUB BRG INNER BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-039-0	02	1	9101-0107	●	●
20	COVER; HUB BRG INNER FRONT AXLE F063<FS7>	1-42319-039-0	02	1	0108-0407	●	●
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	0408-	●	●
21	RING; SNAP,HUB BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-09587-017-0	02	1	9101-0107	●	●
21	RING; SNAP,HUB FRONT AXLE F063<FS7>	1-09587-017-0	02	1	0108-0407	●	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0408-	●	●
21	RING; SNAP,HUB EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=132	9-09950-164-0	02	1	9101-0107	●	●
21	RING; SNAP,HUB EXC. FRONT AXLE F063<FS7> OD=132	9-09950-164-0	02	1	0108-0203	●	●
21	RING; SNAP,HUB EXC. FRONT AXLE F063<FS7> OD=132	9-09950-164-0	02	1	0204-0407	●
22	COVER SET; FRT BRK DRUM BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-47151-458-1	02	1	9101-9604	●	●
22	COVER SET; FRT BRK DRUM BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> FRONT AXLE F063<FS7>	1-47151-458-1	02	1	9605-0203	●	●
22	COVER SET; FRT BRK DRUM	1-47151-458-1	02	1	0204-	●	●
22	COVER SET; FRT BRK DRUM EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-47151-458-1	02	1	9101-9604	●	●
22	COVER SET; FRT BRK DRUM EXC. FRONT AXLE F063<FS7>	1-47151-458-1	02	1	9605-0203	●	●
22	COVER SET; FRT BRK DRUM FRONT AXLE F063<FS7> EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>	1-47151-458-1	02	1	9605-0203	●	●
23	DRUM; BRK,FRT H=195	1-42315-208-2	02	1	9101-	●	●
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-037-0	16	1	9101-	●	●
28	SEAL; OIL,FRT HUB BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=140	1-09625-041-0	02	1	9101-0107	●	●
28	SEAL; OIL,FRT HUB FRONT AXLE F063<FS7> OD=140	1-09625-041-0	02	1	0108-0407	●	●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	0408-	●	●
28	SEAL; OIL,FRT HUB EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=128	1-09625-129-0	02	1	9101-0107	●	●
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F063<FS7> OD=128	1-09625-129-0	02	1	0108-0203	●	●
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F063<FS7> OD=128	1-09625-129-0	02	1	0204-0407	●
33	WASHER; LK,DRUM COVER ID=10.2	9-09150-510-0	12	1	9101-9108	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9101-9501	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●
35	BOLT; DRUM COVER EXC. FRONT AXLE F063<FS7> M10X16 W/LK WASHER	0-50041-016-0	24	1	0309-0407	●
35	BOLT; DRUM COVER M10X16	9-02041-016-0	12	1	9101-9108	●	●
35	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9109-9204	●	●
35	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9410-9410	●	●
35	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9410-0308	●	●
35	BOLT; DRUM COVER FRONT AXLE F063<FS7> M10X16 W/LK WASHER	0-50041-016-0	12	1	0309-0407	●	●
35	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0408-	●	●
36	BOLT; BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16X52	1-09044-001-2	04	1	9101-0107	●	●
36	BOLT; BACK PLATE M16X52	1-09044-001-2	04	1	0108-	●	●
36	BOLT; BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16X61	1-09040-058-1	04	1	9101-0107	●	●
36	BOLT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16X61	1-09040-058-1	04	1	0108-0203	●	●
36	BOLT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16X61	1-09040-058-1	04	1	0204-0407	●
37	WASHER; LK,BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-516-0	04	1	9101-9401	●	●
37	WASHER; LK,BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-816-0	04	1	9402-0107	●	●
37	WASHER; LK,BACK PLATE FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	04	1	0108-0407	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	04	1	0408-	●	●
37	WASHER; LK,BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-616-0	08	1	9101-9401	●	●
37	WASHER; LK,BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-816-0	08	1	9402-0107	●	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	08	1	0108-0203	●	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	08	1	0204-0407	●
38	NUT; BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16	9-99110-416-0	04	1	9101-0107	●	●
38	NUT; BACK PLATE FRONT AXLE F063<FS7> M16	9-99110-416-0	04	1	0108-0407	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	04	1	0408-	●	●
38	NUT; BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16	9-99110-416-0	08	1	9101-0107	●	●
38	NUT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16	9-99110-416-0	08	1	0108-0203	●	●
38	NUT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16	9-99110-416-0	08	1	0204-0407	●

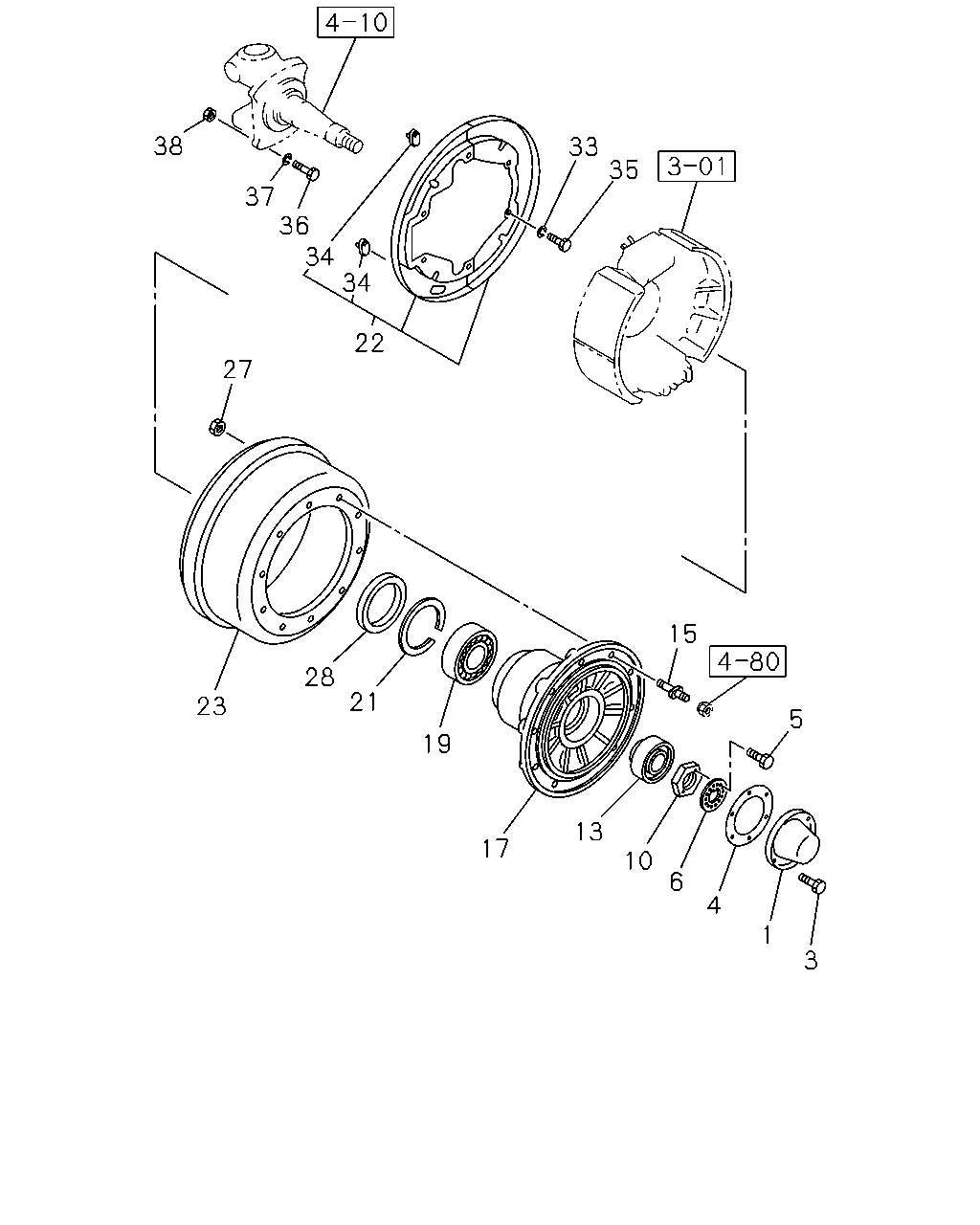

38 33 35 37 36 34 34 22 27 15 28 21 23 5 19 13 17 10 6 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=156	9-42313-123-2	02	1	9101-0107	●	●
1	CAP; HUB,FRT AXLE FRONT AXLE F063<FS7> OD=156	9-42313-123-2	02	1	0108-0407	●	●
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	0408-	●	●
1	CAP; HUB,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=136	1-42313-007-1	02	1	9101-0107	●	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F063<FS7> OD=136	1-42313-007-1	02	1	0108-0203	●	●
1	CAP; HUB,FRT AXLE EXC. FRONT AXLE F063<FS7> OD=136	1-42313-007-1	02	1	0204-0407	●
3	BOLT; HUB CAP,FRT WHEEL M8X14 W/LK WASHER	9-01900-814-0	12	1	9101-9204	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X14 W/LK WASHER	0-50040-814-0	12	1	9205-9509	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28080-812-0	12	1	9510-	●	●
4	GASKET; HUB CAP,FRT WHEEL BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-029-0	02	1	9101-9906	●	●
4	GASKET; HUB CAP,FRT WHEEL BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-185-0	02	1	9907-0107	●	●
4	GASKET; HUB CAP,FRT WHEEL FRONT AXLE F063<FS7>	1-42319-185-1	02	1	0108-0407	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-1	02	1	0408-	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42319-028-0	02	1	9101-0107	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. FRONT AXLE F063<FS7>	1-42319-028-0	02	1	0108-0203	●	●
4	GASKET; HUB CAP,FRT WHEEL EXC. FRONT AXLE F063<FS7>	1-42319-028-0	02	1	0204-0407	●
5	BOLT; LK WASHER BUS BODY FRAME TYPE HEAVY DUTY<B2D> M6X16 W/LK WASHER	0-50040-616-0	04	1	9101-9403	●	●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9404-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-	●	●
5	BOLT; LK WASHER EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M6X16 W/LK WASHER	0-50040-616-0	06	1	9101-9403	●	●
6	WASHER; LK,FRT HUB BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=48	1-09533-012-1	02	1	9101-0107	●	●
6	WASHER; LK,FRT HUB FRONT AXLE F063<FS7> ID=48	1-09533-012-1	02	1	0108-0407	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	0408-	●	●
6	WASHER; LK,FRT HUB EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=39	1-09841-003-0	02	1	9101-0107	●	●
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F063<FS7> ID=39	1-09841-003-0	02	1	0108-0203	●	●
6	WASHER; LK,FRT HUB EXC. FRONT AXLE F063<FS7> ID=39	1-09841-003-0	02	1	0204-0407	●
10	NUT; FRT HUB BRG BUS BODY FRAME TYPE HEAVY DUTY<B2D> M48	1-09840-012-3	02	1	9101-0107	●	●
10	NUT; FRT HUB BRG FRONT AXLE F063<FS7> M48	1-09840-012-5	02	1	0108-0407	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	0408-	●	●
10	NUT; FRT HUB BRG EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M39	1-09840-018-1	02	1	9101-9403	●	●
10	NUT; FRT HUB BRG EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M39	1-09840-019-1	02	1	9404-0107	●	●
10	NUT; FRT HUB BRG EXC. FRONT AXLE F063<FS7> M39	1-09840-019-1	02	1	0108-0203	●	●
10	NUT; FRT HUB BRG EXC. FRONT AXLE F063<FS7> M39	1-09840-019-1	02	1	0204-0407	●
13	BEARING; HUB OUTER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> NSK	1-09812-084-0	02	1	9101-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-234-0	02	1	9810-0107	●	●
13	BEARING; HUB OUTER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-234-0	02	1	0108-0407	●	●
13	BEARING; HUB OUTER,FRT AXLE KOYO	1-09812-234-0	02	1	0408-	●	●
13	BEARING; HUB OUTER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-085-0	02	1	9101-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> NSK	9-00093-146-0	02	1	9101-0107	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> NSK	9-00093-146-0	02	1	0108-0203	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> NSK	9-00093-146-0	02	1	0204-0407	●
13	BEARING; HUB OUTER,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	9-00093-147-1	02	1	9101-0107	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-147-1	02	1	0108-0203	●	●
13	BEARING; HUB OUTER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-147-1	02	1	0204-0407	●
15	PIN; WHEEL,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-047-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M20X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-047-0	08	1	0108-0407	●	●
15	PIN; WHEEL,FRT AXLE M20X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-047-0	08	1	0408-	●	●
15	PIN; WHEEL,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5,M22X55.5 RH THREAD	1-42331-047-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE FRONT AXLE F063<FS7> M20X37.5,M22X55.5 RH THREAD	1-42331-047-0	08	1	0108-0407	●	●
15	PIN; WHEEL,FRT AXLE M20X37.5,M22X55.5 RH THREAD	1-42331-047-0	08	1	0408-	●	●
15	PIN; WHEEL,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-058-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-058-0	08	1	0108-0203	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-058-0	08	1	0204-0407	●
15	PIN; WHEEL,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M20X37.5,M22X49.5 RH THREAD	1-42331-058-0	08	1	9101-0107	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5,M22X49.5 RH THREAD	1-42331-058-0	08	1	0108-0203	●	●
15	PIN; WHEEL,FRT AXLE EXC. FRONT AXLE F063<FS7> M20X37.5,M22X49.5 RH THREAD	1-42331-058-0	08	1	0204-0407	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-047-2	02	1	9101-9211	●	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-111-0	02	1	9212-9404	●	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-109-0	02	1	9405-9506	●	●
17	HUB; FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-128-2	02	1	9507-0107	●	●
17	HUB; FRT AXLE FRONT AXLE F063<FS7>	1-42312-128-2	02	1	0108-0407	●	●
17	HUB; FRT AXLE	1-42312-128-2	02	1	0408-	●	●
17	HUB; FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-037-1	02	1	9101-9211	●	●
17	HUB; FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-42312-113-0	02	1	9212-0107	●	●
17	HUB; FRT AXLE EXC. FRONT AXLE F063<FS7>	1-42312-113-0	02	1	0108-0203	●	●
17	HUB; FRT AXLE EXC. FRONT AXLE F063<FS7>	1-42312-113-0	02	1	0204-0407	●
19	BEARING; HUB INNER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> NSK	1-09812-142-0	02	1	9101-9809	●	●
19	BEARING; HUB INNER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-231-0	02	1	9810-0107	●	●
19	BEARING; HUB INNER,FRT AXLE FRONT AXLE F063<FS7> KOYO	1-09812-231-0	02	1	0108-0407	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	1-09812-231-0	02	1	0408-	●	●
19	BEARING; HUB INNER,FRT AXLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	1-09812-143-0	02	1	9101-9809	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> KOYO	9-00093-114-0	02	1	9101-0107	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-114-0	02	1	0108-0203	●	●
19	BEARING; HUB INNER,FRT AXLE EXC. FRONT AXLE F063<FS7> KOYO	9-00093-114-0	02	1	0204-0407	●
21	RING; SNAP,HUB BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-09587-017-0	02	1	9101-0107	●	●
21	RING; SNAP,HUB FRONT AXLE F063<FS7>	1-09587-017-0	02	1	0108-0407	●	●
21	RING; SNAP,HUB	1-09587-017-0	02	1	0408-	●	●
21	RING; SNAP,HUB EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=132	9-09950-164-0	02	1	9101-0107	●	●
21	RING; SNAP,HUB EXC. FRONT AXLE F063<FS7> OD=132	9-09950-164-0	02	1	0108-0203	●	●
21	RING; SNAP,HUB EXC. FRONT AXLE F063<FS7> OD=132	9-09950-164-0	02	1	0204-0407	●
22	COVER SET; FRT BRK DRUM BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-47151-458-1	02	1	9101-9604	●	●
22	COVER SET; FRT BRK DRUM BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> FRONT AXLE F063<FS7>	1-47151-458-1	02	1	9605-0203	●	●
22	COVER SET; FRT BRK DRUM	1-47151-458-1	02	1	0204-	●	●
22	COVER SET; FRT BRK DRUM EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D>	1-47151-458-1	02	1	9101-9604	●	●
22	COVER SET; FRT BRK DRUM EXC. FRONT AXLE F063<FS7>	1-47151-458-1	02	1	9605-0203	●	●
22	COVER SET; FRT BRK DRUM FRONT AXLE F063<FS7> EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>	1-47151-458-1	02	1	9605-0203	●	●
23	DRUM; BRK,FRT H=195	1-42315-208-2	02	1	9101-	●	●
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-037-0	16	1	9101-	●	●
28	SEAL; OIL,FRT HUB BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=140	1-09625-041-0	02	1	9101-0107	●	●
28	SEAL; OIL,FRT HUB FRONT AXLE F063<FS7> OD=140	1-09625-041-0	02	1	0108-0407	●	●
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	0408-	●	●
28	SEAL; OIL,FRT HUB EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> OD=128	1-09625-129-0	02	1	9101-0107	●	●
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F063<FS7> OD=128	1-09625-129-0	02	1	0108-0203	●	●
28	SEAL; OIL,FRT HUB EXC. FRONT AXLE F063<FS7> OD=128	1-09625-129-0	02	1	0204-0407	●
33	WASHER; LK,DRUM COVER ID=10.2	9-09150-510-0	12	1	9101-9108	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9101-9501	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-	●	●
35	BOLT; DRUM COVER EXC. FRONT AXLE F063<FS7> M10X16 W/LK WASHER	0-50041-016-0	24	1	0309-0407	●
35	BOLT; DRUM COVER M10X16	9-02041-016-0	12	1	9101-9108	●	●
35	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9109-9204	●	●
35	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9410-9410	●	●
35	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9410-0308	●	●
35	BOLT; DRUM COVER FRONT AXLE F063<FS7> M10X16 W/LK WASHER	0-50041-016-0	12	1	0309-0407	●	●
35	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0408-	●	●
36	BOLT; BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16X52	1-09044-001-2	04	1	9101-0107	●	●
36	BOLT; BACK PLATE M16X52	1-09044-001-2	04	1	0108-	●	●
36	BOLT; BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16X61	1-09040-058-1	04	1	9101-0107	●	●
36	BOLT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16X61	1-09040-058-1	04	1	0108-0203	●	●
36	BOLT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16X61	1-09040-058-1	04	1	0204-0407	●
37	WASHER; LK,BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-516-0	04	1	9101-9401	●	●
37	WASHER; LK,BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-816-0	04	1	9402-0107	●	●
37	WASHER; LK,BACK PLATE FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	04	1	0108-0407	●	●
37	WASHER; LK,BACK PLATE ID=16.2	9-09150-816-0	04	1	0408-	●	●
37	WASHER; LK,BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-616-0	08	1	9101-9401	●	●
37	WASHER; LK,BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> ID=16.2	9-09150-816-0	08	1	9402-0107	●	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	08	1	0108-0203	●	●
37	WASHER; LK,BACK PLATE EXC. FRONT AXLE F063<FS7> ID=16.2	9-09150-816-0	08	1	0204-0407	●
38	NUT; BACK PLATE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16	9-99110-416-0	04	1	9101-0107	●	●
38	NUT; BACK PLATE FRONT AXLE F063<FS7> M16	9-99110-416-0	04	1	0108-0407	●	●
38	NUT; BACK PLATE M16	9-99110-416-0	04	1	0408-	●	●
38	NUT; BACK PLATE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M16	9-99110-416-0	08	1	9101-0107	●	●
38	NUT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16	9-99110-416-0	08	1	0108-0203	●	●
38	NUT; BACK PLATE EXC. FRONT AXLE F063<FS7> M16	9-99110-416-0	08	1	0204-0407	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
