Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#22278) — 27 parça
◀
[826A] CAB SIDE NO.3 (9 parça)
[826A] CAB SIDE NO.1 (4 parça)
[826A] CAB SIDE NO.2 (9 parça)
[826A] FRAME SIDE (5 parça)
▶
380
491
452
328
453
672
437
672

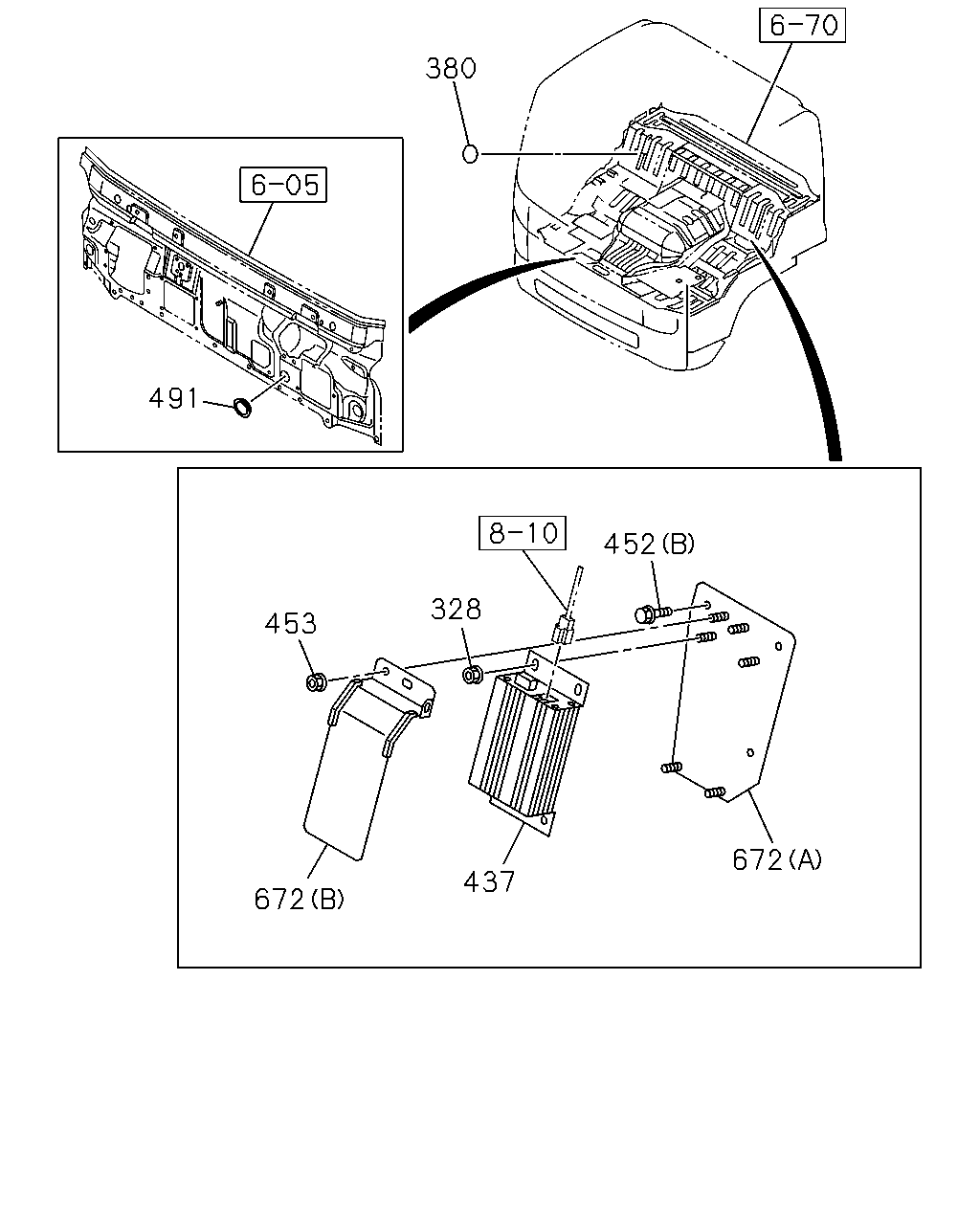

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
328
NUT
M6 FLANGE THA
0-91180-106-0
06
1
1103-
380
SEAL
OD=25 BLACK THA
1-76798-019-0
01
1
1103-
437
CONVERTER; DC
8-97254-654-0
01
1
1103-
452
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
02
1
1103-
452
BOLT; BRKT
(B) M6X25 FLANGE THA
0-28650-625-0
03
1
1103-
453
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
02
1
1103-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1103-
672
BRACKET; CONV
(A)
8-97617-472-3
01
1
1103-
672
BRACKET; CONV
(B)
8-98092-601-0
01
1
1103-
221
1
21

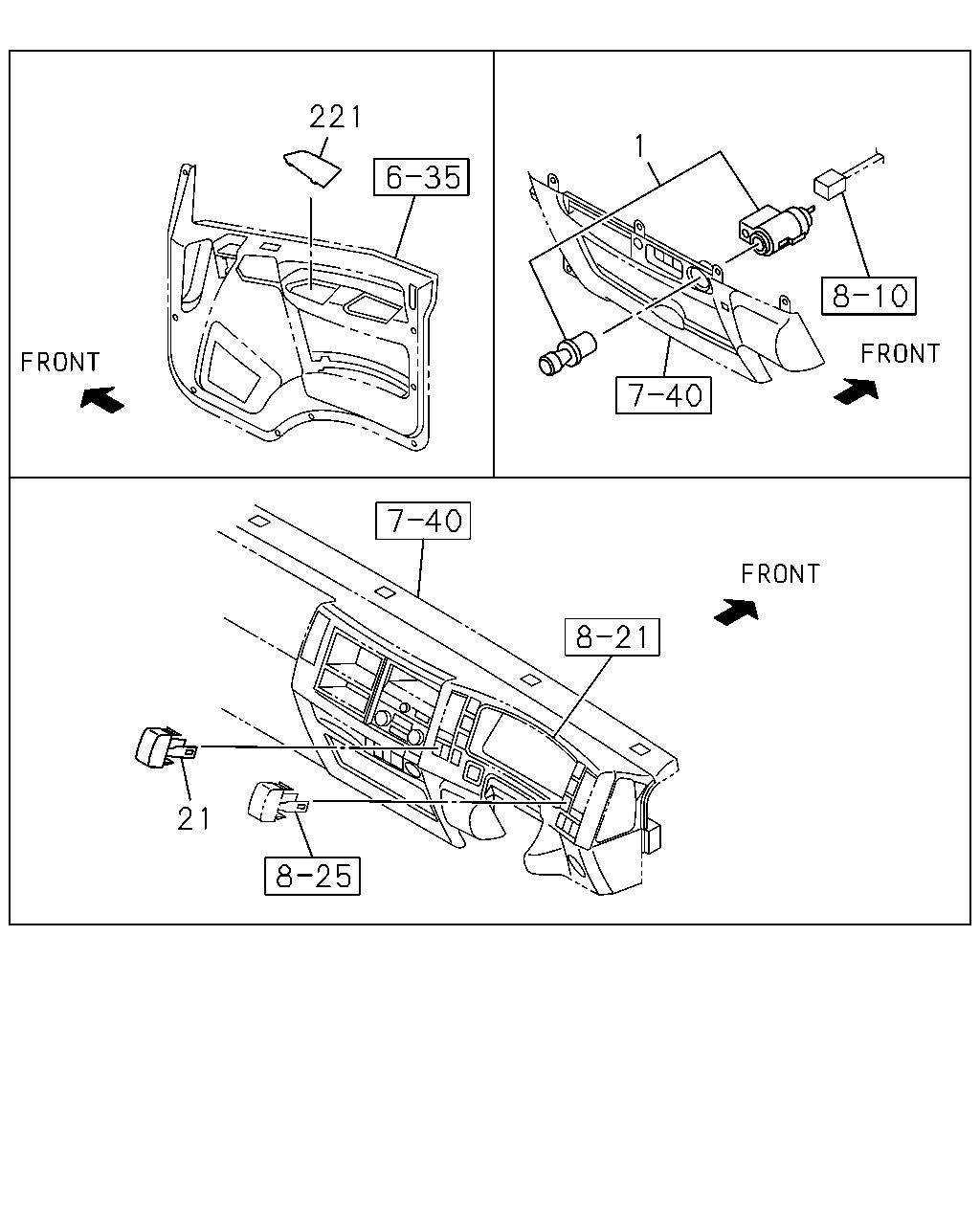

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1103-
21
COVER; HOLE
8-98025-954-1
01
1
1103-
221
COVER; HOLE,DOOR LOCK SW
8-98029-915-2
01
1
1103-
221
COVER; HOLE,DOOR LOCK SW
8-98029-916-2
01
1
1103-
69
264
758
452
485
657
68

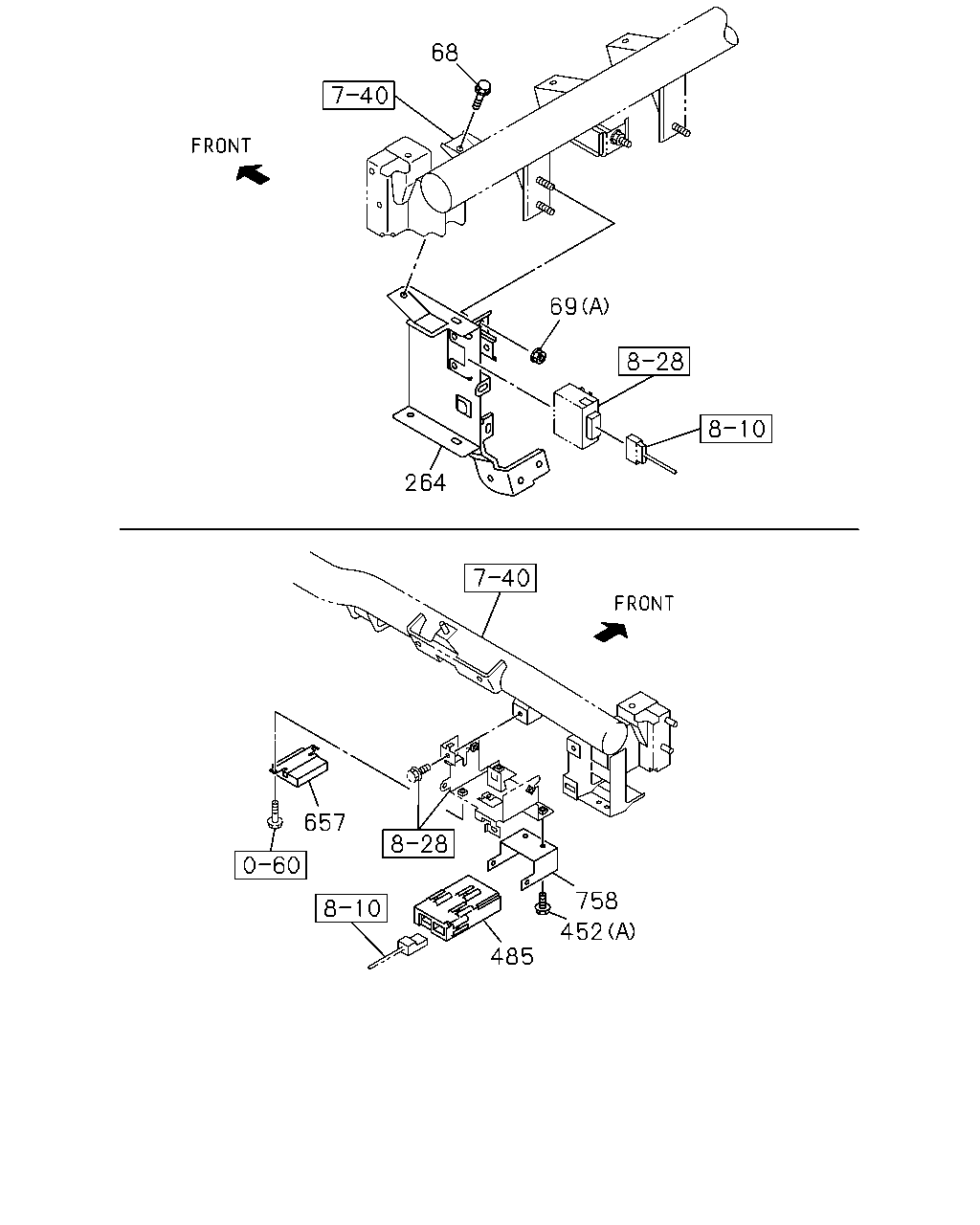

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
01
1
1103-
69
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1103-
69
NUT; BRKT
(B) M8 FLANGE THA
0-91180-108-0
02
1
1103-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1103-
452
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
02
1
1103-
452
BOLT; BRKT
(B) M6X25 FLANGE THA
0-28650-625-0
03
1
1103-
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1103-
657
CONTROL UNIT; MIMAMORI
8-98127-629-5
01
1
1103-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1103-
328
777
602
69

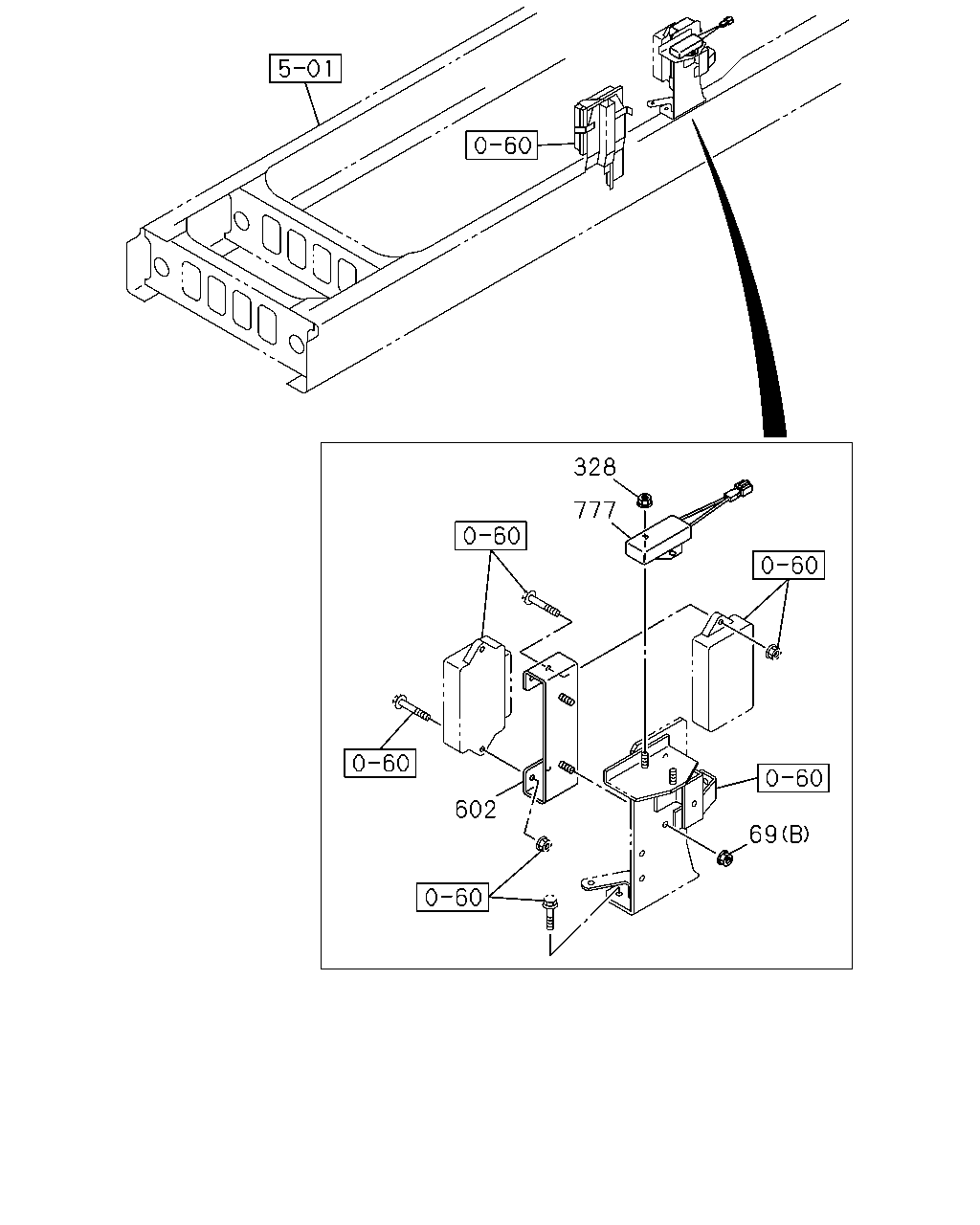

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
NUT; BRKT
(A) M6 FLANGE THA
0-91180-106-0
01
1
1103-
69
NUT; BRKT
(B) M8 FLANGE THA
0-91180-108-0
02
1
1103-
328
NUT
M6 FLANGE THA
0-91180-106-0
06
1
1103-
602
BRACKET ASM; ELEC UNIT,CNG
8-97630-746-0
01
1
1103-
777
RESISTOR; EDU
8-98095-341-0
01
1
1103-
