Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#22277) — 31 parça
◀

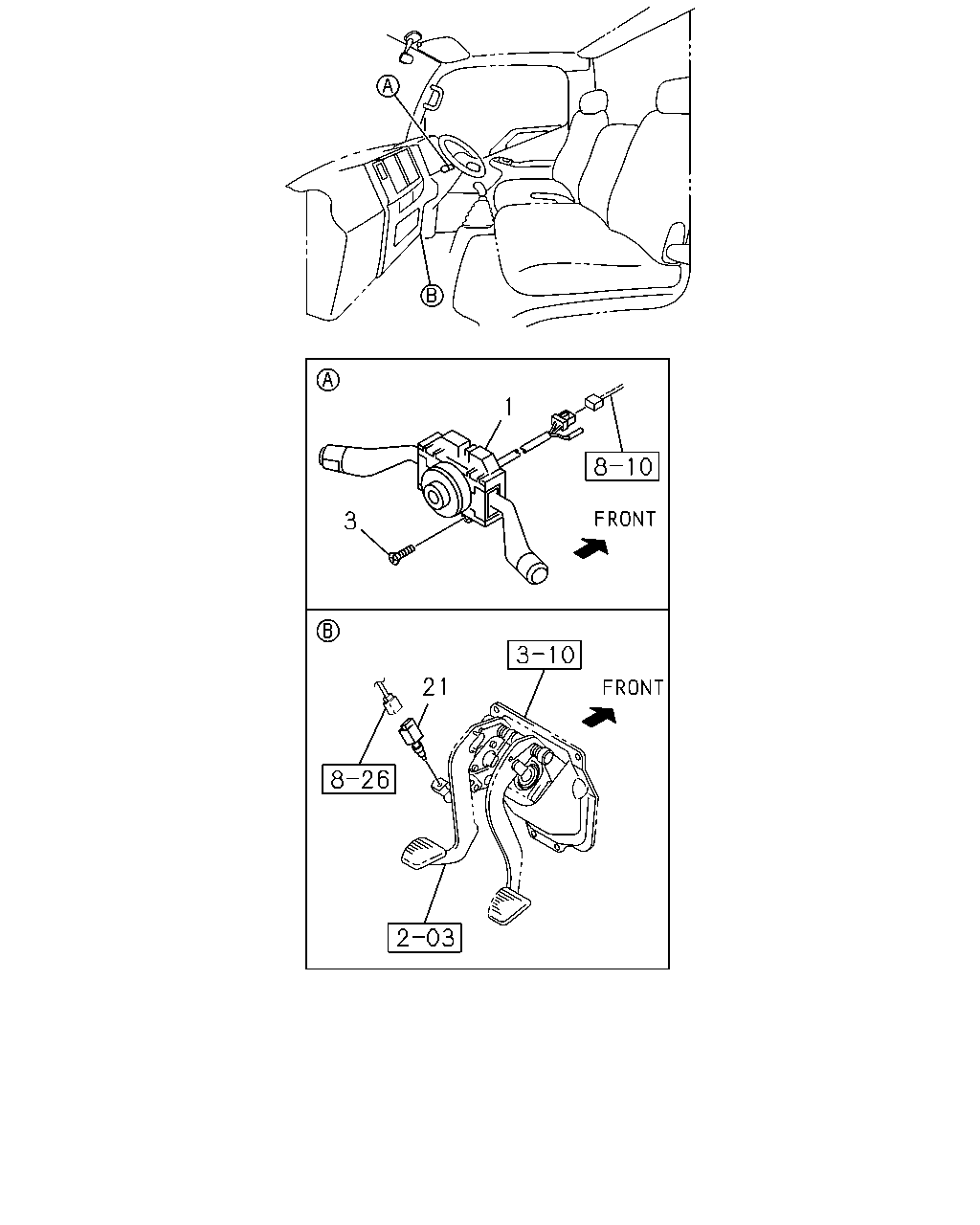

[825A] SWITCH NO.1 (4 parça)

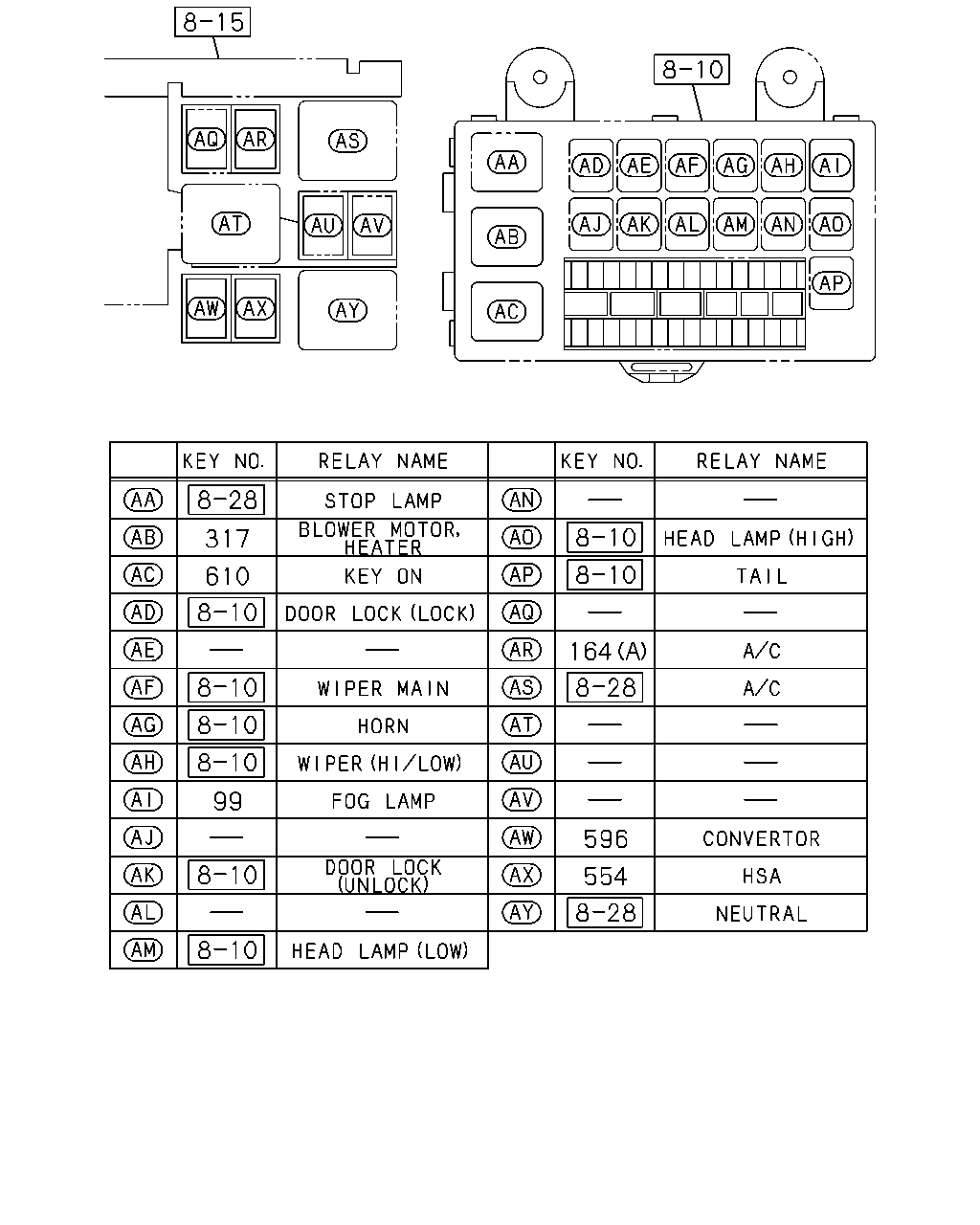

[825A] RELAY;FRAME HARNESS (4 parça)

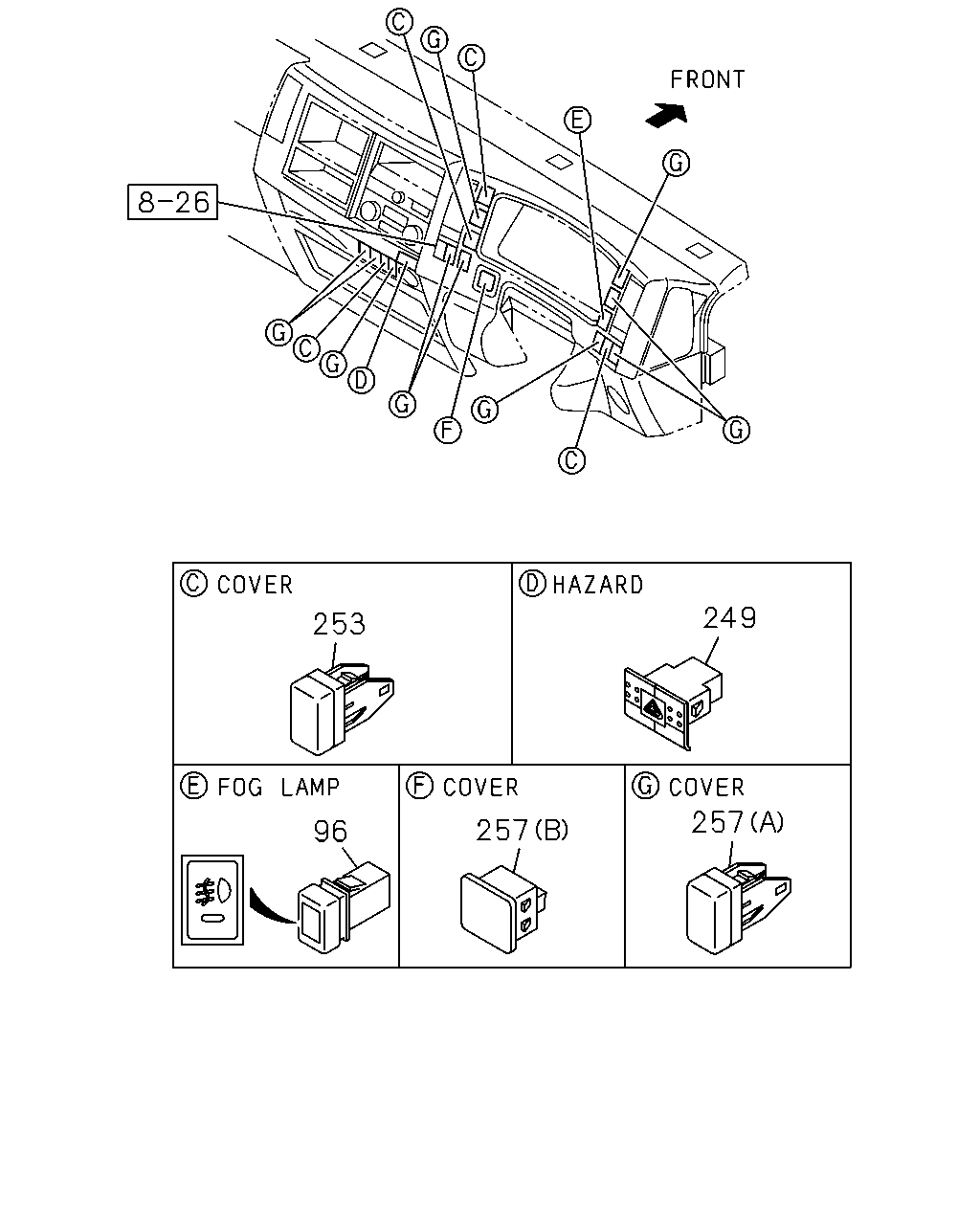

[825A] SWITCH NO.2 (9 parça)
[825A] RELAY;CAB HARNESS (7 parça)
[825A] OTHER PARTS (7 parça)
▶
1
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98060-302-1
01
1
1103-1310
1
SWITCH; COMB
8-98243-704-0
01
1
1311-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1103-
21
SWITCH; CLU
8-97358-248-0
01
1
1103-
164
593
575
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 24V 10A PANASONIC THA
8-97173-035-1
01
1
1103-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
575
RELAY; GAS VLV
24V 10A PANASONIC
8-98167-173-0
01
1
1103-
593
RELAY; GAS CUT
24V 10A PANASONIC THA
8-97173-035-1
01
1
1103-
249
253
257
257
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
96
SWITCH; FOG LAMP
THA
8-97387-031-3
01
1
1109-
96
SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
1103-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1109-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
04
1
1103-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
(A)
8-98025-954-1
09
1
1103-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1103-
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
1103-
317
610
164
99
596
554
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
99
RELAY; FOG LAMP
24V 10A PANASONIC THA
8-97173-035-1
01
1
1103-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 24V 10A PANASONIC THA
8-97173-035-1
01
1
1103-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
317
RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
554
RELAY; HSA
24V 10A PANASONIC THA
8-97173-035-1
01
1
1103-
596
RELAY; CONVERTOR
24V 10A PANASONIC THA
8-97173-035-1
01
1
1103-
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
237
30
29
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1103-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1103-
237
NUT
M8 FLANGE THA
0-91180-108-0
01
1
1103-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1103-
257
COVER; HOLE,SW
(A)
8-98025-954-1
09
1
1103-
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
1103-
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
1103-
