◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11351 - FVM CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#22275) — 207 parça

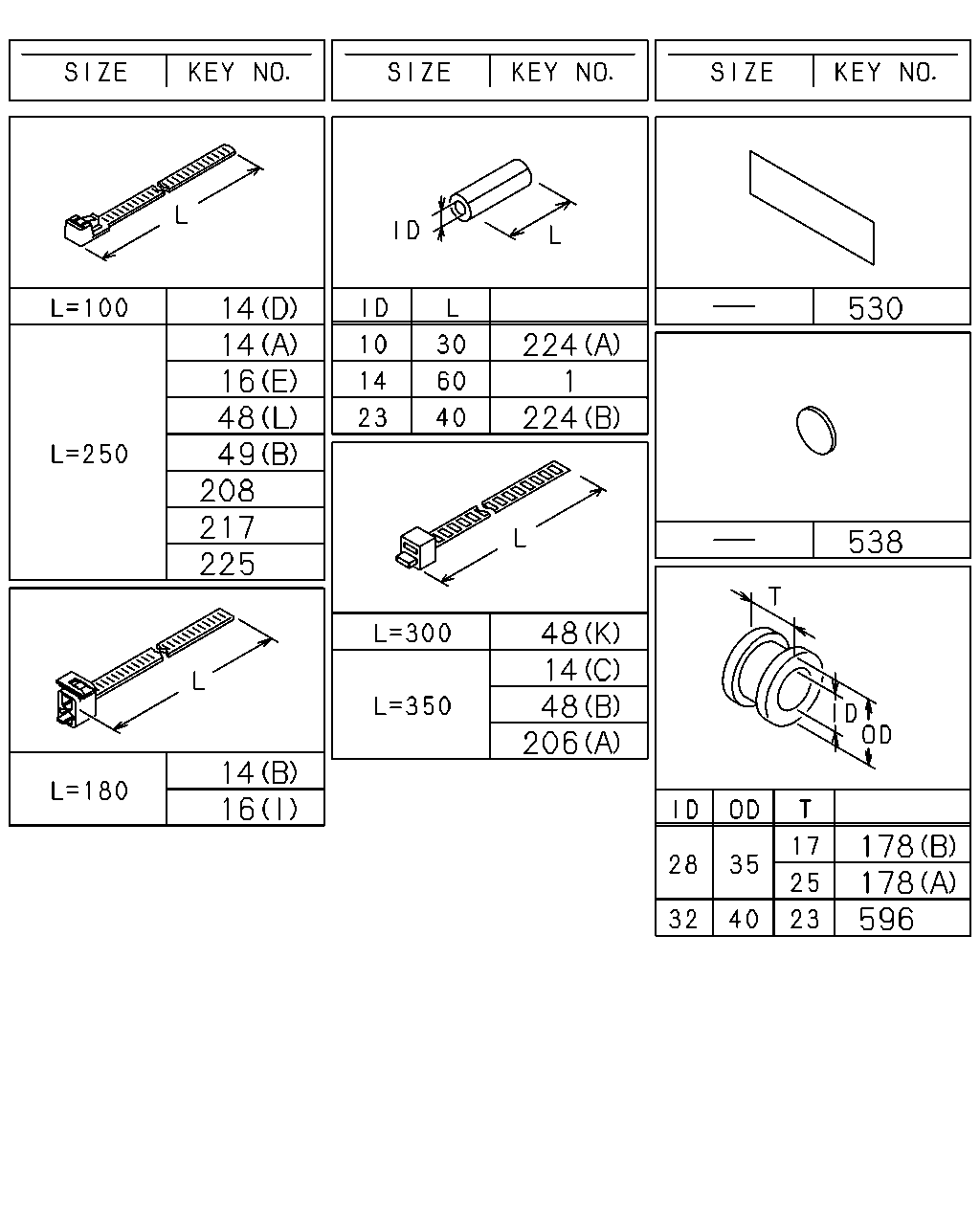

çizim 134708
530 14 14 16 48 49 208 217 225 224 1 224 538 48 14 48 206 14 16 178 178 596
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
ID=14 OD=18 L=60 		1-09337-030-0 03 1 1103-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 08 1 1103-1209
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 08 1 1210-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1103-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1103-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 06 1 1103-1106
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 09 1 1107-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1206-
14 CLIP; BAND,HARNESS
(D) L=100 		5-09707-036-1 03 1 1103-1106
14 CLIP; BAND,HARNESS
(E) L=140 THA 		8-97122-360-0 01 1 1103-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1103-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1103-
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1103-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1103-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1103-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1103-
16 CLIP; HARNESS
(P) ID=25 H=30 L=35 		1-09700-944-0 01 1 1103-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1103-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1103-
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-
16 CLIP; HARNESS
(E) L=250 THA 		5-09707-030-1 05 1 1103-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1103-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1103-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1207-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 		1-09700-466-0 07 1 1203-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1103-1109
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 24 1 1110-1211
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 23 1 1212-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 26 1 1103-1109
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1110-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1110-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 05 1 1103-1206
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1207-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1103-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1103-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1103-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1103-
48 CLIP; FRAME HARNESS
(K) L=300 		1-09707-001-1 01 1 1103-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(L) L=140 THA 		5-09707-031-1 02 1 1103-
48 CLIP; FRAME HARNESS
(J) ID=11 L=61 		1-09700-484-0 03 1 1103-1109
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM<63W> (J) ID=11 L=61 		1-09700-484-0 03 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (J) ID=11 L=61 		1-09700-484-0 04 1 1110-
49 CLIP; GEN HARNESS
(A) ID=19 L=20 		0-95235-836-0 04 1 1103-
49 CLIP; GEN HARNESS
(B) L=250 THA 		5-09707-030-1 01 1 1103-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1103-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1103-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1103-
206 CLIP; FUEL TANK HARNESS
(A) L=350 		1-09707-183-0 06 1 1103-
206 CLIP; FUEL TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 06 1 1103-
208 CLIP; HARNESS,MAG VLV
L=250 THA 		5-09707-030-1 01 1 1103-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 02 1 1103-
224 SLEEVE; RUBBER,HARNESS
(B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 1103-
224 SLEEVE; RUBBER,HARNESS
(A) ID=10 OD=14 L=30 		9-09956-682-0 01 1 1103-
225 CLIP; AIR TANK HARNESS
L=250 THA 		5-09707-030-1 04 1 1103-
530 SEAL; HARNESS
180X40 		1-72498-019-1 19 1 1103-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1306-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1103-
596 GROMMET
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103-

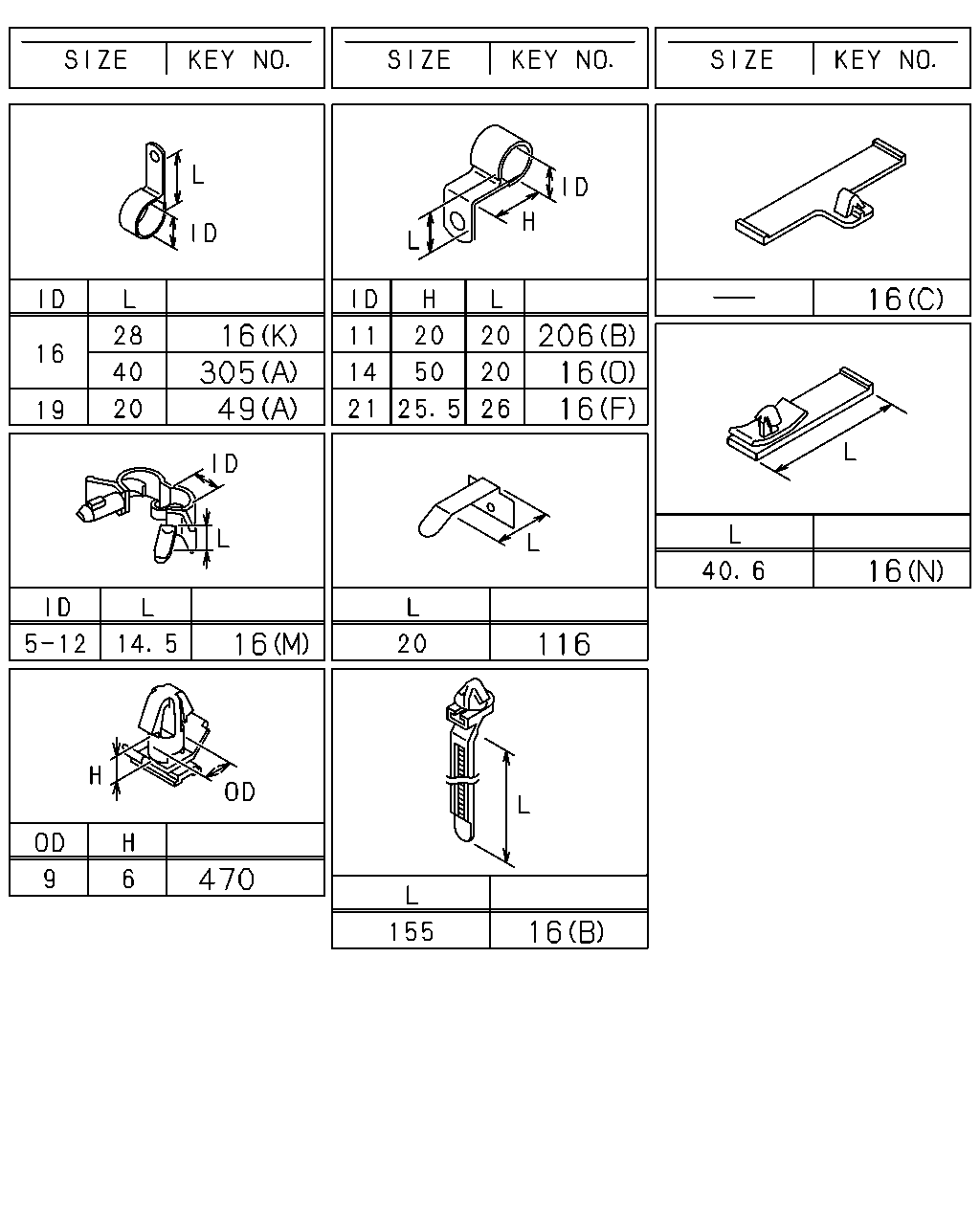

çizim 134720
16 16 305 49 206 16 16 16 16 116 470 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1103-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1103-
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1103-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1103-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1103-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1103-
16 CLIP; HARNESS
(P) ID=25 H=30 L=35 		1-09700-944-0 01 1 1103-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1103-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1103-
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-
16 CLIP; HARNESS
(E) L=250 THA 		5-09707-030-1 05 1 1103-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1103-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1103-
49 CLIP; GEN HARNESS
(A) ID=19 L=20 		0-95235-836-0 04 1 1103-
49 CLIP; GEN HARNESS
(B) L=250 THA 		5-09707-030-1 01 1 1103-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1103-
206 CLIP; FUEL TANK HARNESS
(A) L=350 		1-09707-183-0 06 1 1103-
206 CLIP; FUEL TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 06 1 1103-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1103-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1103-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1103-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1103-

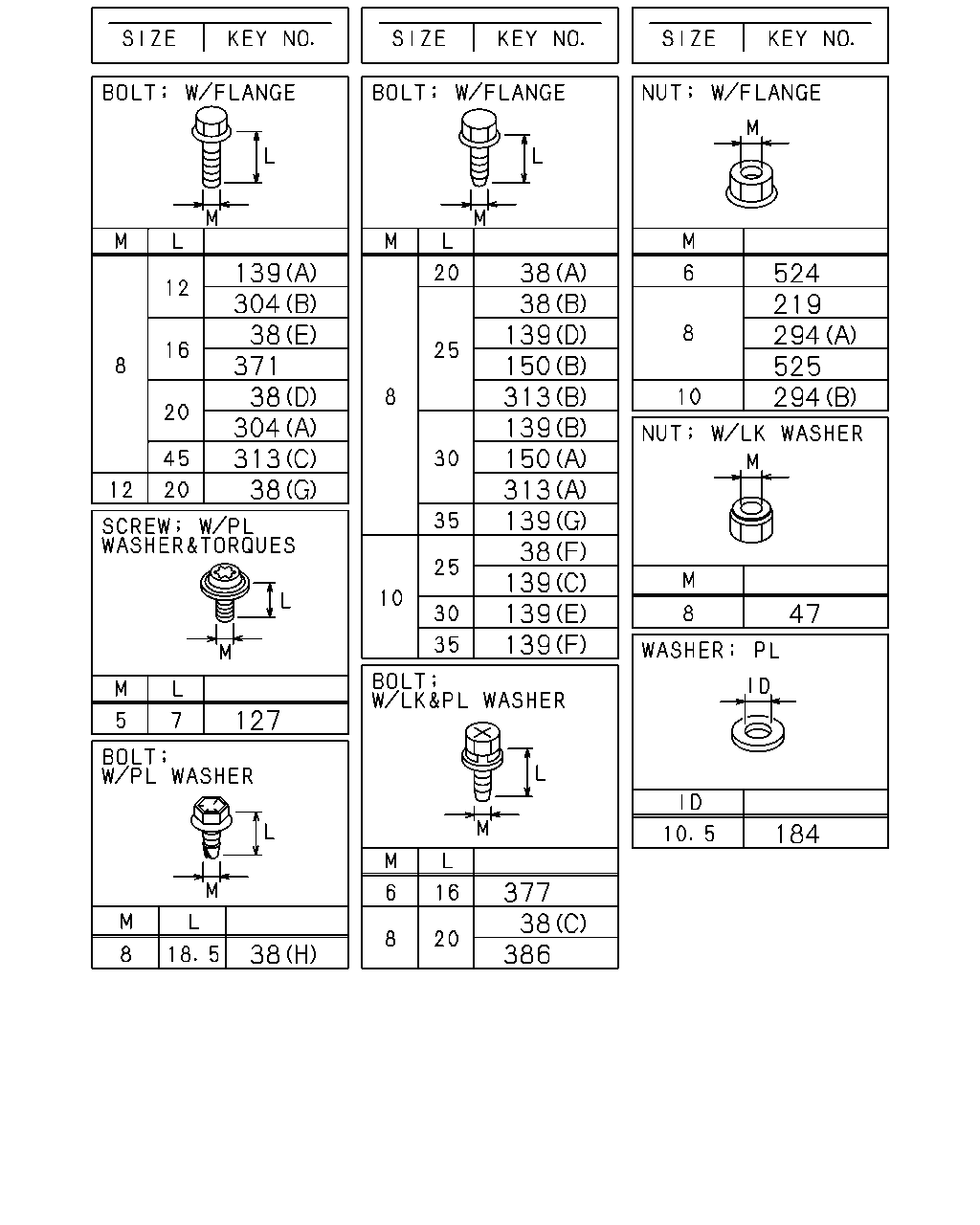

çizim 134721
139 38 304 371 304 38 313 38 38 139 139 139 139 313 38 150 139 313 150 139 38 524 294 219 525 294 47 184 377 38 386 38 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE THA 		0-28050-816-0 02 1 1103-
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE THA 		0-28050-816-0 06 1 1103-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 1103-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 06 1 1103-
38 BOLT; CLIP,HARNESS
(F) M10X25 FLANGE THA 		0-28151-025-0 01 1 1103-
38 BOLT; CLIP,HARNESS
(G) M12X20 FLANGE 		0-28151-220-0 01 1 1103-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1103-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 06 1 1103-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1103-1202
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 04 1 1203-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1103-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1103-
139 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1103-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
139 BOLT; BRKT
(G) M8X35 FLANGE THA 		0-28650-835-0 01 1 1103-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1103-
139 BOLT; BRKT
(E) M10X30 FLANGE THA 		0-28651-030-0 01 1 1103-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1103-
150 BOLT; CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1103-
150 BOLT; CLIP
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103-
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
219 NUT
M8 FLANGE THA 		0-91180-108-0 06 1 1103-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1103-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1103-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 03 1 1103-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1103-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 02 1 1103-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 1103-
313 BOLT; BRKT
(C) M8X45 FLANGE THA 		0-28050-845-0 01 1 1103-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1103-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
371 BOLT; GEN HARNESS
M8X16 FLANGE THA 		0-28050-816-0 04 1 1103-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1103-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1103-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1103-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1103-

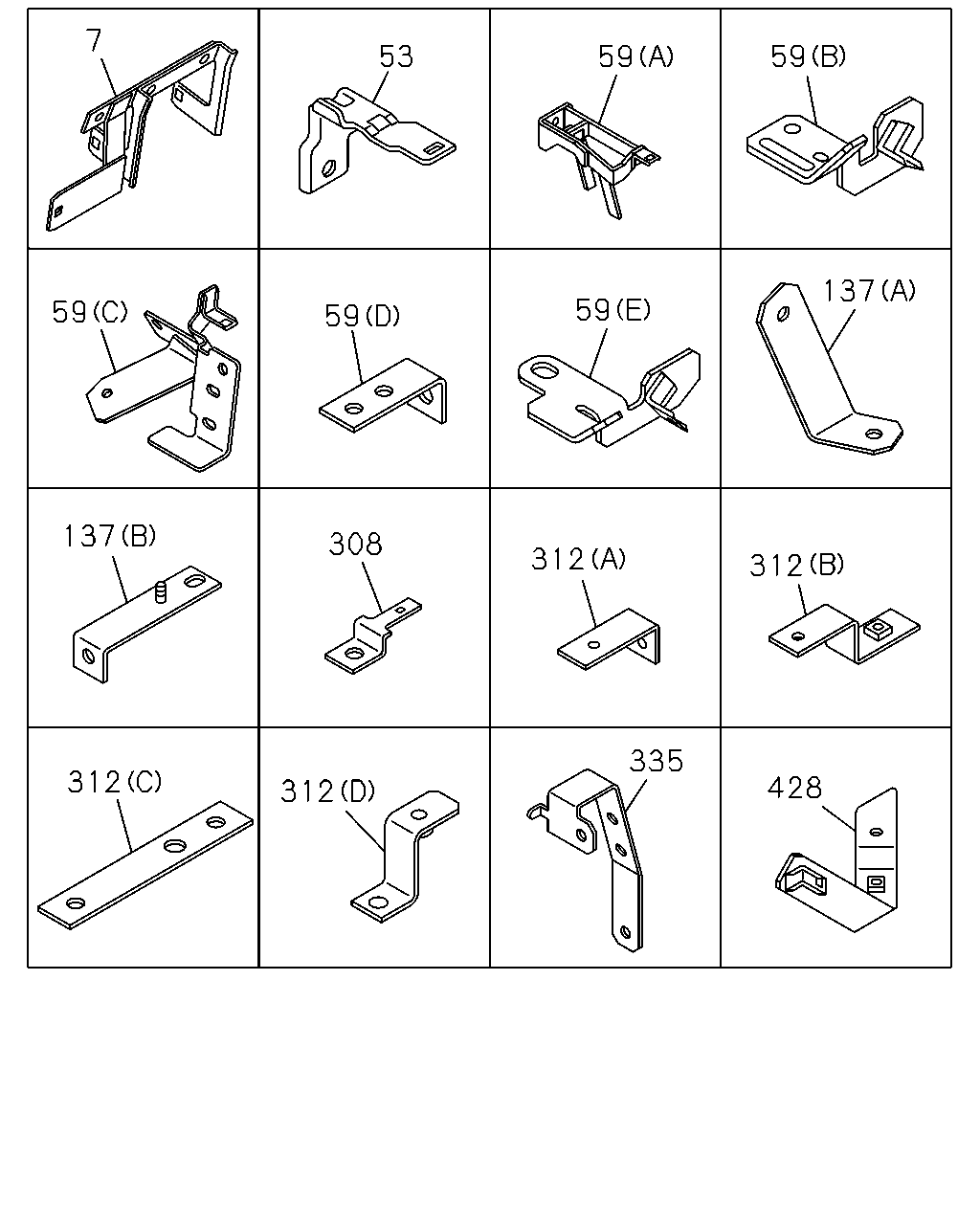

çizim 134723
7 53 59 59 59 59 59 137 137 308 312 312 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1103-
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1205-
53 BRACKET; HARNESS 8-98052-458-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(D) L=62 		1-21464-170-2 01 1 1103-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1103-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1103-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1103-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1103-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1103-
308 BRACKET; CLIP,ENG HARNESS 8-97602-870-1 01 1 1103-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1103-
312 BRACKET; CLIP HARNESS
(C) L=100 		1-47477-620-1 01 1 1103-
312 BRACKET; CLIP HARNESS
(B) 		8-97609-110-1 01 1 1103-
312 BRACKET; CLIP HARNESS
(D) THA 		8-98133-253-0 01 1 1103-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1103-
428 BRACKET
THA 		8-98133-254-0 01 1 1103-

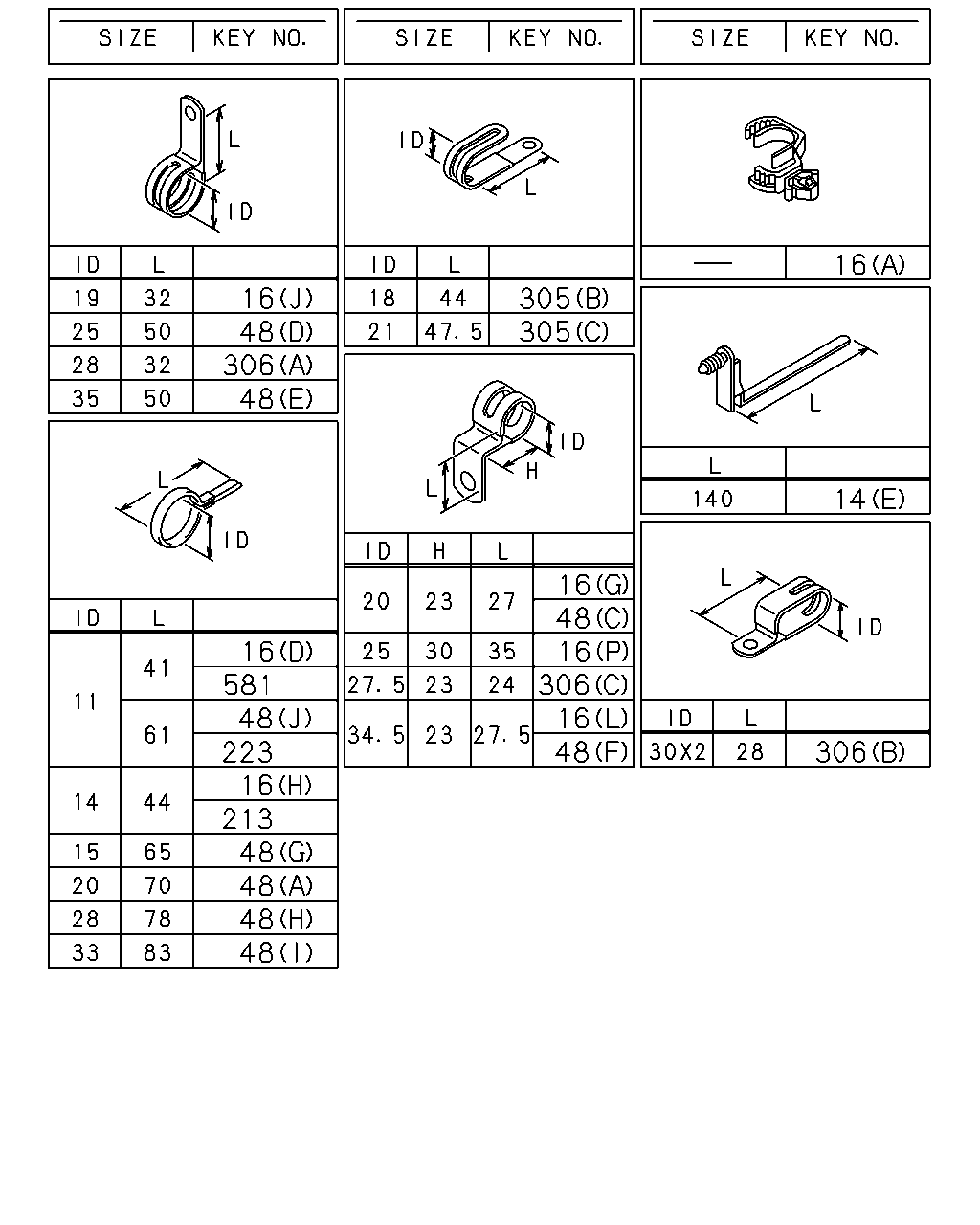

çizim 134729
16 305 305 16 48 306 48 14 16 48 16 306 16 48 16 581 48 223 16 213 48 48 48 48 306
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 08 1 1103-1209
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 08 1 1210-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1103-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1103-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 06 1 1103-1106
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 09 1 1107-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1206-
14 CLIP; BAND,HARNESS
(D) L=100 		5-09707-036-1 03 1 1103-1106
14 CLIP; BAND,HARNESS
(E) L=140 THA 		8-97122-360-0 01 1 1103-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1103-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1103-
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1103-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1103-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1103-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 1103-
16 CLIP; HARNESS
(P) ID=25 H=30 L=35 		1-09700-944-0 01 1 1103-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1103-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1103-
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-
16 CLIP; HARNESS
(E) L=250 THA 		5-09707-030-1 05 1 1103-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1103-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1103-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1207-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 		1-09700-466-0 07 1 1203-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1103-1109
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 24 1 1110-1211
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 23 1 1212-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 26 1 1103-1109
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1110-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1110-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 05 1 1103-1206
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1207-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1103-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1103-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1103-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1103-
48 CLIP; FRAME HARNESS
(K) L=300 		1-09707-001-1 01 1 1103-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(L) L=140 THA 		5-09707-031-1 02 1 1103-
48 CLIP; FRAME HARNESS
(J) ID=11 L=61 		1-09700-484-0 03 1 1103-1109
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM<63W> (J) ID=11 L=61 		1-09700-484-0 03 1 1110-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (J) ID=11 L=61 		1-09700-484-0 04 1 1110-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1103-
223 CLIP; AIR TANK HARNESS
ID=11 L=61 		1-09700-484-0 01 1 1103-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1103-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1103-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(B) ID=30X2 L=28 		1-09701-266-0 01 1 1103-
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
