◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11351 - FVM CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#22269) — 10 parça

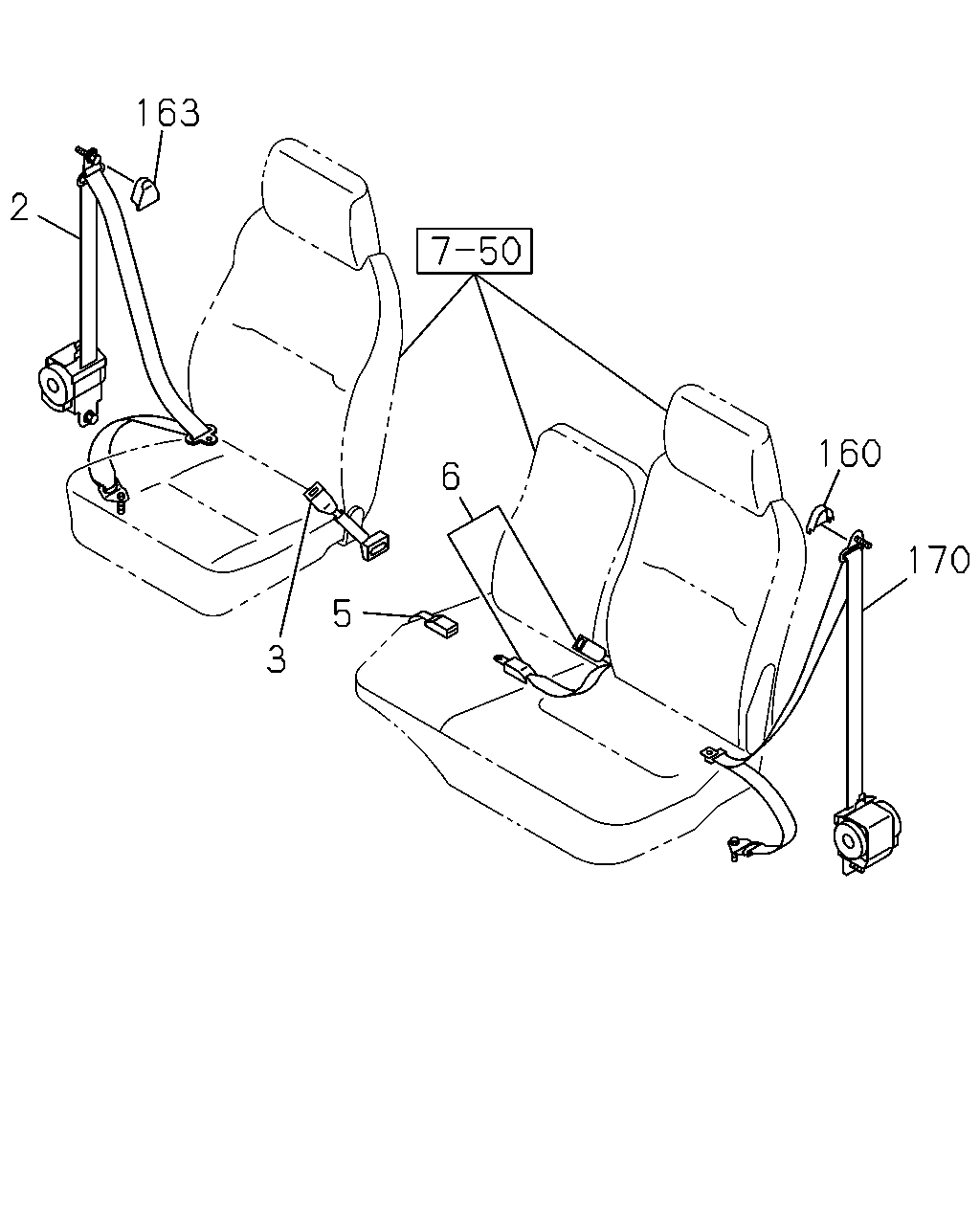

çizim 134716
163 2 160 6 170 5 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97417-601-0 01 1 1103-1111
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1112-
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-602-0 01 1 1103-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY THA 		8-97417-604-0 01 1 1103-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY THA 		8-97417-605-0 01 1 1103-1111
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY THA 		8-97423-512-0 01 1 1112-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1103-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1103-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97417-601-0 01 1 1103-1111
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
