◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#2226) — 102 parça

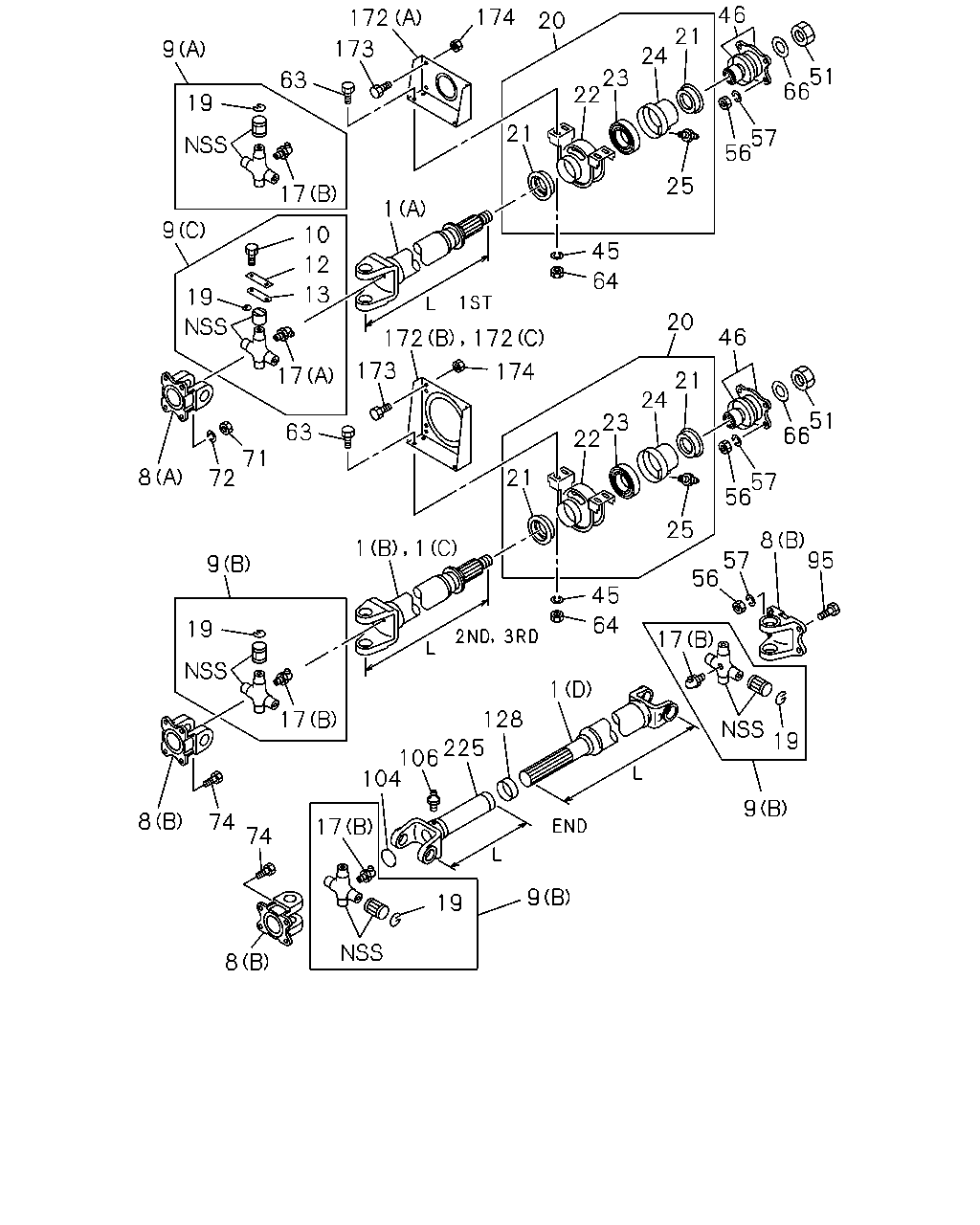

çizim 28427
46 174 172 20 21 24 173 9 51 66 23 22 63 19 21 57 56 17 25 1 9 10 45 12 64 13 19 20 46 172 172 17 173 174 21 24 51 66 23 22 63 71 72 8 21 57 56 25 8 95 1 1 57 56 9 45 64 19 17 1 17 128 19 225 106 104 9 8 74 17 74 9 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(D) END L=1176 		1-37131-211-0 01 1 9101- ●
1 SHAFT; PROP
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG5C M/T(X4R), MBG5Q M/T(X4S) (A) 1ST L=1419 		1-37116-274-0 01 1 9101-0203 ● ●
1 SHAFT; PROP
MBG5B M/T(X4K),MBG5C M/T(X4R) (A) 1ST L=1419 		1-37116-274-0 01 1 0204- ● ●
1 SHAFT; PROP
MBG6P M/T(X4L),MBG6R M/T(X4N) (A) 1ST L=1319 		1-37116-551-0 01 1 9101-0203 ● ●
1 SHAFT; PROP
MBG6R M/T(X4N) (A) 1ST L=1319 		1-37116-551-0 01 1 0204- ● ●
1 SHAFT; PROP
(B) 2ND L=1122 		1-37112-307-0 01 1 9101- ● ●
1 SHAFT; PROP
(B) 2ND L=1454 		1-37123-045-0 01 1 9101- ●
1 SHAFT; PROP
(D) END L=1246 		1-37122-809-0 01 1 9101- ● ●
1 SHAFT; PROP
(C) 3RD L=1269 		1-37131-259-0 01 1 9101- ●
1 SHAFT; PROP
MLH5B M/T(X3N) (A) 1ST L=1326 		1-37116-493-0 01 1 9101- ●
8 YOKE; FLANGE,PROP SHAFT
(A)1ST 		1-37211-031-1 01 1 9101-0203 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A)1ST 		1-37211-031-1 01 1 0204- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B)2ND,3RD,END 		1-37211-031-1 03 1 9101- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B)2ND,3RD,END 		1-37211-031-1 04 1 9101- ●
8 YOKE; FLANGE,PROP SHAFT
MLH5B M/T(X3N) (A)1ST 		1-37211-042-0 01 1 9101- ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-047-2 01 1 9101- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 2ND,3RD,END 		1-37300-047-2 AR 1 9101- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-071-0 01 1 9101-9207 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-083-0 01 1 9208- ●
10 BOLT; UJT
M8X20 		9-09802-702-0 08 1 9101- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-004-0 04 1 9101- ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-002-1 04 1 9101- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 9101- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9101- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 04 1 9101- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=44 T=1.95 BLUE 		1-09587-036-1 AR 1 9101- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=44 T=2.00 WHITE 		1-09587-037-3 AR 1 9101- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=44 T=2.05 YELLOW 		1-09587-038-2 AR 1 9101- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 02 1 9101-0203 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0204- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0204- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0204- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 03 1 9101-0203 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 04 1 9101-0203 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0204- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0204- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0204- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 06 1 9101-0203 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 02 1 9101-0203 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0204- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0204- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0204- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 03 1 9101-0203 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 02 1 9101-0203 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0204- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0204- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0204- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 03 1 9101-0203 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 02 1 9101-0203 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0204- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0204- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0204- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 03 1 9101-0203 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9101-0203 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0204- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0204- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0204- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 03 1 9101-0203 ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 08 1 9101- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 12 1 9101- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 02 1 9101-0203 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0204- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0204- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0204- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 03 1 9101-0203 ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 02 1 9101-0203 ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 0204- ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 0204- ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 01 1 0204- ●
51 NUT; FLANGE,SPLINED
M30 H=21 		1-09449-010-0 03 1 9101-0203 ●
56 NUT; YOKE
M14 		9-99110-514-0 12 1 9101- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 16 1 9101- ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 12 1 9101- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 16 1 9101- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9101- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X30 W/LK WASHER 		0-50041-030-0 12 1 9101- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 08 1 9101-9608 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 08 1 9609- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 12 1 9101-9608 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 12 1 9609- ●
66 WASHER
ID=30.5 		1-09503-025-0 02 1 9101-0203 ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 0204- ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 0204- ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 0204- ●
66 WASHER
ID=30.5 		1-09503-025-0 03 1 9101-0203 ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 9101- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9101- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 08 1 9101- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 12 1 9101- ●
95 BOLT; YOKE,FINAL
M14X40 		1-09000-187-0 04 1 9101- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-033-0 01 1 9101- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9101- ● ● ●
128 SEAL; SLEEVE 1-37247-002-1 01 1 9101- ● ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-087-0 01 1 9101- ● ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-106-0 01 1 9101- ● ● ●
172 BRACKET; CENTER BRG
(C) 		1-37515-104-0 01 1 9101- ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101- ● ●
173 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 12 1 9101- ●
174 NUT; BRKT
M10 		9-09110-410-0 08 1 9101-9307 ● ●
174 NUT; BRKT
M10 		9-09110-510-0 08 1 9308- ● ●
174 NUT; BRKT
M10 		9-09110-510-0 12 1 9101- ●
225 YOKE; SLEEVE,PROP SHAFT
L=257 		1-37241-054-0 01 1 9101- ● ● ●
