Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#2225) — 382 parça

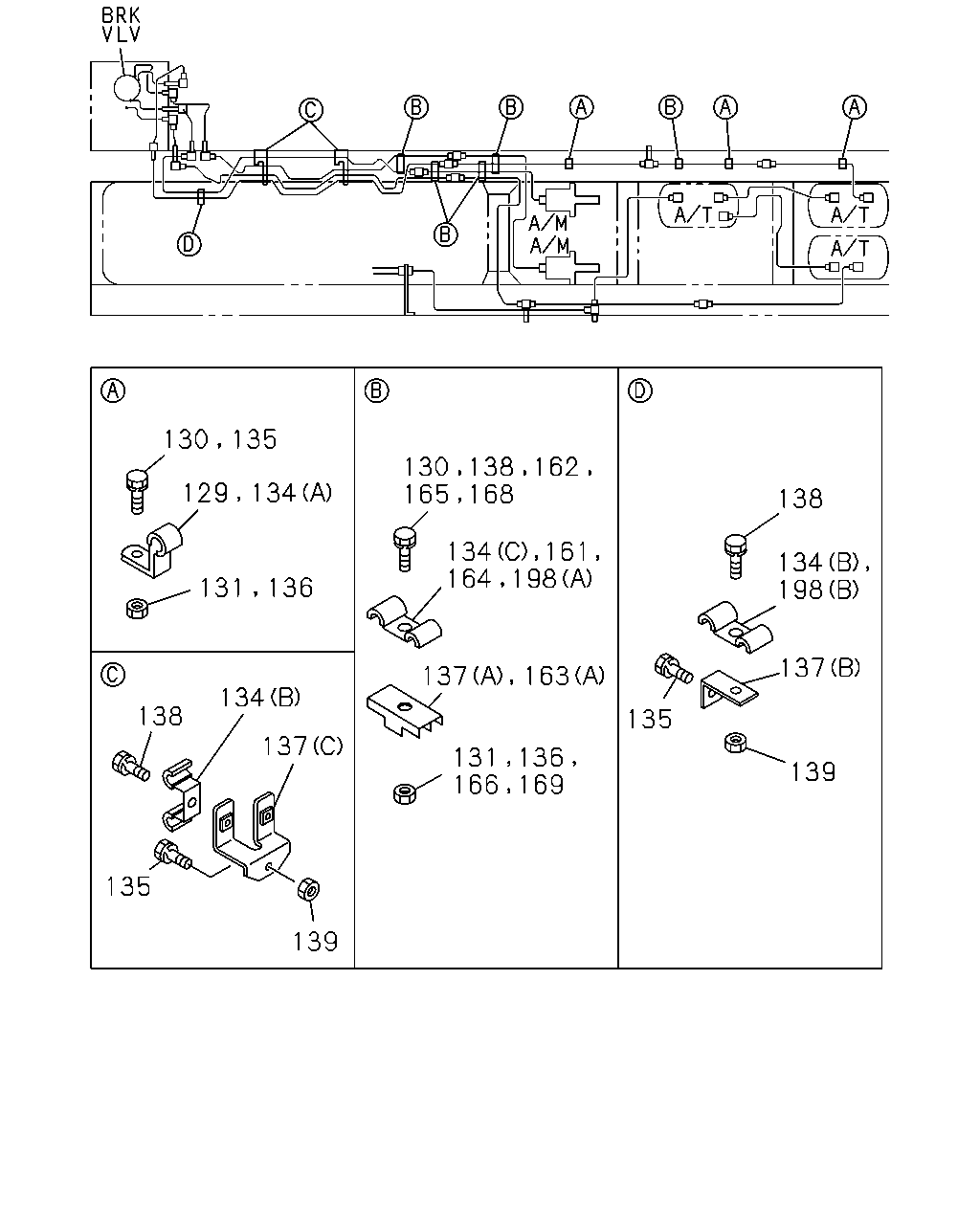

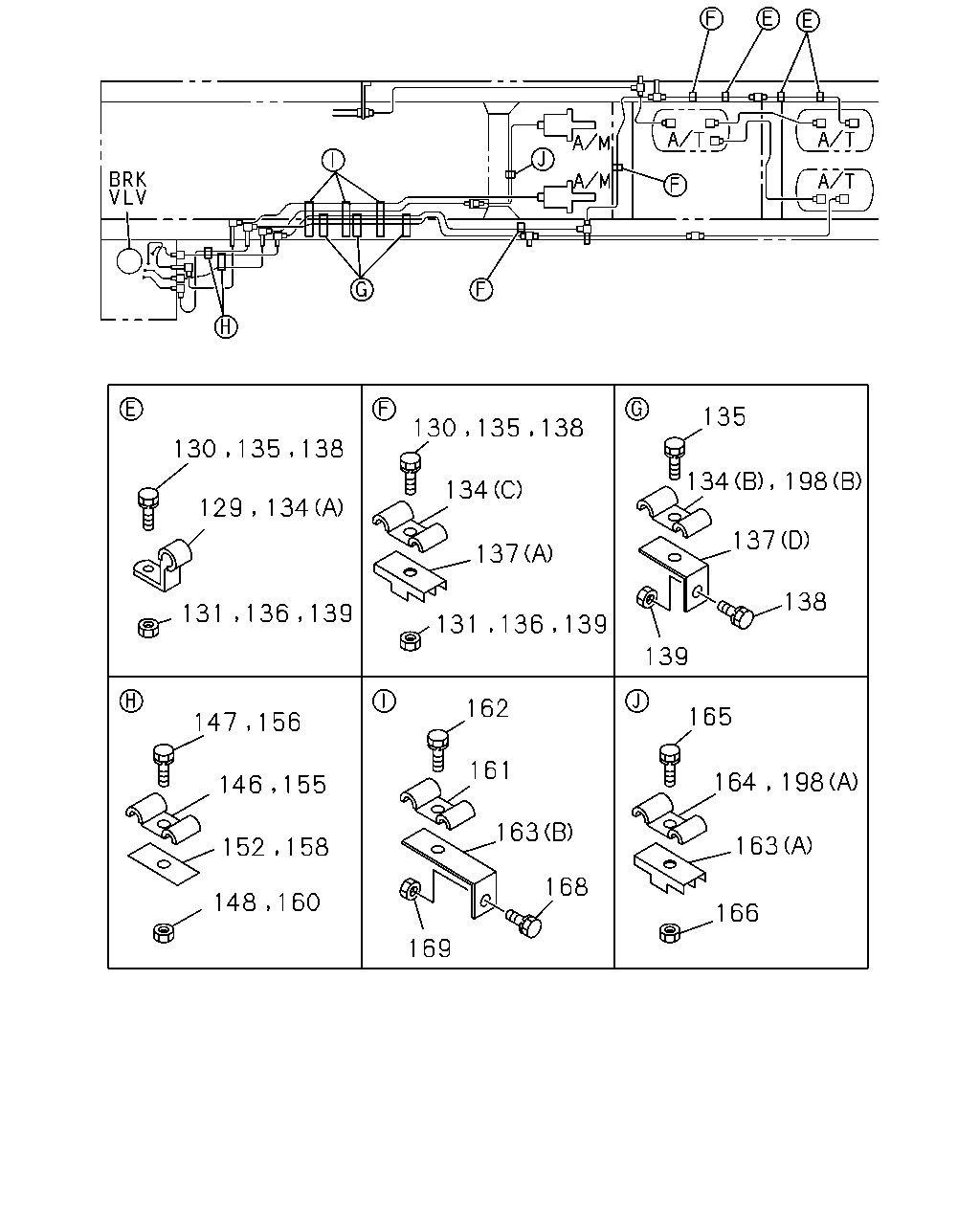

135 134 198 134 129 134 137 137 138 131 136 131 136 139 162 165 147 161 164 198 146 163 163 152 168 148 166 169 130 135 138 130 135 138 139 139 160 158 155 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	CLIP; AIR PIPE ID=12 H=24 L=20	1-09700-605-0	02	1	9101-	●	●
130	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●
130	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●
131	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9101-	●	●
134	CLIP; AIR PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	05	1	9101-	●
134	CLIP; AIR PIPE WHEEL BASE 6000MM(60W) (A) ID=12 H=24 L=20	1-09700-605-0	04	1	9101-	●
134	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9101-9211	●	●
134	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9101-9211	●
134	CLIP; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9212-	●	●
134	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9212-	●
134	CLIP; AIR PIPE WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-9211	●	●
134	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9212-	●	●
134	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-		●
134	CLIP; AIR PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	03	1	9101-		●
135	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●
135	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●
135	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9101-9204	●	●
135	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-	●	●
135	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
135	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
135	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9211	●	●
135	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9211	●
135	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●	●
135	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●
136	NUT; PIPE CLIP WHEEL BASE 6000MM(60W) M8	9-09110-408-0	04	1	9101-	●
136	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) M8	9-09110-408-0	01	1	9101-9211	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-9211	●
136	NUT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8	9-09110-408-0	01	1	9212-	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-	●
137	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9101-	●
137	BRACKET; PIPE CLIP (B)	1-47475-641-1	01	1	9101-	●
137	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9101-9211	●	●
137	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	9212-	●	●
137	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A)	1-47475-427-1	01	1	9101-9211	●	●
137	BRACKET; PIPE CLIP (D)	1-47475-809-1	03	1	9101-		●
138	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●
138	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-	●	●
138	BOLT; CLIP BRKT M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●	●
138	BOLT; CLIP BRKT M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
138	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204	●	●
138	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-9211	●	●
138	BOLT; CLIP BRKT M8X40 W/LK WASHER	0-50040-840-0	01	1	9212-	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	05	1	9101-9211	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	06	1	9212-	●	●
139	NUT; CLIP BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	01	1	9101-9211	●	●
146	CLIP; AIR PIPE ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9101-		●
147	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204		●
147	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
148	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-		●
152	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9101-		●
155	CLIP; AIR PIPE ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9101-		●
156	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204		●
156	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
158	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9101-		●
160	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9101-		●
161	CLIP; AIR PIPE ID=13 & 13 L=18 & 18	1-09700-833-0	03	1	9101-	●	●
162	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●
162	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●
163	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9101-	●	●
163	BRACKET; PIPE CLIP (B)	1-47475-810-1	03	1	9101-		●
164	CLIP; AIR PIPE ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9101-	●
164	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-		●
165	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●	●
165	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●
166	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●
168	BOLT; CLIP BRKT M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●
168	BOLT; CLIP BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
168	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204		●
168	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-		●
169	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9101-	●
169	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9101-		●
198	CLIP; AIR PIPE (A) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-	●
198	CLIP; AIR PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9101-	●

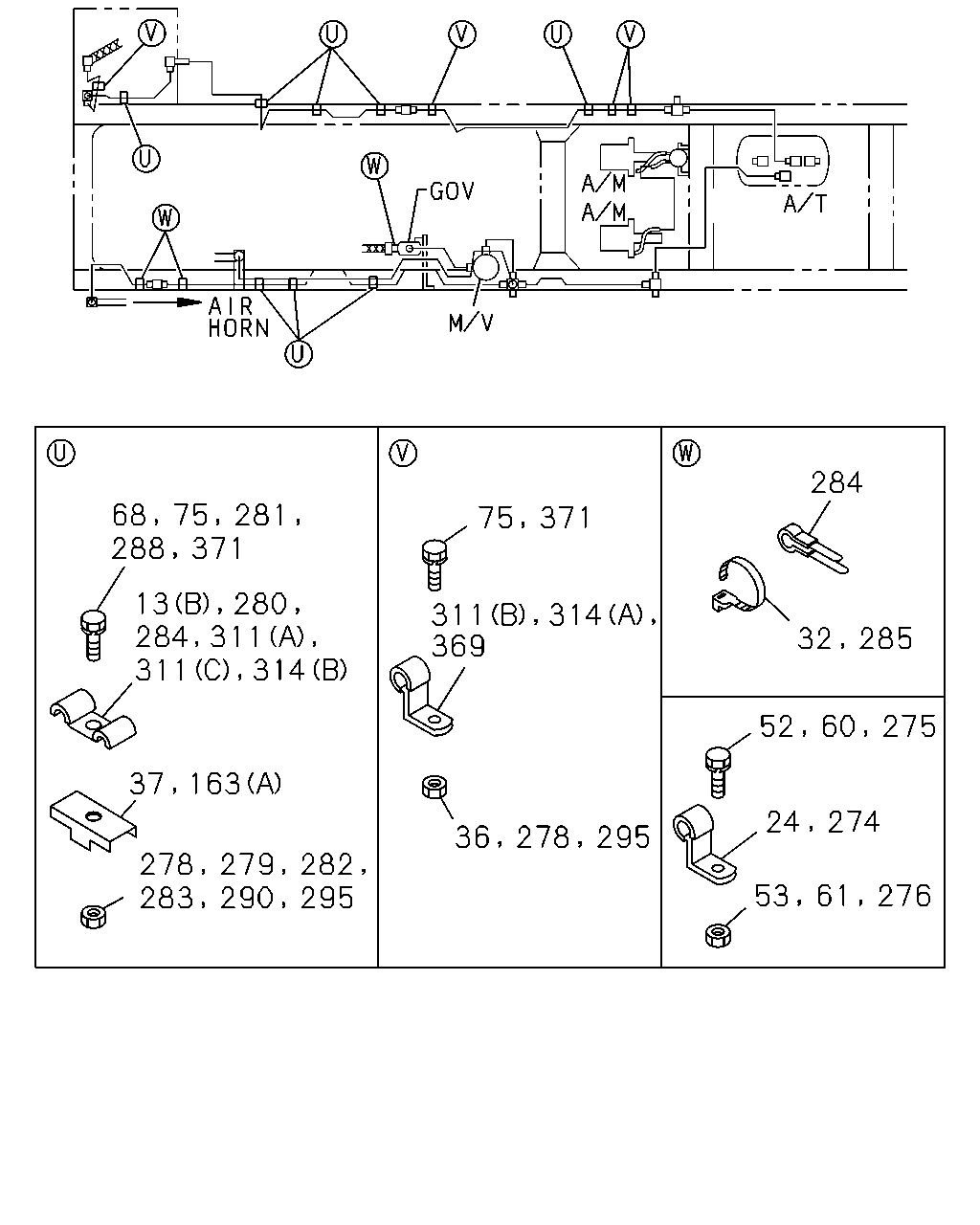

284 288 75 371 369 32 285 52 60 275 37 163 24 274 36 278 295 278 283 279 290 282 295 53 61 276 68 75 281 371 13 280 311 284 311 314 311 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9101-0203	●
13	CLIP; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9101-0203	●
13	CLIP; AIR PIPE EXHAUST BRAKE(NF8) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0204-	●
13	CLIP; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0204-	●
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-		●
13	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9101-		●
24	CLIP; PIPE USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=12 H=24 L=20	1-09700-605-0	01	1	9101-0203	●	●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	9101-	●
36	NUT; CLIP M6	9-09110-406-0	01	1	9101-	●	●
36	NUT; CLIP M8	9-09110-408-0	01	1	9101-		●
37	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9101-	●
37	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9101-		●
52	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
52	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●
53	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●
60	BOLT; CLIP FIX USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
60	BOLT; CLIP FIX USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-0203	●	●
61	NUT; CLIP FIX USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	01	1	9101-0203	●	●
68	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●
68	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-	●
75	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●	●
75	BOLT; CLIP M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-	●	●
75	BOLT; CLIP M6X40	9-01900-640-0	01	1	9101-9204	●	●
75	BOLT; CLIP M6X40 W/LK WASHER	0-50040-640-0	01	1	9205-	●	●
75	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204		●
75	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
75	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204		●
75	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
163	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9101-	●	●
163	BRACKET; PIPE CLIP (B)	1-47475-810-1	03	1	9101-		●
274	CLIP; AIR PIPE USER DAEWOO MOTORS<D4S> ID=6 H=20 L=20	1-09700-603-0	01	1	9101-0203	●
275	BOLT; PIPE CLIP USER DAEWOO MOTORS<D4S> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
275	BOLT; PIPE CLIP USER DAEWOO MOTORS<D4S> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-0203	●
276	NUT; PIPE CLIP USER DAEWOO MOTORS<D4S> M8	9-09110-408-0	01	1	9101-0203	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9101-	●
279	NUT; BRKT M8	9-09110-408-0	05	1	9101-	●
279	NUT; BRKT M8	9-09110-408-0	03	1	9101-		●
280	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9101-	●
280	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	03	1	9101-	●	●
281	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●
281	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
281	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204		●
281	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-		●
282	NUT; CLIP M8	9-09110-408-0	01	1	9101-	●
283	NUT; CLIP M6	9-09110-406-0	01	1	9101-	●	●
284	CLIP; FLEX HOSE ID=15 L=65	1-09700-466-0	01	1	9101-	●	●
285	CLIP; BAND L=250	5-09707-030-1	01	1	9101-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
288	BOLT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-0203	●
288	BOLT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-0203	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE(NF8) M8X45 W/LK WASHER	0-50040-845-0	03	1	0204-	●
288	BOLT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) M8X45 W/LK WASHER	0-50040-845-0	03	1	0204-	●
288	BOLT; CLIP,AIR PIPE M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204		●
288	BOLT; CLIP,AIR PIPE M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-		●
288	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204		●
288	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-		●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8	9-09110-408-0	03	1	9101-0203	●
290	NUT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8	9-09110-408-0	03	1	9101-0203	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE(NF8) M8	9-09110-408-0	03	1	0204-	●
290	NUT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) M8	9-09110-408-0	03	1	0204-	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9101-		●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9101-	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9101-		●
311	CLIP; AIR PIPE (C) ID=9 & 7 L=15 & 15	1-09700-060-0	01	1	9101-	●	●
311	CLIP; AIR PIPE (B) ID=7 H=20 L=20	9-09527-006-0	01	1	9101-	●	●
311	CLIP; AIR PIPE (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9101-		●
314	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9101-	●
314	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9101-	●
369	CLIP; AIR PIPE AIR HORN(WB8) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-	●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
371	BOLT; CLIP,AIR PIPE AIR HORN(WB8) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
371	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204		●
371	BOLT; CLIP,AIR PIPE AIR HORN(WB8) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●
371	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-		●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204		●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-		●

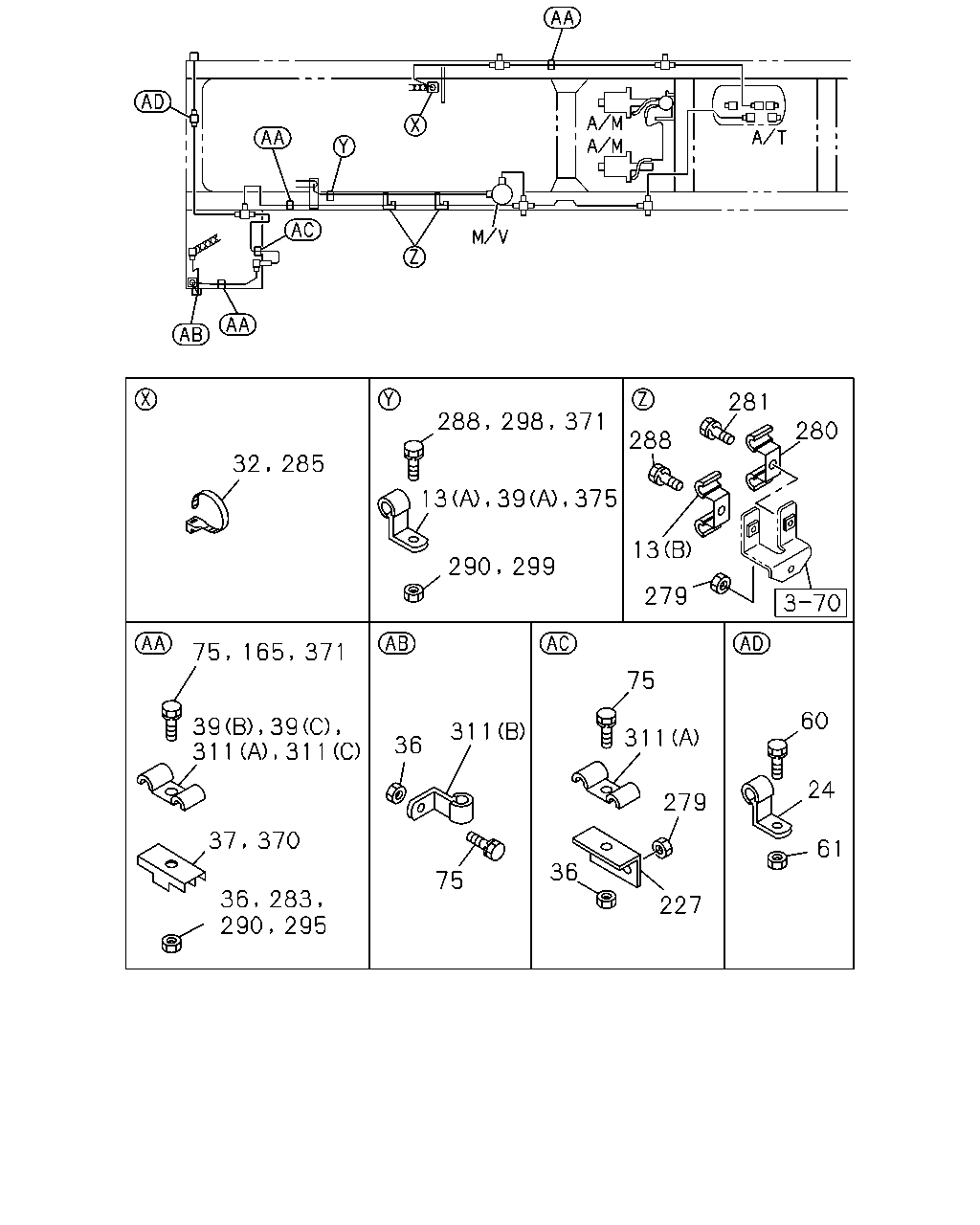

281 288 298 371 280 288 285 32 13 39 375 13 290 299 279 75 165 371 75 60 311 311 36 24 279 37 370 61 36 75 283 290 227 295 36 39 39 311 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9101-0203	●
13	CLIP; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	9101-0203	●
13	CLIP; AIR PIPE EXHAUST BRAKE(NF8) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0204-	●
13	CLIP; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	03	1	0204-	●
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9101-		●
13	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9101-		●
24	CLIP; PIPE USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=12 H=24 L=20	1-09700-605-0	01	1	9101-0203	●	●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	9101-	●
36	NUT; CLIP M6	9-09110-406-0	01	1	9101-	●	●
36	NUT; CLIP M8	9-09110-408-0	01	1	9101-		●
37	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9101-	●
37	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9101-		●
39	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-	●	●
39	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9101-		●
39	CLIP; AIR PIPE (B) ID=13 & 9 L=18 & 17	1-09700-667-0	01	1	9101-		●
39	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9101-		●
60	BOLT; CLIP FIX USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
60	BOLT; CLIP FIX USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-0203	●	●
61	NUT; CLIP FIX USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	9-09110-408-0	01	1	9101-0203	●	●
75	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	01	1	9101-9204	●	●
75	BOLT; CLIP M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-	●	●
75	BOLT; CLIP M6X40	9-01900-640-0	01	1	9101-9204	●	●
75	BOLT; CLIP M6X40 W/LK WASHER	0-50040-640-0	01	1	9205-	●	●
75	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204		●
75	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
75	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204		●
75	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
165	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●	●
165	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●
227	BRACKET; PIPE CLIP	1-47475-272-1	01	1	9101-		●
279	NUT; BRKT M8	9-09110-408-0	05	1	9101-	●
279	NUT; BRKT M8	9-09110-408-0	03	1	9101-		●
280	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9101-	●
280	CLIP; AIR PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	03	1	9101-	●	●
281	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●
281	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●
281	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204		●
281	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-		●
283	NUT; CLIP M6	9-09110-406-0	01	1	9101-	●	●
285	CLIP; BAND L=250	5-09707-030-1	01	1	9101-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
288	BOLT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-0203	●
288	BOLT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-0203	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE(NF8) M8X45 W/LK WASHER	0-50040-845-0	03	1	0204-	●
288	BOLT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) M8X45 W/LK WASHER	0-50040-845-0	03	1	0204-	●
288	BOLT; CLIP,AIR PIPE M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204		●
288	BOLT; CLIP,AIR PIPE M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-		●
288	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204		●
288	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-		●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8	9-09110-408-0	03	1	9101-0203	●
290	NUT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) M8	9-09110-408-0	03	1	9101-0203	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE(NF8) M8	9-09110-408-0	03	1	0204-	●
290	NUT; CLIP,AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) M8	9-09110-408-0	03	1	0204-	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9101-		●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9101-	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9101-		●
298	BOLT; CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204		●
298	BOLT; CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
299	NUT; CLIP M8	9-09110-408-0	02	1	9101-		●
311	CLIP; AIR PIPE (C) ID=9 & 7 L=15 & 15	1-09700-060-0	01	1	9101-	●	●
311	CLIP; AIR PIPE (B) ID=7 H=20 L=20	9-09527-006-0	01	1	9101-	●	●
311	CLIP; AIR PIPE (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9101-		●
370	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9101-		●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
371	BOLT; CLIP,AIR PIPE AIR HORN(WB8) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
371	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204		●
371	BOLT; CLIP,AIR PIPE AIR HORN(WB8) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●
371	BOLT; CLIP,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-		●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204		●
371	BOLT; CLIP,AIR PIPE M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-		●
375	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9101-		●

178 187 193 196 187 177 186 192 50 181 189 195 188 179 188 197 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	CLIP; AIR PIPE ID=12 H=24 L=20	1-09700-605-0	01	1	9101-	●	●
177	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-	●	●
177	CLIP; AIR PIPE WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) ID=13 & 7 L=20 & 17	1-09700-692-0	03	1	9101-	●	●
178	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●	●
178	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
178	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●	●
178	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●	●
179	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) M8	9-09110-408-0	02	1	9101-	●	●
179	NUT; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	03	1	9101-	●	●
181	BRACKET; PIPE CLIP WHEEL BASE 4600MM(46W)	1-47475-427-1	02	1	9101-	●	●
181	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W)	1-47475-427-1	03	1	9101-	●	●
186	CLIP; AIR PIPE WHEEL BASE 6000MM(60W) ID=13 & 7 L=20 & 17	1-09700-692-0	03	1	9101-	●
187	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
187	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●
188	NUT; PIPE CLIP WHEEL BASE 6000MM(60W) M8	9-09110-408-0	03	1	9101-	●
189	BRACKET; PIPE CLIP WHEEL BASE 6000MM(60W)	1-47475-427-1	03	1	9101-	●
192	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-	●	●
193	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●
193	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●
195	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9101-	●	●
196	BOLT; CLIP BRKT M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●	●
196	BOLT; CLIP BRKT M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9101-	●	●
374	BRACKET; PIPE CLIP WHEEL BASE 6000MM(60W)	1-47475-427-1	03	1	9101-	●

225 178 224 177 227 181 195 226 228 179 197 201 192 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
177	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-	●	●
177	CLIP; AIR PIPE WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) ID=13 & 7 L=20 & 17	1-09700-692-0	03	1	9101-	●	●
178	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●	●
178	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
178	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●	●
178	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●	●
179	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) M8	9-09110-408-0	02	1	9101-	●	●
179	NUT; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	03	1	9101-	●	●
181	BRACKET; PIPE CLIP WHEEL BASE 4600MM(46W)	1-47475-427-1	02	1	9101-	●	●
181	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W)	1-47475-427-1	03	1	9101-	●	●
192	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-	●	●
195	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9101-	●	●
196	BOLT; CLIP BRKT M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●	●
196	BOLT; CLIP BRKT M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9101-	●	●
201	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204		●
201	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-		●
224	CLIP; AIR PIPE ID=13 & 9 L=20 & 18	1-09700-691-0	01	1	9101-		●
225	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204		●
225	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
226	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-		●
227	BRACKET; PIPE CLIP	1-47475-272-1	01	1	9101-		●
228	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9101-		●

49 49 52 54 54 47 50 47 313 53 12 313 48 80 78 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9101-	●	●
47	BRACKET; PIPE CLIP (A)	1-47475-272-1	01	1	9101-	●	●
47	BRACKET; PIPE CLIP (B)	1-47475-299-2	01	1	9101-		●
48	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●
48	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●
49	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●	●
49	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●
50	CLIP; AIR PIPE ID=12 H=24 L=20	1-09700-605-0	01	1	9101-	●	●
52	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
52	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●
53	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●
54	CLIP; AIR PIPE ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	01	1	9101-	●	●
78	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-	●
78	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-		●
79	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●
79	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
79	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●
79	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9101-	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9101-		●
313	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●

79 79 5 49 78 54 4 78 47 163 80 313 80 12 52 48 50 53 163 333 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE WHEEL BASE 6000MM(60W) ID=13 & 13 L=18 & 18	1-09700-833-0	03	1	9101-	●
5	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
5	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●
6	NUT; PIPE CLIP WHEEL BASE 6000MM(60W) M8	9-09110-408-0	03	1	9101-	●
12	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9101-	●	●
47	BRACKET; PIPE CLIP (A)	1-47475-272-1	01	1	9101-	●	●
47	BRACKET; PIPE CLIP (B)	1-47475-299-2	01	1	9101-		●
48	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●
48	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●
49	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9101-9204	●	●
49	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●
50	CLIP; AIR PIPE ID=12 H=24 L=20	1-09700-605-0	01	1	9101-	●	●
52	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
52	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●
53	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●
54	CLIP; AIR PIPE ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	01	1	9101-	●	●
78	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-	●
78	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-		●
79	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●
79	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●
79	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9101-9204	●	●
79	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9101-	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9101-		●
163	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9101-	●	●
163	BRACKET; PIPE CLIP (B)	1-47475-810-1	03	1	9101-		●
313	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●
333	BRACKET; BRK AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE)	1-47475-427-1	03	1	9101-0203	●
333	BRACKET; BRK AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE)	1-47475-427-1	03	1	9101-0203	●
333	BRACKET; BRK AIR PIPE EXHAUST BRAKE(NF8)	1-47475-427-1	03	1	0204-	●
333	BRACKET; BRK AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8)	1-47475-427-1	03	1	0204-	●

130 135 165 129 134 138 134 161 134 198 131 136 137 137 163 134 138 135 137 131 136 166 139 135 139 130 138 162 198 164 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	CLIP; AIR PIPE ID=12 H=24 L=20	1-09700-605-0	02	1	9101-	●	●
130	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●
130	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●
131	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9101-	●	●
134	CLIP; AIR PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	05	1	9101-	●
134	CLIP; AIR PIPE WHEEL BASE 6000MM(60W) (A) ID=12 H=24 L=20	1-09700-605-0	04	1	9101-	●
134	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9101-9211	●	●
134	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9101-9211	●
134	CLIP; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9212-	●	●
134	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9212-	●
134	CLIP; AIR PIPE WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-9211	●	●
134	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9212-	●	●
134	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	02	1	9101-		●
134	CLIP; AIR PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	03	1	9101-		●
135	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER	9-01900-825-0	04	1	9101-9204	●
135	BOLT; PIPE CLIP WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-	●
135	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9101-9204	●	●
135	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-	●	●
135	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●	●
135	BOLT; PIPE CLIP M8X25 W/LK WASHER	9-01900-825-0	01	1	9101-9204	●
135	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9211	●	●
135	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9211	●
135	BOLT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●	●
135	BOLT; PIPE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9212-	●
136	NUT; PIPE CLIP WHEEL BASE 6000MM(60W) M8	9-09110-408-0	04	1	9101-	●
136	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) M8	9-09110-408-0	01	1	9101-9211	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-9211	●
136	NUT; PIPE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8	9-09110-408-0	01	1	9212-	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-	●
137	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9101-	●
137	BRACKET; PIPE CLIP (B)	1-47475-641-1	01	1	9101-	●
137	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9101-9211	●	●
137	BRACKET; PIPE CLIP (A)	1-47475-427-1	03	1	9212-	●	●
137	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A)	1-47475-427-1	01	1	9101-9211	●	●
137	BRACKET; PIPE CLIP (D)	1-47475-809-1	03	1	9101-		●
138	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204	●	●
138	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-	●	●
138	BOLT; CLIP BRKT M8X45 W/LK WASHER	9-01900-845-0	02	1	9101-9204	●	●
138	BOLT; CLIP BRKT M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●
138	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X40 W/LK WASHER	9-01900-840-0	01	1	9101-9204	●	●
138	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8X40 W/LK WASHER	0-50040-840-0	01	1	9205-9211	●	●
138	BOLT; CLIP BRKT M8X40 W/LK WASHER	0-50040-840-0	01	1	9212-	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	05	1	9101-9211	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	06	1	9212-	●	●
139	NUT; CLIP BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	01	1	9101-9211	●	●
161	CLIP; AIR PIPE ID=13 & 13 L=18 & 18	1-09700-833-0	03	1	9101-	●	●
162	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	9101-9204	●
162	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-	●
163	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9101-	●	●
163	BRACKET; PIPE CLIP (B)	1-47475-810-1	03	1	9101-		●
164	CLIP; AIR PIPE ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9101-	●
164	CLIP; AIR PIPE ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-		●
165	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204	●	●
165	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-	●	●
166	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9101-	●	●
169	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9101-	●
169	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9101-		●
198	CLIP; AIR PIPE (A) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9101-	●
198	CLIP; AIR PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	9101-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
