Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

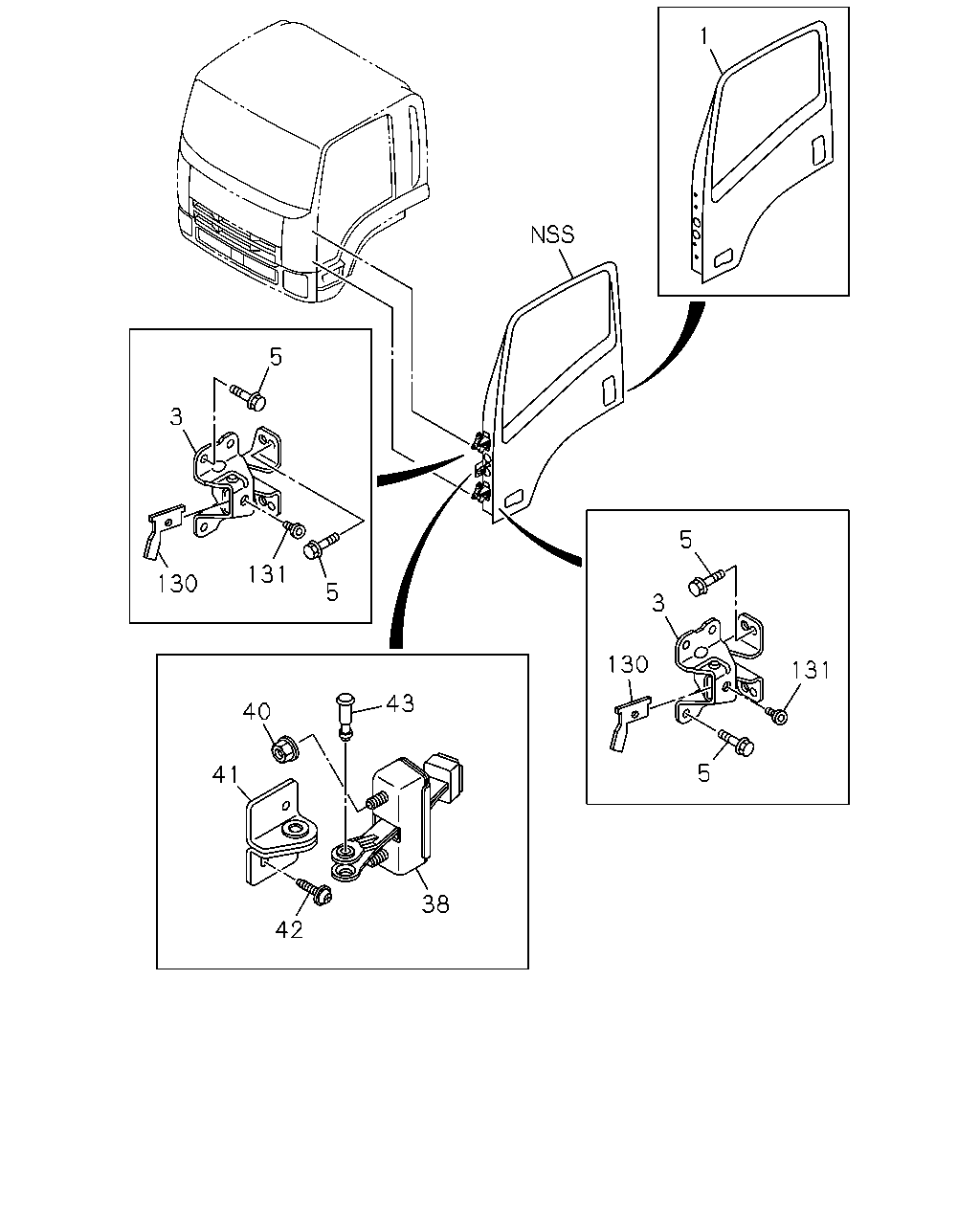

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#22244) — 15 parça
1
5
3
5
131
130
5
3
130
131
43
40
5
41
38
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98064-822-0
01
1
1103-
1
DOOR ASM; FRT,WO/TRIM
8-98064-821-0
01
1
1103-
3
HINGE; DOOR FRT
8-98038-293-0
04
1
1103-1104
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1105-
5
BOLT; HINGE
M8X20 FLANGE
8-98049-756-0
20
1
1103-
38
CHECKER ASM; DOOR
8-98029-417-5
02
1
1103-1203
38
CHECKER ASM; DOOR
8-98208-189-1
02
1
1204-1508
38
CHECKER ASM; DOOR
8-98296-601-0
02
1
1509-
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1103-1508
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-
41
BRACKET; CHECKER
8-98029-290-3
02
1
1103-
42
BOLT; BRKT
SCREW M6X20 W/PL WASHER
8-98032-159-2
04
1
1103-
43
PIN
8-98037-152-2
02
1
1103-
130
STOPPER; HINGE
8-98038-299-1
04
1
1103-
131
BOLT; DOOR STOPPER
M10X11
8-98039-593-1
04
1
1103-
