Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#2224) — 155 parça

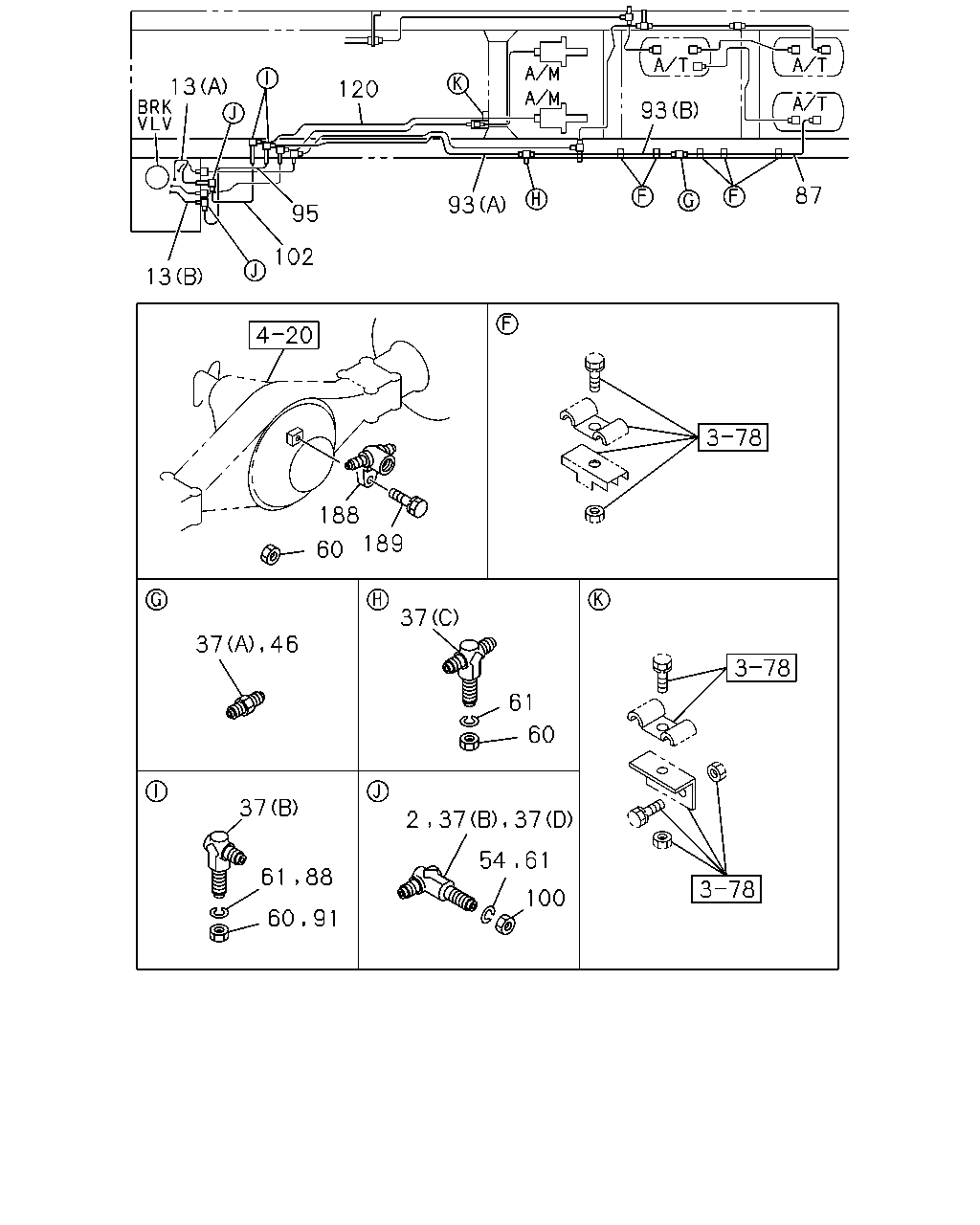

13 120 93 87 93 95 102 13 188 189 60 37 37 46 61 60 37 54 61 88 100 60 2 37 37 61 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	9101-	●	●
13	PIPE; AIR,BRK VLV TO UNION (A) L=609 SERVICED BY L=660	1-47437-978-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION (A) L=609 SERVICED BY L=660	1-49111-438-0	01	1	9301-	●	●
13	PIPE; AIR,BRK VLV TO UNION (B) L=200 SERVICED BY L=300	1-49111-433-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION (B) L=200 SERVICED BY L=300	1-49111-433-0	01	1	9301-	●	●
37	UNION; AIR PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9101-	●
37	UNION; AIR PIPE (C) M20 2WAY	1-09654-138-1	01	1	9101-	●	●
37	UNION; AIR PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	9101-	●	●
37	UNION; AIR PIPE (B) M20 ELBOW	9-09235-112-1	01	1	9101-	●	●
37	UNION; AIR PIPE (D) M20	9-09235-212-1	02	1	9101-		●
46	NIPPLE; AIR PIPE WHEEL BASE 6000MM(60W) M20 STRAIGHT	9-09233-012-1	01	1	9101-	●
54	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9101-	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9101-	●	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D>,BRK LINING MATERIAL D1019<C5R> M10	9-09110-410-0	02	1	9101-9504	●	●
60	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) M10	9-09110-410-0	02	1	9101-9504	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D>,BRK LINING MATERIAL D1019<C5R> M10	9-09110-410-0	02	1	9505-0107	●	●
60	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>,BRK LINING MATERIAL D1019<C5R> M10	9-09110-410-0	02	1	9505-0107	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10	9-09110-410-0	02	1	0108-0203	●	●
60	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> M10	9-09110-410-0	02	1	0108-0203	●
60	NUT; NIPPLE,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10	9-09110-410-0	02	1	0204-0407	●	●
60	NUT; NIPPLE,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10	9-09110-410-0	02	1	0408-		●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9101-	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4600MM(46W) L=1089 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4600MM(46W) L=1089 SERVICED BY L=1100	1-49111-444-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=1489 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=1489 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●	●
88	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9101-9312	●	●
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9101-	●	●
91	NUT; PIPE UNION M14	9-99111-414-0	01	1	9101-	●	●
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9101-	●	●
93	PIPE; AIR,UNION TO UNION (A) L=1547 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●
93	PIPE; AIR,UNION TO UNION (A) L=1547 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION (B) L=1453 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●	●
93	PIPE; AIR,UNION TO UNION (B) L=1454 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212		●
93	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2250	1-49111-451-0	01	1	9301-		●
95	PIPE; AIR,UNION TO UNION L=2006 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●
95	PIPE; AIR,UNION TO UNION L=2007 SERVICED BY L=2250	1-49111-451-0	01	1	9301-	●
95	PIPE; AIR,UNION TO UNION L=964 SERVICED BY L=1000	1-47434-485-0	01	1	9101-9212		●
95	PIPE; AIR,UNION TO UNION L=965 SERVICED BY L=1000	1-49111-443-0	01	1	9301-		●
100	NUT; UNION M20	9-99111-420-0	01	1	9101-	●	●
102	PIPE; AIR,UNION TO UNION L=445 SERVICED BY L=500	1-49111-435-0	01	1	9101-9212	●
102	PIPE; AIR,UNION TO UNION L=445	1-47496-566-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION L=842 SERVICED BY L=900	1-47437-981-0	01	1	9101-9212		●
102	PIPE; AIR,UNION TO UNION L=842 SERVICED BY L=900	1-49111-442-0	01	1	9301-		●
120	PIPE; AIR,CONN TO AIR MASTER L=1670 SERVICED BY L=1800	1-47434-487-0	01	1	9101-9212	●
120	PIPE; AIR,CONN TO AIR MASTER L=1671 SERVICED BY L=1800	1-49111-449-0	01	1	9301-	●
120	PIPE; AIR,CONN TO AIR MASTER L=2377 SERVICED BY L=2500	1-47434-488-0	01	1	9101-9212		●
120	PIPE; AIR,CONN TO AIR MASTER L=2377 SERVICED BY L=2500	1-49111-452-0	01	1	9301-		●
188	NIPPLE; 3 WAY,AIR PIPE EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	9101-9504	●	●
188	NIPPLE; 3 WAY,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D1019<C5R>	9-09903-668-3	01	1	9505-0107	●	●
188	NIPPLE; 3 WAY,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>,BRK LINING MATERIAL D1019<C5R>	9-09903-668-3	01	1	9505-0107	●
188	NIPPLE; 3 WAY,AIR PIPE EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0108-0203	●	●
188	NIPPLE; 3 WAY,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>	9-09903-668-3	01	1	0108-0203	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/6 15.5"(W1T) EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0204-0407	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0204-0407	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/6 15.5"(W1T)	9-09903-668-3	01	1	0204-0407		●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) BUS BODY FRAME TYPE HEAVY DUTY<B2D>	9-09903-668-3	01	1	0204-0407		●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0408-	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/6 15.5"(W1T)	9-09903-668-3	01	1	0408-		●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) BUS BODY FRAME TYPE HEAVY DUTY<B2D>	9-09903-668-3	01	1	0408-		●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	9-01901-025-0	01	1	9101-9204	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9409	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X20 FLANGE	0-28681-020-0	01	1	9410-9410	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-0107	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ> M10X25 W/LK WASHER	0-50041-025-0	01	1	0108-0407	●	●
189	BOLT; NIPPLE EXC. REAR AXLE R105A<BBJ> M10X25 W/LK WASHER	0-50041-025-0	01	1	0408-	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	0-50041-025-0	01	1	0408-		●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35	9-01901-035-0	01	1	9101-9204	●	●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	9205-0107	●	●
189	BOLT; NIPPLE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	0108-0203	●	●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	0204-0407	●	●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	0408-		●

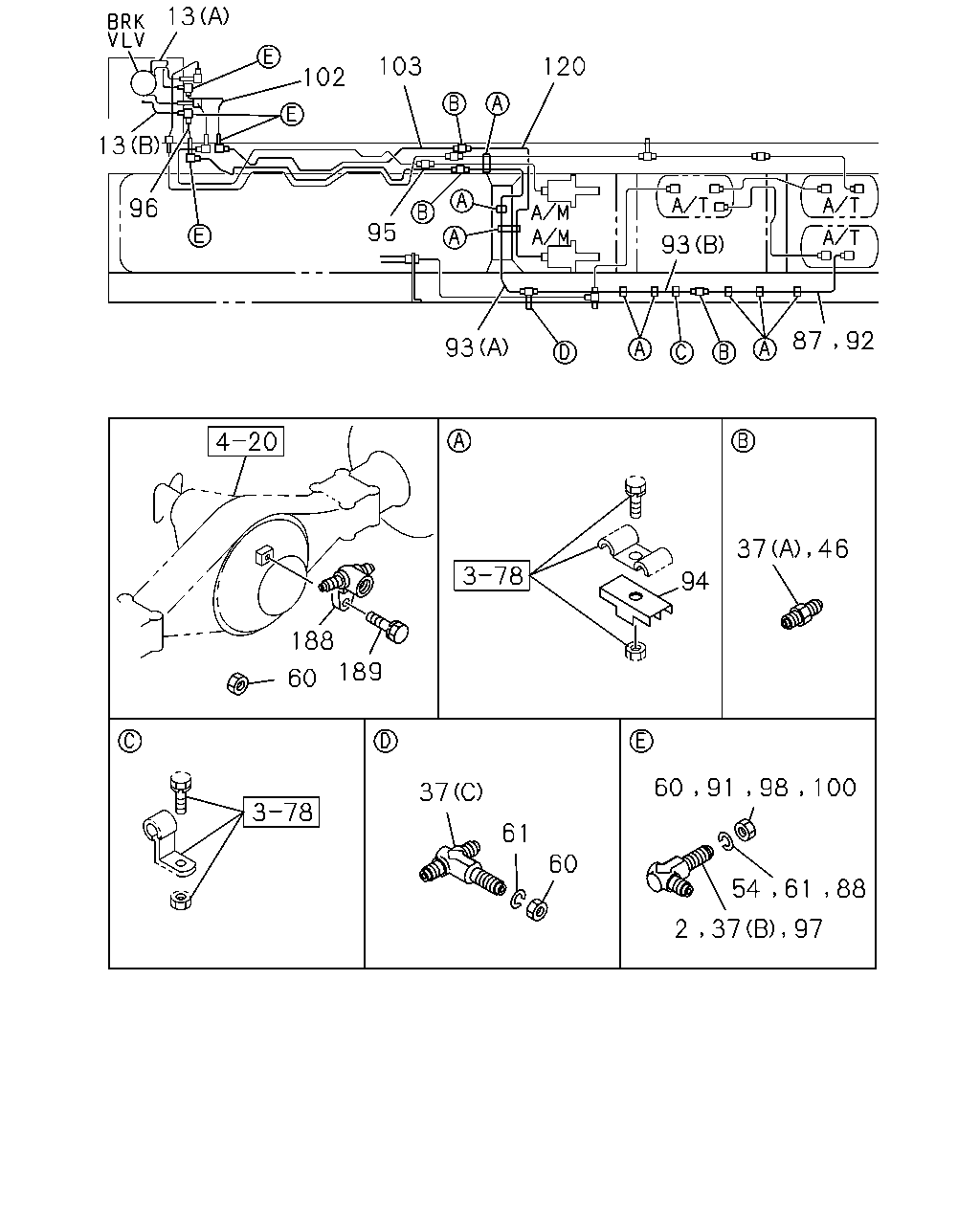

13 103 120 102 13 96 95 93 87 92 93 37 46 94 188 189 60 60 91 98 100 37 61 60 54 61 88 2 37 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	9101-	●	●
13	PIPE; AIR,BRK VLV TO UNION (A) L=609 SERVICED BY L=660	1-47437-978-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION (A) L=609 SERVICED BY L=660	1-49111-438-0	01	1	9301-	●	●
13	PIPE; AIR,BRK VLV TO UNION (B) L=200 SERVICED BY L=300	1-49111-433-0	01	1	9101-9212	●	●
13	PIPE; AIR,BRK VLV TO UNION (B) L=200 SERVICED BY L=300	1-49111-433-0	01	1	9301-	●	●
37	UNION; AIR PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9101-	●
37	UNION; AIR PIPE (C) M20 2WAY	1-09654-138-1	01	1	9101-	●	●
37	UNION; AIR PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	9101-	●	●
37	UNION; AIR PIPE (B) M20 ELBOW	9-09235-112-1	01	1	9101-	●	●
37	UNION; AIR PIPE (D) M20	9-09235-212-1	02	1	9101-		●
46	NIPPLE; AIR PIPE WHEEL BASE 6000MM(60W) M20 STRAIGHT	9-09233-012-1	01	1	9101-	●
54	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9101-	●	●
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9101-	●	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D>,BRK LINING MATERIAL D1019<C5R> M10	9-09110-410-0	02	1	9101-9504	●	●
60	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) M10	9-09110-410-0	02	1	9101-9504	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D>,BRK LINING MATERIAL D1019<C5R> M10	9-09110-410-0	02	1	9505-0107	●	●
60	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>,BRK LINING MATERIAL D1019<C5R> M10	9-09110-410-0	02	1	9505-0107	●
60	NUT; NIPPLE,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10	9-09110-410-0	02	1	0108-0203	●	●
60	NUT; NIPPLE,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> M10	9-09110-410-0	02	1	0108-0203	●
60	NUT; NIPPLE,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10	9-09110-410-0	02	1	0204-0407	●	●
60	NUT; NIPPLE,AIR PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10	9-09110-410-0	02	1	0408-		●
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9101-	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4600MM(46W) L=1089 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 4600MM(46W) L=1089 SERVICED BY L=1100	1-49111-444-0	01	1	9301-	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=1489 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●	●
87	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=1489 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●	●
88	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9101-9312	●	●
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9101-	●	●
91	NUT; PIPE UNION M14	9-99111-414-0	01	1	9101-	●	●
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9101-	●	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6000MM(60W) L=976 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9212	●
92	PIPE; AIR,UNION TO UNION WHEEL BASE 6000MM(60W) L=976 SERVICED BY L=1100	1-49111-444-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION (A) L=1547 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●
93	PIPE; AIR,UNION TO UNION (A) L=1547 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●
93	PIPE; AIR,UNION TO UNION (B) L=1453 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●	●
93	PIPE; AIR,UNION TO UNION (B) L=1454 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●	●
93	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212		●
93	PIPE; AIR,UNION TO UNION (A) L=2098 SERVICED BY L=2250	1-49111-451-0	01	1	9301-		●
94	BRACKET; AIR PIPE	1-47475-427-1	02	1	9101-	●
95	PIPE; AIR,UNION TO UNION L=2006 SERVICED BY L=2250	1-47437-987-0	01	1	9101-9212	●
95	PIPE; AIR,UNION TO UNION L=2007 SERVICED BY L=2250	1-49111-451-0	01	1	9301-	●
95	PIPE; AIR,UNION TO UNION L=964 SERVICED BY L=1000	1-47434-485-0	01	1	9101-9212		●
95	PIPE; AIR,UNION TO UNION L=965 SERVICED BY L=1000	1-49111-443-0	01	1	9301-		●
96	PIPE; AIR,UNION TO UNION L=445 SERVICED BY L=500	1-49111-435-0	01	1	9101-9212	●
96	PIPE; AIR,UNION TO UNION	1-47496-563-0	01	1	9301-	●
97	UNION; AIR PIPE M20 ELBOW	9-09235-112-1	01	1	9101-	●
98	NUT; PIPE UNION M20	9-99111-420-0	01	1	9101-	●
100	NUT; UNION M20	9-99111-420-0	01	1	9101-	●	●
102	PIPE; AIR,UNION TO UNION L=445 SERVICED BY L=500	1-49111-435-0	01	1	9101-9212	●
102	PIPE; AIR,UNION TO UNION L=445	1-47496-566-0	01	1	9301-	●
102	PIPE; AIR,UNION TO UNION L=842 SERVICED BY L=900	1-47437-981-0	01	1	9101-9212		●
102	PIPE; AIR,UNION TO UNION L=842 SERVICED BY L=900	1-49111-442-0	01	1	9301-		●
103	PIPE; AIR,UNION TO UNION L=1880 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9212	●
103	PIPE; AIR,UNION TO UNION L=1880 SERVICED BY L=2000	1-49111-450-0	01	1	9301-	●
120	PIPE; AIR,CONN TO AIR MASTER L=1670 SERVICED BY L=1800	1-47434-487-0	01	1	9101-9212	●
120	PIPE; AIR,CONN TO AIR MASTER L=1671 SERVICED BY L=1800	1-49111-449-0	01	1	9301-	●
120	PIPE; AIR,CONN TO AIR MASTER L=2377 SERVICED BY L=2500	1-47434-488-0	01	1	9101-9212		●
120	PIPE; AIR,CONN TO AIR MASTER L=2377 SERVICED BY L=2500	1-49111-452-0	01	1	9301-		●
188	NIPPLE; 3 WAY,AIR PIPE EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	9101-9504	●	●
188	NIPPLE; 3 WAY,AIR PIPE EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D1019<C5R>	9-09903-668-3	01	1	9505-0107	●	●
188	NIPPLE; 3 WAY,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>,BRK LINING MATERIAL D1019<C5R>	9-09903-668-3	01	1	9505-0107	●
188	NIPPLE; 3 WAY,AIR PIPE EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0108-0203	●	●
188	NIPPLE; 3 WAY,AIR PIPE BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ>,BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>	9-09903-668-3	01	1	0108-0203	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/6 15.5"(W1T) EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0204-0407	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0204-0407	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/6 15.5"(W1T)	9-09903-668-3	01	1	0204-0407		●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) BUS BODY FRAME TYPE HEAVY DUTY<B2D>	9-09903-668-3	01	1	0204-0407		●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/6 15.5"(W1T),FINAL GEAR 39/7 15.5"(W3K) EXC. REAR AXLE R105A<BBJ>	9-09903-668-3	01	1	0408-	●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 39/6 15.5"(W1T)	9-09903-668-3	01	1	0408-		●
188	NIPPLE; 3 WAY,AIR PIPE FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K) BUS BODY FRAME TYPE HEAVY DUTY<B2D>	9-09903-668-3	01	1	0408-		●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	9-01901-025-0	01	1	9101-9204	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9409	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X20 FLANGE	0-28681-020-0	01	1	9410-9410	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-0107	●	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ> M10X25 W/LK WASHER	0-50041-025-0	01	1	0108-0407	●	●
189	BOLT; NIPPLE EXC. REAR AXLE R105A<BBJ> M10X25 W/LK WASHER	0-50041-025-0	01	1	0408-	●
189	BOLT; NIPPLE BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER	0-50041-025-0	01	1	0408-		●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35	9-01901-035-0	01	1	9101-9204	●	●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	9205-0107	●	●
189	BOLT; NIPPLE EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	0108-0203	●	●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	0204-0407	●	●
189	BOLT; NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X35 W/LK WASHER	0-50041-035-0	01	1	0408-		●
