Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

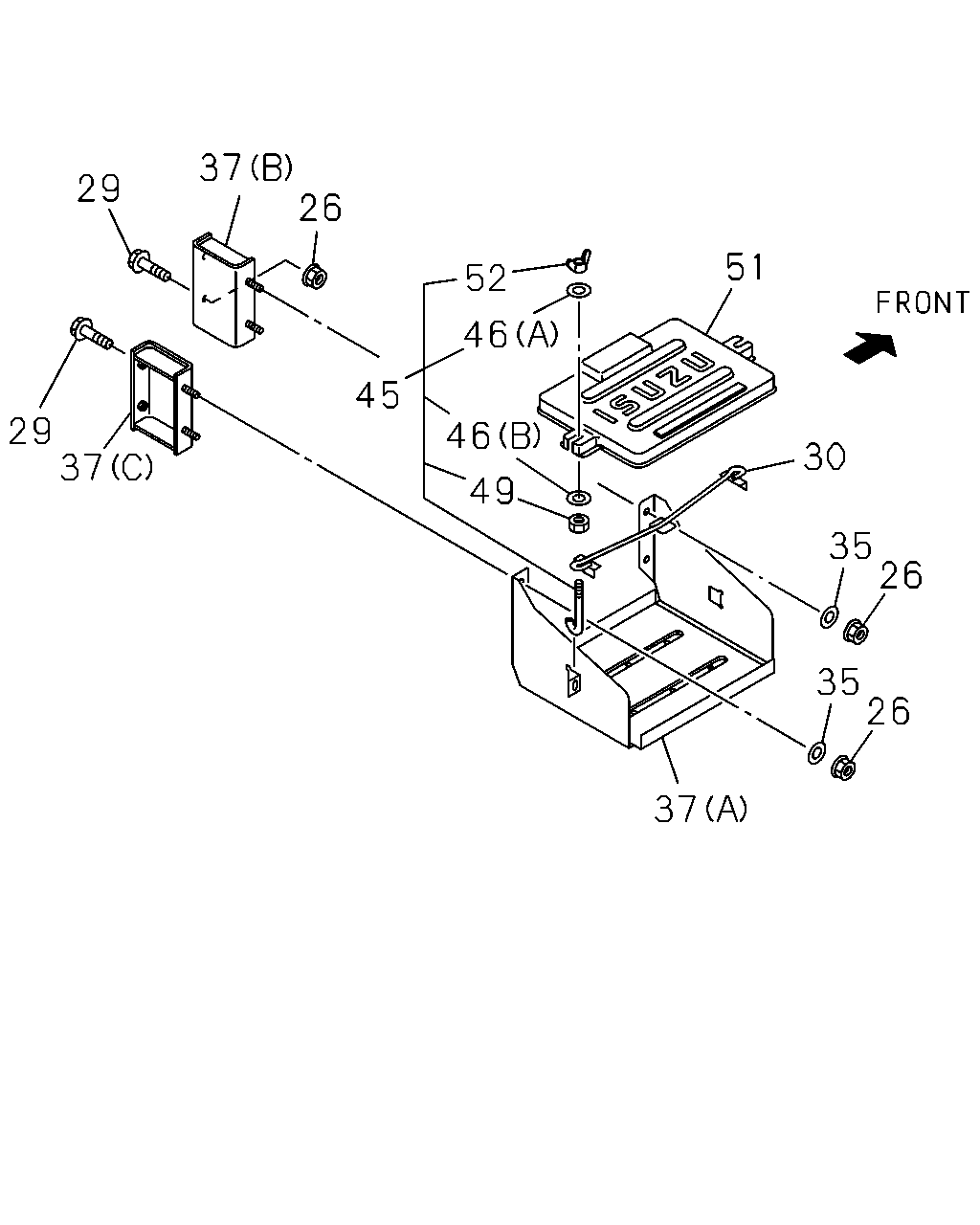

5-20 — BATTERY CARRIER
(#22237) — 17 parça
37
26
29
51
52
46
45
29
37
46
30
49
35
26
35
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1103-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1103-
29
BOLT; BRKT TO FRAME
M10X40 FLANGE THA
0-28651-040-0
04
1
1103-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1103-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 THA
0-91614-610-0
04
1
1103-
37
BRACKET; BATTERY
(B) THA
8-97948-024-0
01
1
1211-
37
BRACKET; BATTERY
(A) THA
8-97923-653-1
01
1
1103-
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
1103-
37
BRACKET; BATTERY
(B)
8-98088-828-0
01
1
1103-1210
45
ROD; TENSION,BATTERY
THA
8-97915-640-1
02
1
1103-1304
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1305-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91610-608-0
02
1
1103-1304
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91614-608-0
02
1
1305-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1103-
49
NUT; ROD,BATTERY
M8 THA
0-91110-508-0
02
1
1103-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1103-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1103-
