◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11351 - FVM CNG(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#22234) — 88 parça

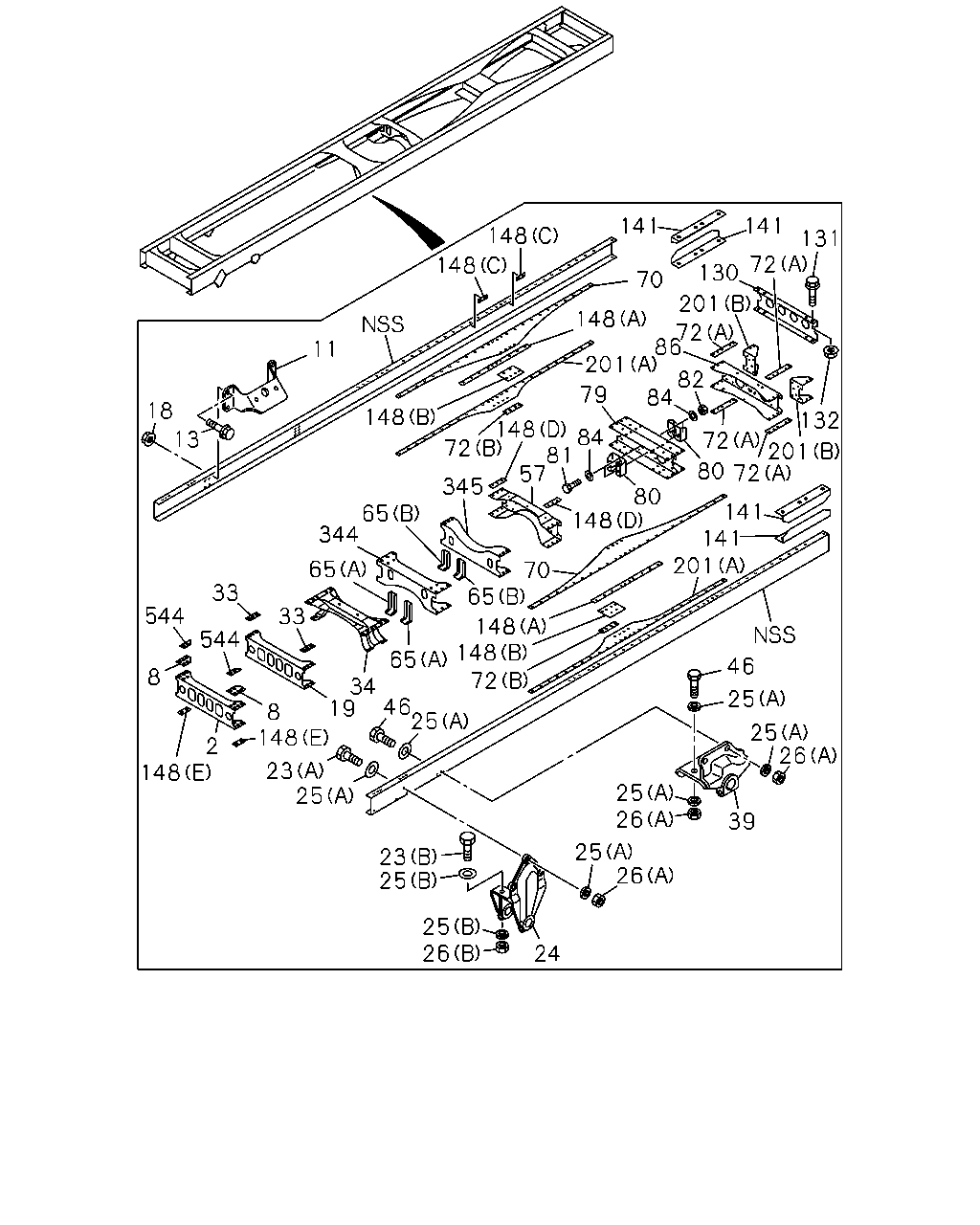

çizim 134957
141 141 148 131 130 72 148 70 201 148 148 84 72 57 80 141 148 70 201 65 148 148 72 201 148 72 86 82 84 11 79 13 132 18 201 80 72 72 345 65 344 65 33 33 544 544 65 46 8 34 25 25 8 148 25 26 2 148 23 25 25 26 39 25 26 23 25 25 26 24 19 46 141 81
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1103-1109 ●
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1110- ● ●
8 GUSSET; 1ST C/MBR
THA 		8-97611-027-0 02 1 1103-1109 ●
8 GUSSET; 1ST C/MBR
THA 		8-97611-027-0 02 1 1110- ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1103-1109 ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1110- ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE IMA 		0-28661-240-0 08 1 1103-1109 ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE IMA 		0-28661-240-0 08 1 1110- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE THA 		0-91180-212-0 08 1 1103-1109 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE THA 		0-91180-212-0 08 1 1110- ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 1103-1109 ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 1110- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 THA 		0-20951-450-0 06 1 1103-1109 ●
23 BOLT; BRKT,SPR
(A) M14X50 THA 		0-20951-450-0 06 1 1110- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1103-1109 ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1110- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1103-1109 ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1110- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1103-1109 ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1110- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1103-1109 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1110- ● ●
25 WASHER; PL,BRKT
(A) ID=15 THA 		8-98010-627-1 28 1 1103-1109 ●
25 WASHER; PL,BRKT
(A) ID=15 THA 		8-98010-627-1 28 1 1110- ● ●
26 NUT; BRKT,SPR
(A) M14 THA 		0-91110-514-0 14 1 1103-1109 ●
26 NUT; BRKT,SPR
(A) M14 THA 		0-91110-514-0 14 1 1110- ● ●
26 NUT; BRKT,SPR
(B) M16 THA 		0-91110-516-0 04 1 1103-1109 ●
26 NUT; BRKT,SPR
(B) M16 THA 		0-91110-516-0 04 1 1110- ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1103-1109 ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1110- ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1103-1109 ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1110- ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-625-0 01 1 1103-1109 ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-625-0 01 1 1110- ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-626-0 01 1 1103-1109 ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-626-0 01 1 1110- ● ●
46 BOLT; BRKT FIX
M14X50 THA 		0-20951-450-0 08 1 1103-1109 ●
46 BOLT; BRKT FIX
M14X50 THA 		0-20951-450-0 08 1 1110- ● ●
57 MEMBER; CROSS,RR SUSP FRT
THA 		8-97612-103-1 01 1 1103-1109 ●
57 MEMBER; CROSS,RR SUSP FRT
THA 		8-97612-103-1 01 1 1110- ● ●
65 BRACKET; CENTER BRG
(B) 		8-97614-127-0 02 1 1110- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-134-0 02 1 1110- ●
65 BRACKET; CENTER BRG
(A) 		8-97612-486-0 02 1 1103- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-125-0 02 1 1103- ●
70 GUSSET; TRUNNION,UPR 8-97612-106-0 02 1 1103-1109 ●
70 GUSSET; TRUNNION,UPR 8-97612-106-0 02 1 1110- ● ●
72 SPACER; TRUNNION
(A) 		8-97612-110-0 04 1 1103-1109 ●
72 SPACER; TRUNNION
(A) 		8-97612-110-0 04 1 1110- ● ●
72 SPACER; TRUNNION
(B) THA 		8-97922-399-0 02 1 1103- ● ●
79 MEMBER; CROSS,TRUNNION ASM
THA 		8-97612-104-0 01 1 1103-1109 ●
79 MEMBER; CROSS,TRUNNION ASM
THA 		8-97612-104-0 01 1 1110- ● ●
80 BRACKET; C/MBR
THA 		1-53363-068-0 02 1 1103-1109 ●
80 BRACKET; C/MBR
THA 		1-53363-068-0 02 1 1110- ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1103-1109 ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 1110- ● ●
82 NUT; BRKT
M14 THA 		0-91110-514-0 02 1 1103-1109 ●
82 NUT; BRKT
M14 THA 		0-91110-514-0 02 1 1110- ● ●
84 WASHER; PL,BRKT
ID=15 THA 		8-98010-627-1 04 1 1103-1109 ●
84 WASHER; PL,BRKT
ID=15 THA 		8-98010-627-1 04 1 1110- ● ●
86 MEMBER; CROSS,RR SUSP RR
THA 		8-97924-655-0 01 1 1103-1109 ●
86 MEMBER; CROSS,RR SUSP RR
THA 		8-97924-655-0 01 1 1110- ● ●
130 MEMBER; CROSS,END
THA 		8-97916-031-0 01 1 1103-1109 ●
130 MEMBER; CROSS,END
THA 		8-97916-031-0 01 1 1110- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER THA 		0-50541-230-0 04 1 1103-1109 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER THA 		0-50541-230-0 04 1 1110- ● ●
132 NUT; END C/MBR
M12 THA 		0-91110-512-0 04 1 1103-1109 ●
132 NUT; END C/MBR
M12 THA 		0-91110-512-0 04 1 1110- ● ●
141 STIFFENER
THA 		8-97926-003-1 04 1 1111- ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1103-1109 ●
148 SPACER; C/MBR
(E) 		8-97611-039-0 02 1 1110- ● ●
148 SPACER; C/MBR
(D) THA 		8-97612-109-0 02 1 1103-1109 ●
148 SPACER; C/MBR
(D) THA 		8-97612-109-0 02 1 1110- ● ●
148 SPACER; C/MBR
(C) 		8-97612-111-0 04 1 1103-1109 ●
148 SPACER; C/MBR
(C) 		8-97612-111-0 04 1 1110- ● ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 1103-1109 ●
148 SPACER; C/MBR
(A) 		8-97612-112-0 02 1 1110- ● ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1103-1109 ●
148 SPACER; C/MBR
(B) 		8-97612-113-0 02 1 1110- ● ●
201 GUSSET; C/MBR
(A) 		8-98200-450-0 02 1 1110- ●
201 GUSSET; C/MBR
(A) 		8-97612-107-3 02 1 1103- ●
201 GUSSET; C/MBR
(B) THA 		8-97612-108-2 02 1 1103-1109 ●
201 GUSSET; C/MBR
(B) THA 		8-97612-108-2 02 1 1110- ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1103-1109 ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1110- ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1103-1109 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1110- ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1103-1109 ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1110- ● ●
