3-75 — BRAKE PIPING; AIR,FRONT (#2223) — 126 parça

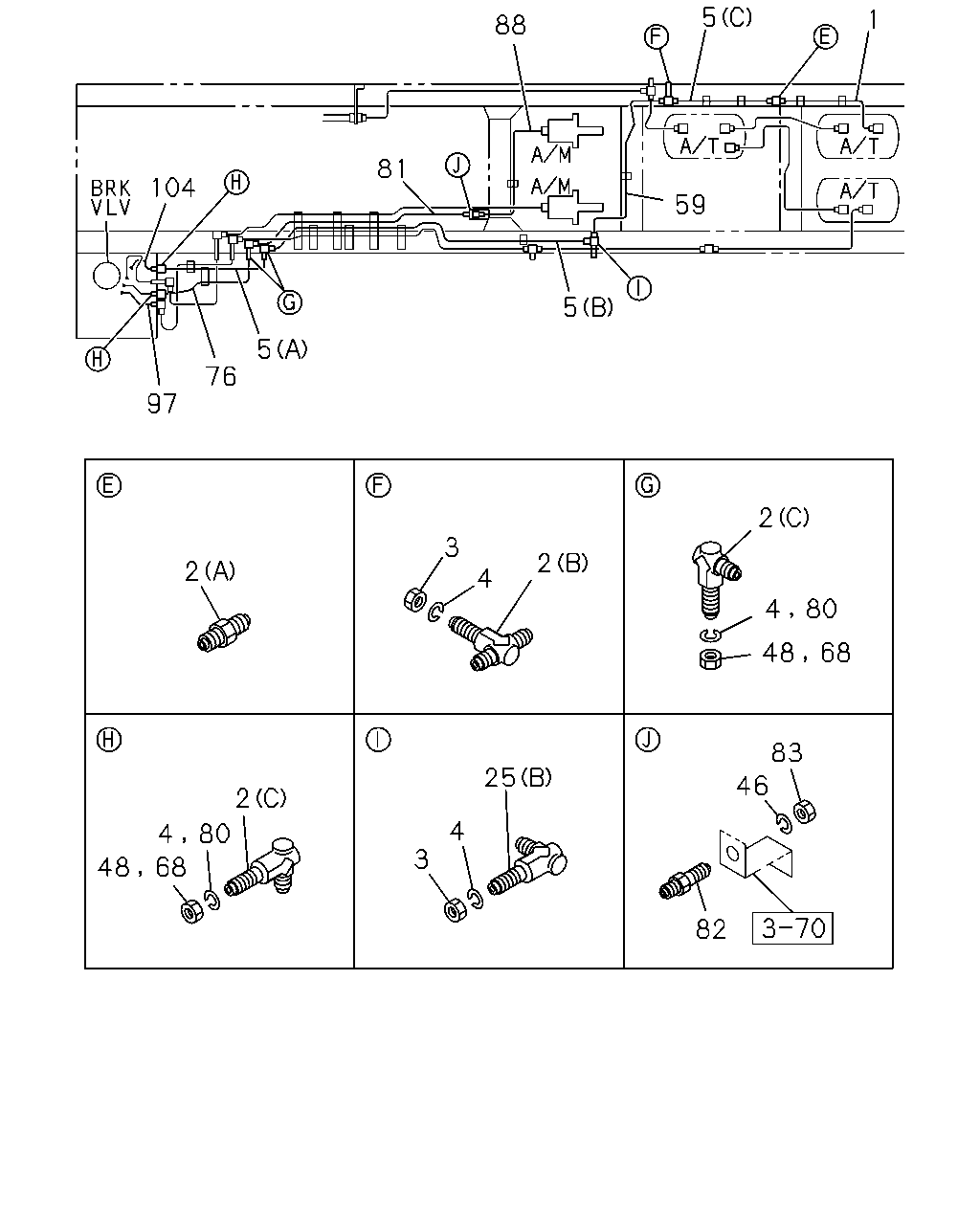

çizim 93535
5 1 88 81 104 59 5 5 76 97 2 3 2 2 4 80 4 48 68 83 25 46 2 4 80 4 3 48 68 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4600MM(46W) L=1701 SERVICED BY L=1800 		1-47434-487-0 01 1 9101-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4600MM(46W) L=1702 SERVICED BY L=1800 		1-49111-449-0 01 1 9301- ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=874 SERVICED BY L=900 		1-47437-981-0 01 1 9101-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=874 SERVICED BY L=900 		1-49111-442-0 01 1 9301- ● ●
2 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-138-1 01 1 9101- ● ●
2 UNION; AIR PIPE
(C) M20 ELBOW 		9-09235-112-1 02 1 9101- ● ●
2 UNION; AIR PIPE
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A) M20 STRAIGHT 		9-09233-012-1 01 1 9101- ● ●
2 UNION; AIR PIPE
(C) M20 		9-09235-212-1 02 1 9101- ●
3 NUT; PIPE UNION
M14 		9-99111-414-0 01 1 9101- ● ●
4 WASHER; LK,PIPE UNION
ID=14.2 		9-09150-514-0 02 1 9101-9312 ● ●
4 WASHER; LK,PIPE UNION
ID=20.2 		9-09150-520-0 02 1 9101- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=737 SERVICED BY L=800 		1-47437-980-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(A) L=738 SERVICED BY L=800 		1-47437-980-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2111 SERVICED BY L=2250 		1-47437-987-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2111 SERVICED BY L=2250 		1-49111-451-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1188 SERVICED BY L=1200 		1-49111-445-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1188 SERVICED BY L=1200 		1-49111-445-0 01 1 9301-0203 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 6000MM(60W) (B) L=2179 SERVICED BY L=2250 		1-47437-987-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 6000MM(60W) (B) L=2179 SERVICED BY L=2500 		1-49111-452-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S> (C) L=1173 SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S> (C) L=1174 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-0203 ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) (C) L=1174 SERVICED BY L=1300 		1-49111-446-0 01 1 0204- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2419 SERVICED BY L=2500 		1-47434-488-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2420 SERVICED BY L=2500 		1-47426-423-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
(A) L=759 SERVICED BY L=800 		1-49111-441-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(A) L=760 SERVICED BY L=800 		1-49111-441-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1168 SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1168 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-0203 ●
25 UNION; AIR PIPE
(A) 		9-09233-012-1 01 1 9101- ●
25 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-143-1 01 1 9101-9305 ●
25 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-218-1 01 1 9306- ●
46 WASHER; LK,PIPE UNION
ID=20.2 		9-09150-520-0 01 1 9101- ●
48 NUT; UNION BRKT
M20 		9-99111-420-0 02 1 9101- ● ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1398 SERVICED BY L=1450 		1-47437-984-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1398 SERVICED BY L=1450 		1-49111-447-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 0204- ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1417 SERVICED BY L=1450 		1-47437-984-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1108 SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1108 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1099 SERVICED BY L=1100 		1-47437-982-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1100 SERVICED BY L=1100 		1-49111-444-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
L=1100 SERVICED BY L=1100 		1-49111-444-0 01 1 0204- ●
68 NUT; UNION
M20 		9-99111-420-0 02 1 9101- ● ●
76 PIPE; AIR,UNION TO UNION
L=324 		1-47483-201-0 01 1 9101-9212 ●
76 PIPE; AIR,UNION TO UNION
L=324 		1-47496-549-0 01 1 9301- ●
76 PIPE; AIR,UNION TO UNION
L=712 SERVICED BY L=730 		1-47437-979-0 01 1 9101-9212 ●
76 PIPE; AIR,UNION TO UNION
L=712 SERVICED BY L=730 		1-49111-440-0 01 1 9301- ●
80 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 02 1 9101- ● ●
81 PIPE; AIR,UNION TO UNION
L=1969 SERVICED BY L=2000 		1-47437-986-0 01 1 9101-9212 ●
81 PIPE; AIR,UNION TO UNION
L=1970 SERVICED BY L=2000 		1-49111-450-0 01 1 9301- ●
81 PIPE; AIR,UNION TO UNION
L=1630 SERVICED BY L=1800 		1-47434-487-0 01 1 9101-9212 ●
81 PIPE; AIR,UNION TO UNION
L=1630 SERVICED BY L=1800 		1-49111-449-0 01 1 9301- ●
82 UNION; AIR PIPE 9-09233-012-1 01 1 9101- ●
82 UNION; AIR PIPE 9-09223-312-0 01 1 9101- ●
83 NUT; PIPE UNION
M20 		9-99111-420-0 01 1 9101- ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1088 		1-47481-842-0 01 1 9101-9212 ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1088 		1-47496-553-0 01 1 9301- ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1108 SERVICED BY L=1200 		1-47437-983-0 01 1 9101-9212 ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1109 SERVICED BY L=1200 		1-49111-445-0 01 1 9301- ●
97 PIPE; AIR,BRK VLV TO UNION
L=211 SERVICED BY L=300 		1-49111-433-0 01 1 9101-9212 ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=211 SERVICED BY L=300 		1-49111-433-0 01 1 9301- ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=570 SERVICED BY L=600 		1-47437-977-0 01 1 9101-9212 ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=570 SERVICED BY L=600 		1-49111-437-0 01 1 9301- ● ●

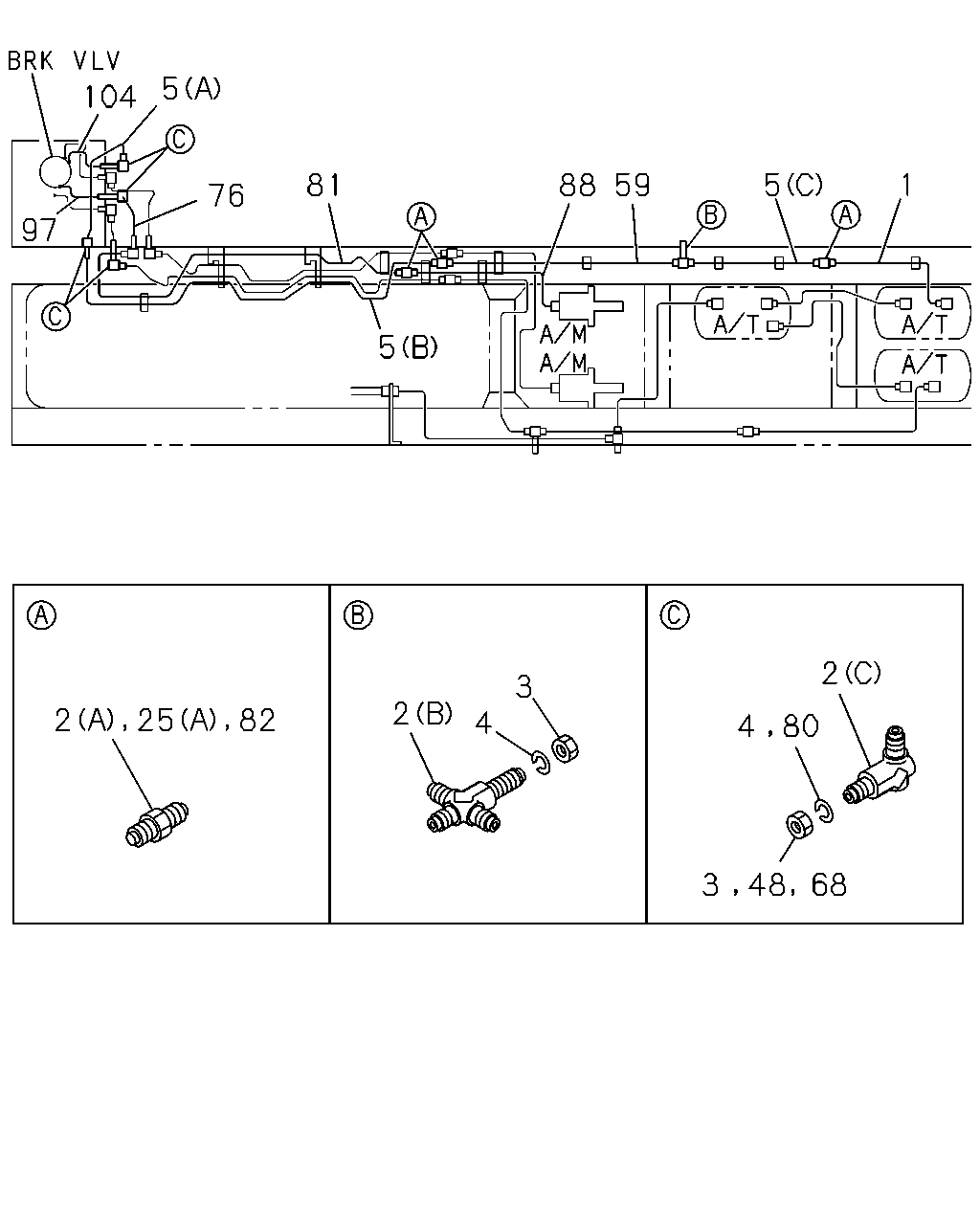

çizim 93828
104 5 81 88 59 5 1 76 97 5 2 3 2 2 25 82 4 80 3 48 68 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4600MM(46W) L=1701 SERVICED BY L=1800 		1-47434-487-0 01 1 9101-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 4600MM(46W) L=1702 SERVICED BY L=1800 		1-49111-449-0 01 1 9301- ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=874 SERVICED BY L=900 		1-47437-981-0 01 1 9101-9212 ● ●
1 PIPE; AIR,AIR TANK TO UNION
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=874 SERVICED BY L=900 		1-49111-442-0 01 1 9301- ● ●
2 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-138-1 01 1 9101- ● ●
2 UNION; AIR PIPE
(C) M20 ELBOW 		9-09235-112-1 02 1 9101- ● ●
2 UNION; AIR PIPE
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A) M20 STRAIGHT 		9-09233-012-1 01 1 9101- ● ●
2 UNION; AIR PIPE
(C) M20 		9-09235-212-1 02 1 9101- ●
3 NUT; PIPE UNION
M14 		9-99111-414-0 01 1 9101- ● ●
4 WASHER; LK,PIPE UNION
ID=14.2 		9-09150-514-0 02 1 9101-9312 ● ●
4 WASHER; LK,PIPE UNION
ID=20.2 		9-09150-520-0 02 1 9101- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=737 SERVICED BY L=800 		1-47437-980-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(A) L=738 SERVICED BY L=800 		1-47437-980-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2111 SERVICED BY L=2250 		1-47437-987-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2111 SERVICED BY L=2250 		1-49111-451-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1188 SERVICED BY L=1200 		1-49111-445-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1188 SERVICED BY L=1200 		1-49111-445-0 01 1 9301-0203 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 6000MM(60W) (B) L=2179 SERVICED BY L=2250 		1-47437-987-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 6000MM(60W) (B) L=2179 SERVICED BY L=2500 		1-49111-452-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S> (C) L=1173 SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) EXC. USER DAEWOO MOTORS<D4S> (C) L=1174 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-0203 ● ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) (C) L=1174 SERVICED BY L=1300 		1-49111-446-0 01 1 0204- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2419 SERVICED BY L=2500 		1-47434-488-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2420 SERVICED BY L=2500 		1-47426-423-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
(A) L=759 SERVICED BY L=800 		1-49111-441-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
(A) L=760 SERVICED BY L=800 		1-49111-441-0 01 1 9301- ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1168 SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ●
5 PIPE; AIR,UNION TO UNION
WHEEL BASE 5000MM(50W) USER DAEWOO MOTORS<D4S> (C) L=1168 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-0203 ●
25 UNION; AIR PIPE
(A) 		9-09233-012-1 01 1 9101- ●
25 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-143-1 01 1 9101-9305 ●
25 UNION; AIR PIPE
(B) M20 2WAY 		1-09654-218-1 01 1 9306- ●
48 NUT; UNION BRKT
M20 		9-99111-420-0 02 1 9101- ● ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1398 SERVICED BY L=1450 		1-47437-984-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1398 SERVICED BY L=1450 		1-49111-447-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 0204- ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1417 SERVICED BY L=1450 		1-47437-984-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1108 SERVICED BY L=1300 		1-47434-486-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
USER DAEWOO MOTORS<D4S> L=1108 SERVICED BY L=1300 		1-49111-446-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1099 SERVICED BY L=1100 		1-47437-982-0 01 1 9101-9212 ●
59 PIPE; AIR,UNION TO UNION
EXC. USER DAEWOO MOTORS<D4S> L=1100 SERVICED BY L=1100 		1-49111-444-0 01 1 9301-0203 ●
59 PIPE; AIR,UNION TO UNION
L=1100 SERVICED BY L=1100 		1-49111-444-0 01 1 0204- ●
68 NUT; UNION
M20 		9-99111-420-0 02 1 9101- ● ●
76 PIPE; AIR,UNION TO UNION
L=324 		1-47483-201-0 01 1 9101-9212 ●
76 PIPE; AIR,UNION TO UNION
L=324 		1-47496-549-0 01 1 9301- ●
76 PIPE; AIR,UNION TO UNION
L=712 SERVICED BY L=730 		1-47437-979-0 01 1 9101-9212 ●
76 PIPE; AIR,UNION TO UNION
L=712 SERVICED BY L=730 		1-49111-440-0 01 1 9301- ●
80 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 02 1 9101- ● ●
81 PIPE; AIR,UNION TO UNION
L=1969 SERVICED BY L=2000 		1-47437-986-0 01 1 9101-9212 ●
81 PIPE; AIR,UNION TO UNION
L=1970 SERVICED BY L=2000 		1-49111-450-0 01 1 9301- ●
81 PIPE; AIR,UNION TO UNION
L=1630 SERVICED BY L=1800 		1-47434-487-0 01 1 9101-9212 ●
81 PIPE; AIR,UNION TO UNION
L=1630 SERVICED BY L=1800 		1-49111-449-0 01 1 9301- ●
82 UNION; AIR PIPE 9-09233-012-1 01 1 9101- ●
82 UNION; AIR PIPE 9-09223-312-0 01 1 9101- ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1088 		1-47481-842-0 01 1 9101-9212 ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1088 		1-47496-553-0 01 1 9301- ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1108 SERVICED BY L=1200 		1-47437-983-0 01 1 9101-9212 ●
88 PIPE; AIR,DBL CHECK VLV TO AIR MASTER
L=1109 SERVICED BY L=1200 		1-49111-445-0 01 1 9301- ●
97 PIPE; AIR,BRK VLV TO UNION
L=211 SERVICED BY L=300 		1-49111-433-0 01 1 9101-9212 ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=211 SERVICED BY L=300 		1-49111-433-0 01 1 9301- ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=570 SERVICED BY L=600 		1-47437-977-0 01 1 9101-9212 ● ●
104 PIPE; AIR,UNION TO BRK VLV
L=570 SERVICED BY L=600 		1-49111-437-0 01 1 9301- ● ●
