Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

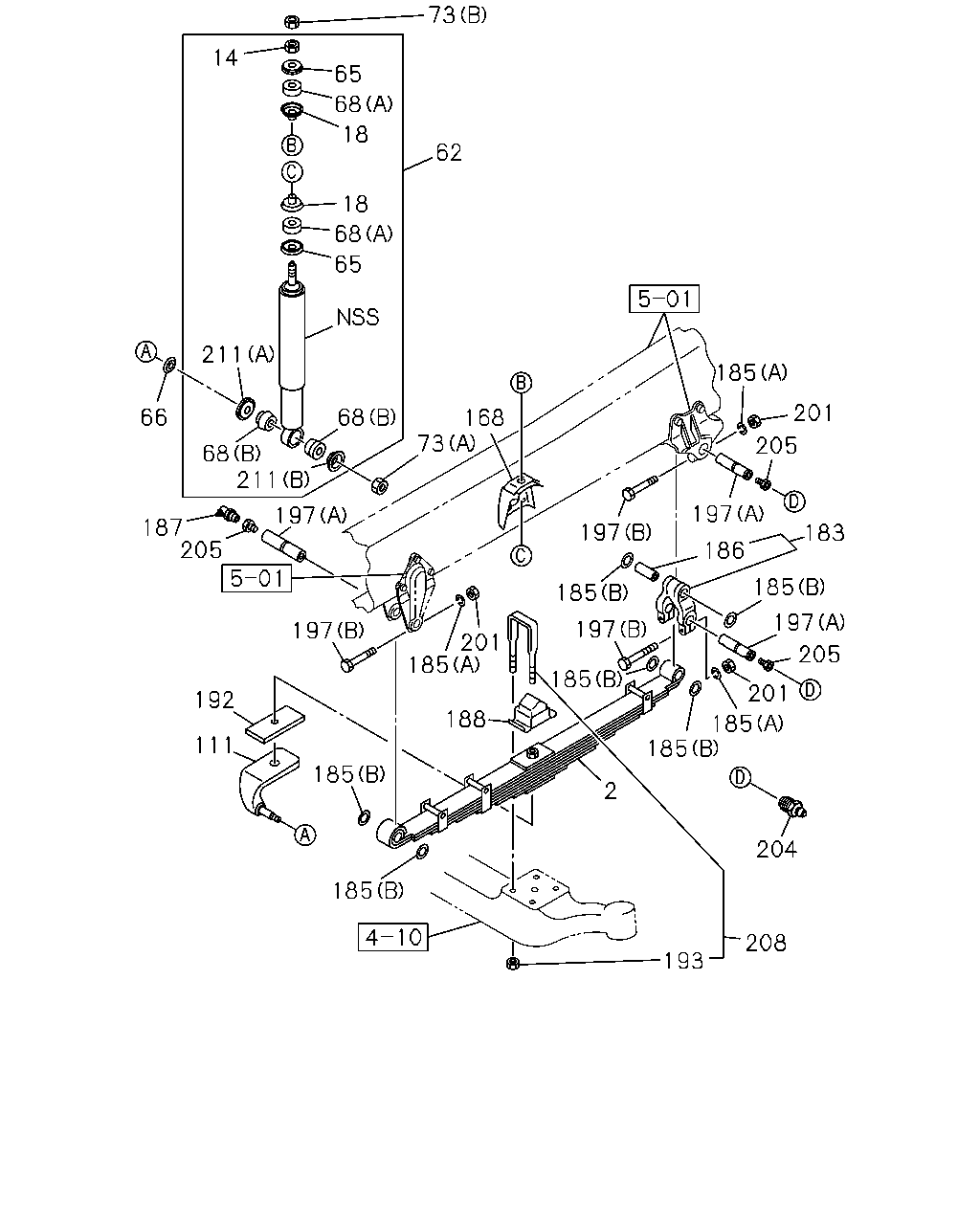

4-50 — FRONT SUSPENSION
(#22229) — 32 parça
73
14
65
68
18
62
18
68
65
211
185
201
68
66
168
205
73
68
211
197
197
187
205
197
183
186
185
185
197
197
197
201
185
205
185
201
192
188
185
185
111
185
2
204
185
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98167-308-0
02
1
1103-
14
NUT; S/ABS,UPR
M14 THA
9-99111-414-0
02
1
1103-
18
WASHER; CENTERING,S/ABS
ID=20.8 THA
9-51631-041-0
04
1
1103-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-224-0
02
1
1103-
65
WASHER; S/ABS
ID=16.5 THA
9-51631-040-0
04
1
1103-
66
WASHER; LK,S/ABS SETTING
ID=21 THA
0-91610-520-0
02
1
1103-
68
BUSHING; S/ABS
(B) THA
9-51631-026-0
04
1
1103-
68
BUSHING; S/ABS
(A) THA
9-51631-039-0
04
1
1103-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1103-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1103-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-195-0
01
1
1103-
111
SUPPORTER; S/ABS,FRT SUSP
8-98121-193-0
01
1
1103-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1103-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1103-
185
WASHER; LK,PIN
(A) ID=12.2 THA
0-91510-612-0
12
1
1103-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1103-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1103-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1103-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1103-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1103-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
1103-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1210-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1103-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1103-
201
NUT; PIN LK
M12 THA
0-91110-512-0
12
1
1103-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT THA
0-90301-410-0
04
1
1103-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1103-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-269-2
04
1
1103-1206
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1207-
211
WASHER; BRKT,SHOCK
(A) ID=27 THA
9-51631-027-0
02
1
1103-
211
WASHER; BRKT,SHOCK
(B) ID=21 THA
9-51631-028-0
02
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
