Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#2222) — 306 parça

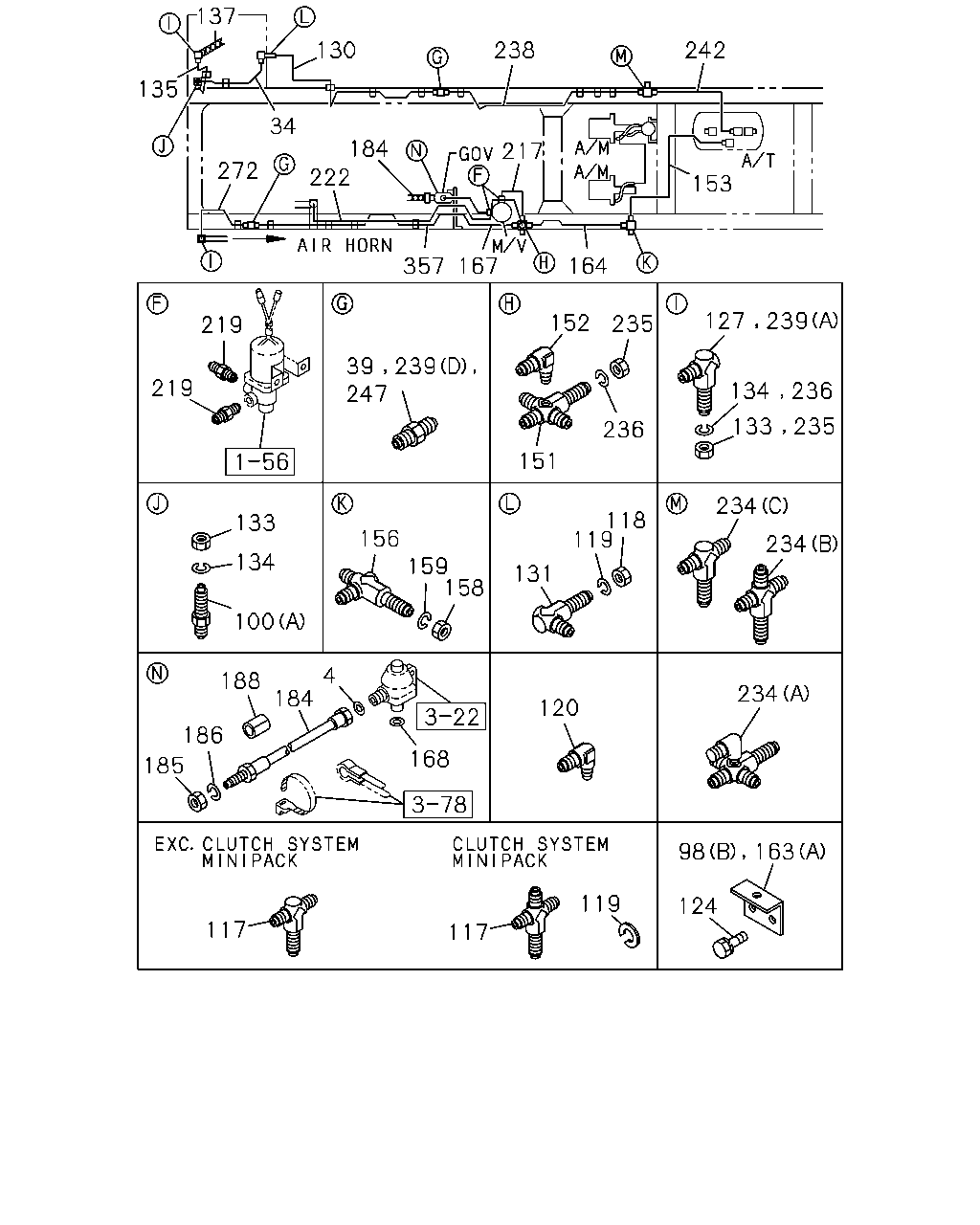

153 167 164 184 272 357 217 222 242 137 130 144 238 135 144 219 184 186 4 168 219 185 127 239 100 134 240 241 239 239 134 133 133 100 158 159 156 131 131 118 119 118 119 134 133 118 119 234 234 117 235 236 235 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9101-	●	●
100	CONNECTOR; AIR PIPE (A) M12 L=62.5	9-09223-206-1	01	1	9101-	●	●
100	CONNECTOR; AIR PIPE (B) M12 L=69	9-09225-106-1	01	1	9101-		●
117	UNION; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) M12	9-09228-206-1	01	1	9101-0203	●
117	UNION; AIR PIPE EXC. CLUTCH SYSTEM MINIPACK(B1Z) M12 3WAY	1-09654-137-2	01	1	9101-0203	●
117	UNION; AIR PIPE M12 3WAY	1-09654-137-2	01	1	0204-	●
117	UNION; AIR PIPE M12 2WAY	1-09654-059-2	01	1	9101-		●
118	NUT; UNION M12X1.5	9-09840-280-0	01	1	9101-	●
118	NUT; UNION M12X1.25	9-99111-412-0	01	1	9101-	●	●
119	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9101-9312	●	●
127	UNION; AIR PIPE AIR HORN(WB8) M10 & M12 ELBOW	1-09654-111-1	01	1	9101-	●	●
130	PIPE; AIR,UNION TO UNION L=1786 SERVICED BY L=1820	1-47434-394-0	01	1	9101-	●
130	PIPE; AIR,UNION TO UNION L=2115 SERVICED BY L=2200	1-47434-396-0	01	1	9101-		●
131	UNION; AIR PIPE M12 L=69	9-09225-106-1	01	1	9101-	●
131	UNION; AIR PIPE EXC. AIR HORN(WB8) M12 L=69	9-09225-106-1	01	1	9101-		●
131	UNION; AIR PIPE AIR HORN(WB8) M12 L=69	9-09228-506-1	01	1	9101-		●
133	NUT; UNION M12	9-09840-280-0	02	1	9101-	●	●
133	NUT; UNION M12	9-09840-280-0	01	1	9101-		●
134	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9101-9312	●	●
134	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9101-9312		●
135	PIPE; AIR,UNION TO UNION L=657	8-94300-624-0	01	1	9101-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE L=440	0-07210-440-0	01	1	9101-	●	●
144	PIPE; AIR,UNION TO UNION (A) L=594 SERVICED BY L=600	9-47415-352-0	01	1	9101-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=862 SERVICED BY L=900	1-47434-385-0	01	1	9101-		●
153	PIPE; AIR,AIR TANK TO UNION L=1342 SERVICED BY L=1370	1-47434-390-0	01	1	9101-	●
153	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> L=941 SERVICED BY L=1000	1-47434-386-0	01	1	9101-0203		●
153	PIPE; AIR,AIR TANK TO UNION EXC. USER DAEWOO MOTORS<D4S> L=921	1-47481-708-1	01	1	9101-0203		●
153	PIPE; AIR,AIR TANK TO UNION L=921	1-47481-708-1	01	1	0204-		●
156	UNION; AIR PIPE M12 2WAY	1-09654-059-2	01	1	9101-	●
156	UNION; AIR PIPE M12 3WAY	1-09654-137-2	01	1	9101-		●
158	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9101-	●	●
159	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
164	PIPE; AIR,UNION TO UNION L=958 SERVICED BY L=1000	1-47434-386-0	01	1	9101-	●
164	PIPE; AIR,UNION TO UNION USER DAEWOO MOTORS<D4S> L=1193 SERVICED BY L=1250	1-47434-389-0	01	1	9101-0203		●
164	PIPE; AIR,UNION TO UNION L=1189 SERVICED BY L=1250	1-47434-389-0	01	1	0204-		●
164	PIPE; AIR,UNION TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1189 SERVICED BY L=1250	1-47434-389-0	01	1	9101-0203		●
167	PIPE; AIR,CONN TO GOV	9-47415-349-0	01	1	9101-	●
167	PIPE; AIR,CONN TO GOV	1-47482-004-0	01	1	9101-		●
168	GASKET; AIR PIPE,GOV ID=11 OD=18	9-09572-510-0	01	1	9101-	●	●
184	HOSE; FLEX,AIR GOV L=640	0-07120-640-0	01	1	9101-	●
184	HOSE; FLEX,AIR GOV L=320	0-07120-320-0	01	1	9101-		●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9101-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
217	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE(NF8) L=321 SERVICED BY L=350	9-47415-348-0	01	1	9101-	●	●
219	UNION; MAG VLV IN EXHAUST BRAKE(NF8) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9101-	●	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) L=1622 SERVICED BY L=1700	1-47434-393-0	01	1	9101-0203	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE(NF8) L=1622 SERVICED BY L=1700	1-47434-393-0	01	1	0204-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE(NF8) L=1661 SERVICED BY L=1700	1-47434-393-0	01	1	9101-		●
234	UNION; AIR PIPE AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	9101-0203	●
234	UNION; AIR PIPE EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE),AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	9101-0203	●
234	UNION; AIR PIPE EXC. CLUTCH SYSTEM MINIPACK(B1Z) (C) M12 3WAY	1-09654-137-2	01	1	9101-0203		●
234	UNION; AIR PIPE AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	0204-	●
234	UNION; AIR PIPE EXC. EXHAUST BRAKE(NF8),AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	0204-	●
234	UNION; AIR PIPE (C) M12 3WAY	1-09654-137-2	01	1	0204-		●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8) (A)	1-09656-474-2	01	1	9101-0203	●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8) AIR HORN(WB8) (A)	1-09656-474-2	01	1	0204-	●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) EXC. AIR HORN(WB8) (B)	9-09228-206-1	01	1	9101-0203	●
234	UNION; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) (B)	9-09228-206-1	01	1	9101-0203	●
234	UNION; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (B)	9-09228-206-1	01	1	9101-0203		●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8) EXC. AIR HORN(WB8) (B)	9-09228-206-1	01	1	0204-	●
234	UNION; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) (B)	9-09228-206-1	01	1	0204-	●
235	NUT; PIPE UNION M12X1.25	9-99111-412-0	01	1	9101-	●	●
235	NUT; PIPE UNION AIR HORN(WB8) M12X1.25	9-99111-412-0	01	1	9101-	●
235	NUT; PIPE UNION AIR HORN(WB8) M12X1.5	9-09840-280-0	01	1	9101-	●	●
236	WASHER; LK,UNION,PIPE ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
236	WASHER; LK,UNION,PIPE AIR HORN(WB8) ID=12.2	9-09150-512-0	01	1	9401-	●	●
238	PIPE; AIR,UNION TO UNION USER DAEWOO MOTORS<D4S> L=1660 SERVICED BY L=1820	1-47434-394-0	01	1	9101-0203	●
238	PIPE; AIR,UNION TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1644 SERVICED BY L=1700	1-47434-393-0	01	1	9101-0203	●
238	PIPE; AIR,UNION TO UNION L=1644 SERVICED BY L=1700	1-47434-393-0	01	1	0204-	●
238	PIPE; AIR,UNION TO UNION L=958 SERVICED BY L=1000	1-47434-386-0	01	1	9101-		●
239	UNION; AIR PIPE (D)	9-09223-006-1	01	1	9101-	●
239	UNION; AIR PIPE (A) M10 & M12 ELBOW	1-09654-111-1	01	1	9101-	●	●
239	UNION; AIR PIPE EXHAUST BRAKE(NF8) (B)	9-09228-206-1	01	1	9101-		●
239	UNION; AIR PIPE EXC. EXHAUST BRAKE(NF8) (C)	1-09654-137-2	01	1	9101-0203		●
240	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9101-		●
241	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9101-9312		●
242	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> L=929 SERVICED BY L=1300	1-47434-486-0	01	1	9101-0203	●
242	PIPE; AIR,AIR TANK TO UNION EXC. USER DAEWOO MOTORS<D4S> L=921	1-47481-708-1	01	1	9101-0203	●
242	PIPE; AIR,AIR TANK TO UNION L=921	1-47481-708-1	01	1	0204-	●
242	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=1000 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9212	●	●
242	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=1000 SERVICED BY L=1100	1-49111-444-0	01	1	9301-0203	●	●
242	PIPE; AIR,AIR TANK TO UNION L=1342 SERVICED BY L=1370	1-47434-390-0	01	1	9101-		●
272	PIPE; AIR,MAG VLV TO UNION AIR HORN(WB8) L=475 SERVICED BY L=500	9-47415-350-0	01	1	9101-	●
272	PIPE; AIR,MAG VLV TO UNION AIR HORN(WB8) L=352 SERVICED BY L=460	9-47415-349-0	01	1	9101-		●
357	PIPE; AIR,UNION TO UNION EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8) L=2075 SERVICED BY L=2200	1-47434-396-0	01	1	9101-0203	●
357	PIPE; AIR,UNION TO UNION EXHAUST BRAKE(NF8) AIR HORN(WB8) L=2075 SERVICED BY L=2200	1-47434-396-0	01	1	0204-	●
357	PIPE; AIR,UNION TO UNION AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) L=2092 SERVICED BY L=2200	1-47434-396-0	01	1	9101-0203	●	●

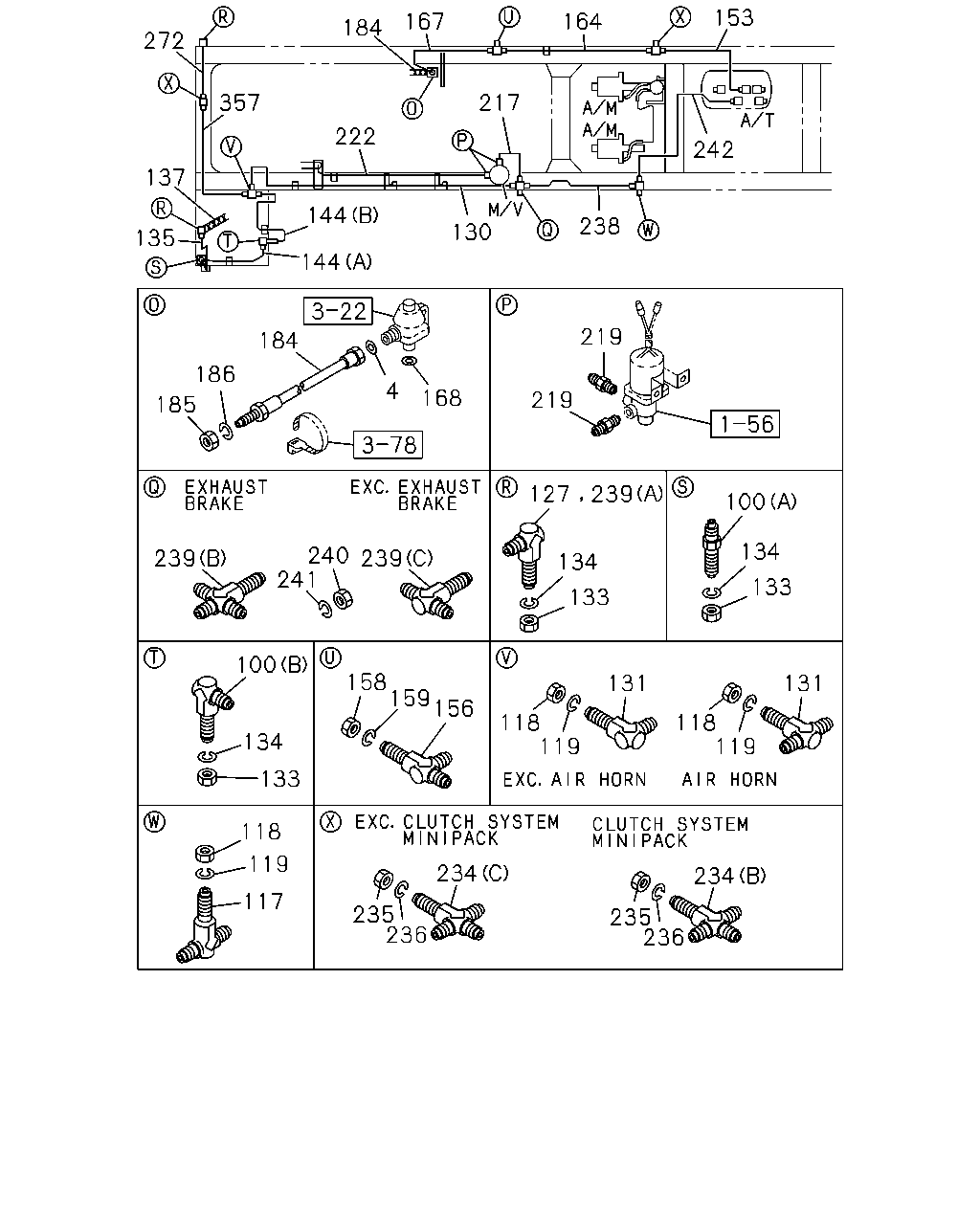

137 130 238 242 135 34 184 217 153 272 222 167 164 357 235 127 239 152 219 247 219 134 236 133 235 236 151 234 118 119 133 156 234 134 159 158 131 100 4 184 188 234 120 186 168 185 98 163 119 124 117 117 39 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9101-	●	●
34	PIPE; AIR WHEEL BASE 4600MM(46W) L=773 SERVICED BY L=800	1-47437-980-0	01	1	9101-9212	●	●
34	PIPE; AIR WHEEL BASE 4600MM(46W) L=773 SERVICED BY L=800	1-49111-441-0	01	1	9301-	●	●
34	PIPE; AIR WHEEL BASE 5000MM(50W) L=1162 SERVICED BY L=1200	1-47437-983-0	01	1	9101-9212	●	●
34	PIPE; AIR WHEEL BASE 5000MM(50W) L=1162 SERVICED BY L=1200	1-49111-445-0	01	1	9301-	●	●
39	UNION; AIR PIPE WHEEL BASE 6000MM(60W) M20 STRAIGHT	9-09233-012-1	01	1	9101-	●
98	BRACKET; AIR PIPE (A)	1-47475-299-2	01	1	9101-	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	03	1	9101-	●
98	BRACKET; AIR PIPE (E)	1-47475-272-1	01	1	9101-	●	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9101-	●	●
98	BRACKET; AIR PIPE (D)	1-47475-313-1	01	1	9101-		●
98	BRACKET; AIR PIPE (C) M8 W/NUT	1-47475-439-2	02	1	9101-		●
100	CONNECTOR; AIR PIPE (A) M12 L=62.5	9-09223-206-1	01	1	9101-	●	●
100	CONNECTOR; AIR PIPE (B) M12 L=69	9-09225-106-1	01	1	9101-		●
117	UNION; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) M12	9-09228-206-1	01	1	9101-0203	●
117	UNION; AIR PIPE EXC. CLUTCH SYSTEM MINIPACK(B1Z) M12 3WAY	1-09654-137-2	01	1	9101-0203	●
117	UNION; AIR PIPE M12 3WAY	1-09654-137-2	01	1	0204-	●
117	UNION; AIR PIPE M12 2WAY	1-09654-059-2	01	1	9101-		●
118	NUT; UNION M12X1.5	9-09840-280-0	01	1	9101-	●
118	NUT; UNION M12X1.25	9-99111-412-0	01	1	9101-	●	●
119	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9101-9312	●	●
120	CONNECTOR; AIR PIPE USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20 & PT3/8 ELBOW	9-09234-312-1	02	1	9101-9302	●
120	CONNECTOR; AIR PIPE USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20 & PT3/8 ELBOW	1-09650-439-0	02	1	9303-0203	●
124	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●
124	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●
124	BOLT; BRKT M8X45 W/LK WASHER	9-01900-845-0	03	1	9101-9204	●
124	BOLT; BRKT M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-	●
124	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	03	1	9101-9204		●
124	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-		●
124	BOLT; BRKT M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204		●
124	BOLT; BRKT M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-		●
127	UNION; AIR PIPE AIR HORN(WB8) M10 & M12 ELBOW	1-09654-111-1	01	1	9101-	●	●
130	PIPE; AIR,UNION TO UNION L=1786 SERVICED BY L=1820	1-47434-394-0	01	1	9101-	●
130	PIPE; AIR,UNION TO UNION L=2115 SERVICED BY L=2200	1-47434-396-0	01	1	9101-		●
131	UNION; AIR PIPE M12 L=69	9-09225-106-1	01	1	9101-	●
131	UNION; AIR PIPE EXC. AIR HORN(WB8) M12 L=69	9-09225-106-1	01	1	9101-		●
131	UNION; AIR PIPE AIR HORN(WB8) M12 L=69	9-09228-506-1	01	1	9101-		●
133	NUT; UNION M12	9-09840-280-0	02	1	9101-	●	●
133	NUT; UNION M12	9-09840-280-0	01	1	9101-		●
134	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9101-9312	●	●
134	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9101-9312		●
135	PIPE; AIR,UNION TO UNION L=657	8-94300-624-0	01	1	9101-	●	●
137	HOSE; FLEX,AIR PRESSURE GAGE L=440	0-07210-440-0	01	1	9101-	●	●
151	NIPPLE; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8)	1-09656-321-1	01	1	9101-0203	●
151	NIPPLE; AIR PIPE EXHAUST BRAKE(NF8) AIR HORN(WB8)	1-09656-321-1	01	1	0204-	●
152	CONNECTOR; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9302	●
152	CONNECTOR; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-0203	●
152	CONNECTOR; AIR PIPE EXHAUST BRAKE(NF8) AIR HORN(WB8) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0204-	●
153	PIPE; AIR,AIR TANK TO UNION L=1342 SERVICED BY L=1370	1-47434-390-0	01	1	9101-	●
153	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> L=941 SERVICED BY L=1000	1-47434-386-0	01	1	9101-0203		●
153	PIPE; AIR,AIR TANK TO UNION EXC. USER DAEWOO MOTORS<D4S> L=921	1-47481-708-1	01	1	9101-0203		●
153	PIPE; AIR,AIR TANK TO UNION L=921	1-47481-708-1	01	1	0204-		●
156	UNION; AIR PIPE M12 2WAY	1-09654-059-2	01	1	9101-	●
156	UNION; AIR PIPE M12 3WAY	1-09654-137-2	01	1	9101-		●
158	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9101-	●	●
159	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
163	BRACKET; AIR PIPE (A)	1-47475-427-1	01	1	9101-	●
163	BRACKET; AIR PIPE (B) L=50	1-47475-299-2	01	1	9101-	●	●
164	PIPE; AIR,UNION TO UNION L=958 SERVICED BY L=1000	1-47434-386-0	01	1	9101-	●
164	PIPE; AIR,UNION TO UNION USER DAEWOO MOTORS<D4S> L=1193 SERVICED BY L=1250	1-47434-389-0	01	1	9101-0203		●
164	PIPE; AIR,UNION TO UNION L=1189 SERVICED BY L=1250	1-47434-389-0	01	1	0204-		●
164	PIPE; AIR,UNION TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1189 SERVICED BY L=1250	1-47434-389-0	01	1	9101-0203		●
167	PIPE; AIR,CONN TO GOV	9-47415-349-0	01	1	9101-	●
167	PIPE; AIR,CONN TO GOV	1-47482-004-0	01	1	9101-		●
168	GASKET; AIR PIPE,GOV ID=11 OD=18	9-09572-510-0	01	1	9101-	●	●
184	HOSE; FLEX,AIR GOV L=640	0-07120-640-0	01	1	9101-	●
184	HOSE; FLEX,AIR GOV L=320	0-07120-320-0	01	1	9101-		●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9101-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
188	SLEEVE; RUBBER,FLEX HOSE ID=10 OD=14 L=30	9-09956-682-0	01	1	9101-	●
217	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE(NF8) L=321 SERVICED BY L=350	9-47415-348-0	01	1	9101-	●	●
219	UNION; MAG VLV IN EXHAUST BRAKE(NF8) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9101-	●	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) L=1622 SERVICED BY L=1700	1-47434-393-0	01	1	9101-0203	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE(NF8) L=1622 SERVICED BY L=1700	1-47434-393-0	01	1	0204-	●
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE(NF8) L=1661 SERVICED BY L=1700	1-47434-393-0	01	1	9101-		●
234	UNION; AIR PIPE AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	9101-0203	●
234	UNION; AIR PIPE EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE),AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	9101-0203	●
234	UNION; AIR PIPE EXC. CLUTCH SYSTEM MINIPACK(B1Z) (C) M12 3WAY	1-09654-137-2	01	1	9101-0203		●
234	UNION; AIR PIPE AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	0204-	●
234	UNION; AIR PIPE EXC. EXHAUST BRAKE(NF8),AIR HORN(WB8) (C) M12 3WAY	1-09654-137-2	01	1	0204-	●
234	UNION; AIR PIPE (C) M12 3WAY	1-09654-137-2	01	1	0204-		●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8) (A)	1-09656-474-2	01	1	9101-0203	●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8) AIR HORN(WB8) (A)	1-09656-474-2	01	1	0204-	●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) EXC. AIR HORN(WB8) (B)	9-09228-206-1	01	1	9101-0203	●
234	UNION; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) (B)	9-09228-206-1	01	1	9101-0203	●
234	UNION; AIR PIPE CLUTCH SYSTEM MINIPACK(B1Z) (B)	9-09228-206-1	01	1	9101-0203		●
234	UNION; AIR PIPE EXHAUST BRAKE(NF8) EXC. AIR HORN(WB8) (B)	9-09228-206-1	01	1	0204-	●
234	UNION; AIR PIPE AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) (B)	9-09228-206-1	01	1	0204-	●
235	NUT; PIPE UNION M12X1.25	9-99111-412-0	01	1	9101-	●	●
235	NUT; PIPE UNION AIR HORN(WB8) M12X1.25	9-99111-412-0	01	1	9101-	●
235	NUT; PIPE UNION AIR HORN(WB8) M12X1.5	9-09840-280-0	01	1	9101-	●	●
236	WASHER; LK,UNION,PIPE ID=12.2	9-09150-512-0	01	1	9101-9312	●	●
236	WASHER; LK,UNION,PIPE AIR HORN(WB8) ID=12.2	9-09150-512-0	01	1	9401-	●	●
238	PIPE; AIR,UNION TO UNION USER DAEWOO MOTORS<D4S> L=1660 SERVICED BY L=1820	1-47434-394-0	01	1	9101-0203	●
238	PIPE; AIR,UNION TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1644 SERVICED BY L=1700	1-47434-393-0	01	1	9101-0203	●
238	PIPE; AIR,UNION TO UNION L=1644 SERVICED BY L=1700	1-47434-393-0	01	1	0204-	●
238	PIPE; AIR,UNION TO UNION L=958 SERVICED BY L=1000	1-47434-386-0	01	1	9101-		●
239	UNION; AIR PIPE (D)	9-09223-006-1	01	1	9101-	●
239	UNION; AIR PIPE (A) M10 & M12 ELBOW	1-09654-111-1	01	1	9101-	●	●
239	UNION; AIR PIPE EXHAUST BRAKE(NF8) (B)	9-09228-206-1	01	1	9101-		●
239	UNION; AIR PIPE EXC. EXHAUST BRAKE(NF8) (C)	1-09654-137-2	01	1	9101-0203		●
242	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> L=929 SERVICED BY L=1300	1-47434-486-0	01	1	9101-0203	●
242	PIPE; AIR,AIR TANK TO UNION EXC. USER DAEWOO MOTORS<D4S> L=921	1-47481-708-1	01	1	9101-0203	●
242	PIPE; AIR,AIR TANK TO UNION L=921	1-47481-708-1	01	1	0204-	●
242	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=1000 SERVICED BY L=1100	1-47437-982-0	01	1	9101-9212	●	●
242	PIPE; AIR,AIR TANK TO UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=1000 SERVICED BY L=1100	1-49111-444-0	01	1	9301-0203	●	●
242	PIPE; AIR,AIR TANK TO UNION L=1342 SERVICED BY L=1370	1-47434-390-0	01	1	9101-		●
247	UNION; AIR PIPE WHEEL BASE 6000MM(60W) M20 STRAIGHT	9-09233-012-1	01	1	9101-	●
272	PIPE; AIR,MAG VLV TO UNION AIR HORN(WB8) L=475 SERVICED BY L=500	9-47415-350-0	01	1	9101-	●
272	PIPE; AIR,MAG VLV TO UNION AIR HORN(WB8) L=352 SERVICED BY L=460	9-47415-349-0	01	1	9101-		●
357	PIPE; AIR,UNION TO UNION EXHAUST BRAKE(NF8),EXHAUST BRAKE FULL TIME(SLE) AIR HORN(WB8) L=2075 SERVICED BY L=2200	1-47434-396-0	01	1	9101-0203	●
357	PIPE; AIR,UNION TO UNION EXHAUST BRAKE(NF8) AIR HORN(WB8) L=2075 SERVICED BY L=2200	1-47434-396-0	01	1	0204-	●
357	PIPE; AIR,UNION TO UNION AIR HORN(WB8) EXC. EXHAUST BRAKE(NF8) L=2092 SERVICED BY L=2200	1-47434-396-0	01	1	9101-0203	●	●

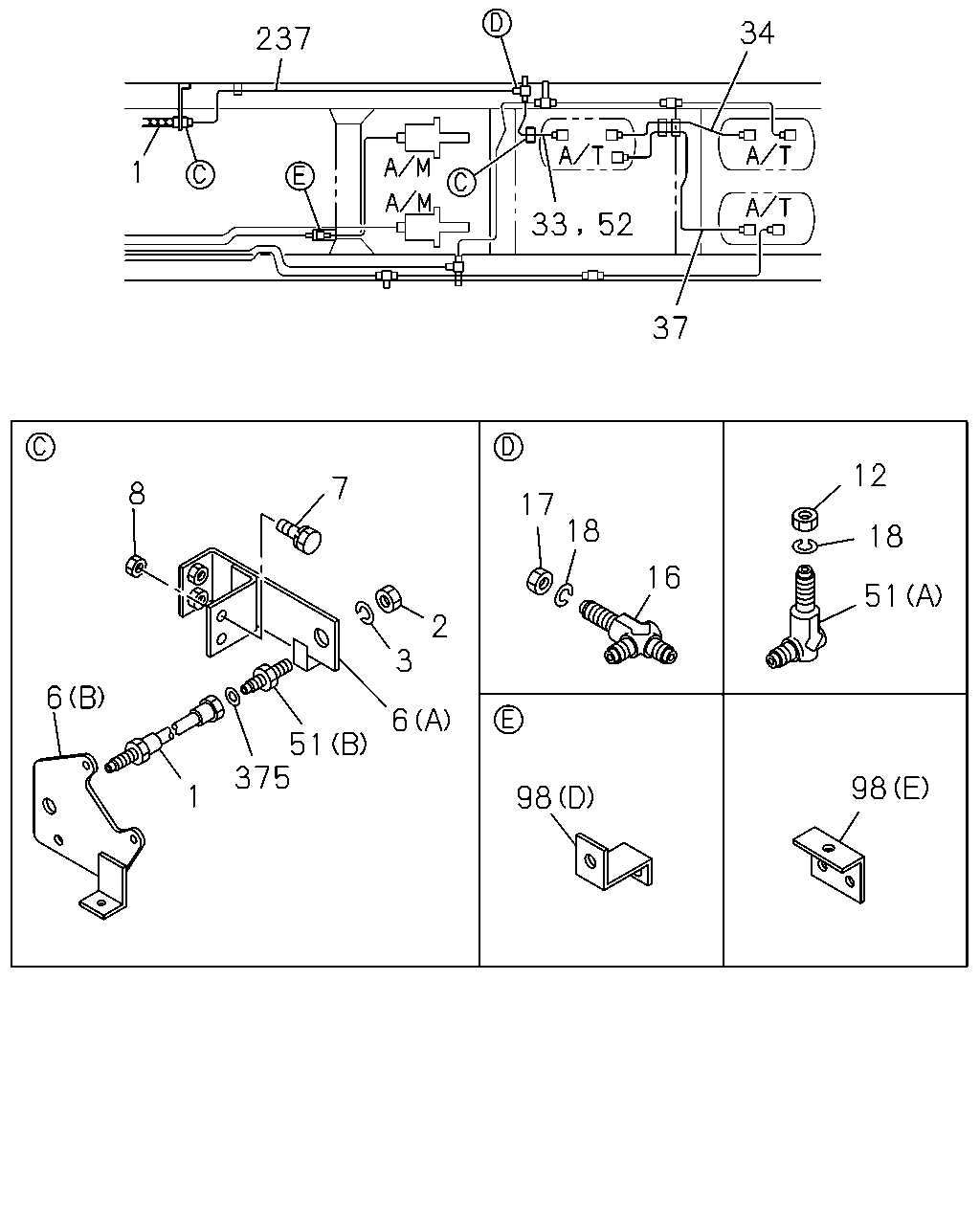

34 237 1 33 52 37 12 7 8 17 18 18 16 51 2 3 6 6 51 375 98 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	0-07706-730-0	01	1	9101-	●
1	HOSE; FLEX,AIR TANK	0-07806-330-1	01	1	9101-		●
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	02	1	9101-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	02	1	9101-	●	●
6	BRACKET; FLEX HOSE,AIR TANK (C)	1-48359-024-0	01	1	9101-	●
6	BRACKET; FLEX HOSE,AIR TANK (B)	1-47475-816-3	01	1	9101-		●
6	BRACKET; FLEX HOSE,AIR TANK (A)	1-48359-042-0	01	1	9101-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 W/LK WASHER	9-01900-830-0	02	1	9101-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9101-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M10	9-09110-410-0	02	1	9101-9307		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M10	9-09110-510-0	02	1	9308-		●
12	NUT; UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20	9-99111-420-0	01	1	9101-0203	●	●
16	UNION; AIR PIPE M20 2WAY	1-09654-143-1	01	1	9101-9305	●	●
16	UNION; AIR PIPE M20 2WAY	1-09654-218-1	01	1	9306-	●	●
17	NUT; UNION M14	9-99111-414-0	01	1	9101-	●	●
18	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9101-9312	●	●
18	WASHER; LK,UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=20.2	9-09150-520-0	01	1	9101-0203	●	●
33	PIPE; AIR,UNION TO AIR TANK L=1199 SERVICED BY L=1200	1-47437-983-0	01	1	9101-9212	●
33	PIPE; AIR,UNION TO AIR TANK L=1199 SERVICED BY L=1200	1-49111-445-0	01	1	9301-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6000MM(60W) L=1440 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6000MM(60W) L=1440 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●
33	PIPE; AIR,UNION TO AIR TANK L=529 SERVICED BY L=550	1-47437-976-0	01	1	9101-9212		●
33	PIPE; AIR,UNION TO AIR TANK L=529 SERVICED BY L=550	1-49111-436-0	01	1	9301-		●
34	PIPE; AIR WHEEL BASE 4600MM(46W) L=773 SERVICED BY L=800	1-47437-980-0	01	1	9101-9212	●	●
34	PIPE; AIR WHEEL BASE 4600MM(46W) L=773 SERVICED BY L=800	1-49111-441-0	01	1	9301-	●	●
34	PIPE; AIR WHEEL BASE 5000MM(50W) L=1162 SERVICED BY L=1200	1-47437-983-0	01	1	9101-9212	●	●
34	PIPE; AIR WHEEL BASE 5000MM(50W) L=1162 SERVICED BY L=1200	1-49111-445-0	01	1	9301-	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 4600MM(46W)	1-47483-196-0	01	1	9101-9212	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 4600MM(46W)	1-47496-530-0	01	1	9301-	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 5000MM(50W)	1-47483-198-0	01	1	9101-9212	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 5000MM(50W) L=1514	1-47496-531-0	01	1	9301-	●	●
51	UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 ELBOW	9-09235-112-1	01	1	9101-0203	●	●
51	UNION (B) M20 STRAIGHT	1-09654-240-1	01	1	9101-		●
52	PIPE; AIR,UNION TO AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-47488-073-0	01	1	9101-9212	●	●
52	PIPE; AIR,UNION TO AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-47496-535-0	01	1	9301-0203	●	●
98	BRACKET; AIR PIPE (A)	1-47475-299-2	01	1	9101-	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	03	1	9101-	●
98	BRACKET; AIR PIPE (E)	1-47475-272-1	01	1	9101-	●	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9101-	●	●
98	BRACKET; AIR PIPE (D)	1-47475-313-1	01	1	9101-		●
98	BRACKET; AIR PIPE (C) M8 W/NUT	1-47475-439-2	02	1	9101-		●
237	PIPE; AIR,FLEX HOSE TO UNION L=1356 SERVICED BY L=1450	1-47437-984-0	01	1	9101-9212	●
237	PIPE; AIR,FLEX HOSE TO UNION L=1357 SERVICED BY L=1450	1-49111-447-0	01	1	9301-	●
237	PIPE; AIR,FLEX HOSE TO UNION USER DAEWOO MOTORS<D4S> L=1919 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9212		●
237	PIPE; AIR,FLEX HOSE TO UNION USER DAEWOO MOTORS<D4S> L=1919 SERVICED BY L=2000	1-49111-450-0	01	1	9301-0203		●
237	PIPE; AIR,FLEX HOSE TO UNION L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	0204-		●
237	PIPE; AIR,FLEX HOSE TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1920 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9212		●
237	PIPE; AIR,FLEX HOSE TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	9301-0203		●
375	GASKET ID=11 OD=18	9-09572-510-0	01	1	9101-		●

33 52 36 1 237 37 98 163 16 18 2 3 6 17 8 5 1 12 7 98 18 165 51 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK	0-07706-730-0	01	1	9101-	●
1	HOSE; FLEX,AIR TANK	0-07806-330-1	01	1	9101-		●
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	02	1	9101-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	02	1	9101-	●	●
5	SLEEVE; FLEX HOSE ID=29 OD=39 L=40	1-09337-013-0	01	1	9101-	●
6	BRACKET; FLEX HOSE,AIR TANK (C)	1-48359-024-0	01	1	9101-	●
6	BRACKET; FLEX HOSE,AIR TANK (B)	1-47475-816-3	01	1	9101-		●
6	BRACKET; FLEX HOSE,AIR TANK (A)	1-48359-042-0	01	1	9101-		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 W/LK WASHER	9-01900-830-0	02	1	9101-9204	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9101-	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M10	9-09110-410-0	02	1	9101-9307		●
8	NUT; BRKT,FLEX HOSE,AIR TANK M10	9-09110-510-0	02	1	9308-		●
12	NUT; UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> M20	9-99111-420-0	01	1	9101-0203	●	●
16	UNION; AIR PIPE M20 2WAY	1-09654-143-1	01	1	9101-9305	●	●
16	UNION; AIR PIPE M20 2WAY	1-09654-218-1	01	1	9306-	●	●
17	NUT; UNION M14	9-99111-414-0	01	1	9101-	●	●
18	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9101-9312	●	●
18	WASHER; LK,UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=20.2	9-09150-520-0	01	1	9101-0203	●	●
33	PIPE; AIR,UNION TO AIR TANK L=1199 SERVICED BY L=1200	1-47437-983-0	01	1	9101-9212	●
33	PIPE; AIR,UNION TO AIR TANK L=1199 SERVICED BY L=1200	1-49111-445-0	01	1	9301-	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6000MM(60W) L=1440 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●
33	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6000MM(60W) L=1440 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●
33	PIPE; AIR,UNION TO AIR TANK L=529 SERVICED BY L=550	1-47437-976-0	01	1	9101-9212		●
33	PIPE; AIR,UNION TO AIR TANK L=529 SERVICED BY L=550	1-49111-436-0	01	1	9301-		●
36	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 6000MM(60W) L=1239 SERVICED BY L=1300	1-47434-486-0	01	1	9101-9212	●
36	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 6000MM(60W) L=1238 SERVICED BY L=1300	1-49111-446-0	01	1	9301-	●
36	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 6000MM(60W) L=775	1-47491-680-0	01	1	9101-9212	●
36	PIPE; AIR,AIR TANK TO UNION WHEEL BASE 6000MM(60W) L=775	1-49111-490-0	01	1	9301-	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 4600MM(46W)	1-47483-196-0	01	1	9101-9212	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 4600MM(46W)	1-47496-530-0	01	1	9301-	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 5000MM(50W)	1-47483-198-0	01	1	9101-9212	●	●
37	PIPE; AIR,AIR TANK TO AIR TANK WHEEL BASE 5000MM(50W) L=1514	1-47496-531-0	01	1	9301-	●	●
45	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6000MM(60W) L=1480 SERVICED BY L=1600	1-47437-985-0	01	1	9101-9212	●
45	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 6000MM(60W) L=1480 SERVICED BY L=1600	1-49111-448-0	01	1	9301-	●
51	UNION USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 ELBOW	9-09235-112-1	01	1	9101-0203	●	●
51	UNION (B) M20 STRAIGHT	1-09654-240-1	01	1	9101-		●
52	PIPE; AIR,UNION TO AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-47488-073-0	01	1	9101-9212	●	●
52	PIPE; AIR,UNION TO AIR TANK USER DAEWOO MOTORS<D4S> DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-47496-535-0	01	1	9301-0203	●	●
98	BRACKET; AIR PIPE (A)	1-47475-299-2	01	1	9101-	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	03	1	9101-	●
98	BRACKET; AIR PIPE (E)	1-47475-272-1	01	1	9101-	●	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9101-	●	●
98	BRACKET; AIR PIPE (D)	1-47475-313-1	01	1	9101-		●
98	BRACKET; AIR PIPE (C) M8 W/NUT	1-47475-439-2	02	1	9101-		●
163	BRACKET; AIR PIPE (A)	1-47475-427-1	01	1	9101-	●
163	BRACKET; AIR PIPE (B) L=50	1-47475-299-2	01	1	9101-	●	●
165	BOLT; CLIP,OIL PIPE M8X45 W/LK WASHER	9-01900-845-0	01	1	9101-9204		●
165	BOLT; CLIP,OIL PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-		●
237	PIPE; AIR,FLEX HOSE TO UNION L=1356 SERVICED BY L=1450	1-47437-984-0	01	1	9101-9212	●
237	PIPE; AIR,FLEX HOSE TO UNION L=1357 SERVICED BY L=1450	1-49111-447-0	01	1	9301-	●
237	PIPE; AIR,FLEX HOSE TO UNION USER DAEWOO MOTORS<D4S> L=1919 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9212		●
237	PIPE; AIR,FLEX HOSE TO UNION USER DAEWOO MOTORS<D4S> L=1919 SERVICED BY L=2000	1-49111-450-0	01	1	9301-0203		●
237	PIPE; AIR,FLEX HOSE TO UNION L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	0204-		●
237	PIPE; AIR,FLEX HOSE TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1920 SERVICED BY L=2000	1-47437-986-0	01	1	9101-9212		●
237	PIPE; AIR,FLEX HOSE TO UNION EXC. USER DAEWOO MOTORS<D4S> L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	9301-0203		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
