3-78 — FIXING PARTS; AIR PIPING (#22215) — 66 parça

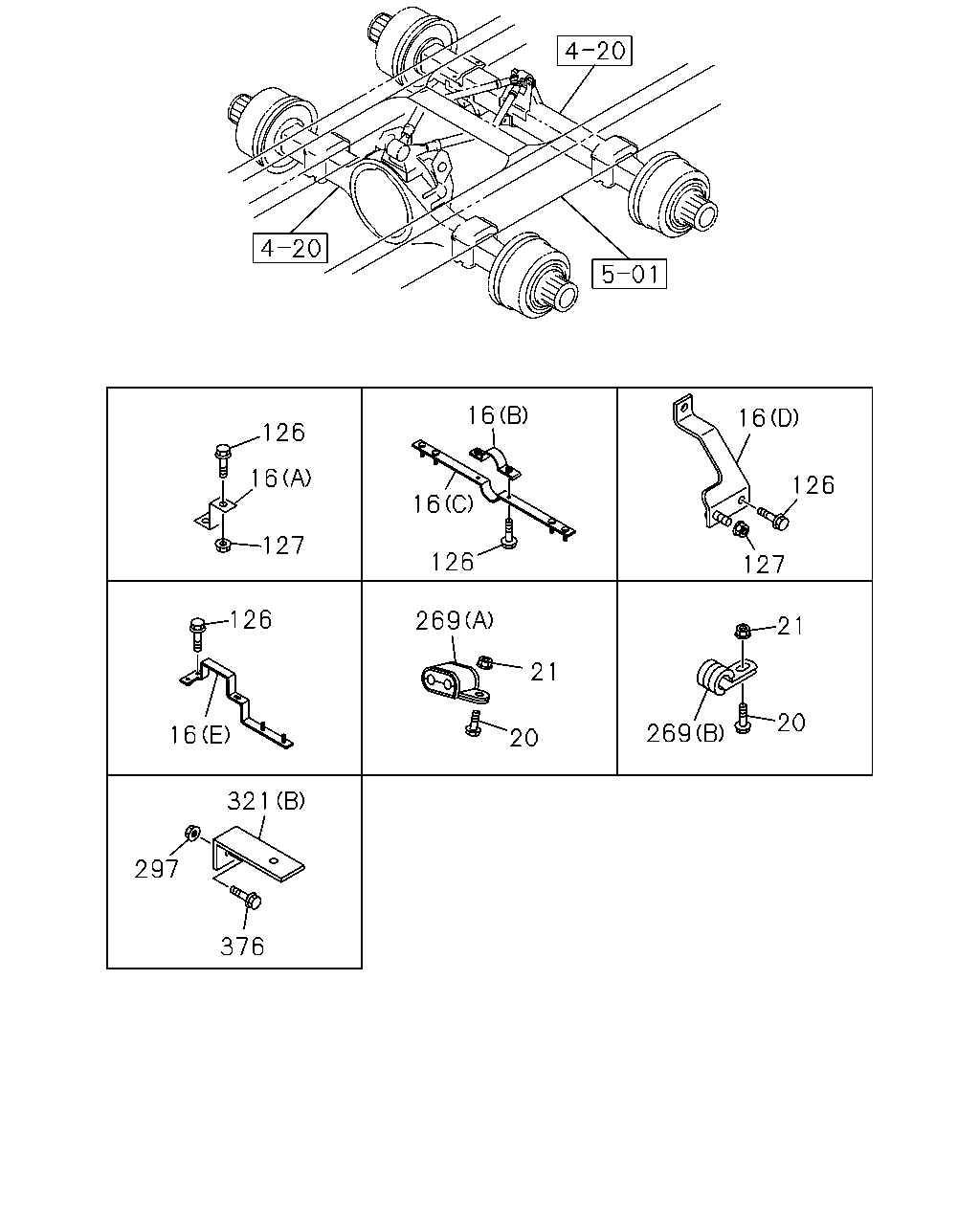

çizim 134917
16 16 126 16 126 16 127 126 127 126 269 21 21 20 269 16 20 321 297 376
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1103-
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1103-
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1103-
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 1103-
16 BRACKET; PIPE CLIP
(D) 		8-98110-074-0 01 1 1103-
20 BOLT; CLIP
M8X10 FLANGE THA 		0-28050-810-0 02 1 1103-
20 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1103-
20 BOLT; CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 1103-
21 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1103-
126 BOLT; CLIP BRKT
M8X10 FLANGE THA 		0-28050-810-0 04 1 1103-
126 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1103-
126 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
126 BOLT; CLIP BRKT
M10X35 FLANGE THA 		0-28651-035-0 01 1 1103-
127 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
127 NUT; CLIP BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1103-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 02 1 1103-
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 1103-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 1103-
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
321 BRACKET; CLIP
(A) L=115 H=30 		1-47477-715-3 01 1 1103-
321 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1103-
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1103-
376 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-

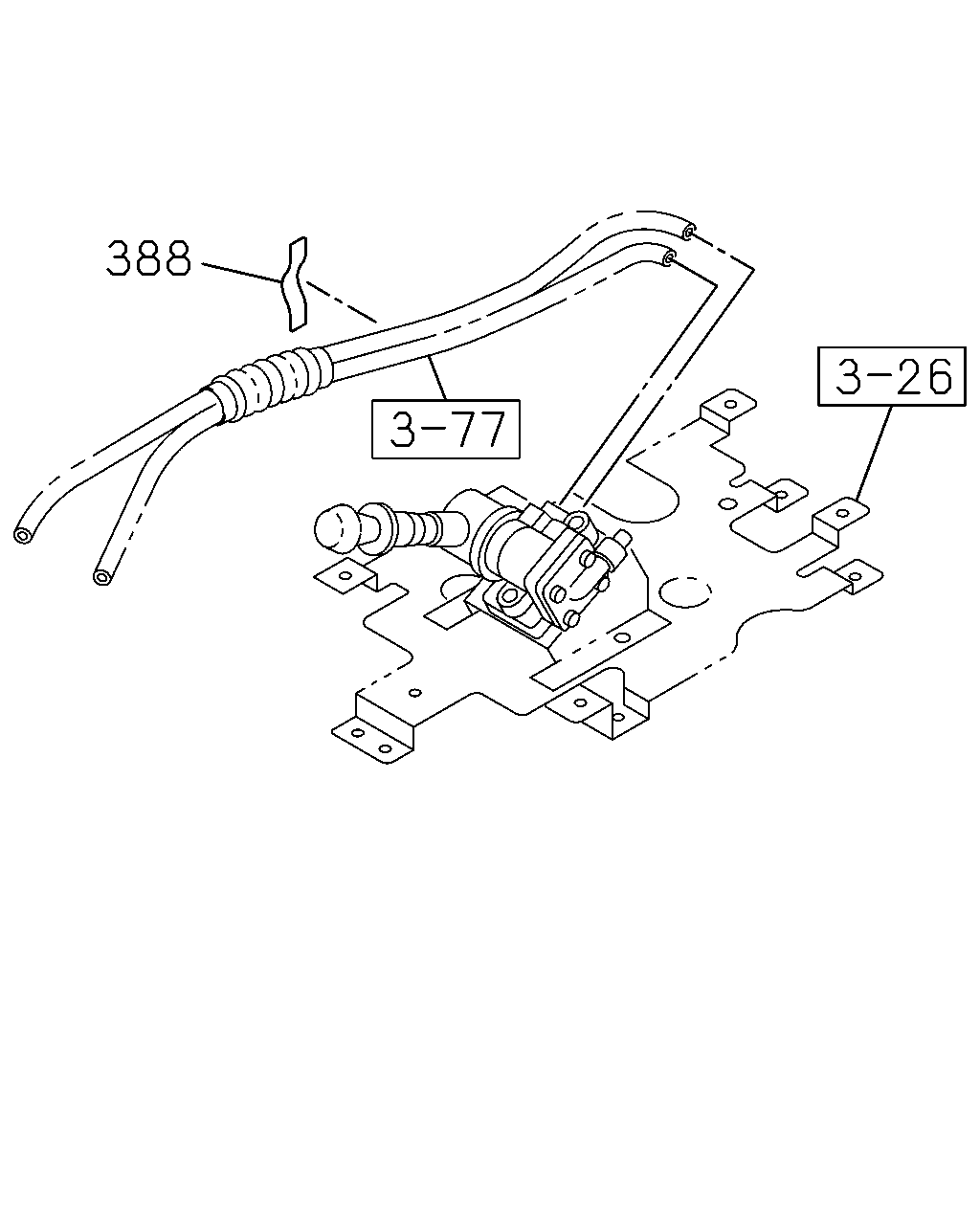

çizim 134918
388
BalonParca AdiParca NoAdetTipApplied Date
388 SEAL
100X40 		1-72498-022-1 03 1 1103-

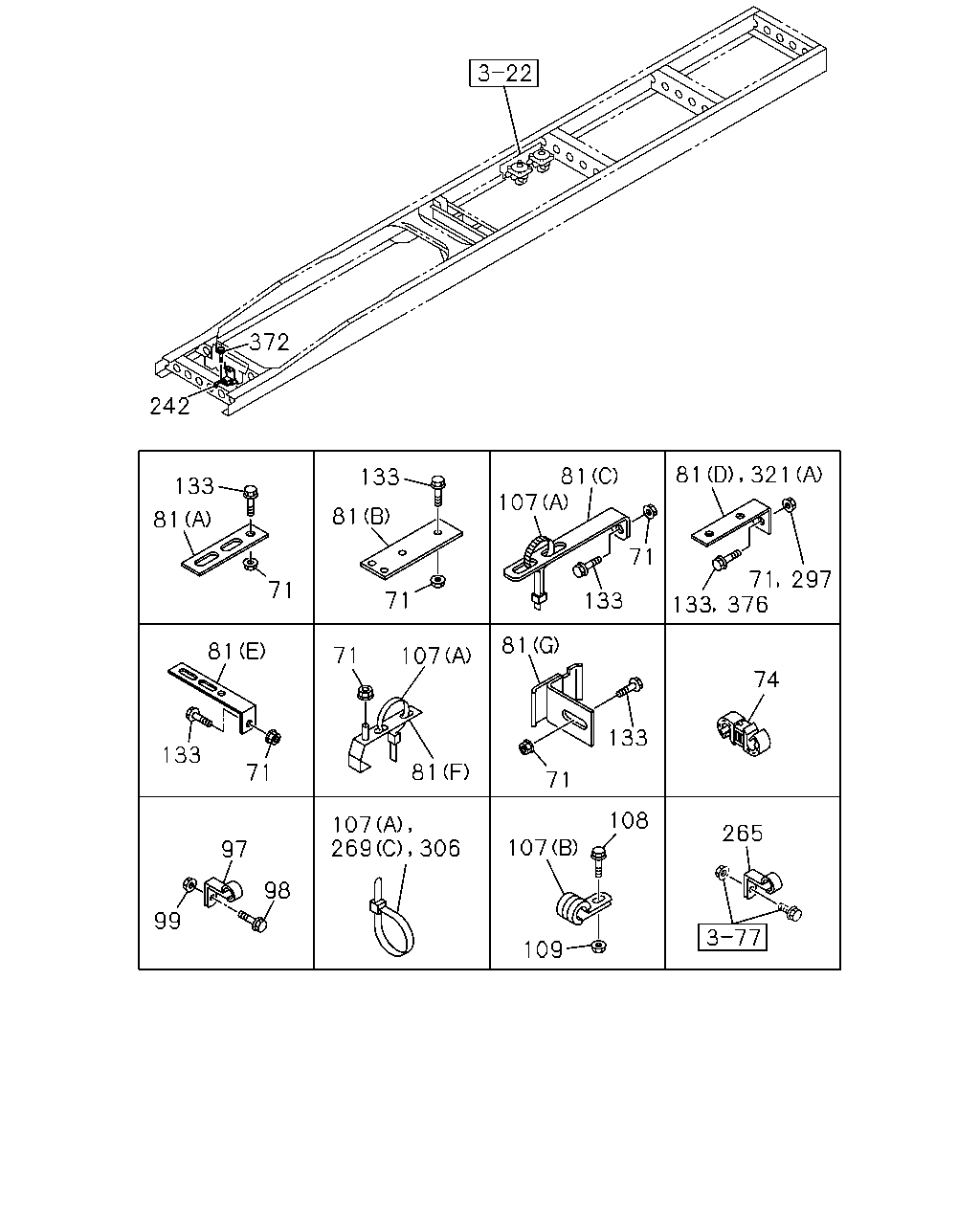

çizim 134923
372 242 81 133 133 107 81 81 71 71 376 297 71 71 133 133 81 81 71 107 74 133 133 81 71 71 108 107 265 107 97 98 99 109 81 321 269 306
BalonParca AdiParca NoAdetTipApplied Date
71 NUT; BRKT
WHEEL BASE 7100MM<71W> M8 FLANGE THA 		0-91180-108-0 19 1 1110-
71 NUT; BRKT
WHEEL BASE 6300MM<63W> M8 FLANGE THA 		0-91180-108-0 17 1 1110-
71 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 17 1 1103-1107
71 NUT; BRKT
WHEEL BASE 6300MM<63W> M8 FLANGE THA 		0-91180-108-0 17 1 1108-
74 CLIP; NYLON TUBE
ID=12 & 15 		1-09709-281-1 01 1 1103-
81 BRACKET; CLIP
WHEEL BASE 7100MM<71W> (C) L=150 H=30 		1-47477-629-2 03 1 1110-
81 BRACKET; CLIP
(A) 		1-47477-514-3 02 1 1103-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1103-1109
81 BRACKET; CLIP
WHEEL BASE 6300MM<63W> (C) L=150 H=30 		1-47477-629-2 01 1 1110-
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 08 1 1103-
81 BRACKET; CLIP
(E) L=225 		1-47477-646-3 01 1 1103-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 03 1 1103-
81 BRACKET; CLIP
(G) 		1-47479-693-0 01 1 1103-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1103-
81 BRACKET; CLIP
(F) 		8-98047-730-0 02 1 1103-
97 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 01 1 1103-
98 BOLT; PIPE CLIP
M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
99 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM<71W> (A) L=350 		1-09707-183-0 40 1 1110-
107 CLIP; NYLON TUBE
(B) ID=19 L=40 		0-95235-876-0 01 1 1103-
107 CLIP; NYLON TUBE
WHEEL BASE 6300MM<63W> (A) L=350 		1-09707-183-0 38 1 1103-
108 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1103-
109 NUT; TUBE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
133 BOLT; BRKT
WHEEL BASE 7100MM<71W> M8X30 FLANGE THA 		0-28650-830-0 14 1 1110-
133 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 03 1 1103-
133 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 1103-
133 BOLT; BRKT
WHEEL BASE 6300MM<63W> M8X30 FLANGE THA 		0-28650-830-0 12 1 1110-
133 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 12 1 1103-1107
133 BOLT; BRKT
WHEEL BASE 6300MM<63W> M8X30 FLANGE THA 		0-28650-830-0 12 1 1108-
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 1103-
265 CLIP; NYLON TUBE
ID=16 H=30 L=30 		1-09701-080-0 01 1 1103-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 02 1 1103-
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 1103-
269 CLIP; BAND,NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 1103-
297 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
306 CLIP; NYLON TUBE
WHEEL BASE 6300MM<63W> L=350 		1-09707-183-0 11 1 1103-1109
306 CLIP; NYLON TUBE
L=350 		1-09707-183-0 11 1 1110-
321 BRACKET; CLIP
(A) L=115 H=30 		1-47477-715-3 01 1 1103-
321 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 1103-
372 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1103-
376 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 01 1 1103-
376 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
