3-75 — BRAKE PIPING; AIR,FRONT (#22213) — 69 parça

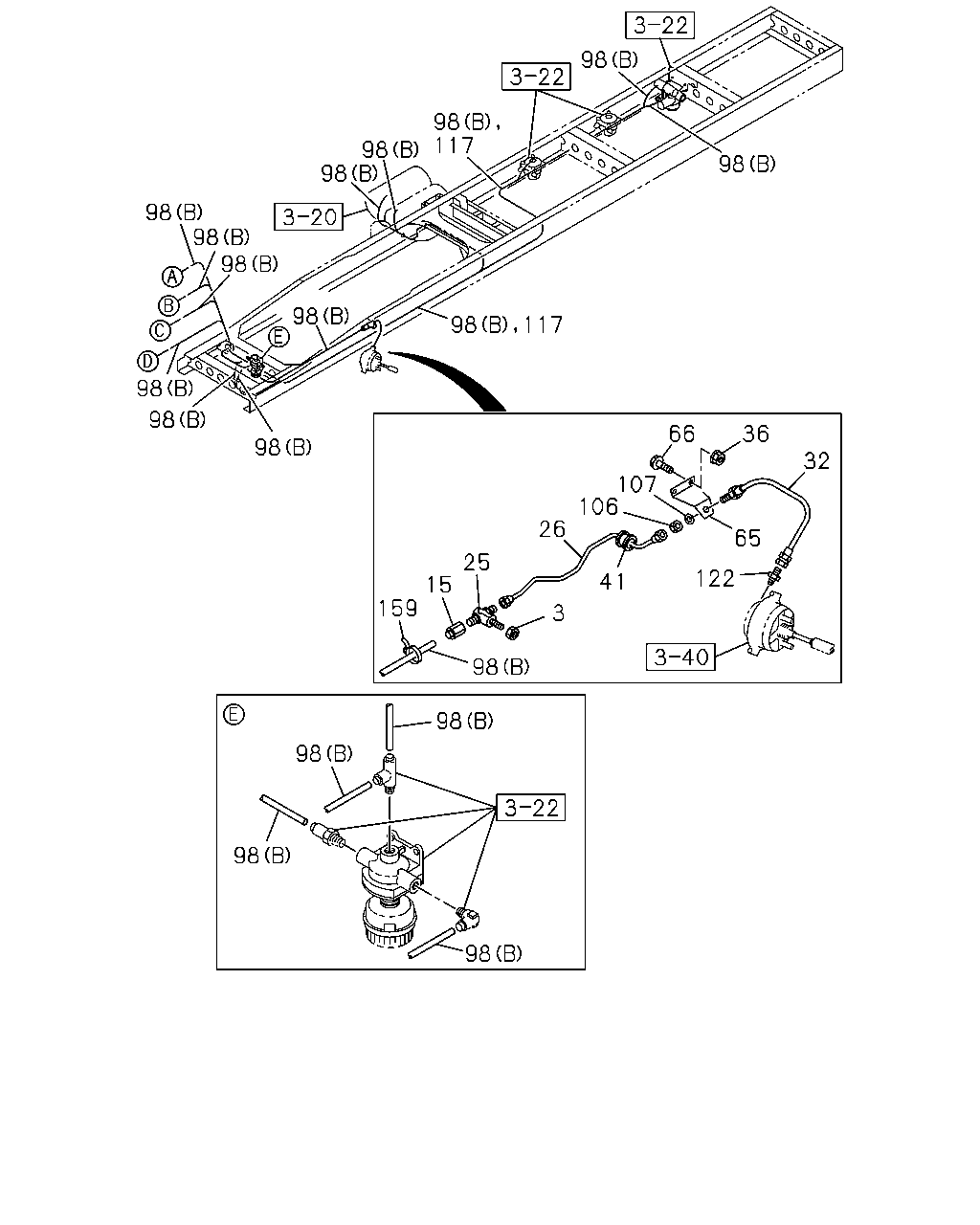

çizim 134912
98 98 117 98 98 98 98 98 98 98 98 117 98 98 66 36 98 32 107 106 26 65 25 122 41 15 159 3 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 1103-
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT THA 		1-09660-876-0 02 1 1103-
25 UNION; AIR PIPE
M16 		1-09654-148-1 02 1 1103-
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 THA 		8-98047-734-0 01 1 1103-
26 PIPE; AIR,UNION TO FLEX HOSE
L=661 THA 		8-98085-122-0 01 1 1103-
32 HOSE; FLEX,FRT 1-09363-892-1 02 1 1103-
36 NUT; HOSE BRKT
M8 FLANGE THA 		0-91180-108-0 04 1 1103-
41 GROMMET; AIR PIPE
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1103-
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 1103-
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 1103-
66 BOLT; HOSE BRKT
M8X30 FLANGE THA 		0-28650-830-0 04 1 1103-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 02 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 02 1 1110-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 03 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 03 1 1110-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1110-1205
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 02 1 1103-1205
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1206-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1206-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1206-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 01 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 01 1 1110-
98 TUBE; NYLON
(A) THA 		8-98091-308-0 01 1 1103-
106 NUT; FLEX HOSE
M16 THA 		0-91111-516-0 02 1 1103-
107 WASHER; LK,FLEX HOSE
ID=16.2 THA 		0-91510-516-0 02 1 1103-
117 TUBE; CORRUGATE
WHEEL BASE 6300MM<63W> SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 02 1 1103-1109
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 02 1 1110-
117 TUBE; CORRUGATE
WHEEL BASE 6300MM<63W> SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 02 1 1103-1109
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 02 1 1110-
117 TUBE; CORRUGATE
WHEEL BASE 6300MM<63W> SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 01 1 1103-1109
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 01 1 1110-
117 TUBE; CORRUGATE
WHEEL BASE 6300MM<63W> SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 02 1 1103-1109
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA 		1-87411-033-0 02 1 1110-
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 1103-
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1103-

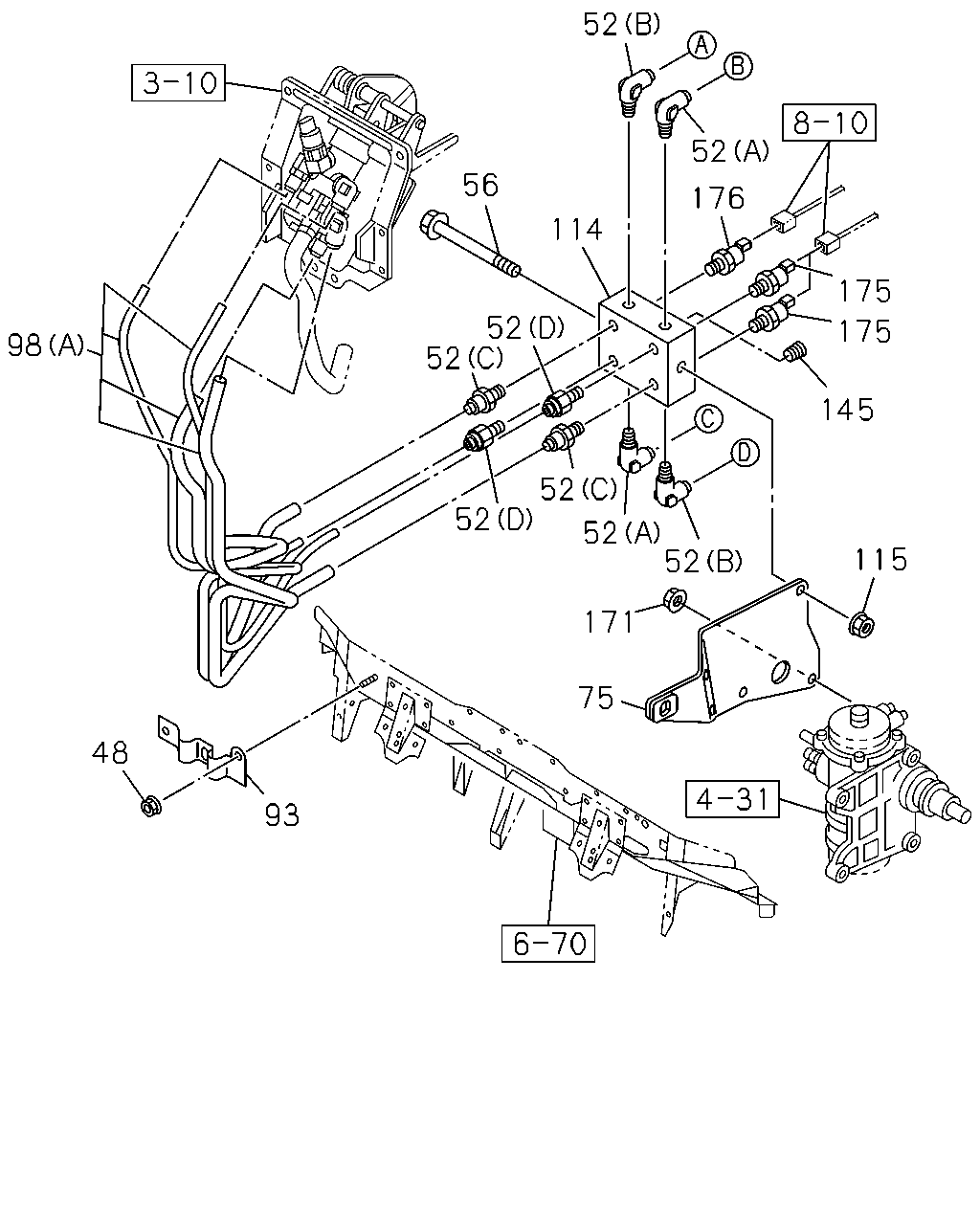

çizim 134938
52 52 56 176 114 175 52 52 175 98 145 52 52 52 52 115 171 75 48 93
BalonParca AdiParca NoAdetTipApplied Date
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1103-
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 02 1 1103-
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 1103-
75 BRACKET; UNION 8-98099-485-1 01 1 1103-
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 1103-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 02 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 02 1 1110-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 03 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 03 1 1110-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1207-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1110-1205
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 02 1 1103-1205
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1206-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1206-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1206-
98 TUBE; NYLON
WHEEL BASE 6300MM<63W> (B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 01 1 1103-1109
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 01 1 1110-
98 TUBE; NYLON
(A) THA 		8-98091-308-0 01 1 1103-
114 UNION; NYLON TUBE
THA 		8-98057-394-1 01 1 1103-
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 1103-
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 1103-
171 NUT; BRACKET
M10 FLANGE THA 		0-91180-210-0 02 1 1103-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1103-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1103-
