◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11351 - FVM CNG(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#22212) — 12 parça

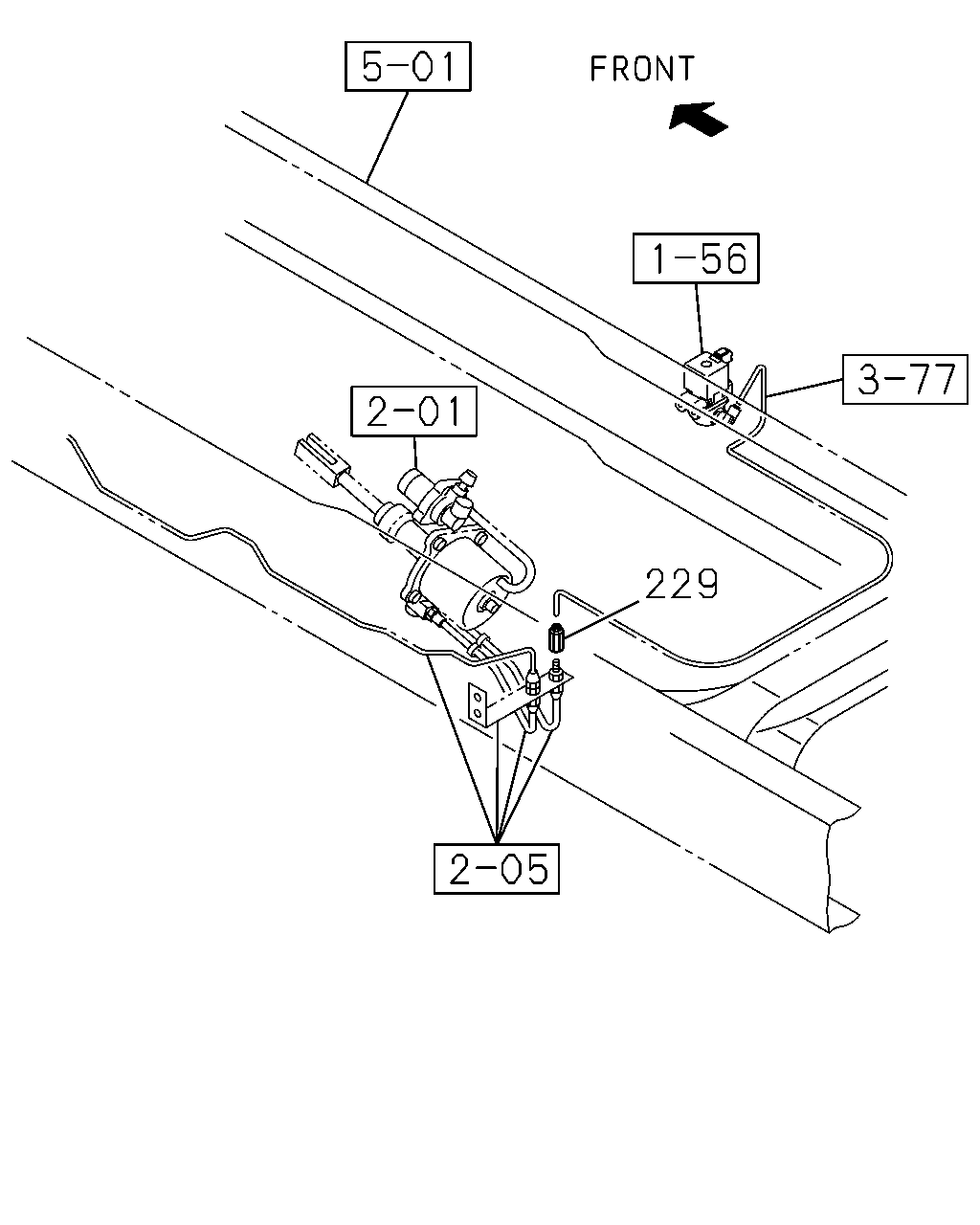

çizim 134908
229
BalonParca AdiParca NoAdetTipApplied Date
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1103-

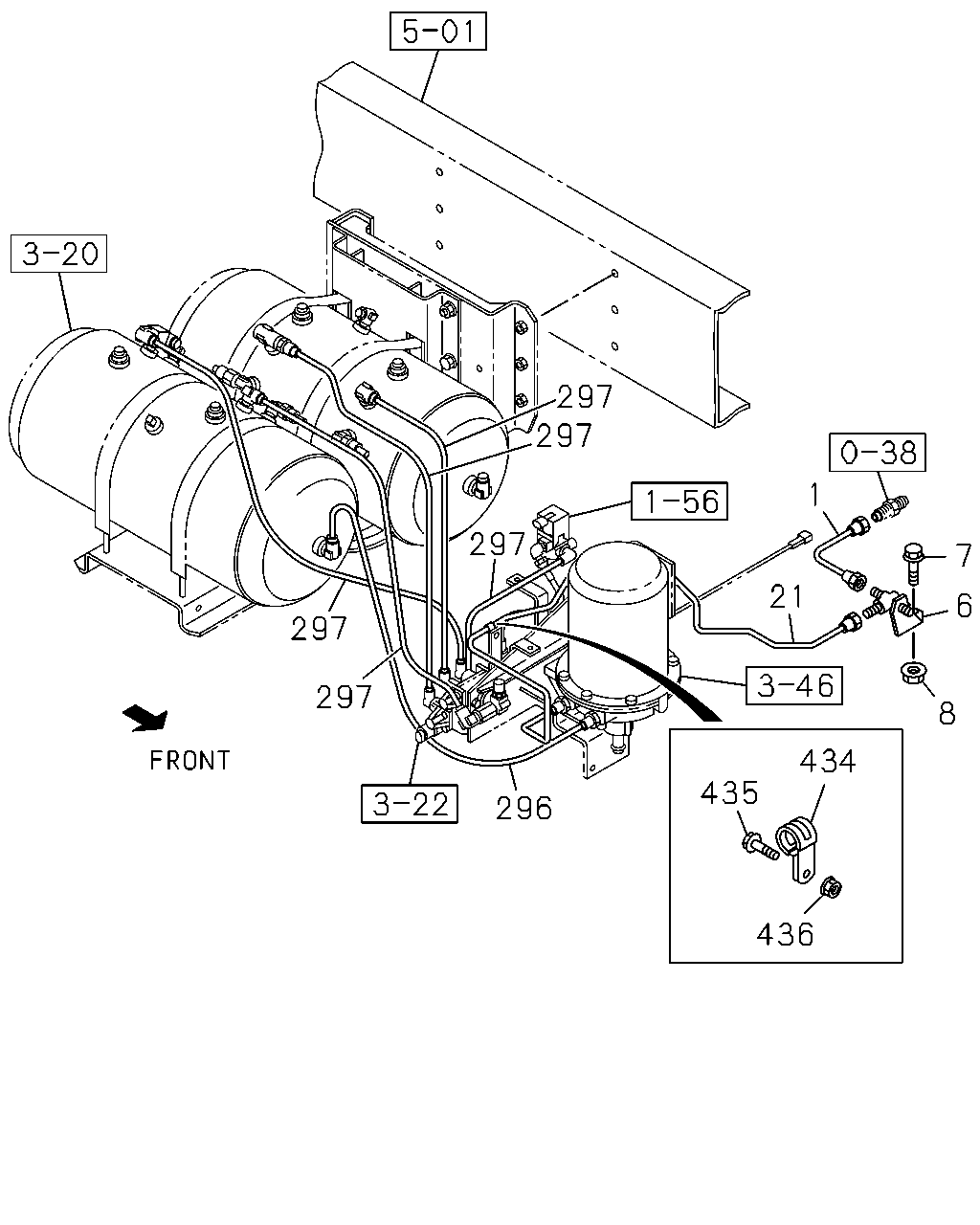

çizim 134925
297 297 1 297 7 21 6 297 297 8 434 435 296 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1103-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1103-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA 		0-28650-830-0 02 1 1103-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
L=1724 		8-98076-343-0 01 1 1103-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 01 1 1103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 01 1 1103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 04 1 1103-
434 CLIP
ID=16 L=20 THA 		0-95235-536-0 02 1 1103-
435 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1103-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
