Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#22210) — 41 parça
◀

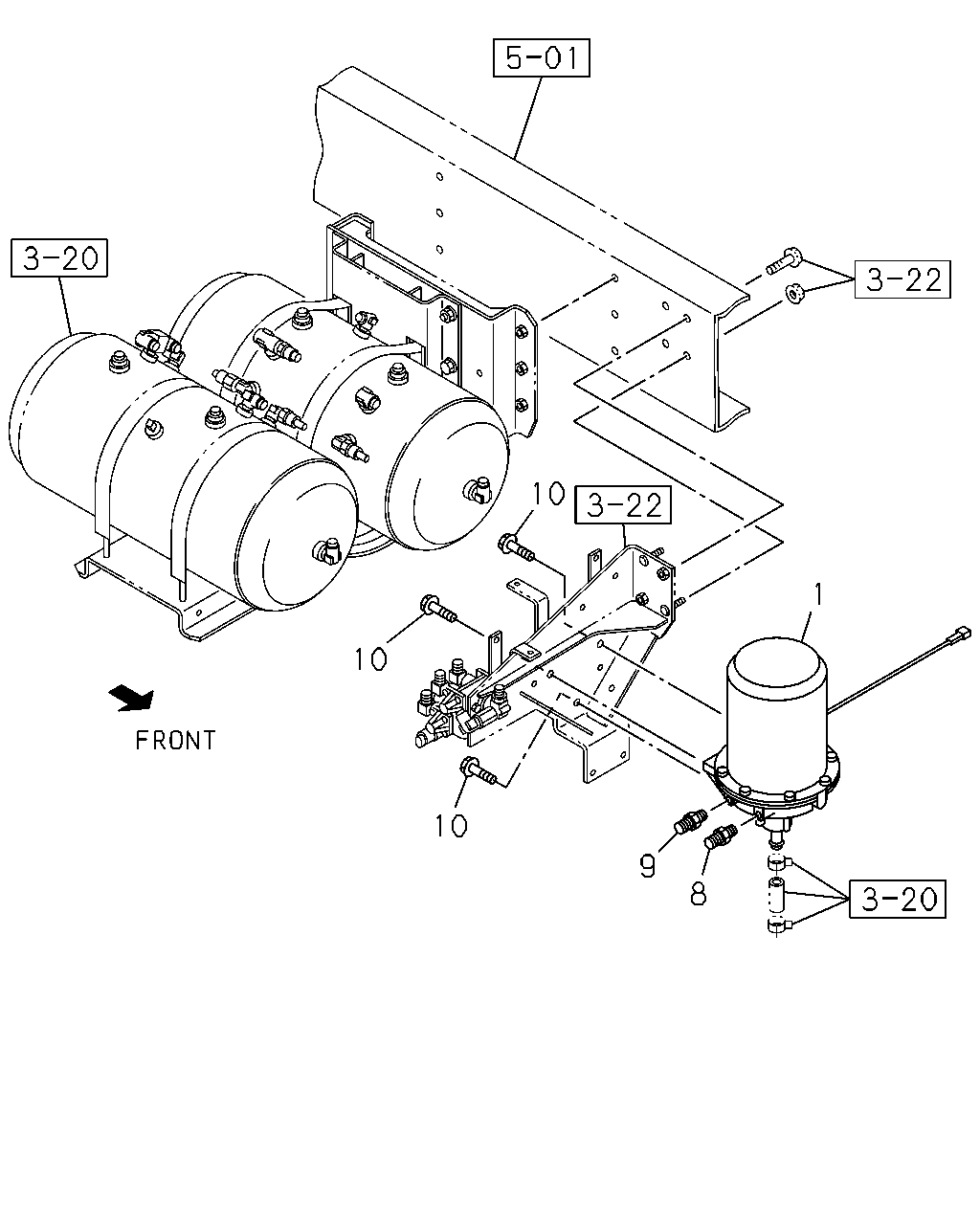

[346A] FIXING (5 parça)

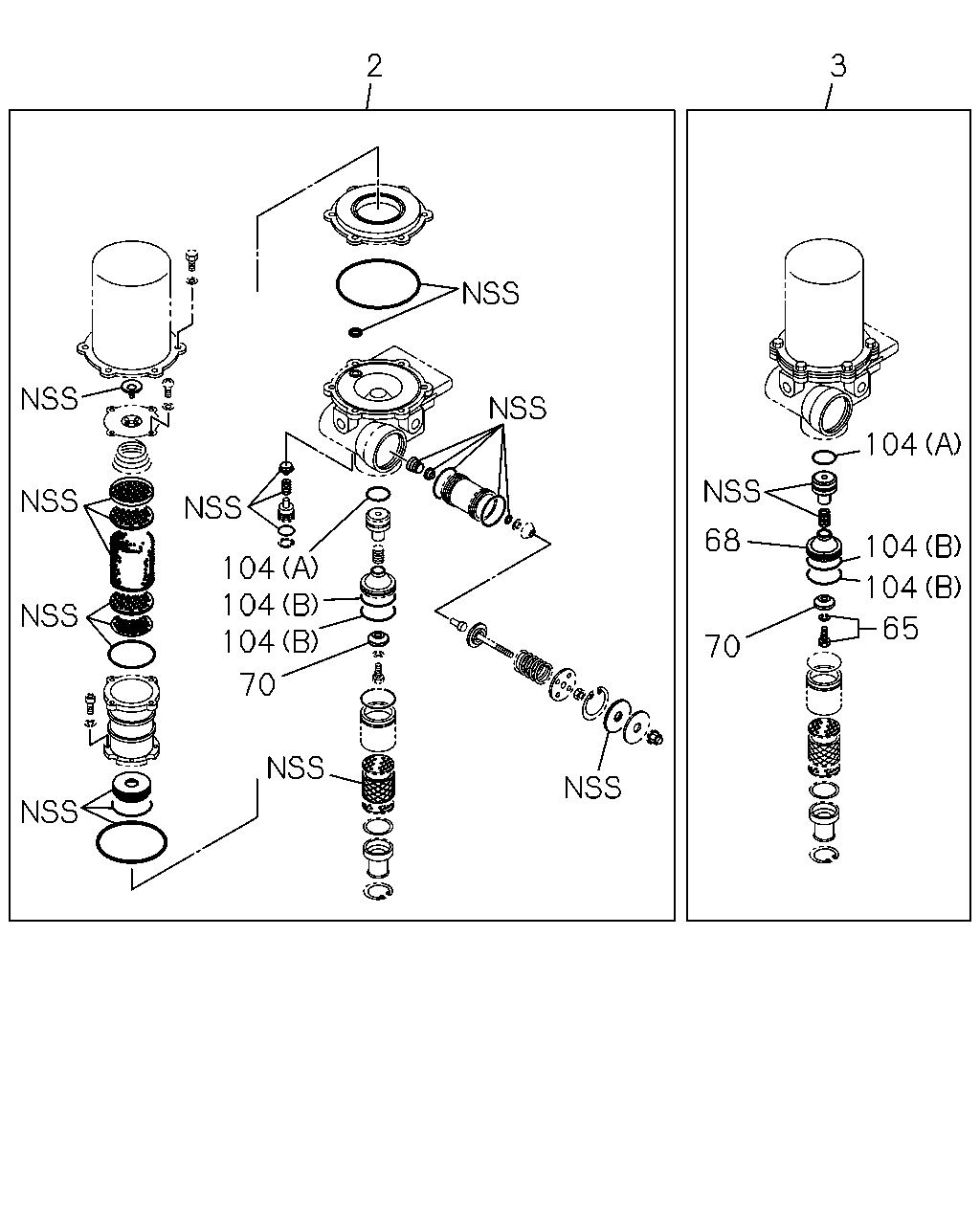

[346A] PISTON AND REPAIR KIT (10 parça)

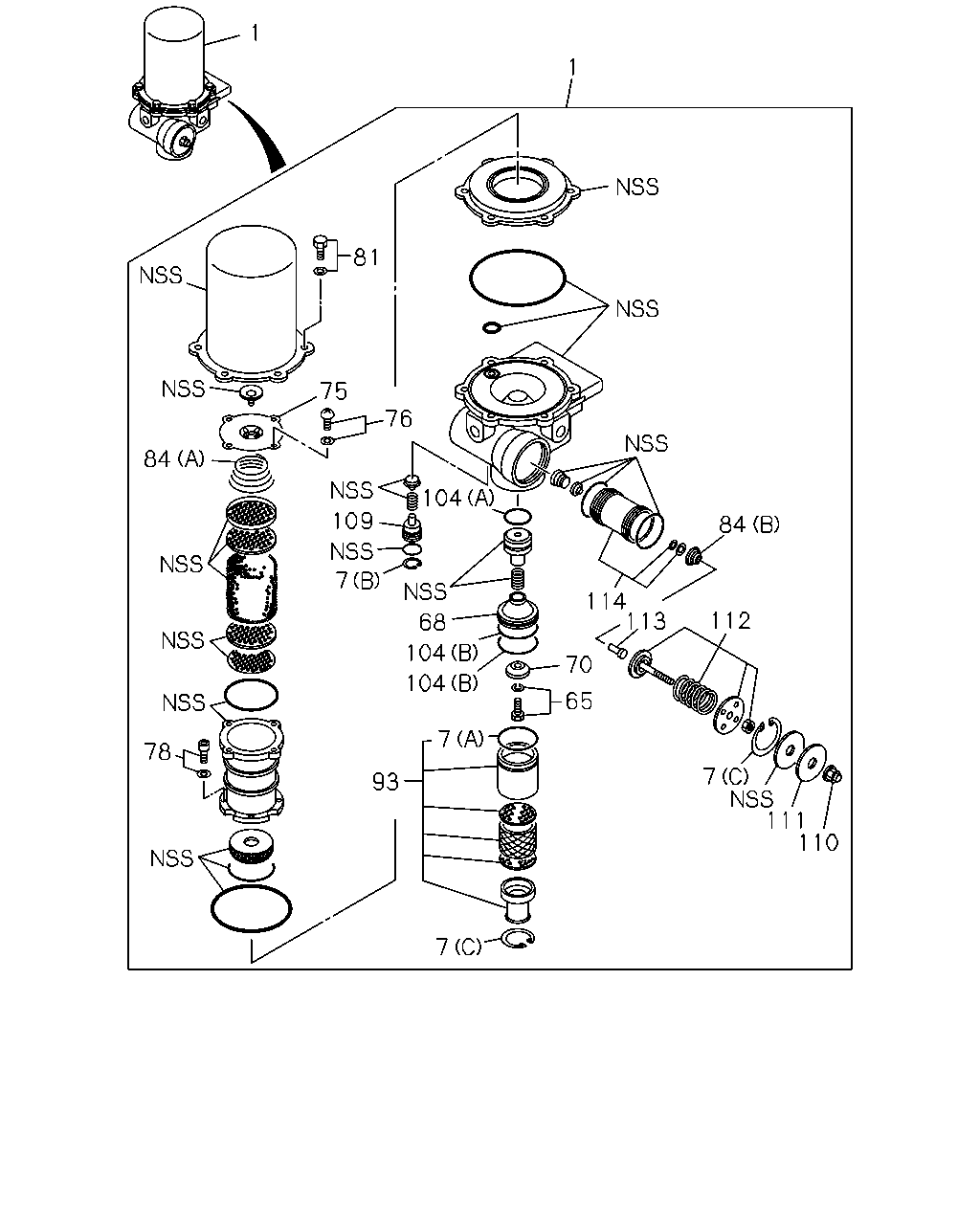

[346A] COMPONENT (26 parça)
▶
10
1
10
10
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-372-3
01
1
1103-1211
1
DRYER; AIR
THA
8-98225-293-1
01
1
1212-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT THA
1-09660-966-0
01
1
1103-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1103-
10
BOLT; AIR DRYER
M12X30 FLANGE THA
0-28651-230-0
03
1
1103-
2
3
104
68
104
104
104
104
104
65
70
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-448-0
01
1
1103-1211
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1103-1211
3
PISTON KIT; AIR DRYER
THA
8-98226-322-0
01
1
1212-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1103-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1103-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1103-
104
GASKET
(A)
1-48199-495-0
01
1
1103-1211
104
GASKET
(A) THA
8-98226-321-0
01
1
1212-
104
GASKET
(B) THA
1-48199-496-0
02
1
1103-
1
1
81
75
76
84
104
109
84
7
114
113
112
68
104
70
104
65
7
78
7
111
110
93
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-372-3
01
1
1103-1211
1
DRYER; AIR
THA
8-98225-293-1
01
1
1212-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
1103-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
1103-
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
1103-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1103-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1103-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1103-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1103-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1103-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1103-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
08
1
1103-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
1103-
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1103-
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
1103-
104
GASKET
(A)
1-48199-495-0
01
1
1103-1211
104
GASKET
(A) THA
8-98226-321-0
01
1
1212-
104
GASKET
(B) THA
1-48199-496-0
02
1
1103-
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
1103-
110
NUT; CAP
THA
1-48199-527-0
01
1
1103-
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
1103-
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
1103-1408
112
SCREW & SPRING ASM; AIR DRYER
THA
8-98292-687-0
01
1
1409-
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
1103-
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
1103-1408
114
PISTON ASM; GOVERNOR
THA
8-98292-688-0
01
1
1409-
