Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#22204) — 65 parça
◀

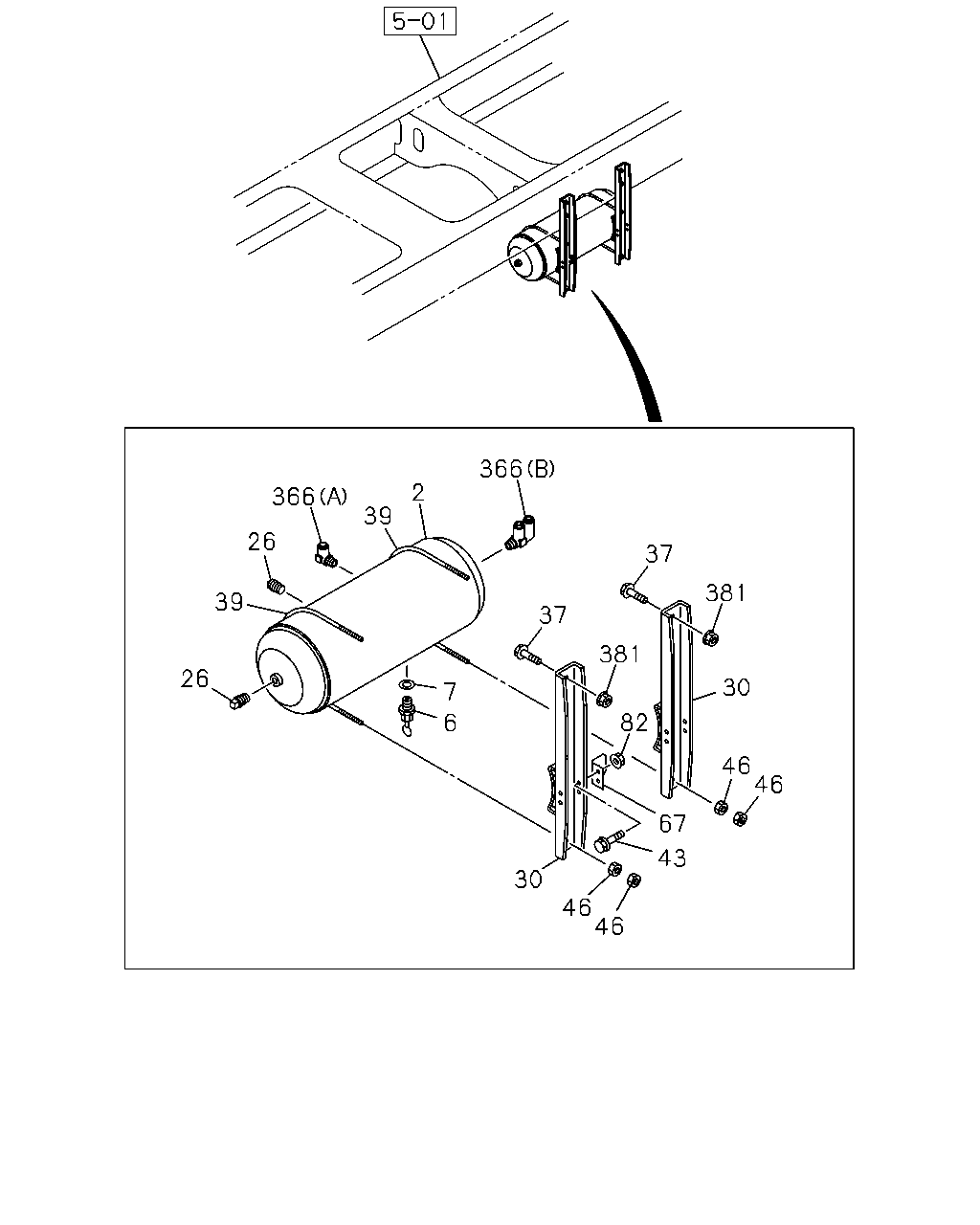

[320A] FRAME SIDE NO.3 (29 parça)
[320A] FRAME SIDE NO.1 (4 parça)
[320A] FRAME SIDE NO.2 (31 parça)
[320A] CAB SIDE (1 parça)
▶
366
2
366
39
26
37
381
39
37
381
26
30
7
82
6
46
46
67
43
30
46
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
TANK; AIR
THA
8-98202-947-0
01
1
1204-
2
TANK; AIR
1-48370-477-0
01
1
1103-1203
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1207-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1103-1203
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
1103-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1207-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1103-1203
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
1103-
26
PLUG; SUB AIR TANK
PT3/8 THA
9-09204-517-0
02
1
1204-
26
PLUG; SUB AIR TANK
PT3/8 THA
9-09204-517-0
02
1
1103-1203
30
BRACKET; AIR TANK,SUB
THA
8-98099-711-0
02
1
1204-
30
BRACKET; AIR TANK,SUB
THA
8-98099-711-0
02
1
1103-1203
37
BOLT; AIR TANK
M12X40 FLANGE THA
0-28651-240-0
06
1
1103-
37
BOLT; AIR TANK
M12X40 FLANGE THA
0-28651-240-0
04
1
1103-1206
39
U-BOLT; AIR TANK
1-48317-289-0
02
1
1204-
39
U-BOLT; AIR TANK
1-48317-289-0
02
1
1103-1203
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE THA
0-28650-825-0
02
1
1204-
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE THA
0-28650-825-0
02
1
1103-1203
46
NUT; U-BOLT
M8 THA
0-91110-508-0
08
1
1204-
46
NUT; U-BOLT
M8 THA
0-91110-508-0
08
1
1103-1203
67
STAY; SUB TANK
THA
8-97925-385-0
01
1
1204-
67
STAY; SUB TANK
THA
8-97925-385-0
01
1
1103-1203
82
NUT; STAY,AIR MASTER BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1204-
82
NUT; STAY,AIR MASTER BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1103-1203
366
CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW THA
1-09660-959-0
01
1
1204-
366
CONNECTOR; NYLON TUBE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA
1-09661-026-0
01
1
1204-
366
CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW THA
1-09660-959-0
01
1
1103-1203
366
CONNECTOR; NYLON TUBE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA
1-09661-026-0
01
1
1103-1203
381
NUT; SUB TANK
M12 FLANGE THA
0-91180-112-0
04
1
1103-

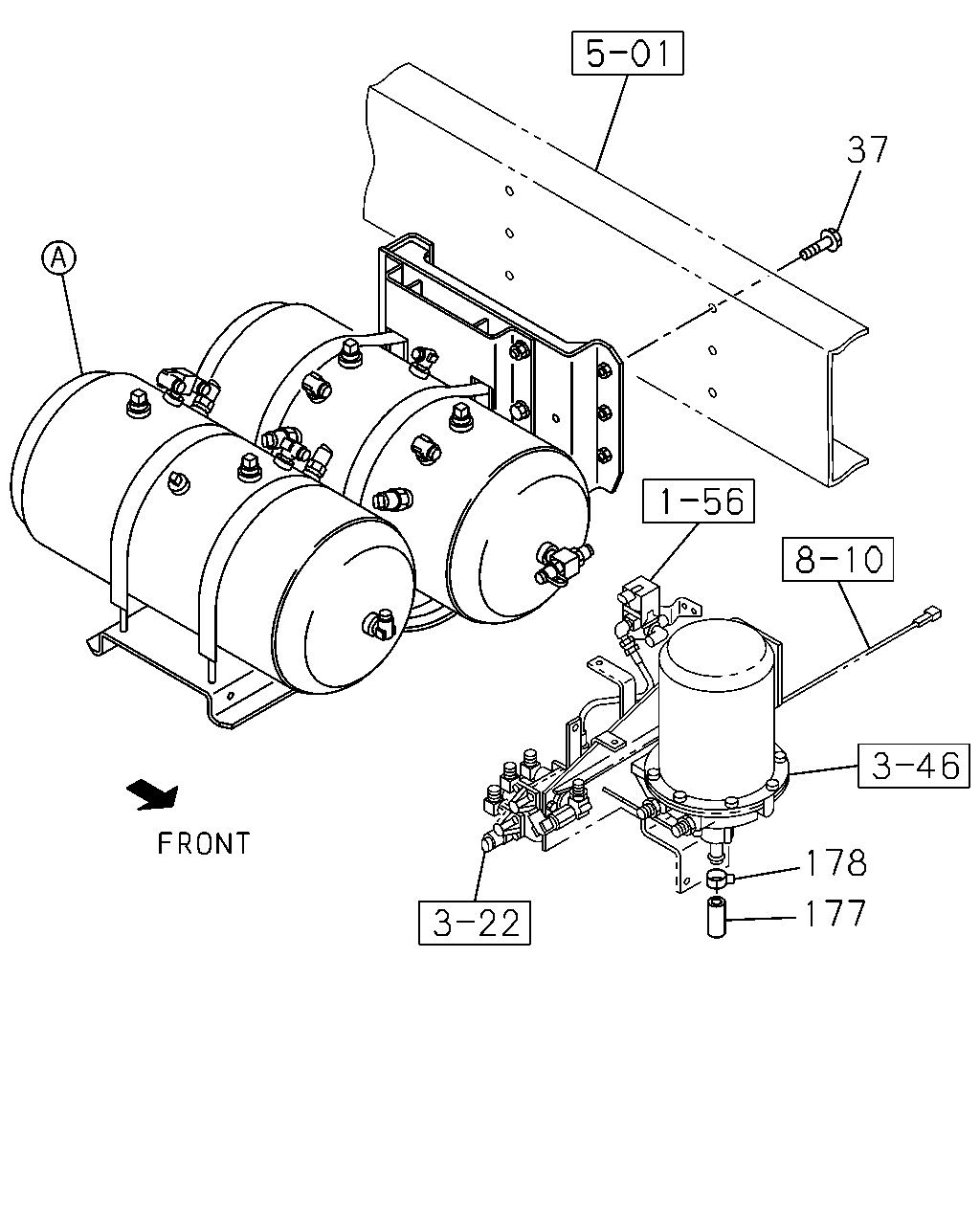

37
178
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE THA
0-28651-240-0
06
1
1103-
37
BOLT; AIR TANK
M12X40 FLANGE THA
0-28651-240-0
04
1
1103-1206
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA
0-03566-300-0
01
1
1103-
178
CLIP; HOSE
ID=22
8-94382-401-0
01
1
1103-

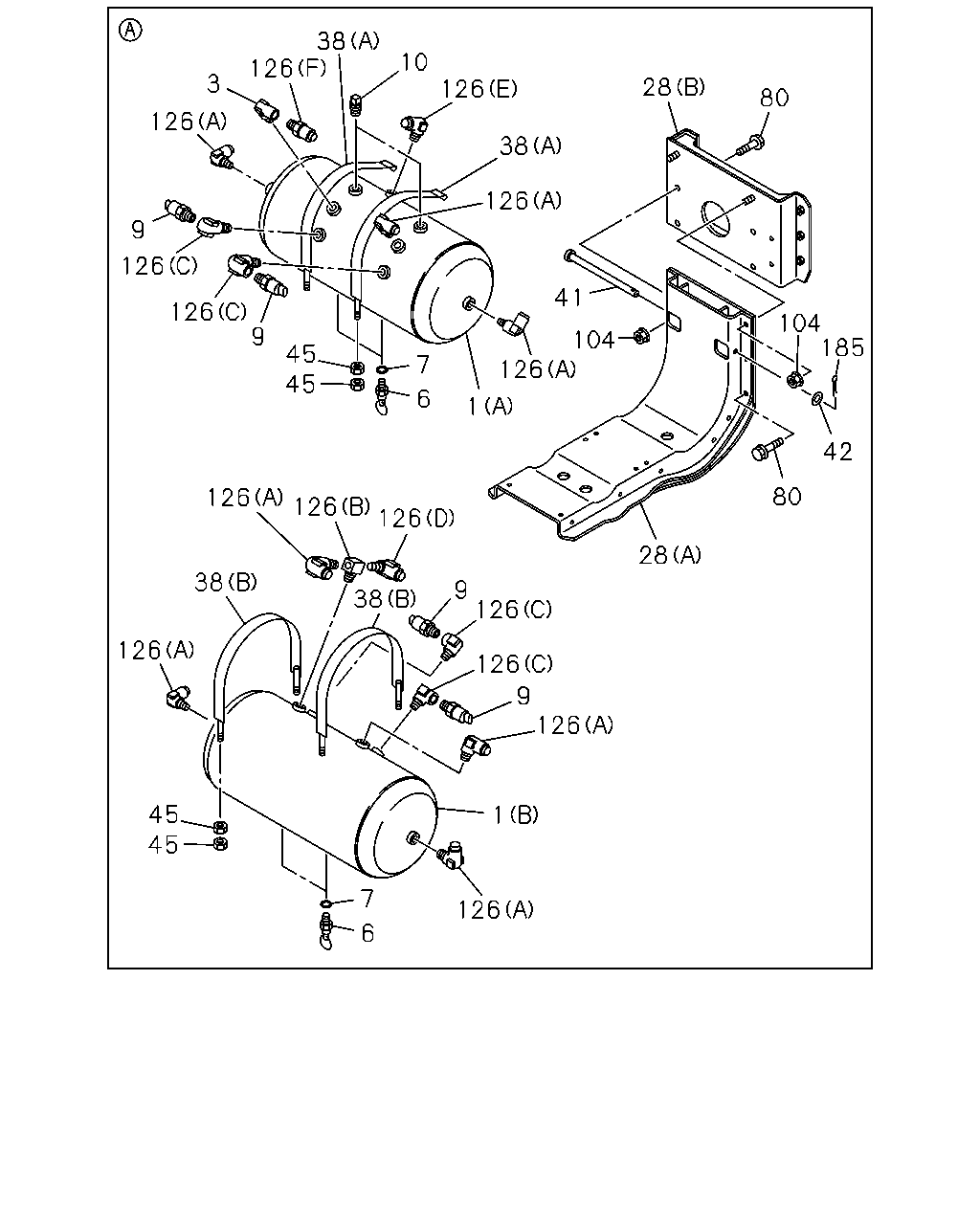

38
126
10
3
28
126
80
126
38
126
9
126
41
126
9
104
185
104
45
45
7
126
6
1
42
80
126
126
126
28
38
9
126
38
126
126
9
126
45
45
1
7
126
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
1-48370-181-1
01
1
1103-1203
1
TANK ASM; AIR
(A) THA
8-98202-945-0
01
1
1204-
1
TANK ASM; AIR
(B)
8-98166-973-0
01
1
1103-1203
1
TANK ASM; AIR
(B) THA
8-98202-946-0
01
1
1204-
3
VALVE; CHECK,AIR TANK
THA
1-48320-031-1
01
1
1103-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1207-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1103-1203
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
1103-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1207-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1103-1203
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
1103-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA
8-97609-249-0
04
1
1103-
10
PLUG; AIR TANK
PT3/8 THA
9-09204-517-0
01
1
1204-
10
PLUG; AIR TANK
PT3/4
9-09204-526-0
02
1
1103-1203
10
PLUG; AIR TANK
PT3/4
9-09204-526-0
04
1
1204-
28
BRACKET; AIR TANK
(A) THA
8-98048-199-0
01
1
1103-
28
BRACKET; AIR TANK
(B) THA
8-98048-200-2
01
1
1103-
38
BAND; AIR TANK
(A)
1-48317-108-2
02
1
1103-
38
BAND; AIR TANK
(B)
1-48317-109-2
02
1
1103-
41
PIN; BAND FIX
1-09744-068-0
01
1
1103-
42
WASHER; PL
ID=10.5
0-91614-510-0
01
1
1103-
45
NUT; AIR TANK,MAIN
M8 THA
0-91110-508-0
12
1
1103-
80
BOLT; BRKT
M12X35 FLANGE THA
0-28651-235-0
04
1
1103-
104
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
02
1
1103-
126
CONNECTOR; ELBOW
(B) IMA
1-09656-708-0
01
1
1103-
126
CONNECTOR; ELBOW
(C) PT1/4 2WAY THA
1-09660-693-0
04
1
1103-
126
CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW THA
1-09660-956-0
01
1
1103-
126
CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW THA
1-09660-957-0
01
1
1103-
126
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA
1-09660-959-0
07
1
1103-
126
CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA
1-09660-965-0
01
1
1103-
185
PIN; SNAP
L=32.6
8-98062-280-0
01
1
1103-

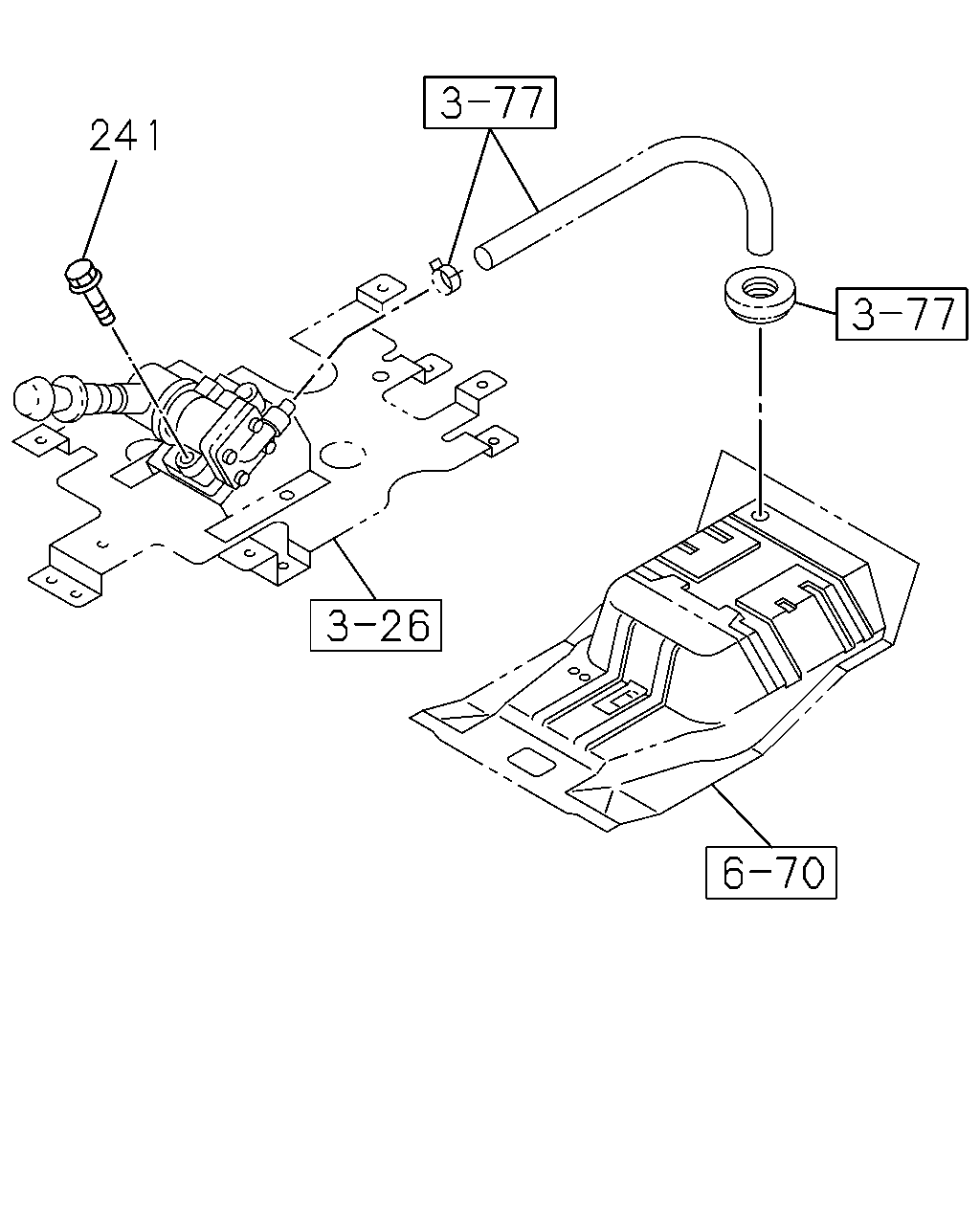

241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE THA
0-28050-870-0
02
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
