Isuzu WW
▶
TRUCKS
▶
FVM
▶
11351 - FVM CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

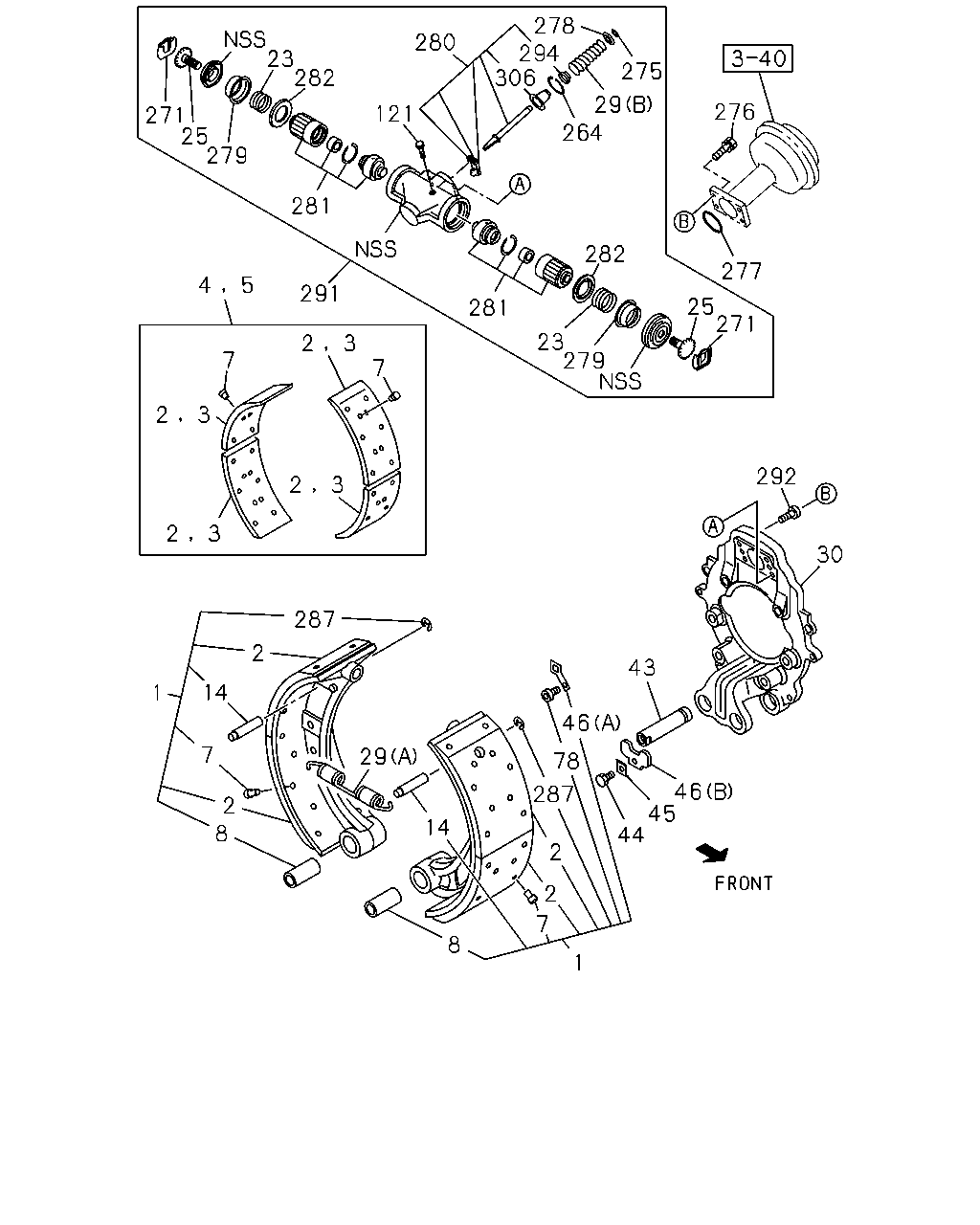

3-01 — FRONT WHEEL BRAKE
(#22200) — 53 parça
◀

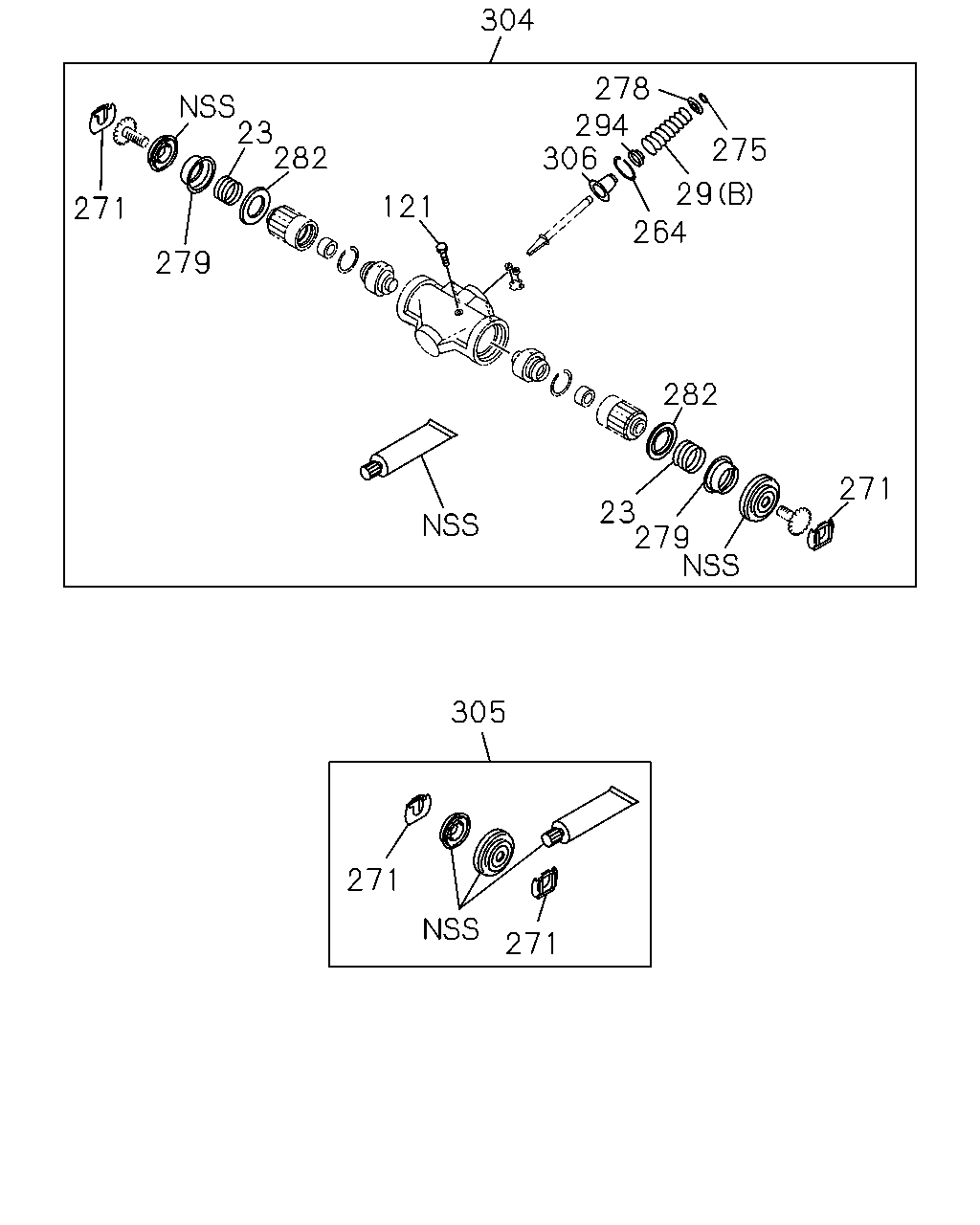

[301A] NO.2 (14 parça)
[301A] NO.1 (39 parça)
▶
304
278
294
306
23
282
275
29
121
271
264
279
282
271
23
279
305
271
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SPRING; COIL
THA
1-47629-196-0
04
1
1103-
29
SPRING; RETURN,FRT BRK SHOE
(A) THA
1-09583-365-1
04
1
1103-
29
SPRING; RETURN,FRT BRK SHOE
(B) THA
1-47649-041-0
02
1
1103-
121
SCREW; LK SPR FRT WHEEL CYL
THA
1-47619-149-1
04
1
1103-
264
RING; SNAP,SPR PIN
THA
1-47649-034-1
02
1
1103-
271
CLIP; ADJ
THA
1-47621-017-0
04
1
1103-
275
RING; RETAINER
THA
1-47649-031-0
02
1
1103-
278
RETAINER; SPRING
THA
1-47649-020-0
02
1
1103-
279
CAGE; SPRING
THA
1-47629-192-0
04
1
1103-
282
RING; DRIVE
THA
1-47629-200-0
04
1
1103-
294
BOOT; WEDGE
THA
1-47649-042-0
02
1
1103-
304
REPAIR KIT; EXPANDER
THA
1-85576-403-0
02
1
1103-
305
REPAIR KIT; BOOT,EXPANDER
THA
1-85576-404-0
02
1
1103-
306
CAP; EXPANDER
THA
1-47649-044-0
02
1
1103-
278
294
306
23
282
280
275
29
264
276
121
271
25
279
281
282
277
5
4
291
25
271
281
23
279
3
2
7
7
2
3
292
3
2
2
3
30
287
2
43
14
1
46
7
29
78
46
45
44
287
2
8
14
2
2
7
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING THA
1-47170-316-0
01
1
1103-
1
SHOE; BRK,FRT
TRAILING THA
1-47170-317-0
01
1
1103-
1
SHOE; BRK,FRT
LEADING THA
1-47170-318-0
01
1
1103-
1
SHOE; BRK,FRT
TRAILING THA
1-47170-319-0
01
1
1103-
2
LINING; FRT BRK SHOE,STANDARD
THA
1-47126-698-0
08
1
1103-
3
LINING; FRT BRK SHOE,OVER SIZE
THA
1-47126-699-0
08
1
1103-
4
LINING SET; FRT BRK,STANDARD
1-88311-314-0
02
1
1103-
4
LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS
1-87610-128-0
01
1
1103-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-315-0
02
1
1103-
7
RIVET; LINING,FRT BRK
L=15.5 THA
1-09732-053-0
80
1
1103-
8
BUSHING; BRK SHOE
THA
1-47112-020-0
04
1
1103-
14
PIN; SHOE RETURN SPR
THA
1-47119-177-1
04
1
1103-
23
SPRING; COIL
THA
1-47629-196-0
04
1
1103-
25
SCREW; ADJ,FRT WHEEL CYL
THA
1-47623-035-2
04
1
1103-
29
SPRING; RETURN,FRT BRK SHOE
(A) THA
1-09583-365-1
04
1
1103-
29
SPRING; RETURN,FRT BRK SHOE
(B) THA
1-47649-041-0
02
1
1103-
30
BRACKET; ANCHOR,FRT
THA
8-98091-252-0
02
1
1103-
43
PIN; ANCHOR
L=115.5 THA
1-47131-044-0
04
1
1103-
44
BOLT; LOCK,ANCHOR PIN
M10X16 THA
1-47139-173-0
02
1
1103-
45
WASHER; LK
THA
1-47133-011-0
02
1
1103-
46
PLATE; LOCK
(A) THA
1-47119-152-0
04
1
1103-
46
PLATE; LOCK
(B) THA
1-47133-010-0
02
1
1103-
78
BOLT; LK,PLATE
THA
1-47119-153-0
04
1
1103-
121
SCREW; LK SPR FRT WHEEL CYL
THA
1-47619-149-1
04
1
1103-
264
RING; SNAP,SPR PIN
THA
1-47649-034-1
02
1
1103-
271
CLIP; ADJ
THA
1-47621-017-0
04
1
1103-
275
RING; RETAINER
THA
1-47649-031-0
02
1
1103-
276
BOLT; CHAMBER
M10X42.5 THA
1-47139-163-0
08
1
1103-
277
RING; CHAMBER
THA
1-48259-231-0
02
1
1103-
278
RETAINER; SPRING
THA
1-47649-020-0
02
1
1103-
279
CAGE; SPRING
THA
1-47629-192-0
04
1
1103-
280
WEDGE; FRT WHEEL CYL
THA
1-47640-012-0
02
1
1103-
281
SLEEVE
THA
1-47629-247-1
04
1
1103-
282
RING; DRIVE
THA
1-47629-200-0
04
1
1103-
287
RING; SNAP
ID=10
0-91805-510-0
08
1
1103-
291
EXPANDER
THA
1-47601-087-0
02
1
1103-
292
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET THA
1-47634-008-0
04
1
1103-
294
BOOT; WEDGE
THA
1-47649-042-0
02
1
1103-
306
CAP; EXPANDER
THA
1-47649-044-0
02
1
1103-
