◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#2220) — 62 parça

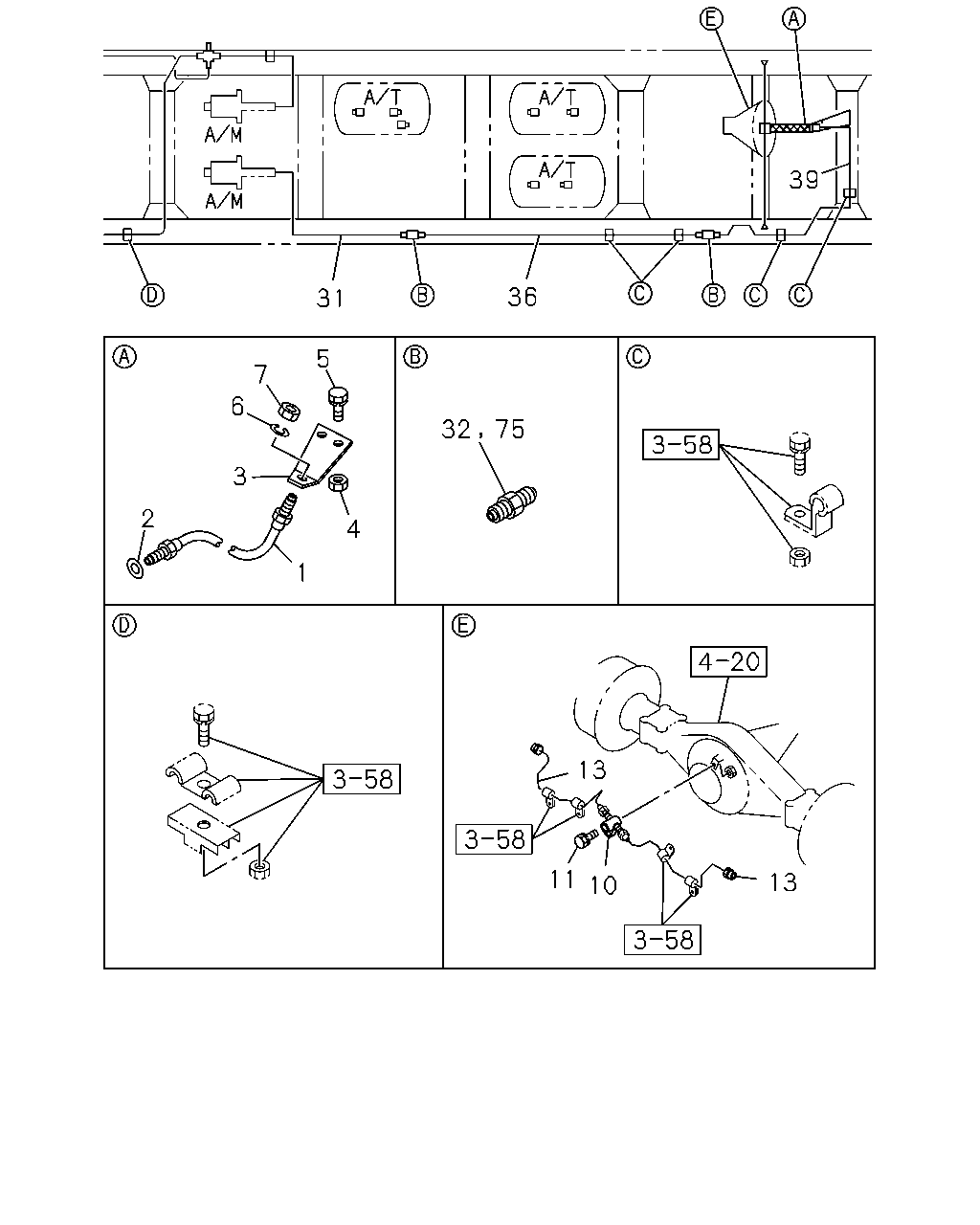

çizim 93814
39 36 31 5 7 6 32 75 3 2 4 1 13 11 13 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
REAR AXLE R105A<BBJ> L=700 		1-09364-203-0 01 1 9101- ●
1 HOSE; FLEX,RR BRK
EXC. REAR AXLE R105A<BBJ> L=675 		1-09364-201-0 01 1 9101- ●
1 HOSE; FLEX,RR BRK
L=675 		1-09364-201-0 01 1 9101- ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 01 1 9101- ● ●
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 9101- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 		9-09110-408-0 02 1 9101- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205- ● ●
6 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 9101-9312 ● ●
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 9101- ● ●
10 NIPPLE; RR AXLE CASE
FINAL GEAR 43/7 15.5"(W1R) REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> BRK LINING MATERIAL D1019<C5R> BUS USER THAILAND BMTA<D5B> 		9-09903-668-2 01 1 9101-9204 ●
10 NIPPLE; RR AXLE CASE 9-09903-668-3 01 1 9205-0107 ●
10 NIPPLE; RR AXLE CASE
REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		9-09903-668-3 01 1 0108-0203 ●
10 NIPPLE; RR AXLE CASE
FINAL GEAR 39/6 15.5"(W1T) REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		9-09903-668-3 01 1 0204-0407 ●
10 NIPPLE; RR AXLE CASE
REAR AXLE R105A<BBJ> 		9-09903-668-3 01 1 0408- ●
11 BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER 		9-01901-025-0 01 1 9101-9204 ●
11 BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9205-9409 ●
11 BOLT; NIPPLE,RR AXLE CASE
M10X20 FLANGE 		0-28681-020-0 01 1 9410-9410 ●
11 BOLT; NIPPLE,RR AXLE CASE
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9411-0107 ●
11 BOLT; NIPPLE,RR AXLE CASE
REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> M10X25 W/LK WASHER 		0-50041-025-0 01 1 0108-0203 ●
11 BOLT; NIPPLE,RR AXLE CASE
FINAL GEAR 39/6 15.5"(W1T) REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> M10X25 W/LK WASHER 		0-50041-025-0 01 1 0204-0407 ●
11 BOLT; NIPPLE,RR AXLE CASE
REAR AXLE R105A<BBJ> M10X25 W/LK WASHER 		0-50041-025-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ> 		1-47421-313-0 01 1 9101-9504 ●
13 PIPE; BRK,RR AXLE
THAILAND EQUIPMENT(PM9) 		1-47421-313-0 01 1 9505-0203 ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> THAILAND EQUIPMENT(PM9) EXC. REAR AXLE R105A<BBJ> 		1-47421-312-0 01 1 9101-9504 ●
13 PIPE; BRK,RR AXLE
THAILAND EQUIPMENT(PM9) 		1-47421-312-0 01 1 9505-0203 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47417-973-0 01 1 9101-9410 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> 		1-47417-973-0 01 1 9411-0107 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-47417-973-0 01 1 0108-0203 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/6 15.5"(W1T) REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47417-973-0 01 1 0204-0407 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> 		1-47417-973-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47417-972-0 01 1 9101-9410 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> 		1-47417-972-0 01 1 9411-0107 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-47417-972-0 01 1 0108-0203 ●
13 PIPE; BRK,RR AXLE
FINAL GEAR 39/6 15.5"(W1T) REAR AXLE R105A<BBJ> BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47417-972-0 01 1 0204-0407 ●
13 PIPE; BRK,RR AXLE
REAR AXLE R105A<BBJ> 		1-47417-972-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ> 		1-47418-869-0 01 1 9101-0107 ● ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ>,THAILAND EQUIPMENT(PM9) 		1-47418-869-0 01 1 0108-0203 ● ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ> 		1-47418-869-0 01 1 0204-0407 ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR AXLE R105A<BBJ> 		1-47418-869-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-869-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ> 		1-47418-868-0 01 1 9101-0107 ● ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ>,THAILAND EQUIPMENT(PM9) 		1-47418-868-0 01 1 0108-0203 ● ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> EXC. REAR AXLE R105A<BBJ> 		1-47418-868-0 01 1 0204-0407 ● ●
13 PIPE; BRK,RR AXLE
EXC. REAR AXLE R105A<BBJ> 		1-47418-868-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-868-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-310-0 01 1 9101-0203 ● ●
13 PIPE; BRK,RR AXLE
EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-310-0 01 1 0204-0407 ● ●
13 PIPE; BRK,RR AXLE
EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-310-0 01 1 0408- ●
13 PIPE; BRK,RR AXLE
EXC. REAR AXLE R105A<BBJ>,BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-309-0 01 1 9101-0203 ● ●
13 PIPE; BRK,RR AXLE
EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-309-0 01 1 0204-0407 ● ●
13 PIPE; BRK,RR AXLE
EXC. BUS BODY FRAME TYPE HEAVY DUTY<B2D> 		1-47418-309-0 01 1 0408- ●
31 PIPE; OIL,AIR MASTER TO UNION
SERVICED BY L=1250 		1-47426-353-0 01 1 9101- ● ●
32 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9101- ● ●
32 UNION; OIL PIPE
WHEEL BASE 6000MM(60W) M12 L=40 		9-09223-006-1 01 1 9101- ●
36 PIPE; OIL,UNION TO UNION
WHEEL BASE 6000MM(60W) L=989 SERVICED BY L=1100 		1-47434-387-0 01 1 9101- ●
36 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) L=1841 SERVICED BY L=2000 		1-47413-563-0 01 1 9101- ● ●
36 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) L=2240 SERVICED BY L=2350 		1-47413-565-0 01 1 9101- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
REAR AXLE R105A<BBJ> L=1476 SERVICED BY L=1500 		1-47434-391-0 01 1 9101- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
EXC. REAR AXLE R105A<BBJ> L=1658 SERVICED BY L=1820 		1-47434-394-0 01 1 9101- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1658 SERVICED BY L=1820 		1-47434-394-0 01 1 9101- ●
75 UNION; OIL PIPE
M12 L=40 		9-09223-006-1 01 1 9101- ● ●
