◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#222) — 12 parça

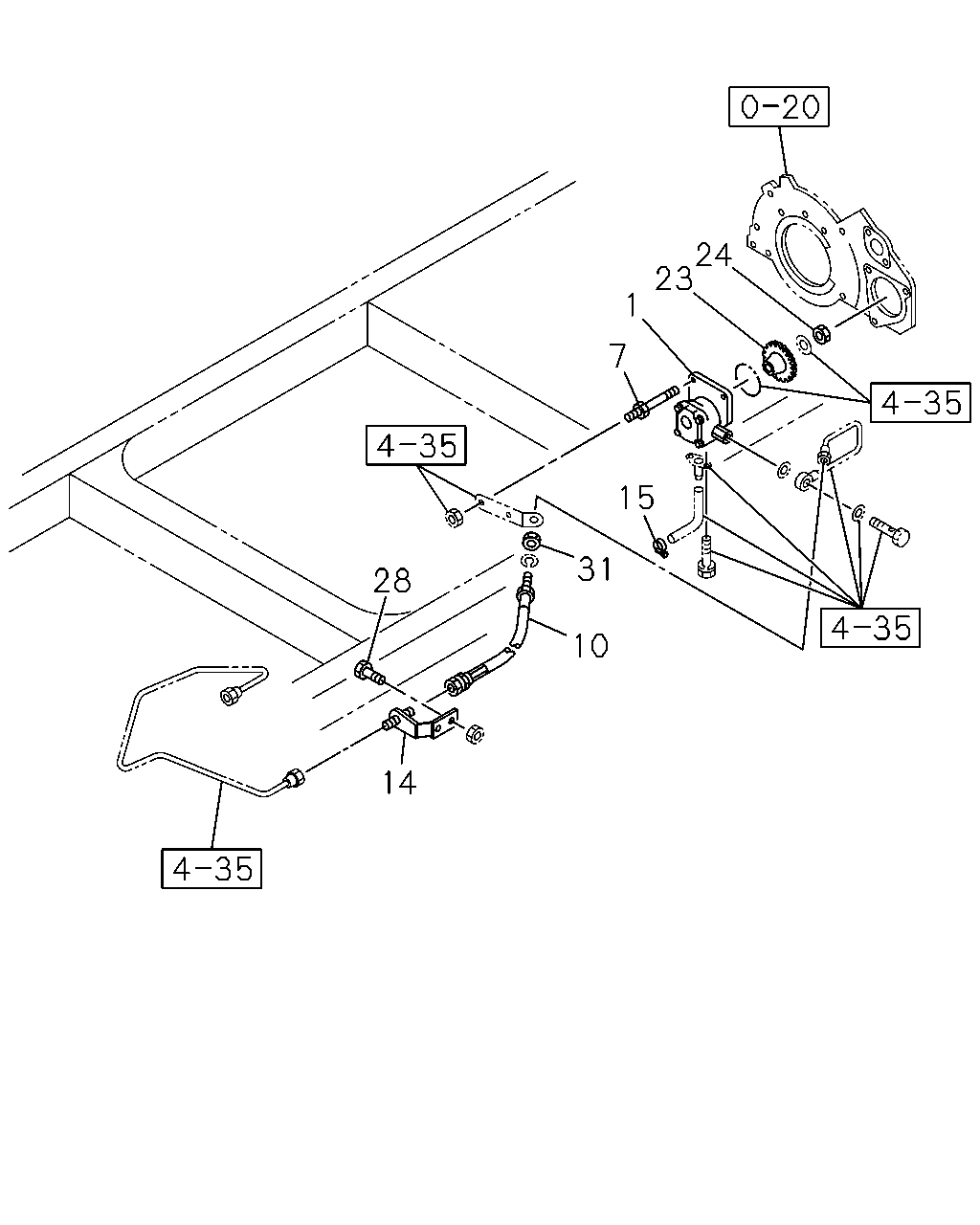

çizim 95350
24 23 1 7 15 31 28 10 14
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING(N40) 		1-19500-456-0 01 1 9212-
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X18,M10X28 L=53 		1-09302-135-1 01 1 9212-
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9212-
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X55 FLANGE 		8-94399-863-1 01 1 9212-
10 HOSE; FLEX,P/S OIL PUMP,INL
POWER STEERING(N40) 		1-09364-713-0 01 1 9212-
14 UNION; FLEX HOSE,P/S
POWER STEERING(N40) 		1-47470-274-2 01 1 9212-
15 CLIP; OIL PIPE SUCTION
POWER STEERING(N40) ID=32 		1-09704-085-0 02 1 9212-
23 GEAR; OIL PUMP
POWER STEERING(N40) Z=30 		8-94396-957-3 01 1 9212-
24 NUT; GEAR,P/S PUMP
POWER STEERING(N40) M14 		9-99110-514-0 01 1 9212-9308
24 NUT; GEAR,P/S PUMP
POWER STEERING(N40) M14 FLANGE 		0-91150-114-0 01 1 9309-
28 BOLT; BRKT,FLEX HOSE,P/S
POWER STEERING(N40) M8X25 FLANGE 		0-28080-825-0 02 1 9212-
31 NUT; FLEX HOSE
POWER STEERING(N40) M20 		9-99111-420-0 01 1 9212-
