4-80 — ROAD WHEEL (#22196) — 286 parça
çizim 48976
16 3 31 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) (A) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 01 1 9811- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) (A) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 06 1 9811- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0106- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9811-0105 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0106- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 9811-0105 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0106- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 9811-0105 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0106- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9811-9903 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9904- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9811-9903 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9904- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 02 1 0101- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR SPARE 5.0JX14 OFFSET=112 BLACK 6-HOLE 		8-94416-174-1 01 1 0101-0208 ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 01 1 0209- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR 5.0JX14 OFFSET=112 BLACK 6-HOLE 		8-94416-174-1 04 1 0101-0208 ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 04 1 0209- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 9811-0105 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52> M20 LH THREAD 		8-94427-549-1 06 1 9811-0105 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) M20 LH THREAD 		8-94427-549-1 06 1 9811-0105 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0106- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> M20 LH THREAD 		8-94427-549-1 06 1 0106- ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0106- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 9811-0105 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52> M20 RH THREAD 		8-94427-548-1 06 1 9811-0105 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) M20 RH THREAD 		8-94427-548-1 06 1 9811-0105 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0106- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> M20 RH THREAD 		8-94427-548-1 06 1 0106- ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0106- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> M18 LH THREAD 		8-94365-148-0 05 1 9811-0012 ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18 LH THREAD 		8-94365-148-0 05 1 9811-0012 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> M18 LH THREAD 		8-94365-148-0 05 1 0101-0105 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18 LH THREAD 		8-94365-148-0 05 1 0101-0105 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0101-0105 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18 LH THREAD 		8-94365-148-0 05 1 0106- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18 LH THREAD 		8-94365-148-0 05 1 0106- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0106- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> M18 RH THREAD 		8-94365-147-0 05 1 9811-0012 ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18 RH THREAD 		8-94365-147-0 05 1 9811-0012 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> M18 RH THREAD 		8-94365-147-0 05 1 0101-0105 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18 RH THREAD 		8-94365-147-0 05 1 0101-0105 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0101-0105 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18 RH THREAD 		8-94365-147-0 05 1 0106- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 4.0-4.5TON(RPR) M18 RH THREAD 		8-94365-147-0 05 1 0106- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0106- ● ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT SPARE 		8-97017-494-1 01 1 0101- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 		8-97017-494-1 02 1 0101- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 0106-0203 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 0106-0203 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9811-0105 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0106- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9811-0105 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0106- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9905-0203 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 16X5.50F STAMP, BLACK 		8-97227-056-0 02 1 0101-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 16X5.50F STAMP, BLACK 		8-94135-601-0 02 1 0204- ●
çizim 50103
16 31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) (A) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 01 1 9811- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) (A) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 06 1 9811- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0106- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9811-0105 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0106- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 9811-0105 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0106- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 9811-0105 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0106- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9811-9903 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9904- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9811-9903 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9904- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 02 1 0101- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR SPARE 5.0JX14 OFFSET=112 BLACK 6-HOLE 		8-94416-174-1 01 1 0101-0208 ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 01 1 0209- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR 5.0JX14 OFFSET=112 BLACK 6-HOLE 		8-94416-174-1 04 1 0101-0208 ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 04 1 0209- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT SPARE 		8-97017-494-1 01 1 0101- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 		8-97017-494-1 02 1 0101- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 0106-0203 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 0106-0203 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9811-0105 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0106- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9811-0105 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0106- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9905-0203 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 16X5.50F STAMP, BLACK 		8-97227-056-0 02 1 0101-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 16X5.50F STAMP, BLACK 		8-94135-601-0 02 1 0204- ●

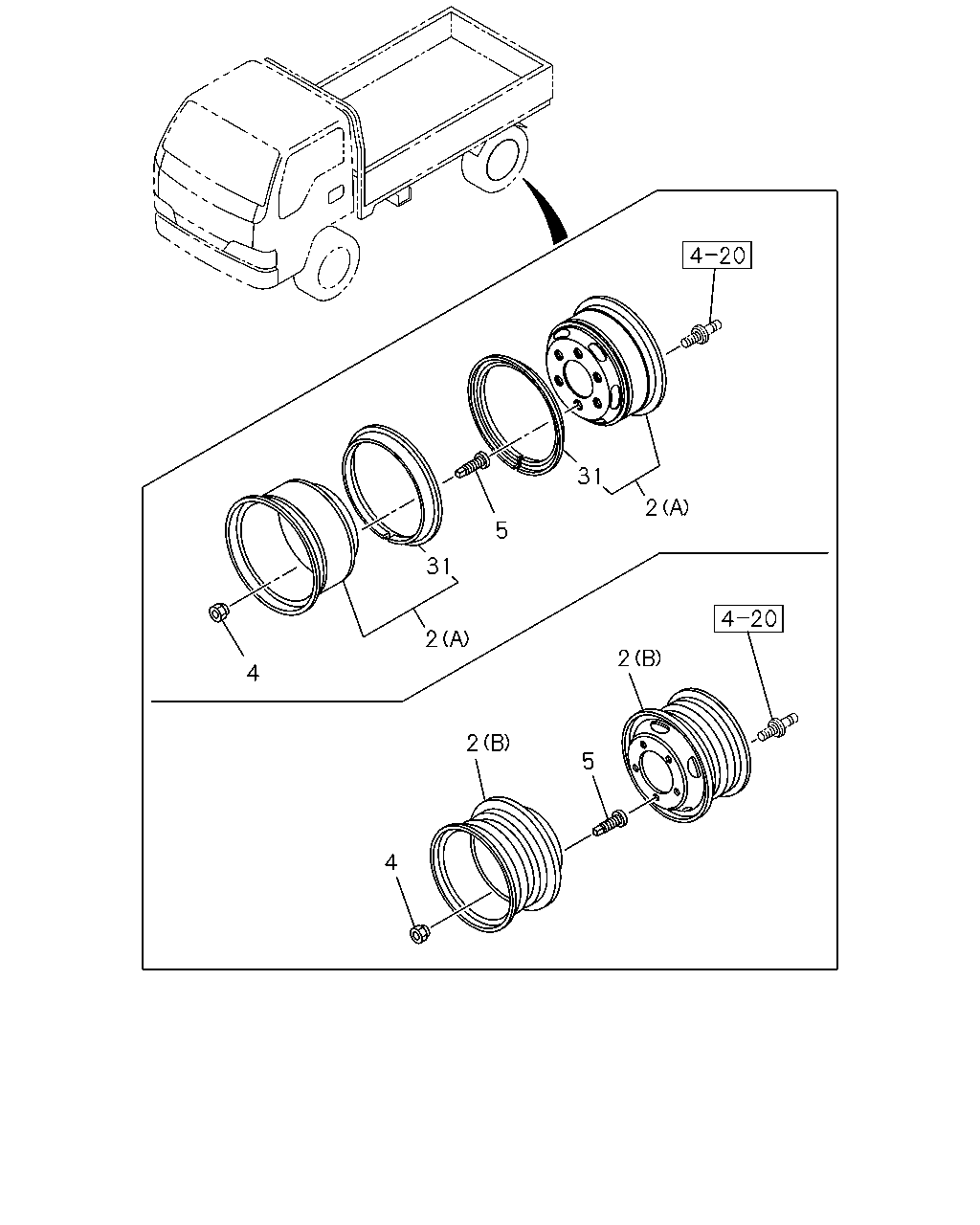

çizim 50185
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) (A) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 01 1 9811- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) (A) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 06 1 9811- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9811-0105 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0106- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9811-0105 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0106- ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 9811-0105 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 9811-0105 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0106- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 9811-0105 ● ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0106- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 9811-0012 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0101- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 9811- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9811-9903 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9904- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9811-9903 ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR 195/85R16 16X5.5J-116.5(AZX) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9904- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 9811-0105 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0106- ● ● ● ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (A) FRONT 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 02 1 0101- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR SPARE 5.0JX14 OFFSET=112 BLACK 6-HOLE 		8-94416-174-1 01 1 0101-0208 ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR SPARE 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 01 1 0209- ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR 5.0JX14 OFFSET=112 BLACK 6-HOLE 		8-94416-174-1 04 1 0101-0208 ●
2 05.803 WHEEL; DISC
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) (B) REAR 14X5J OFFSET=112.5 BLACK 6-HOLE 		8-97145-820-1 04 1 0209- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		1-42334-023-0 06 1 9811-0105 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52> M30 LH THREAD 		1-42334-023-0 06 1 9811-0105 ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) M30 LH THREAD 		1-42334-023-0 06 1 9811-0105 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		1-42334-023-0 06 1 0106- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> M30 LH THREAD 		1-42334-023-0 06 1 0106- ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0106- ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) M30 		1-42333-023-0 06 1 9811-0105 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52> M30 		1-42333-023-0 06 1 9811-0105 ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) M30 		1-42333-023-0 06 1 9811-0105 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 		1-42333-023-0 06 1 0106- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> M30 		1-42333-023-0 06 1 0106- ●
4 05.813 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0106- ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> M27 LH THREAD 		8-94365-146-0 05 1 9811-0105 ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR) M27 LH THREAD 		8-94365-146-0 05 1 9811-0105 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M27 LH THREAD 		8-94365-146-0 05 1 0106- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR) M27 LH THREAD 		8-94365-146-0 05 1 0106- ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> M27 RH THREAD 		8-94365-145-0 05 1 9811-0105 ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR) M27 RH THREAD 		8-94365-145-0 05 1 9811-0105 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M27 RH THREAD 		8-94365-145-0 05 1 0106- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 4.0-4.5TON(RPR) M27 RH THREAD 		8-94365-145-0 05 1 0106- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 0101- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 0101- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9811-0105 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9811-0105 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9811-0105 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0106- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0106- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0106- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9811-0105 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9811-0105 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9811-0105 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0106- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0106- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0106- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9811-0105 ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9811-0105 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0106- ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0106- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9811-0105 ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9811-0105 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0106- ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 4.0-4.5TON(RPR) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0106- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 0101- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 0101- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 0106-0203 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9811-9904 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NU T(9BP) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 0106-0203 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX1 6-127 6-WHL/NUT H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT &RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9811-0105 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0106- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9811-0105 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0106- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9905-0203 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0204- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9811-9904 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9905-0203 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT(06C),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 16X5.5F- 115(07H),FRT&RR 7R-16-10 5.5FX16-1276-WHL/NUT(08C),FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-12 5.5FX16- 127 6-WHL/NUT(09C),FRT&RR 7-16-12L 5.5FX16-127 6-WHL/NUT(10C),FRT&RR 7R- 16-12 5.5FX16-127 6-WHL/NUT(11C), FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5 .5FX16-127 6-WHL/NUT H/D(54C), FRT&RR7-16-8 16X5.5F-115(94H),FRT&RR 7-16 -10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H), FRT&RR 7-16-12L 5.5FX16-115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0204- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-97227-056-0 06 1 9905-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 9905-0012 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7R-16-8 16X5.5F-115(06H), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT& RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0203 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) SPARE 16X5.50F STAMP, BLACK 		8-97227-056-0 01 1 0101-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 9811- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 16X5.50F STAMP, BLACK 		8-97227-056-0 02 1 0101-0203 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(71C),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J-112(73C) FRONT 16X5.50F STAMP, BLACK 		8-94135-601-0 02 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
