4-55A — FRONT LEAF SPRING (#22186) — 14 parça

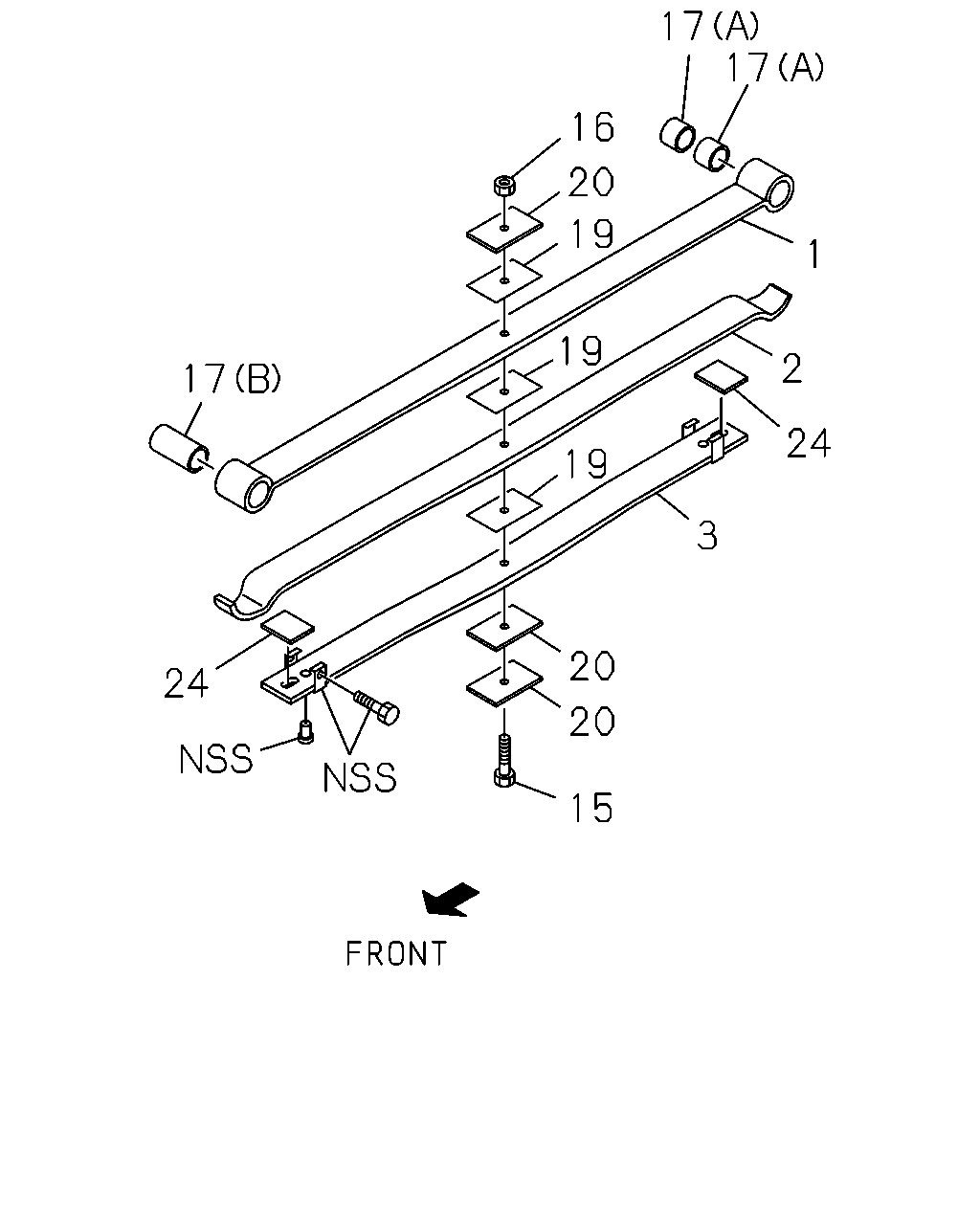

çizim 50036
17 17 16 20 19 1 19 2 17 24 19 3 20 24 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97033-421-3, 97033421 		8-97085-083-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97033-422-3, 97033422 		8-97085-086-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97033-421-3, 97033421 		8-97085-084-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97033-422-3, 97033422 		8-97085-087-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97033-421-3, 97033421 		8-97085-085-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97033-422-3, 97033422 		8-97085-088-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-94476-373-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-97084-845-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=6 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-94409-663-1 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=10 ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-97085-097-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-97033-421-3, 97033421, B = 8-97033-422-3, 97033422 		8-97084-848-0 02 1 -
