4-36 — POWER STEERING CONTROL; ENGINE SIDE (#22182) — 64 parça

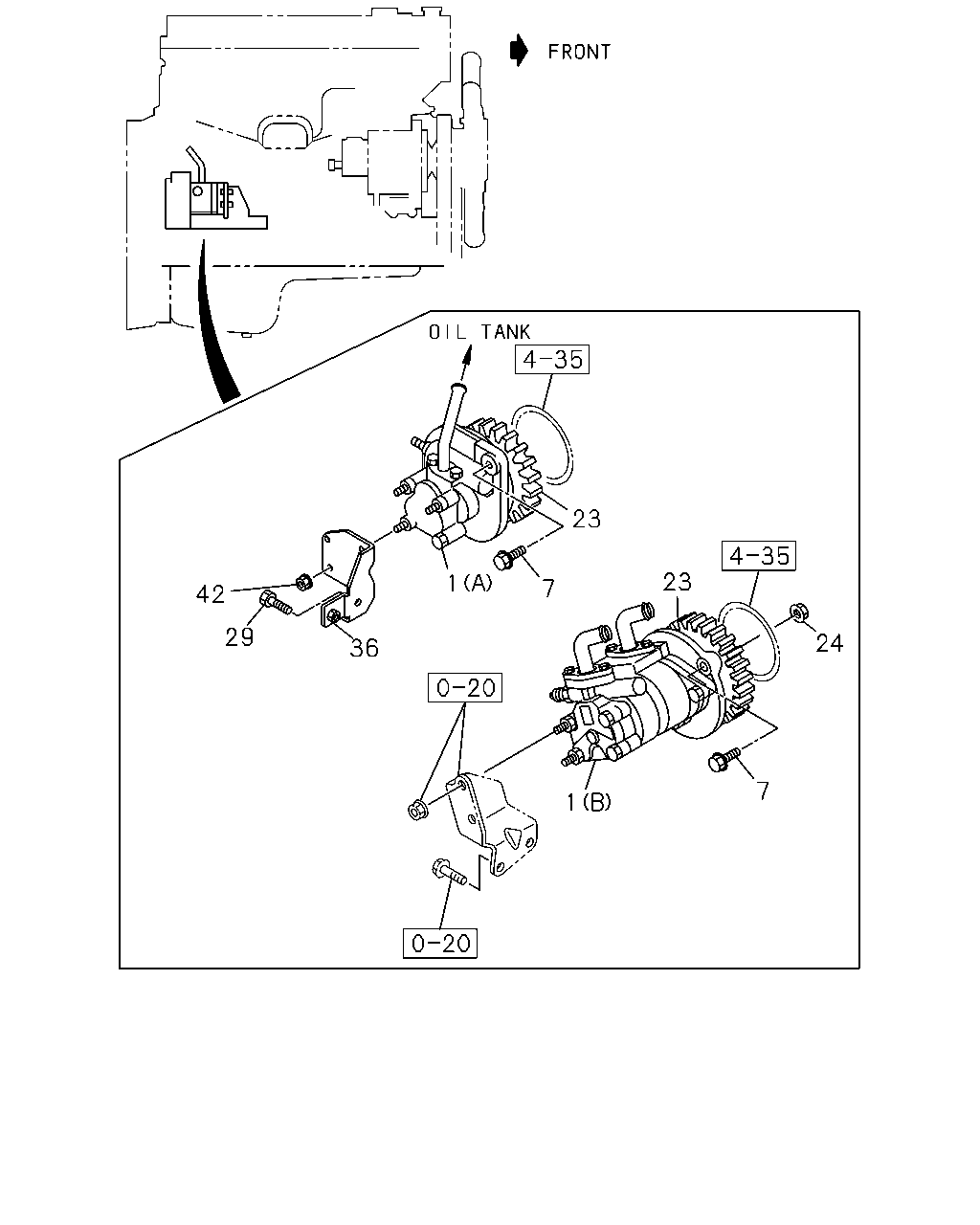

çizim 46744
23 23 1 7 42 29 24 36 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MZZ6U(RSF) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97258-461-0 01 1 0208- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 9811-0105 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 0106-0207 ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) POWER STEERING<N40> HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97175-115-0 01 1 0208- ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-597-0 01 1 9811-0105 ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> VEHICLE CATEGORY NQR<7NQ> (A) 		8-97136-597-0 01 1 0106- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 9811-0105 ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> (A) 		8-97136-574-1 01 1 0106- ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9811- ● ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 9811-0012 ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0101-0103 ● ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 		8-97114-550-0 01 1 0104-0104 ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
POWER STEERING<N40> 		8-97114-550-0 01 1 0105- ● ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 		8-97262-856-0 01 1 0104-0104 ● ● ● ● ● ●
23 06.660 GEAR; OIL PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97262-856-0 01 1 0104-0104 ● ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 9811-0105 ● ● ● ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 07.243 M12 FLANGE 		0-91150-212-0 01 1 0106- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 9811-9907 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 9811-9907 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 9908-0003 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 9908-0003 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0004-0012 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0004-0012 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0004-0012 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0101-0105 ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0101-0105 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0101-0105 ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> M14X20 FLANGE 		0-28881-420-0 01 1 0106- ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> M14X20 FLANGE 		0-28881-420-0 01 1 0106- ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> 		8-97112-866-0 01 1 9811-9811 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> TURBOCHARGER(K51) 		8-97112-866-0 01 1 9811-9811 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 9812-9903 ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> TURBOCHARGER(K51) 		8-97112-866-0 01 1 9812-9903 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97112-866-0 01 1 9812-9903 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 9904-0006 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 9904-0006 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) TURBOCHARGER(K51) POWER STEERING<N40> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97112-866-0 01 1 9904-0006 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97112-866-0 01 1 0007-0007 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0007-0007 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97112-866-0 01 1 0007-0007 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0008-0012 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0008-0012 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0008-0012 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0101-0105 ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0101-0105 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0101-0105 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 		8-97112-866-0 01 1 0106- ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97112-866-0 01 1 0106- ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 9811-0004 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> EXC. TURBOCHARGER(K51) 		8-97209-356-0 01 1 9811-0004 ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HF1 ENG(RLS) POWER STEERING<N40> 		8-97209-356-0 01 1 0005-0006 ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HG1 ENG(RJH) POWER STEERING<N40> EXC. TURBOCHARGER(K51) 		8-97209-356-0 01 1 0005-0006 ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9907 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-9907 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9908-0003 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9908-0003 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0004-0012 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0004-0012 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0004-0012 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101-0105 ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101-0105 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0101-0105 ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HE1 ENG(RLY) POWER STEERING<N40> EXC. HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ●
