1 |

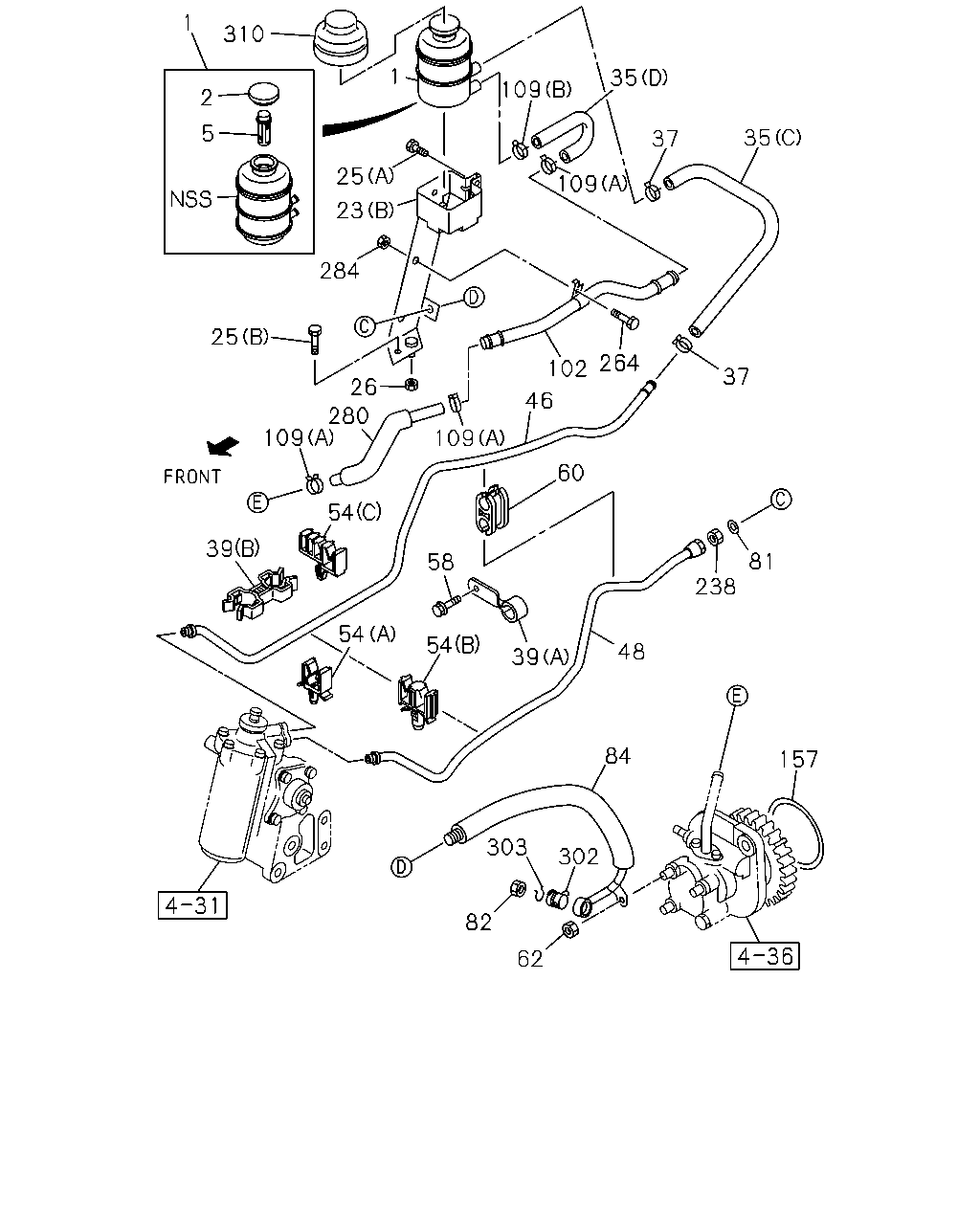

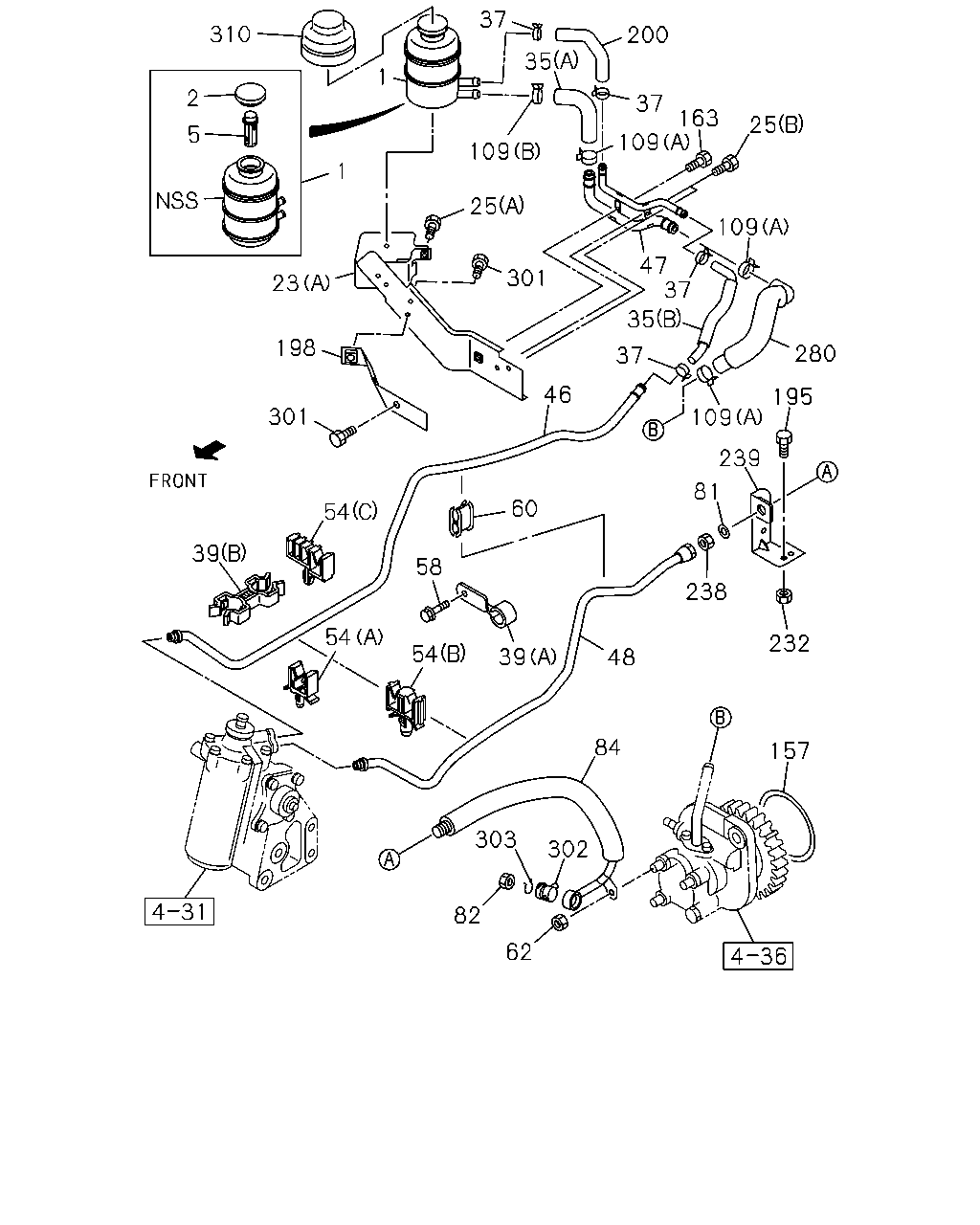

06.635 TANK ASM; OIL,P/S
POWER STEERING<N40>
|
8-97107-987-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
1 |
06.635 TANK ASM; OIL,P/S
|
8-97107-987-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
2 |
06.672 CAP; OIL TANK,P/S
POWER STEERING<N40>
06.635
|
8-94146-153-2 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
2 |
06.672 CAP; OIL TANK,P/S
06.635
|
8-94146-153-2 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
5 |
06.600 STRAINER; OIL TANK,P/S
POWER STEERING<N40>
|
8-97094-732-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
5 |
06.600 STRAINER; OIL TANK,P/S
|
8-97094-732-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97101-040-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
(A)
|
8-97101-040-1 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97101-040-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
(A)
|
8-97101-040-1 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
(A)
|
8-97101-040-1 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97101-040-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
(A)
|
8-97101-040-1 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
(A)
|
8-97101-040-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97101-040-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97101-040-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
(A)
|
8-97101-040-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
23 |
06.672 BRACKET; OIL TANK,P/S
POWER STEERING<N40>
(A)
|
8-97101-040-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
(A)
|
8-97101-040-1 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
(A)
|
8-97101-040-1 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
(B)
|
8-97147-071-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
23 |
06.672 BRACKET; OIL TANK,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
(B)
|
8-97147-071-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
POWER STEERING<N40>
00.785
(A)
M6X20 FLANGE
|
0-28480-620-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
00.785
(A)
M6X20 FLANGE
|
0-28480-620-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
25 |
06.635 BOLT; OIL TANK BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
02.559
(B)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97080-108-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(A)
|
8-97080-108-1 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97080-108-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-97080-108-1 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(A)
|
8-97080-108-1 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97080-108-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-97080-108-1 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(A)
|
8-97080-108-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(A)
|
8-97080-108-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97080-108-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-97080-108-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(A)
|
8-97080-108-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-97080-108-1 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
(A)
|
8-97080-108-1 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(B)
|
8-97096-949-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(B)
|
8-97096-949-1 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(B)
|
8-97096-949-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-97096-949-1 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(B)
|
8-97096-949-1 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(B)
|
8-97096-949-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-97096-949-1 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(B)
|
8-97096-949-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
(B)
|
8-97096-949-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97096-949-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-97096-949-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
POWER STEERING<N40>
(B)
|
8-97096-949-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-97096-949-1 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
(B)
|
8-97096-949-1 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
(C)
|
0-09809-440-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
(C)
|
0-09809-440-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
(D)
|
8-97147-003-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
35 |
06.671 HOSE; RETURN,P/S TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
(D)
|
8-97147-003-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
37 |
01.762 CLIP; HOSE,P/S
POWER STEERING<N40>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
04.930
ID=16
|
8-94238-568-0 |
02 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
37 |
01.762 CLIP; HOSE,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
04.930
ID=16
|
8-94238-568-0 |
02 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
39 |
06.672 CLIP; FLEX HOSE
4HE1 ENG(RLY)
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
|
|
| |
39 |
06.672 CLIP; FLEX HOSE
02.559
(A)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
39 |
06.672 CLIP; FLEX HOSE
4HE1 ENG(RLY)
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
39 |
06.672 CLIP; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
02.559
(A)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
|
● |
| |
39 |
06.672 CLIP; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
01.166
(B)
ID=22 & 22
|
8-94464-837-0 |
01 |
1 |
9902-9903 |
|
● |
● |
● |
● |
|
|
| |
39 |
06.672 CLIP; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
01.166
(B)
ID=22 & 22
|
8-94464-837-0 |
01 |
1 |
9904-0012 |
● |
● |
● |
● |
● |
|
|
| |
39 |
06.672 CLIP; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
01.166
(B)
ID=22 & 22
|
8-94464-837-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
|
| |
39 |
06.672 CLIP; FLEX HOSE
01.166
(B)
ID=22 & 22
|
8-94464-837-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97096-455-0 |
01 |
1 |
9811-0004 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-455-0 |
01 |
1 |
9811-0004 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-455-0 |
01 |
1 |
9811-0004 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97257-459-0 |
01 |
1 |
0005-0008 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-459-0 |
01 |
1 |
0005-0008 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-459-0 |
01 |
1 |
0005-0008 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97262-194-0 |
01 |
1 |
0009-0011 |
● |
● |
● |
● |
● |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97262-194-0 |
01 |
1 |
0009-0011 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97262-194-0 |
01 |
1 |
0009-0011 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
|
8-97262-194-0 |
01 |
1 |
0012-0105 |
● |
|
|
|
● |
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97262-194-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97262-194-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97262-194-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
|
8-97262-194-0 |
01 |
1 |
0012-0105 |
|
|
|
|
|
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
|
8-97262-194-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97064-720-2 |
01 |
1 |
9811-0008 |
● |
● |
● |
● |
● |
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97257-365-0 |
01 |
1 |
0009-0012 |
● |
● |
● |
● |
● |
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97257-365-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
|
8-97257-365-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97257-365-0 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
● |
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
|
8-97147-241-0 |
01 |
1 |
9811-0008 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
|
8-97262-195-0 |
01 |
1 |
0009-0011 |
|
● |
● |
|
|
|
|
| |
46 |
06.671 PIPE; OIL,P/S UNIT TO OIL TANK
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
|
8-97262-195-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97040-001-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
47 |
06.671 PIPE; RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
|
8-97040-001-1 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97040-001-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
47 |
06.671 PIPE; RETURN
|
8-97040-001-1 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
|
8-97040-001-1 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97040-001-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
|
8-97040-001-1 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
|
8-97040-001-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97040-001-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97040-001-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
|
8-97040-001-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
47 |
06.671 PIPE; RETURN
POWER STEERING<N40>
|
8-97040-001-2 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
47 |
06.671 PIPE; RETURN
|
8-97040-001-2 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
47 |
06.671 PIPE; RETURN
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
|
8-97040-001-2 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97096-453-1 |
01 |
1 |
9811-0004 |
● |
● |
● |
● |
● |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-453-1 |
01 |
1 |
9811-0004 |
|
● |
● |
|
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97096-453-1 |
01 |
1 |
9811-0004 |
|
● |
● |
|
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97257-458-0 |
01 |
1 |
0005-0011 |
● |
● |
● |
● |
● |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-458-0 |
01 |
1 |
0005-0011 |
|
● |
● |
|
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-458-0 |
01 |
1 |
0005-0011 |
|
● |
● |
|
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-458-0 |
01 |
1 |
0012-0105 |
● |
|
|
|
● |
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97257-458-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-458-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-458-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
|
8-97257-458-0 |
01 |
1 |
0012-0105 |
|
|
|
|
|
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
|
8-97257-458-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97064-722-2 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97064-722-2 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
|
8-97064-722-2 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97064-722-2 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
● |
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
|
8-97147-239-1 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
48 |
06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),CHARGE AIR
COOLER<6PL>
|
8-97147-239-1 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
|
|
| |
54 |
06.672 CLIP; OIL PIPE
04.930
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=10 H=40
|
8-94462-219-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
|
|
| |
54 |
06.672 CLIP; OIL PIPE
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
|
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
|
| |
54 |
06.672 CLIP; OIL PIPE
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=10X2 H=37.5
|
8-97018-546-0 |
02 |
1 |
0106- |
● |
● |
● |
|
● |
|
● |
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10 & 4.8X3
|
8-97038-938-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
|
|
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10 & 4.8X3
|
8-97038-938-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
|
| |
54 |
06.672 CLIP; OIL PIPE
(C)
ID=10 & 4.8X3
|
8-97038-938-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
|
● |
| |
54 |
06.672 CLIP; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=10 & 4.8X3
|
8-97038-938-0 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
● |
| |
58 |
06.672 BOLT; CLIP
4HE1 ENG(RLY)
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
|
|
| |
58 |
06.672 BOLT; CLIP
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
58 |
06.672 BOLT; CLIP
4HE1 ENG(RLY)
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
58 |
06.672 BOLT; CLIP
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
|
● |
| |
60 |
06.672 CLAMP; PIPE,RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
● |
|
|
| |
60 |
06.672 CLAMP; PIPE,RETURN
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
60 |
06.672 CLAMP; PIPE,RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
|
| |
62 |
06.670 NUT; CLIP FIX
POWER STEERING<N40>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
|
|
| |
62 |
06.670 NUT; CLIP FIX
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-0012 |
|
|
|
|
|
● |
|
| |
62 |
06.670 NUT; CLIP FIX
POWER STEERING<N40>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101- |
● |
● |
● |
● |
● |
● |
● |
| |
81 |
06.672 WASHER; LK,FLEX HOSE
POWER STEERING<N40>
ID=16.5 TOOTH LK INT
|
9-09151-216-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
81 |
06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT
|
9-09151-216-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
82 |
06.672 NUT; FLEX HOSE,P/S
POWER STEERING<N40>
06.606
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
|
|
| |
82 |
06.672 NUT; FLEX HOSE,P/S
06.606
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
9811-0012 |
|
|
|
|
|
● |
|
| |
82 |
06.672 NUT; FLEX HOSE,P/S
POWER STEERING<N40>
06.606
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
0101- |
● |
● |
● |
● |
● |
● |
● |
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
M/T MZZ6U(RSF)
POWER STEERING<N40>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97330-041-1 |
01 |
1 |
0208- |
|
● |
● |
● |
|
● |
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-727-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
|
8-97218-727-0 |
01 |
1 |
9811-0105 |
|
|
|
|
|
● |
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-727-0 |
01 |
1 |
0106-0207 |
|
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
|
8-97218-727-0 |
01 |
1 |
0106-0207 |
|
|
|
|
|
● |
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4
SPEED-AISIN(RNJ)
POWER STEERING<N40>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-727-0 |
01 |
1 |
0208- |
|
● |
● |
● |
|
● |
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
CHARGE AIR COOLER<6PL>
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-728-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
POWER STEERING<N40>
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-728-0 |
01 |
1 |
9904-0207 |
● |
● |
● |
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HE1 ENG(RLY)
M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4
SPEED-AISIN(RNJ),M/T MZZ6U(RSF)
POWER STEERING<N40>
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-728-0 |
01 |
1 |
0208- |
● |
● |
● |
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
TURBOCHARGER(K51)
POWER STEERING<N40>
EXC. MINI BUS CHASSIS<V4B>
|
8-97074-110-4 |
01 |
1 |
9811-0009 |
● |
● |
● |
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97074-110-4 |
01 |
1 |
9811-0009 |
|
● |
● |
|
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
TURBOCHARGER(K51)
POWER STEERING<N40>
EXC. MINI BUS CHASSIS<V4B>
|
8-97289-621-0 |
01 |
1 |
0010-0011 |
● |
● |
● |
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97289-621-0 |
01 |
1 |
0010-0011 |
|
● |
● |
|
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
TURBOCHARGER(K51)
POWER STEERING<N40>
EXC. MINI BUS CHASSIS<V4B>
|
8-97289-621-0 |
01 |
1 |
0012-0012 |
● |
● |
● |
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97289-621-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
TURBOCHARGER(K51)
POWER STEERING<N40>
EXC. MINI BUS CHASSIS<V4B>
|
8-97289-621-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
● |
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97289-621-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
TURBOCHARGER(K51)
POWER STEERING<N40>
|
8-97289-621-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
|
8-97289-621-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
|
8-97289-621-0 |
01 |
1 |
0106- |
|
|
|
|
|
|
● |
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. TURBOCHARGER(K51)
|
8-97130-894-0 |
01 |
1 |
9811-0011 |
● |
|
|
● |
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. TURBOCHARGER(K51),FRAME
STRAIGHT TYPE<7KJ>
|
8-97130-894-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),MINI BUS
CHASSIS<V4B>
|
8-97130-894-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. TURBOCHARGER(K51)
|
8-97130-894-0 |
01 |
1 |
0012-0105 |
● |
|
|
|
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. TURBOCHARGER(K51),FRAME
STRAIGHT TYPE<7KJ>
|
8-97130-894-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51),MINI BUS
CHASSIS<V4B>
|
8-97130-894-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. TURBOCHARGER(K51)
|
8-97130-894-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH)
POWER STEERING<N40>
EXC. TURBOCHARGER(K51)
|
8-97130-894-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51)
|
8-97133-852-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
84 |
06.670 HOSE; FLEX,P/S
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51)
|
8-97133-852-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
109 |
06.672 CLIP; RUBBER HOSE
POWER STEERING<N40>
(A)
ID=21
|
8-94242-034-0 |
03 |
1 |
9811-0012 |
● |
● |
● |
● |
● |
|
|
| |
109 |
06.672 CLIP; RUBBER HOSE
(A)
ID=21
|
8-94242-034-0 |
03 |
1 |
9811-0012 |
|
|
|
|
|
● |
|
| |
109 |
06.672 CLIP; RUBBER HOSE
POWER STEERING<N40>
(A)
ID=21
|
8-94242-034-0 |
03 |
1 |
0101- |
● |
● |
● |
● |
● |
● |
● |
| |
109 |
06.672 CLIP; RUBBER HOSE
POWER STEERING<N40>
08.846
(B)
ID=22
|
8-94382-401-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
109 |
06.672 CLIP; RUBBER HOSE
08.846
(B)
ID=22
|
8-94382-401-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
157 |
06.673 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
POWER STEERING<N40>
|
8-97101-875-2 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
● |
● |
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
163 |
06.671 BOLT; OIL PIPE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
163 |
06.671 BOLT; OIL PIPE
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
163 |
06.671 BOLT; OIL PIPE
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
163 |
06.671 BOLT; OIL PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
195 |
06.635 BOLT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
195 |
06.635 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
195 |
06.635 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
195 |
06.635 BOLT; BRKT
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97081-778-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
|
8-97081-778-1 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97081-778-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-1 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
|
8-97081-778-1 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97081-778-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-1 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
|
8-97081-778-1 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97081-778-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97081-778-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-1 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
POWER STEERING<N40>
|
8-97081-778-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-1 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
|
8-97081-778-1 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97080-109-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
|
8-97080-109-0 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97080-109-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
|
8-97080-109-0 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
|
8-97080-109-0 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97080-109-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
|
8-97080-109-0 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
|
8-97080-109-0 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97080-109-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97080-109-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
|
8-97080-109-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
200 |
06.670 HOSE; RUBBER,RETURN
POWER STEERING<N40>
|
8-97080-109-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
200 |
06.670 HOSE; RUBBER,RETURN
|
8-97080-109-0 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
200 |
06.670 HOSE; RUBBER,RETURN
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
|
8-97080-109-0 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
232 |
06.672 NUT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
232 |
06.672 NUT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
232 |
06.672 NUT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
232 |
06.672 NUT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
232 |
06.672 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
232 |
06.672 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
232 |
06.672 NUT; BRKT
POWER STEERING<N40>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
● |
● |
| |
238 |
06.670 NUT; FLEX HOSE
POWER STEERING<N40>
06.897
M16
|
8-94370-339-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
238 |
06.670 NUT; FLEX HOSE
06.897
M16
|
8-94370-339-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97033-926-2 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
|
8-97033-926-2 |
01 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97033-926-2 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
|
8-97033-926-2 |
01 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
|
8-97033-926-2 |
01 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97033-926-2 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
|
8-97033-926-2 |
01 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
|
8-97033-926-2 |
01 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
|
8-97033-926-2 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
|
8-97033-926-2 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
|
8-97033-926-2 |
01 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
239 |
06.606 BRACKET; FLEX HOSE
POWER STEERING<N40>
|
8-97033-926-2 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
239 |
06.606 BRACKET; FLEX HOSE
|
8-97033-926-2 |
01 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
239 |
06.606 BRACKET; FLEX HOSE
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
|
8-97033-926-2 |
01 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HE1 ENG(RLY)
POWER STEERING<N40>
CHARGE AIR COOLER<6PL>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-729-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
● |
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HE1 ENG(RLY)
POWER STEERING<N40>
CHARGE AIR COOLER<6PL>
HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-729-0 |
01 |
1 |
0106- |
|
● |
● |
● |
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
|
8-97218-729-0 |
01 |
1 |
0106- |
|
|
|
|
|
● |
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HE1 ENG(RLY)
POWER STEERING<N40>
HYDRO BRAKE BOOSTER<7QQ>
EXC. CHARGE AIR COOLER<6PL>
|
8-97177-352-1 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
● |
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HE1 ENG(RLY)
POWER STEERING<N40>
HYDRO BRAKE BOOSTER<7QQ>
EXC. CHARGE AIR COOLER<6PL>
|
8-97177-352-1 |
01 |
1 |
0106- |
|
● |
● |
● |
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,CHARGE
AIR COOLER<6PL>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97107-524-1 |
01 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,CHARGE
AIR COOLER<6PL>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
9904-0011 |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
9904-0011 |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97107-524-1 |
01 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,CHARGE
AIR COOLER<6PL>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
0012-0012 |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
0012-0012 |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97107-524-1 |
01 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
● |
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>,CHARGE
AIR COOLER<6PL>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
|
8-97107-524-1 |
01 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. CHARGE AIR COOLER<6PL>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
0106- |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO
BRAKE BOOSTER<7QQ>
|
8-97107-524-1 |
01 |
1 |
0106- |
● |
● |
● |
|
● |
|
● |
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HE1 ENG(RLY)
POWER STEERING<N40>
CHARGE AIR COOLER<6PL>
EXC. HYDRO BRAKE BOOSTER<7QQ>
|
8-97218-730-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
● |
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51)
|
8-97147-004-0 |
01 |
1 |
9811-0011 |
|
● |
● |
|
|
|
|
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
4HG1 ENG(RJH),4HF1 ENG(RLS)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
EXC. TURBOCHARGER(K51)
|
8-97147-004-0 |
01 |
1 |
0012-0105 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
● |
● |
● |
● |
● |
● |
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9811-9903 |
|
● |
● |
|
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
● |
|
|
● |
● |
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
● |
● |
|
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9904-0011 |
|
|
|
|
|
● |
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
● |
|
|
|
● |
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0012-0012 |
|
|
|
|
|
● |
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
● |
|
|
|
● |
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS<V4B>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HG1 ENG(RJH)
TURBOCHARGER(K51)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HE1 ENG(RLY)
POWER STEERING<N40>
MINI BUS CHASSIS<V4B>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0101-0105 |
|
|
|
|
|
● |
● |
| |
301 |
06.672 BOLT; STAY,OIL TANK
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
301 |
06.672 BOLT; STAY,OIL TANK
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106- |
|
|
|
|
|
● |
● |
| |
301 |
06.672 BOLT; STAY,OIL TANK
4HG1 ENG(RJH),4HE1 ENG(RLY)
POWER STEERING<N40>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0106- |
|
|
|
|
● |
|
|
| |
302 |
06.672 CAP; EYE JOINT
POWER STEERING<N40>
EXC. HYDRO BRAKE BOOSTER<7QQ>
06.606
|
8-97028-715-0 |
01 |
1 |
9811-9904 |
● |
● |
● |
● |
● |
|
|
| |
303 |
06.635 HOLDER; P/S PUMP
POWER STEERING<N40>
EXC. HYDRO BRAKE BOOSTER<7QQ>
06.606
|
8-97029-905-0 |
01 |
1 |
9811-9904 |
● |
● |
● |
● |
● |
|
|
| |
310 |
06.672 COVER; OIL TANK
POWER STEERING<N40>
|
8-97103-394-0 |
01 |
1 |
9811- |
● |
● |
● |
● |
|
|
|
| |
310 |
06.672 COVER; OIL TANK
|
8-97103-394-0 |
01 |
1 |
9811- |
|
|
|
|
|
● |
● |
