4-31 — STEERING COLUMN AND SHAFT (#22179) — 189 parça

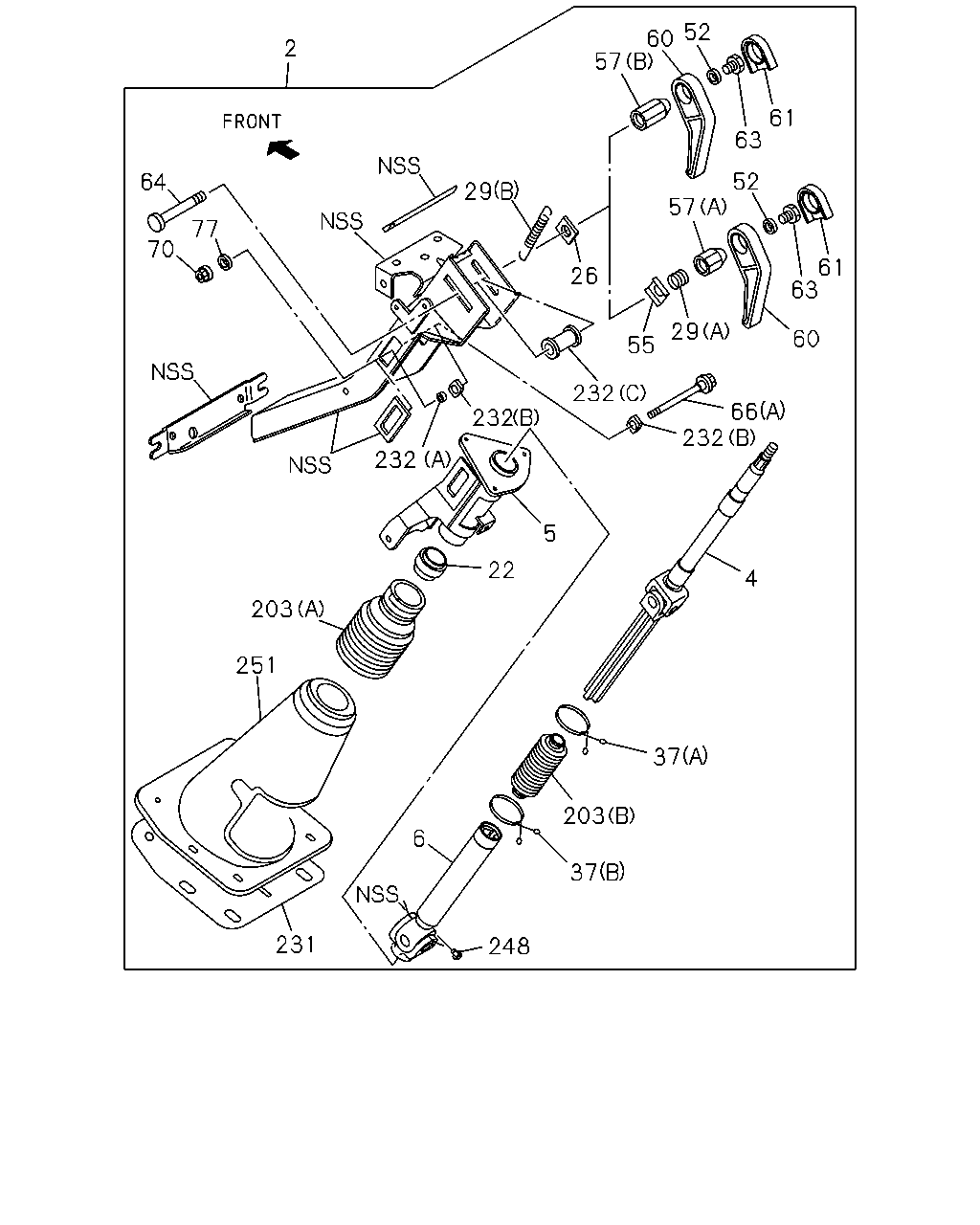

çizim 10579
52 60 57 2 61 63 52 64 29 57 77 70 61 63 26 29 60 55 232 66 232 232 232 5 22 4 203 251 37 203 6 37 231 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97159-171-1 01 1 9811-9812 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97291-633-0 01 1 9901-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97291-633-0 01 1 0101- ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-170-1 01 1 9811-9811 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 9812-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0101- ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9811-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0101-0207 ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208- ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97201-106-0 01 1 9811-9812 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-110-1 01 1 9811-9812 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 9901-0012 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0101- ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9811-0012 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 0101-0207 ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208- ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97096-767-2 01 1 9811-0012 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97096-767-2 01 1 0101- ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 9811-0012 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0101- ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9811-0012 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 0101- ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9811- ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9811-0207 ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208- ● ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9811- ● ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9811-0207 ● ● ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97076-827-0 01 1 9811-9811 ● ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97076-827-0 01 1 9812-9812 ● ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97222-989-0 01 1 9812-9812 ● ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 9901-0012 ● ● ● ● ● ●
26 06.514 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0101- ● ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 9811-0012 ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 0101- ● ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> (A) 		8-97076-829-0 01 1 9811-9811 ● ● ● ● ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> (A) 		8-97076-829-0 01 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9811-9811 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> (B) 		8-94165-569-0 01 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9811-9811 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> (A) 		8-94165-570-0 01 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9811-9811 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A),(B) 		8-97173-630-0 02 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 9901-0012 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 0101- ● ● ● ● ● ● ●
52 06.514 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 9811- ● ● ● ● ● ● ●
55 06.514 PLATE; GUIDE
TILT STEERING<N33> 		8-97076-828-0 01 1 9811-9811 ● ● ● ● ● ●
55 06.514 PLATE; GUIDE
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97076-828-0 01 1 9812-9812 ● ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> (A) 		8-97076-826-0 01 1 9811-9811 ● ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> (A) 		8-97076-826-0 01 1 9812-9812 ● ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) 		8-97222-988-0 01 1 9812-9812 ● ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> (B) 		8-97222-988-0 01 1 9901-0012 ● ● ● ● ● ●
57 06.518 NUT; ADJ BOLT
TILT STEERING<N33> (B) 		8-97222-988-0 01 1 0101- ● ● ● ● ● ● ●
60 06.518 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 9811- ● ● ● ● ● ● ●
61 06.514 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 9811- ● ● ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-824-0 01 1 9811-9811 ● ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97076-824-0 01 1 9812-9812 ● ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97222-986-0 01 1 9812-9812 ● ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 9901-0012 ● ● ● ● ● ●
63 06.514 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0101- ● ● ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97076-825-0 01 1 9811-9811 ● ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97076-825-0 01 1 9812-9812 ● ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97222-987-0 01 1 9812-9812 ● ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 9901-0012 ● ● ● ● ● ●
64 06.518 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0101- ● ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9811-0012 ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0101- ● ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9811-0012 ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0101- ● ● ● ● ● ● ●
70 06.514 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 9811- ● ● ● ● ● ● ●
77 06.760 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9811- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-97076-822-0 01 1 9811- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 9811- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 9811-0207 ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (A) 		8-97173-632-0 01 1 9811- ● ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9811- ● ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9811- ● ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9811- ● ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9811- ● ● ● ● ● ● ●
232 06.514 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9811- ● ● ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97222-984-0 01 1 9812-9812 ● ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 9901-0012 ● ● ● ● ● ●
248 06.518 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0101- ● ● ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 9811- ● ● ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 9811- ● ● ● ● ● ● ●

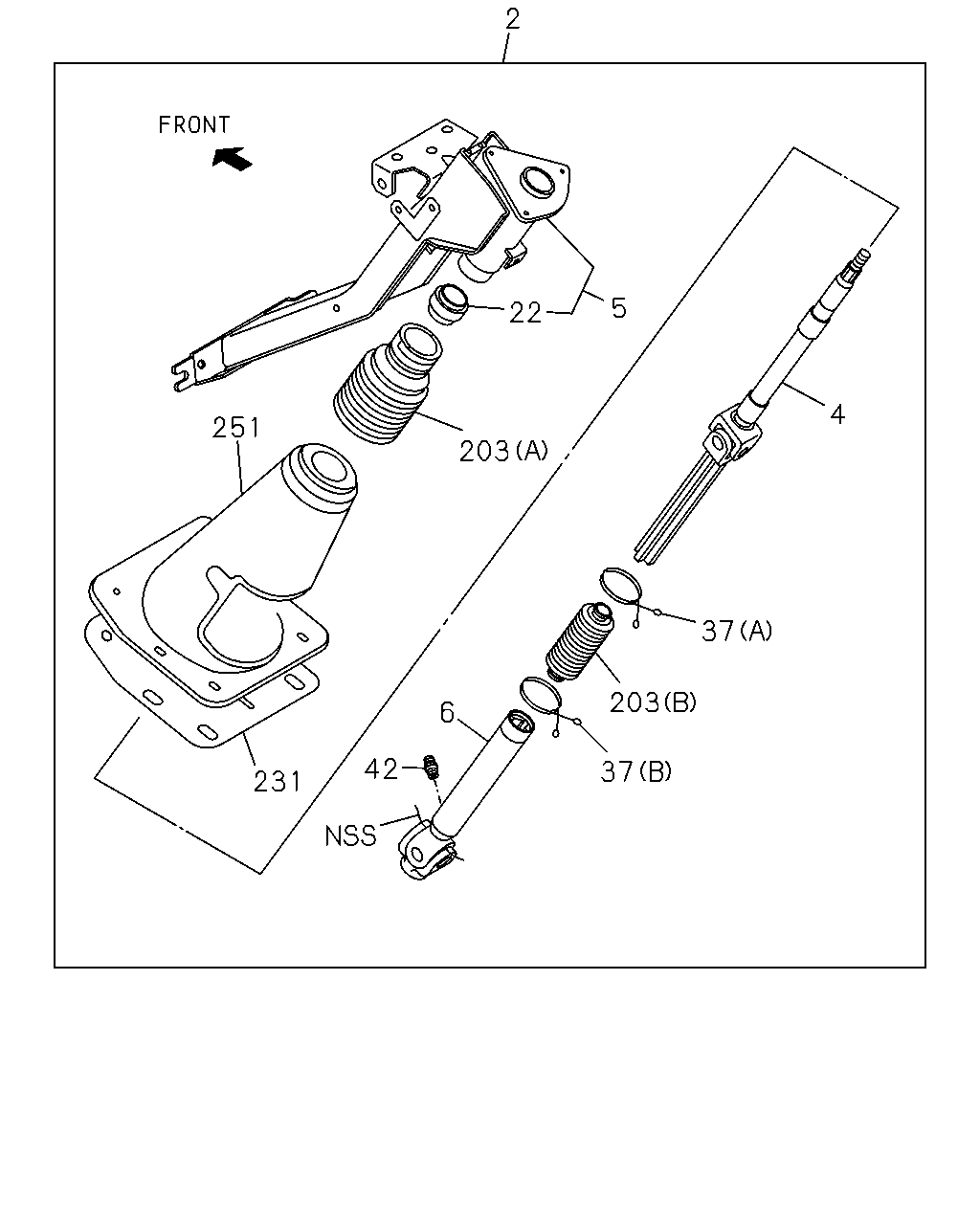

çizim 48369
2 5 22 4 251 203 37 203 6 42 37 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97159-171-1 01 1 9811-9812 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97291-633-0 01 1 9901-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97291-633-0 01 1 0101- ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-170-1 01 1 9811-9811 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 9812-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0101- ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9811-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0101-0207 ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208- ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97201-106-0 01 1 9811-9812 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-110-1 01 1 9811-9812 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 9901-0012 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0101- ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9811-0012 ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 0101-0207 ● ● ● ● ● ● ●
4 06.524 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208- ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97096-767-2 01 1 9811-0012 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> 		8-97096-767-2 01 1 0101- ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 9811-0012 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0101- ● ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 9811-0012 ● ● ● ● ● ●
5 06.518 COLUMN; STRG
EXC. TILT STEERING<N33> 06.760 		8-97173-626-0 01 1 0101- ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9811- ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9811-0207 ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208- ● ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
TILT STEERING<N33> 		8-97076-821-0 01 1 9811- ● ● ● ● ● ● ●
22 06.525 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> 		8-97201-085-0 01 1 9811-0207 ● ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) 		8-94165-569-0 01 1 9811-9811 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> (B) 		8-94165-569-0 01 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) 		8-94165-570-0 01 1 9811-9811 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> (A) 		8-94165-570-0 01 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9811-9811 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A),(B) 		8-97173-630-0 02 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9812-9812 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 9901-0012 ● ● ● ● ● ●
37 06.525 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 0101- ● ● ● ● ● ● ●
42 05.586 NIPPLE; GREASE,SLEEVE YOKE
EXC. TILT STEERING<N33> 		8-97178-201-0 01 1 0208- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> 06.518 (A) 		8-97076-822-0 01 1 9811- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 9811- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 9811-0207 ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208- ● ● ● ● ● ● ●
203 06.525 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> 06.518 (A) 		8-97173-632-0 01 1 9811- ● ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9811- ● ● ● ● ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9811- ● ● ● ● ● ● ●
251 06.518 COVER; LWR
TILT STEERING<N33> 06.578 BLACK 		8-97159-168-1 01 1 9811- ● ● ● ● ● ● ●
251 06.518 COVER; LWR
EXC. TILT STEERING<N33> 06.578 BLACK 		8-97159-175-0 01 1 9811- ● ● ● ● ● ● ●

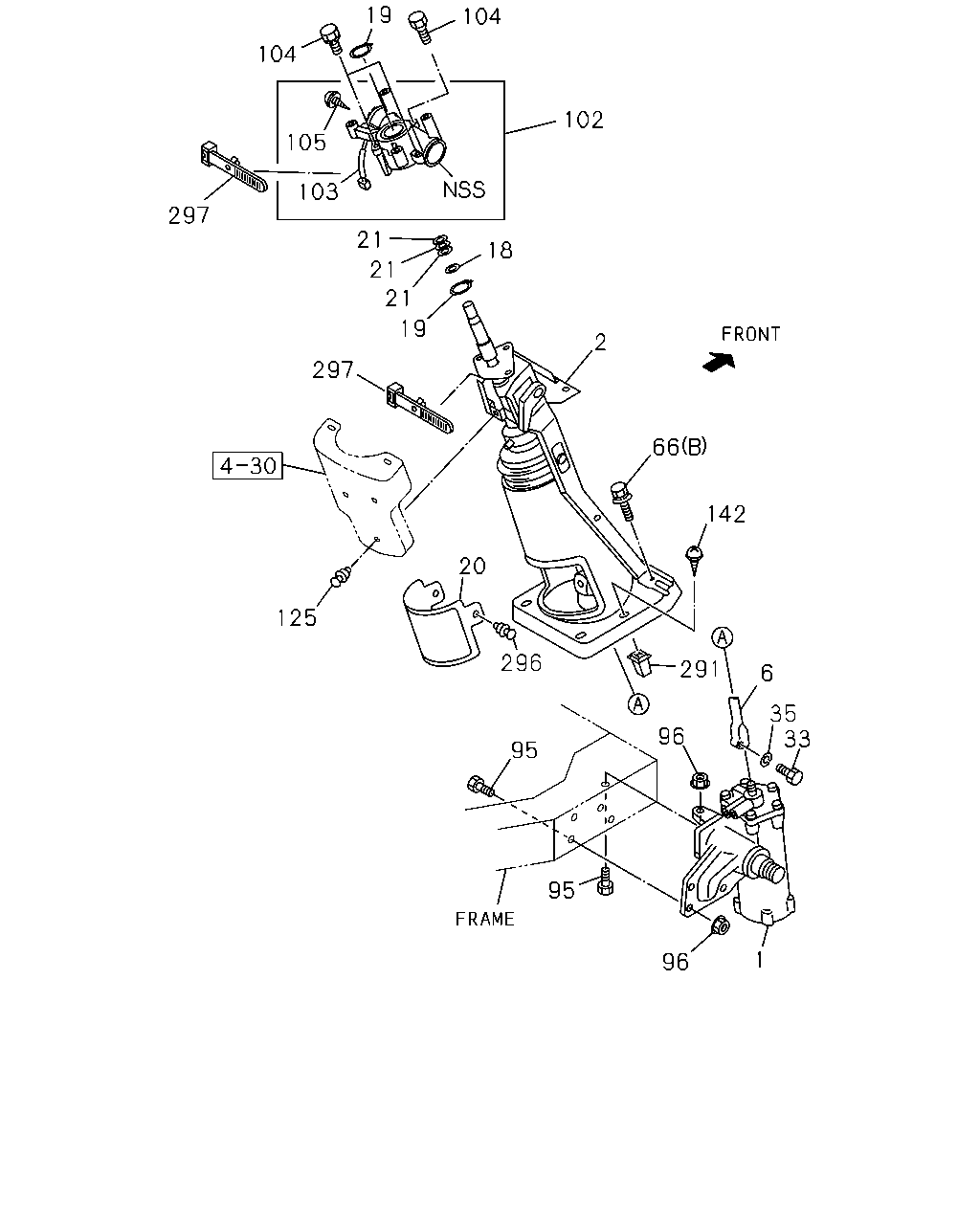

çizim 49641
19 104 104 102 105 103 297 21 18 21 21 19 2 297 66 142 20 125 296 291 6 35 33 96 95 95 1 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97117-491-1 01 1 9811-9811 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97117-491-1 01 1 9811-9811 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97218-594-3 01 1 9812-0008 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97218-594-3 01 1 9812-0008 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97251-840-0 01 1 0009-0012 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97251-840-0 01 1 0009-0012 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97251-840-0 01 1 0101-0105 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97251-840-0 01 1 0101-0105 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97287-197-1 01 1 0106- ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97287-197-1 01 1 0106- ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97073-275-0 01 1 9811-0011 ● ● ● ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97224-871-0 01 1 0012- ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97159-171-1 01 1 9811-9812 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97291-633-0 01 1 9901-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT <6UJ> BLACK 		8-97291-633-0 01 1 0101- ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97159-170-1 01 1 9811-9811 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 9812-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0101- ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 9811-0012 ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97159-172-0 01 1 0101-0207 ● ● ● ● ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0208- ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9811- ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9811-0207 ● ● ● ● ● ● ●
6 06.524 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208- ● ● ● ● ● ● ●
18 06.525 WASHER; STEERING SHAFT
06.500 ID=19 		8-94146-919-0 01 1 9811- ● ● ● ● ● ● ●
19 06.515 RING; SNAP,STRG SHAFT
00.349 ID=17.5 		9-09180-019-0 02 1 9811- ● ● ● ● ● ● ●
20 06.525 COVER; STRG SHAFT
06.578 BLACK 		8-97159-169-0 01 1 9811-9903 ● ● ● ● ● ●
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 9904-0012 ● ● ● ● ● ●
20 06.525 COVER; STRG SHAFT
06.518 BLACK 		8-97291-634-1 01 1 0101- ● ● ● ● ● ● ●
21 06.500 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 9811- ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> M8X30 		8-94247-692-0 01 1 9811- ● ● ● ● ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
EXC. TILT STEERING<N33> M10X33 		8-94249-011-1 01 1 9811- ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 00.002 ID=8.2 		9-09150-508-0 01 1 9811- ● ● ● ● ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> 08.929 ID=10.2 		9-09150-810-0 01 1 9811- ● ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9811-0012 ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
04.634 (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0101- ● ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9811-0012 ● ● ● ● ● ●
66 06.514 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0101- ● ● ● ● ● ● ●
95 06.509 BOLT; STRG UNIT
M12X45 		8-97212-810-1 03 1 9811- ● ● ● ● ● ● ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 04 1 9811- ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> 		8-97170-364-0 01 1 9811-0012 ● ● ● ● ●
102 06.500 LOCK ASM; STRG 8-97170-364-0 01 1 9811-0012 ●
102 06.500 LOCK ASM; STRG
FLOOR REMOTE SHIFT<M11> 		8-97170-364-0 01 1 0101- ● ● ● ● ● ● ●
102 06.500 LOCK ASM; STRG
EXC. FLOOR REMOTE SHIFT<M11> 		8-97170-363-0 01 1 9811- ● ● ● ● ●
103 02.188 SWITCH; IGNITION 8-97088-268-0 01 1 9811- ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 01 1 9811- ● ● ● ● ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 02 1 9811- ● ● ● ● ● ● ●
105 06.500 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9811- ● ● ● ● ● ● ●
125 06.521 CLIP; STRG SHAFT
DARK GRAY 		8-97857-542-0 01 1 9811- ● ● ● ● ● ● ●
142 06.518 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 9811- ● ● ● ● ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 H=15 		8-94463-268-1 06 1 9811- ● ● ● ● ● ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 9811- ● ● ● ● ● ● ●
296 06.525 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 9811- ● ● ● ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 9811-9812 ● ● ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 02 1 9901-9901 ● ● ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 9902-0012 ● ● ● ● ● ●
297 06.525 CLIP; BAND
02.559 L=145 		8-94257-575-1 03 1 0101- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
