4-11 — FRONT HUB AND DRUM OR ROTOR (#22175) — 225 parça

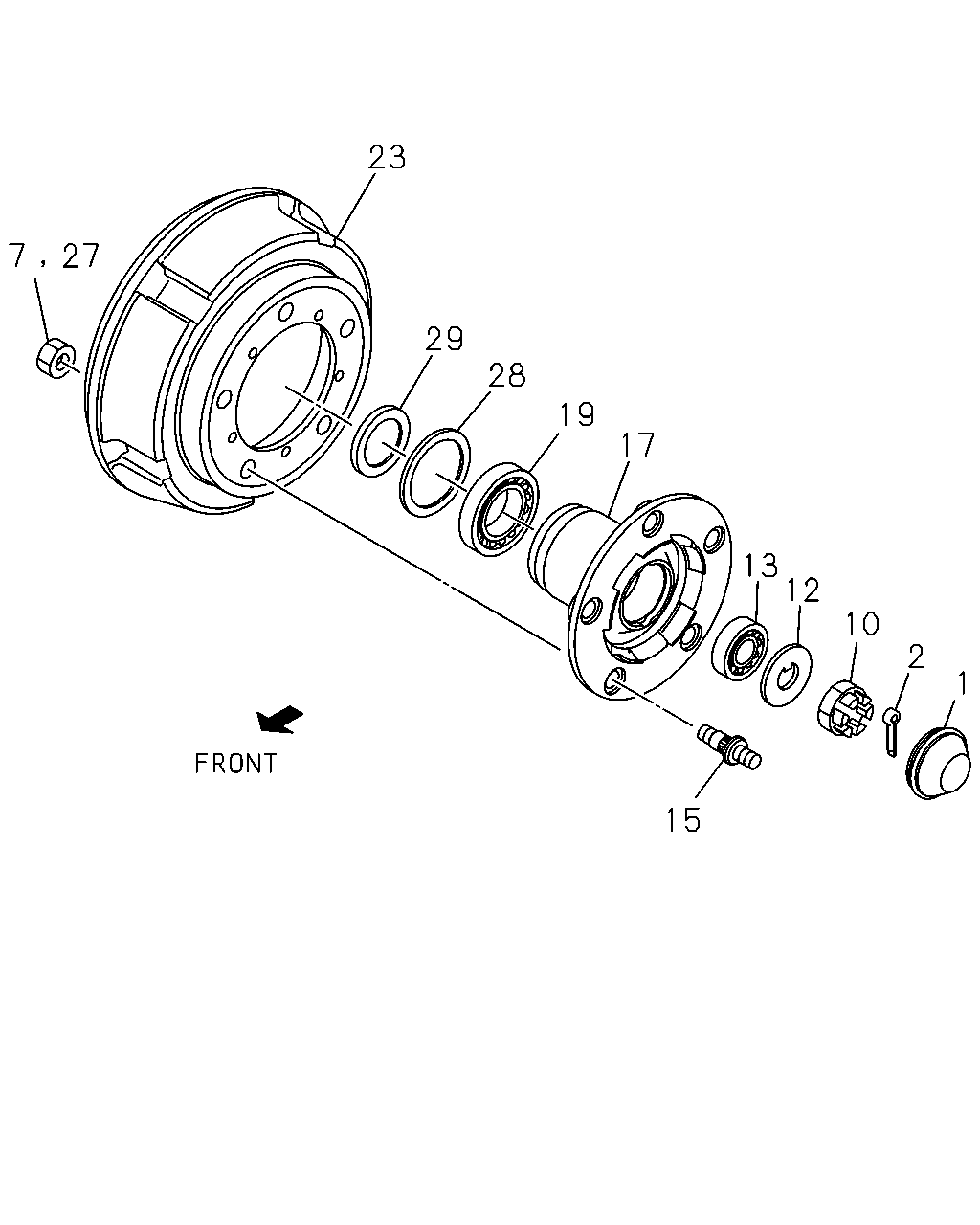

çizim 48320
23 7 27 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9811- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9811- ● ● ● ● ● ● ●
7 05.812 NUT; FRT HUB
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. DISC BRAKE FRT<J52> 05.813 M22 		9-09110-522-0 12 1 9903-0105 ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 05.813 M22 		9-09110-522-0 12 1 0106- ● ● ● ● ●
7 05.812 NUT; FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 00.050 M20 		9-99110-520-0 10 1 9903-0105 ● ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 00.050 M20 		9-99110-520-0 10 1 0106- ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9811- ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 9811- ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9811- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127(AYS),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C) ,FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D (55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX1 6-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-W HL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127(AYS),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C) ,FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D (55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX1 6-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-W HL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9811-9903 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9904-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9811-9903 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9904-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-1 05 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29,M20X55 RH THREAD 		8-97017-043-1 05 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29,M20X55 RH THREAD 		8-97017-043-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 9811-9903 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 9904-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 9811-9903 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 9904-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> M20X53 LH THREAD 		8-97168-457-0 06 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> M20X53 RH THREAD 		8-97168-456-0 06 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 0106- ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97081-322-0 02 1 9811-0105 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> 		8-97081-322-0 02 1 0106- ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127(AYS),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C) ,FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D (55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX1 6-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97131-236-0 02 1 9811-0105 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97131-236-0 02 1 9811-0105 ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-W HL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0106- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97107-414-0 02 1 9811-0105 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 		8-97107-414-0 02 1 0106- ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-94365-459-0 02 1 9811-9903 ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-94365-459-0 02 1 9904-0105 ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94365-459-0 02 1 0106- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97017-206-0 02 1 9811-0105 ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97017-206-0 02 1 0106- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 9811-9903 ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 9904-0012 ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 0101-0101 ●
17 06.307 HUB; FRT AXLE 8-97017-193-0 02 1 0102-0105 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97017-193-0 02 1 0106- ● ●
17 06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 9811-0012 ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 9811-0012 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> 		8-97168-460-0 02 1 0101-0101 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> 		8-97233-501-0 02 1 0102-0105 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 		8-97233-501-0 02 1 0106- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-088-2 02 1 0209- ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 9811- ● ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97081-218-2 02 1 9811-0105 ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> 		8-97081-218-2 02 1 0106- ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-94385-650-3 02 1 9811-9903 ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-94385-650-3 02 1 9904-0105 ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94385-650-3 02 1 0106- ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX 16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT &RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.0 0GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FR T&RR 8.25-16-14L 16X6.00GS-135 6-WHL /NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5- 16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97188-115-0 02 1 9811-0105 ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR 7.5-16-8 6GSX1 6-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C),FRT&RR 7 .5R-16-8 6GSX16-127 6-WHL/NUT(02C), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX 16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),FRT &RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.0 0GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FR T&RR 8.25-16-14L 16X6.00GS-135 6-WHL /NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5- 16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 		8-97188-115-0 02 1 0106- ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97188-016-0 02 1 9811-0105 ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 		8-97188-016-0 02 1 0106- ● ● ● ●
23 05.809 DRUM; BRK,FRT
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) THAILAND EQUIPMENT(PM9) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97102-000-2 02 1 9811-0105 ● ● ● ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. DISC BRAKE FRT<J52> M22 		9-09110-522-0 12 1 9811-9902 ● ● ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 00.050 M20 		9-99110-520-0 10 1 9811-9902 ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 9811- ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
JBK 		8-94246-302-0 02 1 9811-0105 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
AXLE ISUZU PRODUCTION<8BF> NTN 		8-97234-513-0 02 1 9909-9909 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 9910-0012 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0101- ● ● ● ● ● ● ●

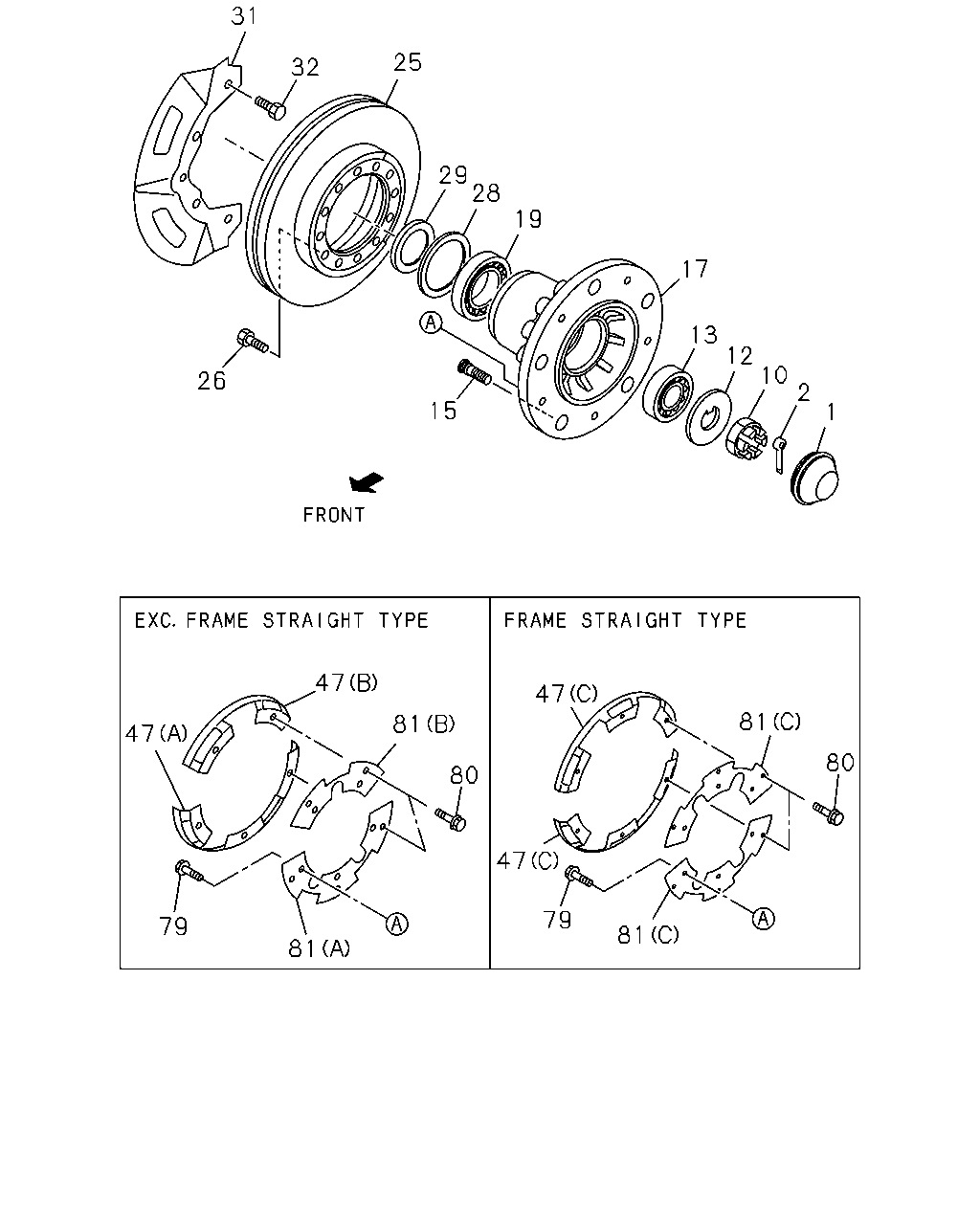

çizim 49231
31 25 32 29 28 19 17 13 12 10 2 26 15 1 47 47 81 81 47 80 80 47 79 79 81 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9811- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9811- ● ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9811- ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 9811- ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9811- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127(AYS),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C) ,FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D (55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX1 6-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-W HL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X50 RH THREAD 		8-97131-284-0 06 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127(AYS),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C) ,FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D (55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX1 6-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 9811-0105 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-W HL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28,M22X50 RH THREAD 		8-97131-283-0 06 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 9811-0105 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> M20X28,M22X57 RH THREAD 		8-97081-584-1 06 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9811-9903 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9904-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9811-9903 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9904-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-1 05 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X55 RH THREAD 		8-97017-044-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) M18X29,M20X55 RH THREAD 		8-97017-043-1 05 1 9811-0105 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> M18X29,M20X55 RH THREAD 		8-97017-043-1 05 1 0106- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 9811-9903 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 9904-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 9811-9903 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 9904-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 0106- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> M20X53 LH THREAD 		8-97168-457-0 06 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 0106- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9811-0012 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> M20X53 RH THREAD 		8-97168-456-0 06 1 0101-0105 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 0106- ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V .W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97081-322-0 02 1 9811-0105 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> 		8-97081-322-0 02 1 0106- ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R16 C DISC 16-5.5J-127(AYS),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C),FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT(01C) ,FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D (55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX1 6-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97131-236-0 02 1 9811-0105 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97131-236-0 02 1 9811-0105 ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NU T H/D(55C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-W HL/NUT DYNAMIC(97V) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 		8-97131-236-0 02 1 0106- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97107-414-0 02 1 9811-0105 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 8.25-16-12 16X6.00GS-135 6-WH L/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT&RR 8.25-16 -14L 16X6.00GS-135 6-WHL/NUT(9ZQ) G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52> 		8-97107-414-0 02 1 0106- ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-94365-459-0 02 1 9811-9903 ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-94365-459-0 02 1 9904-0105 ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94365-459-0 02 1 0106- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 		8-97017-206-0 02 1 9811-0105 ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASF),FRT&RR 7.5-16-6 6GSX16-127(09H),FRT&RR 7.5-16-8 6GSX16-127(10H),F RT&RR 7.5-16-10 6GSX16-127(11H), FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16 -10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-127(18H),FRT&RR 7.5R-16-12 6GSX 16-127(19H),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97017-206-0 02 1 0106- ● ● ● ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 9811-9903 ●
17 06.307 HUB; FRT AXLE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 9904-0012 ●
17 06.307 HUB; FRT AXLE 8-97035-160-0 02 1 0101-0101 ●
17 06.307 HUB; FRT AXLE 8-97017-193-0 02 1 0102-0105 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97017-193-0 02 1 0106- ● ●
17 06.307 HUB; FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 9811-0012 ●
17 06.307 HUB; FRT AXLE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 9811-0012 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> 		8-97168-460-0 02 1 0101-0101 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> 		8-97233-501-0 02 1 0102-0105 ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 		8-97233-501-0 02 1 0106- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-088-2 02 1 0209- ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 9811- ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 9811-0012 ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 9811-0012 ●
25 05.809 ROTOR; DISC BRK,FRT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 0101-0105 ●
25 05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97168-631-1 02 1 0106- ●
25 05.809 ROTOR; DISC BRK,FRT 8-97173-520-0 02 1 0101- ●
25 05.809 ROTOR; DISC BRK,FRT
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J -127(AUH),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),F RT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AVK) DISC BRAKE FRT<J52> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 9811-0105 ●
26 05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 9811-0012 ●
26 05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 0101- ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 9811- ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
JBK 		8-94246-302-0 02 1 9811-0105 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
AXLE ISUZU PRODUCTION<8BF> NTN 		8-97234-513-0 02 1 9909-9909 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 9910-0012 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0101- ● ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-97168-648-0 02 1 9811-0012 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-97168-648-0 02 1 0101-0203 ● ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-97332-209-1 02 1 0204- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> M8X10 W/LK WASHER 		8-97025-916-0 08 1 9811-9910 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 9911-0012 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0101- ● ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97228-399-0 02 1 9905-9909 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97228-399-0 02 1 9910-0012 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-400-0 02 1 9905-9909 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-400-0 02 1 9910-0012 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-661-0 02 1 9811-9903 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97213-661-0 02 1 9904-9904 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> (A) 		8-97213-661-0 02 1 9905-9909 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97213-662-0 02 1 9811-9903 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97213-662-0 02 1 9904-9904 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> (B) 		8-97213-662-0 02 1 9905-9909 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97213-660-0 08 1 9811-9902 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> (C) 		8-97213-660-0 08 1 9903-9909 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> AXLE ISUZU PRODUCTION<8BF> (C) 		8-97213-660-0 04 1 9903-9909 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97213-660-0 04 1 9910-0105 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97213-660-0 04 1 0106- ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97228-399-0 02 1 0106- ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-400-0 02 1 0106- ●
79 04.665 BOLT; BRKT
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 10 1 9811-9903 ●
79 04.665 BOLT; BRKT
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 10 1 9904-0012 ●
79 04.665 BOLT; BRKT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 9811-0105 ●
79 04.665 BOLT; BRKT
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 0106- ●
79 04.665 BOLT; BRKT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 12 1 9811-9902 ●
79 04.665 BOLT; BRKT
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 12 1 9903-9909 ●
79 04.665 BOLT; BRKT
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 10 1 0106- ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 06 1 9811-9902 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9903-9903 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9904-9909 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9910-0012 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 12 1 0101-0105 ●
80 05.812 BOLT; VALVE HOLDER
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 12 1 0106- ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> 02.559 M10X16 FLANGE 		0-28081-016-0 06 1 9903-9903 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ>,AXLE ISUZU PRODUCTION<8BF> 02.559 M10X16 FLANGE 		0-28081-016-0 06 1 9904-9909 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 9811-9902 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 9903-9909 ●
80 05.812 BOLT; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 12 1 9811-0012 ●
80 05.812 BOLT; VALVE HOLDER
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0106- ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-248-0 02 1 9811-9903 ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-248-0 02 1 9904-0012 ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97214-249-0 02 1 9811-9903 ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),F RT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7R-16-12 16X5.5F-115(08H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D (50C),FRT&RR 7-16-12 5.5FX16-115 H/D(51C),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115 (96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX16-115 T/VLVTR177A(98H),FRT&RR 7-16-12L 5.5FX16- 115(99H) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97214-249-0 02 1 9904-0012 ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97214-247-0 04 1 9811-9902 ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> AXLE ISUZU PRODUCTION<8BF> (C) 		8-97214-247-0 04 1 9903-9909 ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97214-247-0 04 1 9910-0105 ●
81 05.812 BRACKET; VALVE HOLDER
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97214-247-0 04 1 0106- ●
81 05.812 BRACKET; VALVE HOLDER
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX 16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAM IC(97V) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. AXLE ISUZU PRODUCTION<8BF> (C) 		8-97214-247-0 04 1 9903-9909 ●
81 05.812 BRACKET; VALVE HOLDER
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-248-0 02 1 0106- ●
81 05.812 BRACKET; VALVE HOLDER
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97214-249-0 02 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
