Sayfa 3-58 - Isuzu EPC

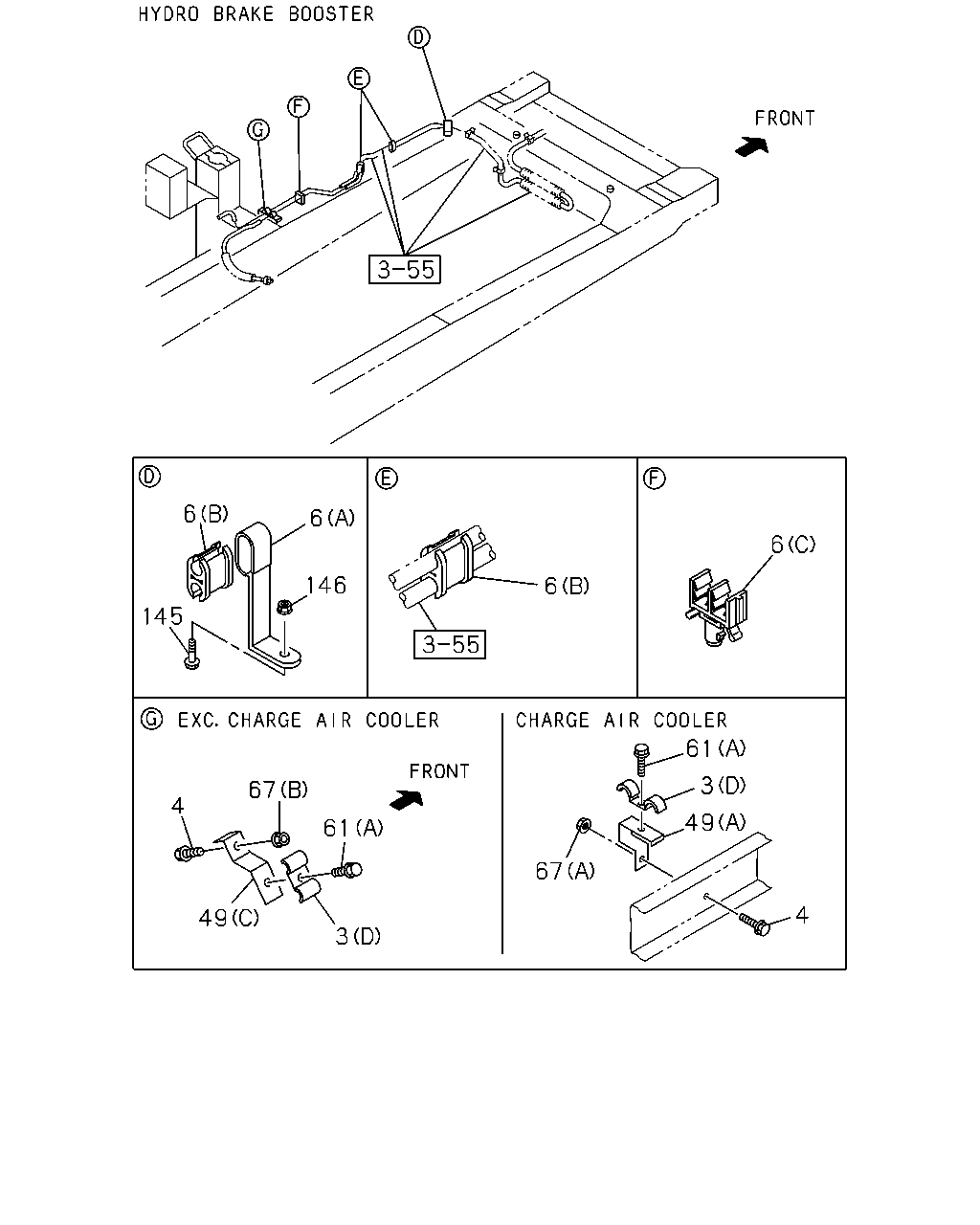

3-58 — FIXING PARTS; OIL PIPING (#22171) — 296 parça

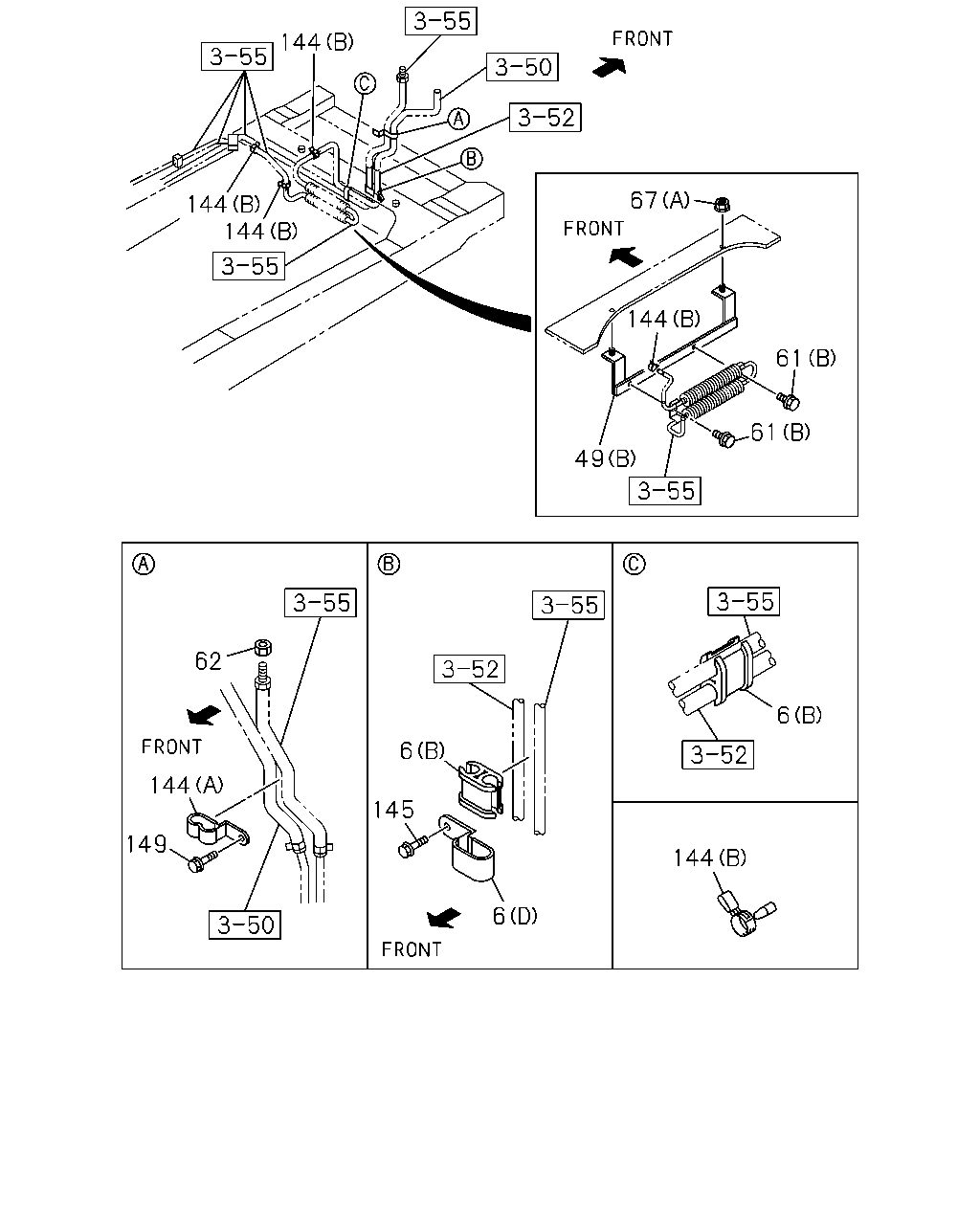

62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0106-		●	●	●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0106-		●	●	●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0106-					●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	9811-0105	●	●	●	●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0106-		●	●	●
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0106-					●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	9811-0105	●	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	0106-		●	●	●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0106-					●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9811-0105	●	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-		●	●	●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-					●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105					●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105					●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●	●	●
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-					●

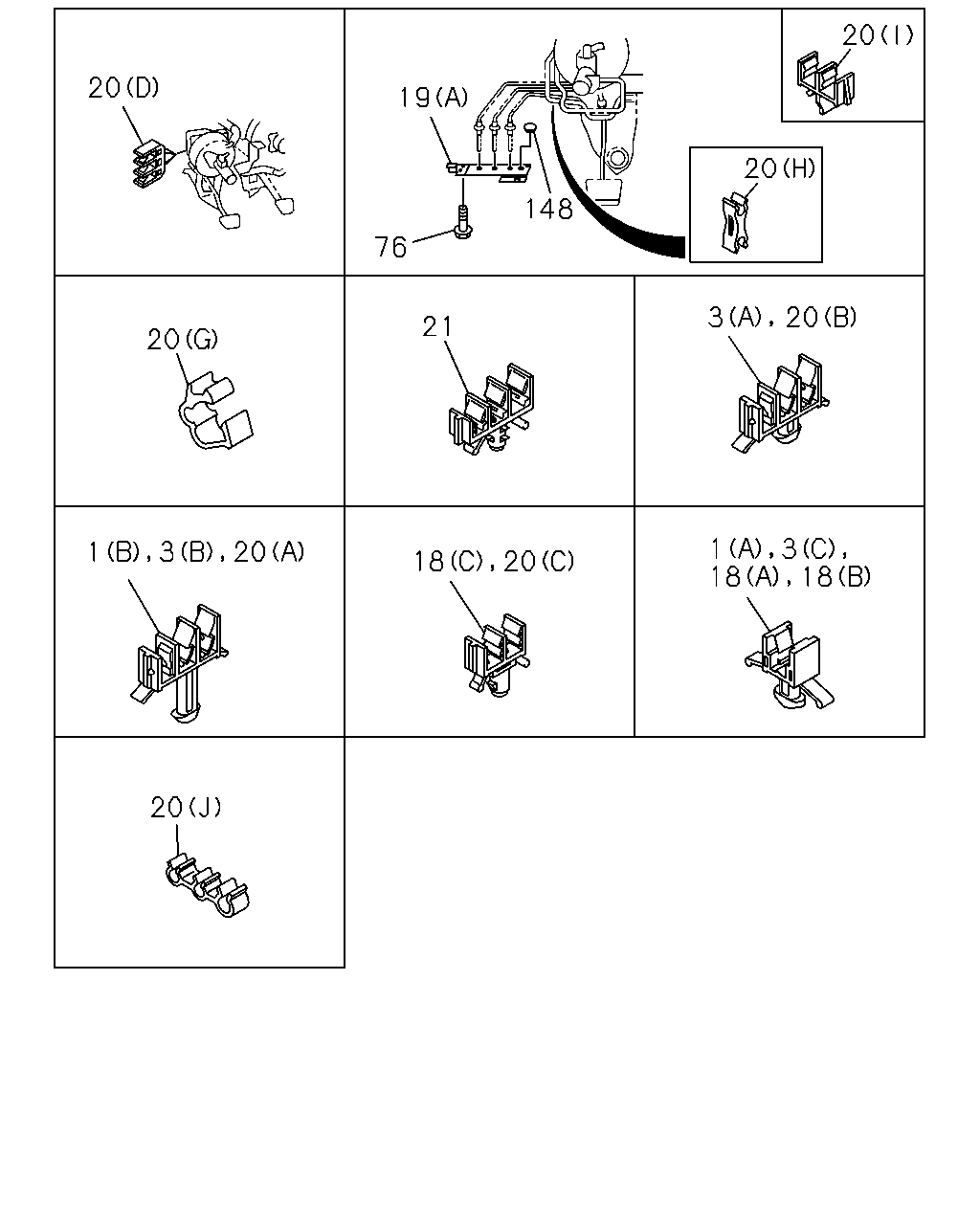

20 20 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	04.686 BRACKET; OIL PIPE (A)	8-97149-718-2	01	1	9811-	●				●	●	●
19	04.686 BRACKET; OIL PIPE EXC. HYDRO MASTER<7LT> (A)	8-97149-718-2	01	1	9811-		●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B)	8-97179-123-0	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	02	1	9811-	●	●	●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (I) ID=4.8X2	8-94113-470-0	01	1	9811-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-JATCO(RMK) EXC. HYDRO MASTER<7LT> (I) ID=4.8X2	8-94113-470-0	01	1	9811-		●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9811-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-JATCO(RMK) EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9811-		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105		●	●	●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-	●	●	●			●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-		●	●	●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●	●	●			●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●	●	●			●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	0106-	●	●	●			●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94455-816-0	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0106-	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9811-	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9811-	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (F)	8-94110-461-1	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (E)	8-97026-150-0	01	1	9811-		●	●	●

20 20 19 20 148 76 3 20 21 20 18 18 20 1 3 20 18 20 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.686 CLIP; OIL PIPE TO BODY EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105	●	●	●	●		●
1	04.686 CLIP; OIL PIPE TO BODY (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105							●
1	04.686 CLIP; OIL PIPE TO BODY EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●	●	●			●	●
1	04.686 CLIP; OIL PIPE TO BODY EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=32.5	8-94405-141-0	01	1	9811-0105	●	●	●	●		●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=4.8 H=32.5	8-94405-141-0	01	1	9811-0105							●
1	04.686 CLIP; OIL PIPE TO BODY EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=32.5	8-94405-141-0	01	1	0106-	●	●	●			●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9811-0105	●	●	●	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-		●	●	●
3	04.685 CLIP; BRK PIPE 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-					●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9811-0105	●	●	●	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9811-0105	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●		●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9811-0105	●	●	●	●		●
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9811-0105							●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	0106-	●	●	●			●
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	0106-							●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105		●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-		●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-			●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-						●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9811-		●				●
18	04.686 CLIP; BRK PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9811-9903	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9811-9903		●	●	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9811-9903		●	●			●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9811-9903			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9904-0105	●	●	●	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9904-0105		●	●			●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9904-0105			●
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9904-0105							●
18	04.686 CLIP; BRK PIPE (B) ID=4.8 H=32.5	8-94405-141-0	01	1	9904-0105							●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	0106-	●	●	●			●	●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	0106-		●	●			●	●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5	8-94405-141-0	01	1	0106-			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9811-0105	●	●	●	●		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9811-0105			●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	9811-0105							●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●	●	●			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	0106-			●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	01	1	0106-							●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	02	1	9811-	●		●
18	04.686 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	03	1	9811-		●				●
18	04.686 CLIP; BRK PIPE (A) ID=4.8 H=26	8-94249-685-0	03	1	9811-							●
19	04.686 BRACKET; OIL PIPE (A)	8-97149-718-2	01	1	9811-	●				●	●	●
19	04.686 BRACKET; OIL PIPE EXC. HYDRO MASTER<7LT> (A)	8-97149-718-2	01	1	9811-		●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO MASTER<7LT> (B)	8-97179-123-0	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	02	1	9811-	●	●	●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (I) ID=4.8X2	8-94113-470-0	01	1	9811-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-JATCO(RMK) EXC. HYDRO MASTER<7LT> (I) ID=4.8X2	8-94113-470-0	01	1	9811-		●
20	04.686 CLIP; BRK PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9811-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE A/T 4 SPEED-JATCO(RMK) EXC. HYDRO MASTER<7LT> 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9811-		●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105		●	●	●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-	●	●	●			●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-		●	●	●
20	04.686 CLIP; BRK PIPE (J) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0106-							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●	●	●			●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●	●	●			●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2	8-94424-234-0	02	1	0106-	●	●	●			●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	9811-0105	●	●	●	●		●
20	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94455-816-0	01	1	9811-0105							●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94455-816-0	01	1	0106-	●	●	●			●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9811-	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9811-	●				●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO MASTER<7LT> (D) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (F)	8-94110-461-1	01	1	9811-		●	●	●
20	04.686 CLIP; BRK PIPE HYDRO MASTER<7LT> 03.162 (E)	8-97026-150-0	01	1	9811-		●	●	●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9811-0105	●	●	●	●		●
21	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	04	1	0106-	●	●	●			●
21	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105	●	●	●	●		●
21	04.686 CLIP; BRK PIPE 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9811-0105							●
21	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●	●	●
21	04.686 CLIP; BRK PIPE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-						●
21	04.686 CLIP; BRK PIPE 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-							●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-	●	●	●	●	●	●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	9811-9812	●	●	●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> 03.483	8-94294-358-0	01	1	9811-9812						●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	9901-0012	●	●	●	●		●
148	04.686 GROMMET A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	9901-0012	●	●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0101-0105	●	●	●	●		●	●
148	04.686 GROMMET A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0101-0105	●	●	●
148	04.686 GROMMET FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0106-	●	●	●	●		●	●
148	04.686 GROMMET A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	01	1	0106-		●	●
148	04.686 GROMMET A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	02	1	9811-0105	●		●
148	04.686 GROMMET A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	02	1	9811-0105		●
148	04.686 GROMMET A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) EXC. HYDRO BRAKE BOOSTER<7QQ> 03.483	8-94294-358-0	02	1	0106-	●	●	●

6 6 6 146 6 145 61 3 67 4 49 61 67 4 49 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9811-0105	●	●	●	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-		●	●	●
3	04.685 CLIP; BRK PIPE 04.047 (D) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-					●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9811-0105	●	●	●	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9811-0105	●		●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●	●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●		●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9811-0105	●	●	●	●		●
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	9811-0105							●
3	04.685 CLIP; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	0106-	●	●	●			●
3	04.685 CLIP; BRK PIPE 04.686 (C) ID=4.8 H=26	8-94249-685-0	02	1	0106-							●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105		●	●			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9811-0105			●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-		●	●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-			●
3	04.685 CLIP; BRK PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-						●
3	04.685 CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9811-		●				●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9811-0105	●	●	●	●
4	04.686 BOLT; BRKT CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9811-0105					●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-		●	●	●
4	04.686 BOLT; BRKT 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-					●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0105	●	●	●	●
4	04.686 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0105					●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0106-		●	●	●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0106-		●	●	●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0106-					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9811-0105	●	●	●	●
49	04.686 BRACKET; BRK PIPE CHARGE AIR COOLER<6PL> (A)	8-97174-638-0	01	1	9811-0105					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-		●	●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0106-					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9811-0105	●	●	●	●
49	04.686 BRACKET; BRK PIPE EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9811-0105					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0106-		●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-0	01	1	9811-0105	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0106-		●	●	●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0106-					●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-		●	●	●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-					●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-		●	●	●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-0105	●	●	●	●
67	04.686 NUT; BRKT CHARGE AIR COOLER<6PL> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-0105					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●	●	●
67	04.686 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●
67	04.686 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-0105					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9811-0105	●	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-		●	●	●
67	04.686 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-					●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105					●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105					●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-					●

144 67 144 144 144 61 61 49 62 6 6 144 145 149 144 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0106-		●	●	●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	05	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0106-		●	●	●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	02	1	0106-					●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9811-0105	●	●	●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0106-		●	●	●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	0106-					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9811-0105	●	●	●	●
49	04.686 BRACKET; BRK PIPE CHARGE AIR COOLER<6PL> (A)	8-97174-638-0	01	1	9811-0105					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-		●	●	●
49	04.686 BRACKET; BRK PIPE (A)	8-97174-638-0	01	1	0106-					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9811-0105	●	●	●	●
49	04.686 BRACKET; BRK PIPE EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9811-0105					●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	0106-		●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-0	01	1	9811-0105	●	●	●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0106-		●	●	●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0106-					●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-		●	●	●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-					●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●	●	●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-		●	●	●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-					●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	9811-0105	●	●	●	●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0106-		●	●	●
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0106-					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-0105	●	●	●	●
67	04.686 NUT; BRKT CHARGE AIR COOLER<6PL> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-0105					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●	●	●
67	04.686 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●
67	04.686 NUT; BRKT EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-0105					●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0106-		●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9811-0105	●	●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-		●	●	●
67	04.686 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-					●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	9811-0105	●	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	05	1	0106-		●	●	●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	05	1	0106-					●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9811-0105	●	●	●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-		●	●	●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-					●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105					●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105					●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●	●	●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●	●	●
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
