◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#22170) — 122 parça

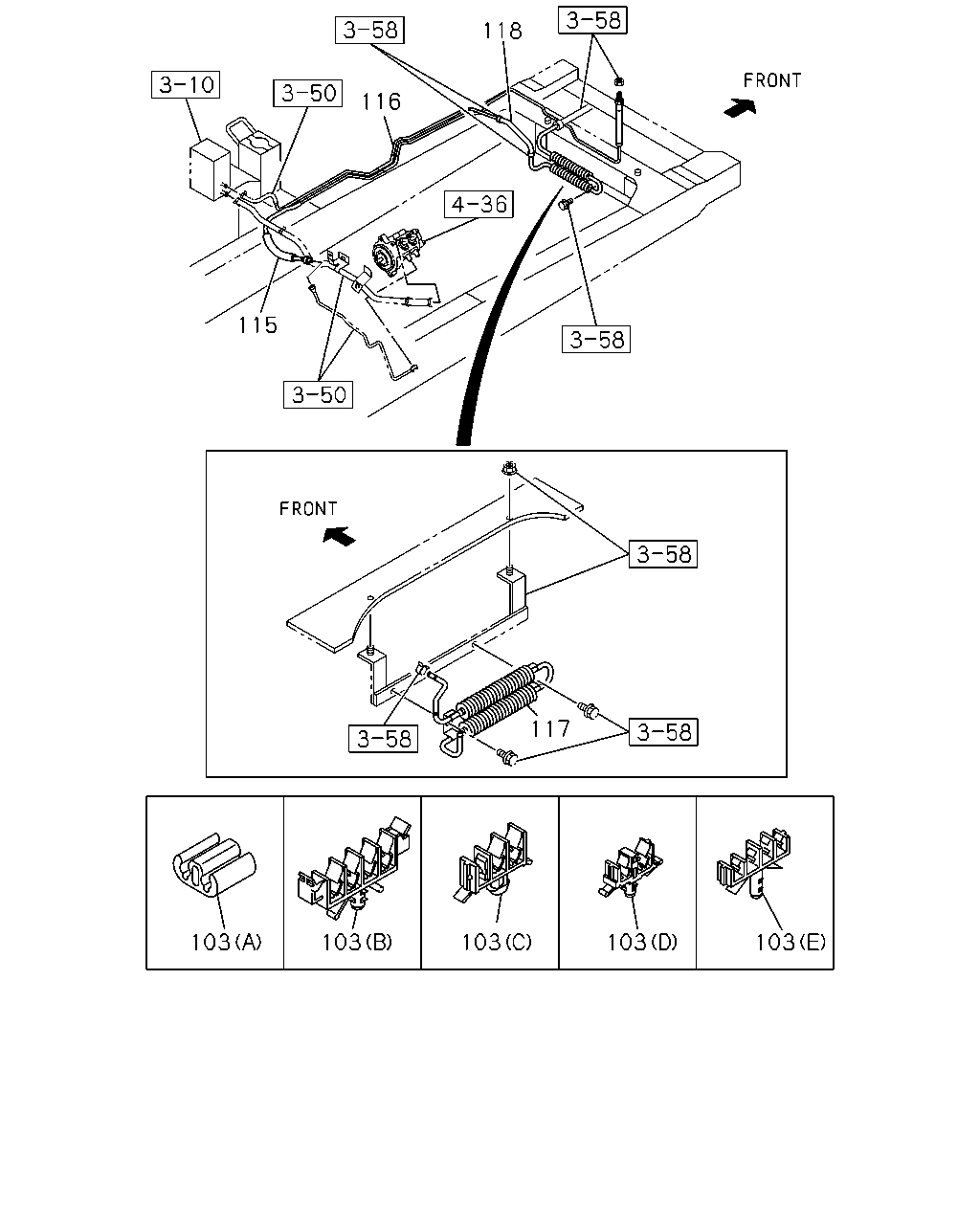

çizim 9355
118 116 115 117 103 103 103 103 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 04 1 9811- ●
103 04.686 CLIP; PIPE,BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 9811-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 9811-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0106- ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0106- ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9811-0105 ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 0106- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
BRK WHL LK CONT LSPV<6PH> (A) ID=4.8X2 		8-94389-060-0 01 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
(C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9811-0105 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0106- ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
(C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9811-0105 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
(C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 9811-0105 ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
(D) ID=4.8X2 		8-94455-816-0 01 1 9811-0105 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 0106- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
(D) ID=4.8X2 		8-94455-816-0 01 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9811-0105 ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9811-0105 ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9811-0105 ●
103 04.686 CLIP; PIPE,BRK
04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9811-0105 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0106- ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9811- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9811- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 01 1 9811-0105 ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 01 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 01 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (E) ID=10 & 8 & 4.8X2 		8-97129-594-0 05 1 9811-0105 ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (E) ID=10 & 8 & 4.8X2 		8-97129-594-0 05 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
HYDRO MASTER<7LT> (E) ID=10 & 8 & 4.8X2 		8-97129-594-0 05 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 09 1 9811- ●
103 04.686 CLIP; PIPE,BRK
04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 09 1 9811- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 9811- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 10 1 9811-0105 ●
103 04.686 CLIP; PIPE,BRK
HYDRO MASTER<7LT> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 10 1 0106- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97258-064-0 01 1 0006-0105 ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97258-064-2 01 1 0106- ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-0 01 1 9811-0005 ● ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-0 01 1 0006-0105 ● ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) A/T 4 SPEED-JATCO(RMK) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-0 01 1 0006-0105 ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-2 01 1 0106- ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) A/T 4 SPEED-JATCO(RMK) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-2 01 1 0106- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97177-072-2 01 1 9811-0105 ● ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97177-072-4 01 1 0106- ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 9811-0105 ● ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 0106- ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97201-970-0 01 1 0106- ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 9811-0105 ● ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 0106- ● ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 9811-0105 ● ● ● ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0106- ● ● ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0106- ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 9811-0105 ● ● ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0106- ● ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0106- ●

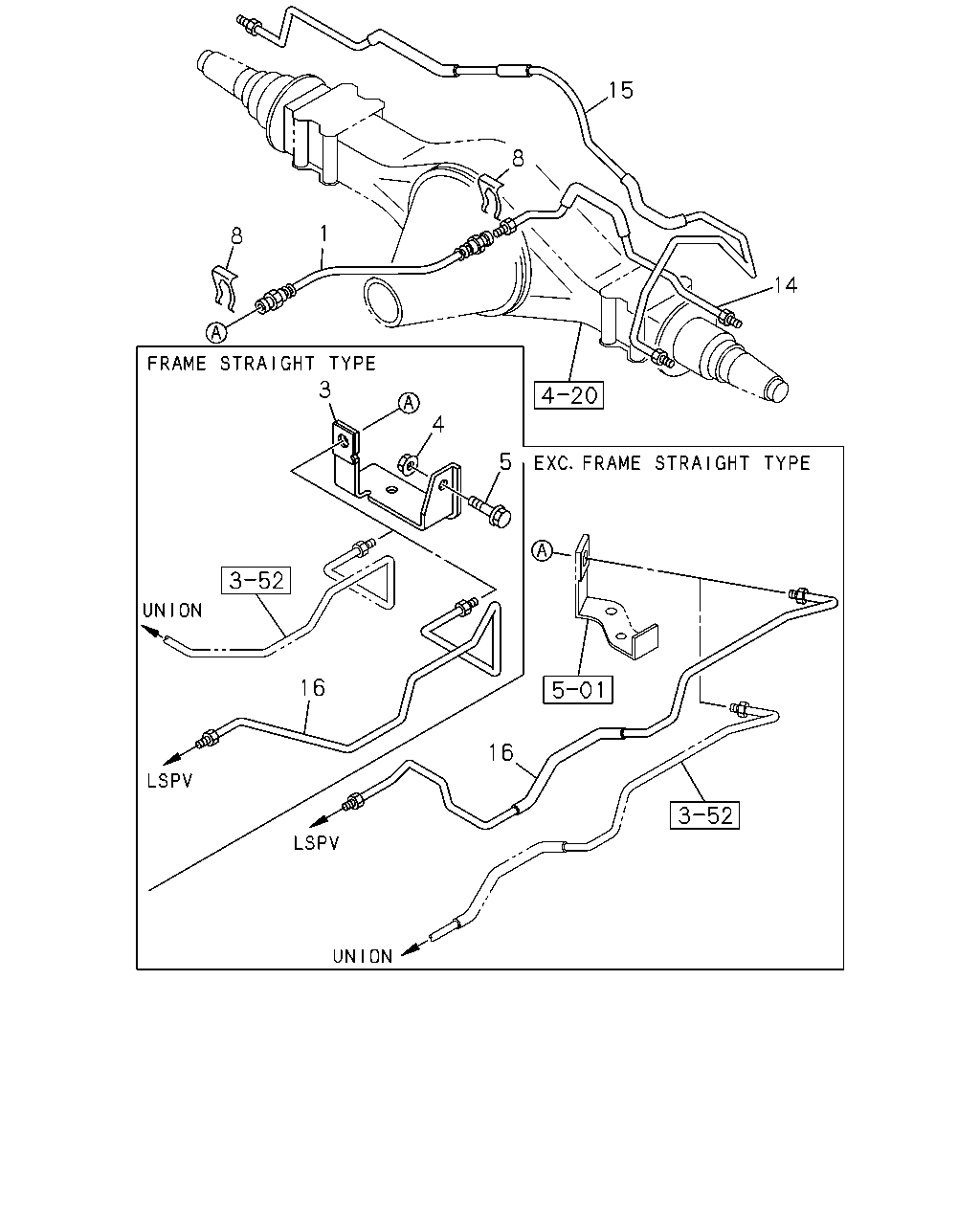

çizim 49688
15 8 1 8 14 3 4 5 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 9811-0105 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 9811-0105 ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405 		8-97089-061-0 01 1 0106- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 		8-97035-574-0 01 1 9811-0105 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 9811-0105 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> L=370 		8-97035-574-0 01 1 0106- ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 9811-0105 ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 9811-0105 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97205-714-1 01 1 0106- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 0106- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9811-0105 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9811-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 9811-0105 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 9811-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9811-0105 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9811-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9811- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97088-703-0 01 1 9811- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9811- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9811- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97064-730-0 01 1 0101- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9811-0105 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9811-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 9811-0105 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97129-745-1 01 1 9811-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 9811-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 0106- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 9811-0105 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 9811-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97122-715-1 01 1 9811-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97122-715-1 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9811-0105 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9811-0105 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-735-1 01 1 9811- ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97079-904-0 01 1 9811- ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97079-904-0 01 1 9811- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-97116-543-2 01 1 9811-0105 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97116-543-2 01 1 0106- ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97064-734-1 01 1 0101- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97183-535-0 01 1 9811-0105 ● ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97183-535-1 01 1 0106- ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> 		8-97183-535-1 01 1 0106- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 9811-0105 ● ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 0106- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
