3-52 — BRAKE PIPING; OIL,FRONT (#22169) — 321 parça

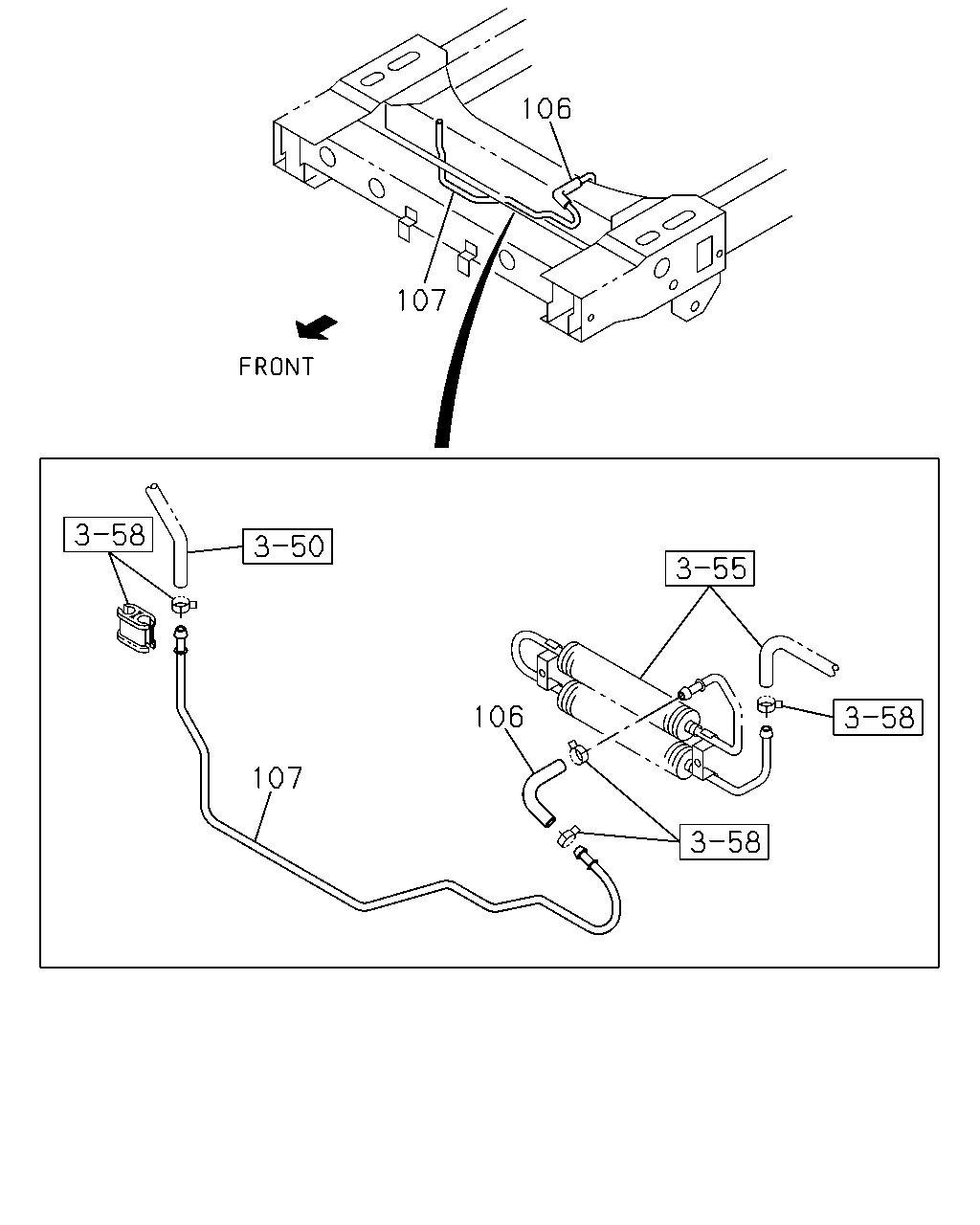

çizim 10734
106 107 106 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
106 04.686 HOSE; FIN PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-219-2 01 1 9811-0105 ● ● ● ●
106 04.686 HOSE; FIN PIPE TO PIPE 8-97181-219-2 01 1 9811-0105 ●
106 04.686 HOSE; FIN PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-219-2 01 1 0106- ● ● ●
106 04.686 HOSE; FIN PIPE TO PIPE 8-97181-219-2 01 1 0106- ●
107 04.686 PIPE; RETURN TO FIN PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-989-2 01 1 9811-0105 ● ● ● ●
107 04.686 PIPE; RETURN TO FIN PIPE 8-97180-989-2 01 1 9811-0105 ●
107 04.686 PIPE; RETURN TO FIN PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-989-2 01 1 0106- ● ● ●
107 04.686 PIPE; RETURN TO FIN PIPE 8-97180-989-2 01 1 0106- ●
çizim 10867
51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
51 04.685 PIPE; BRK
(B) 		8-97177-306-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (B) 		8-97177-306-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
(B) 		8-97209-514-0 01 1 9908- ● ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (B) 		8-97209-514-0 01 1 9908- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97177-307-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97177-307-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97209-515-0 01 1 9908- ● ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97209-515-0 01 1 9908- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9811-0105 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 0106- ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 0106- ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (D) 		8-97129-523-0 01 1 9811- ● ● ●

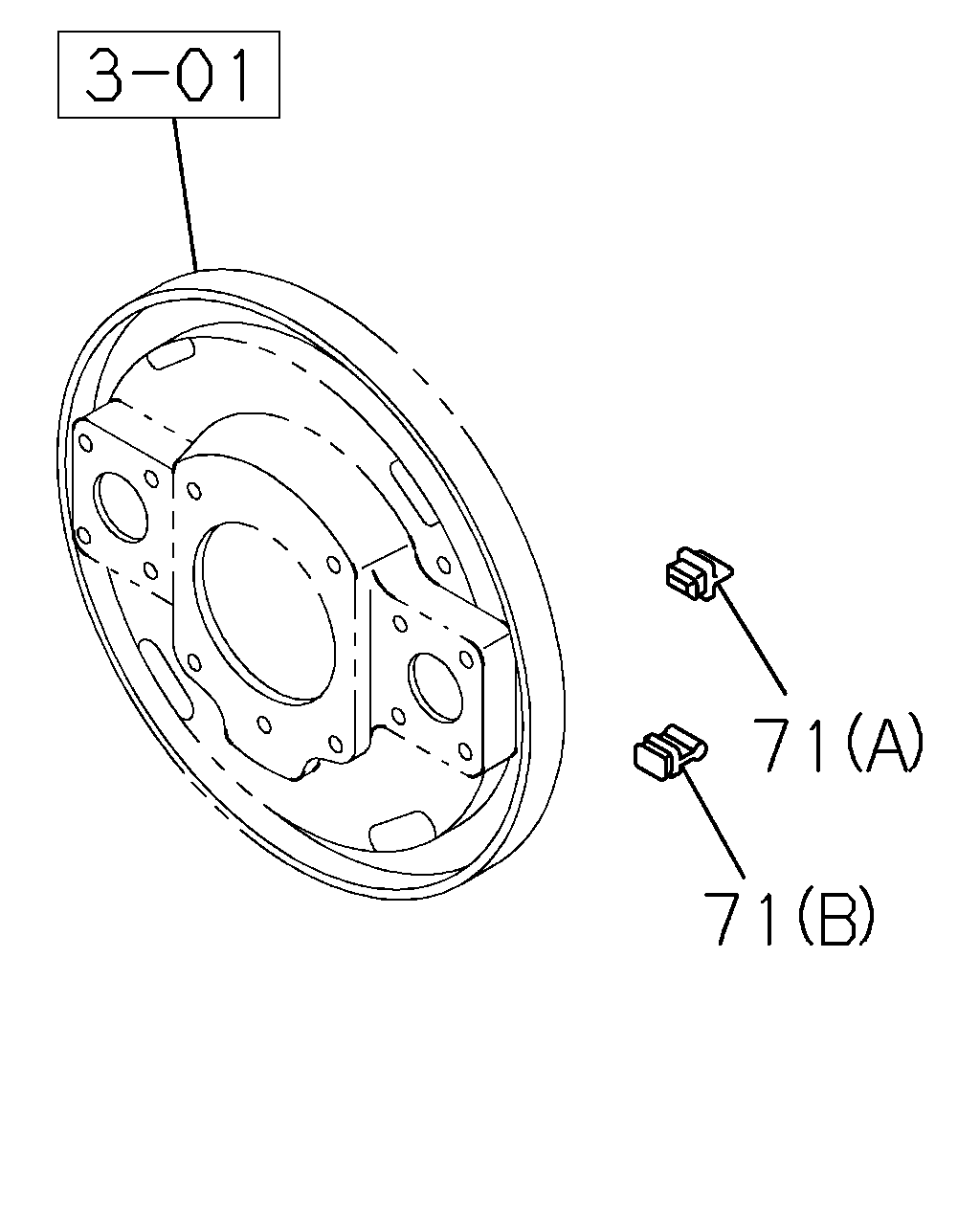

çizim 47310
71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 9903-9909 ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 9910- ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 05.002 (B) 		9-09756-034-0 02 1 9903-9903 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 05.002 (B) 		9-09756-034-0 02 1 9904-9909 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 05.002 (B) 		9-09756-034-0 02 1 9910-0105 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 05.002 (B) 		9-09756-034-0 02 1 0106- ● ● ● ●

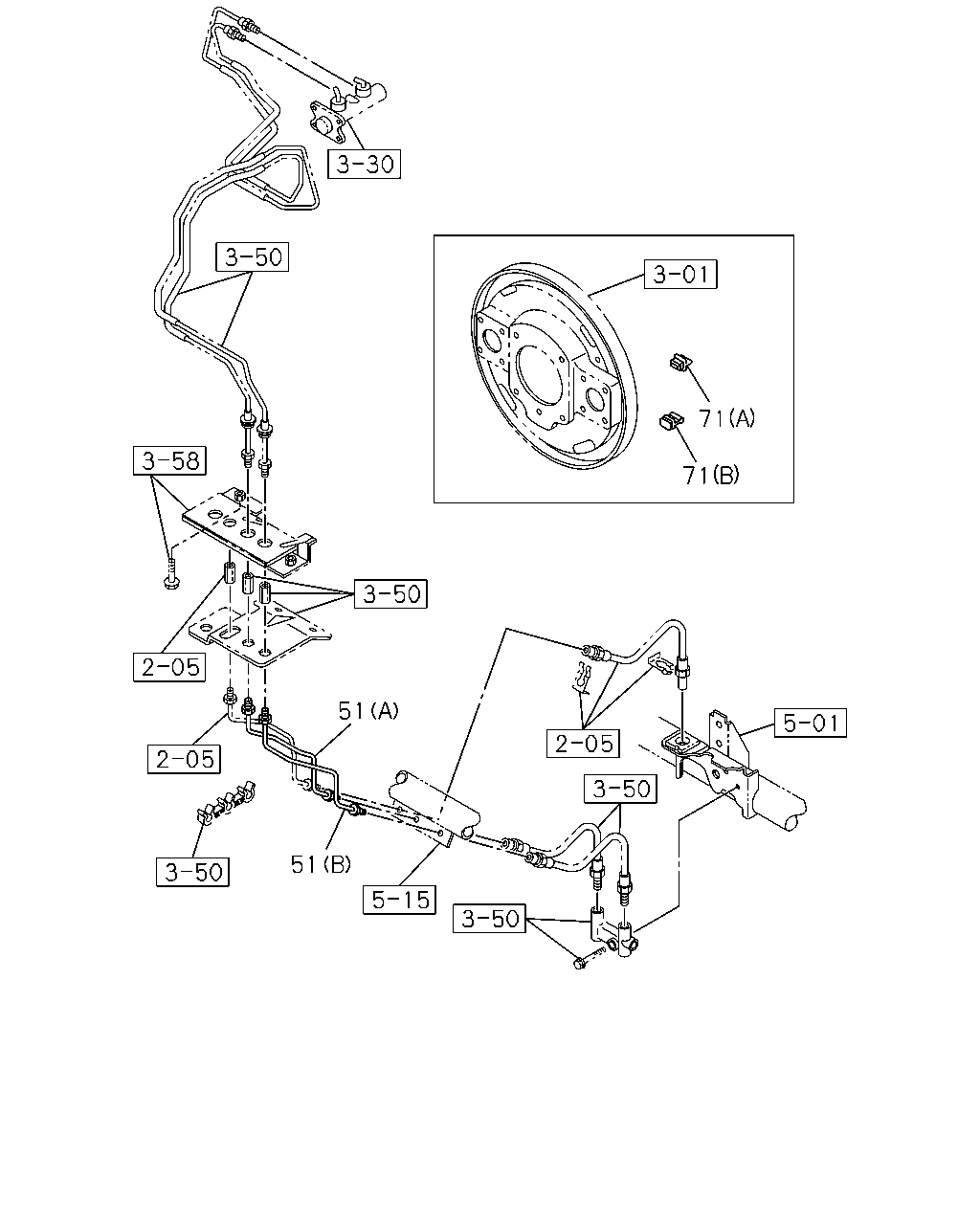

çizim 48342
71 71 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
51 04.685 PIPE; BRK
(B) 		8-97177-306-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (B) 		8-97177-306-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
(B) 		8-97209-514-0 01 1 9908- ● ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (B) 		8-97209-514-0 01 1 9908- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97177-307-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97177-307-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97209-515-0 01 1 9908- ● ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97209-515-0 01 1 9908- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9811-0105 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 0106- ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 0106- ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (D) 		8-97129-523-0 01 1 9811- ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 9903-9909 ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-12 7(ASG),FRT&RR 7.5R-16-12 FRT&RR 6.00GSX16-127(ASH),FRT&RR TIRE 215-75R17 .5 DISC 17.5-6J-127(AUH),FRT&RR TIRE215-75R17.5 DISC 17.5-6J-127WHITE(AUJ),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17. 5 DISC 17.5-6J-127WHITE(AVK),FRT&RR 7.5-16-8 6GSX16-127 6-WHL/NUT(00C), FRT&RR 7.5-16-8L 6GSX16-127 6-WHL/NUT (01C),FRT&RR 7.5R-16-8 6GSX16-127 6-WHL/NUT(02C),FRT&RR 7.5-16-12 6GSX16 -127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT (06C),FRT&RR 7-16-10L 5.5FX16-127 6-WHL/NUT(07C),FRT&RR 7R-16-10 5.5FX16 -127 6-WHL/NUT(08C),FRT&RR 7-16-12 5.5FX16-127 6-WHL/NUT(09C),FRT&RR 7-1 6-12L 5.5FX16-127 6-WHL/NUT(10C), FRT&RR 7R-16-12 5.5FX16-127 6-WHL/NUT(11C),FRT&RR 7-16-10 5.5FX16-127 6-WHL/NUT H/D(53C),FRT&RR 7-16-12 5.5FX16 -127 6-WHL/NUT H/D(54C),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT H/D(55C),F RT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6 .00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 8.25-16-14L 16X6.00GS-135 6-W HL/NUT(9ZQ),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC (97V) EXC. DISC BRAKE FRT<J52> 05.002 (A) 		8-97044-742-1 02 1 9910- ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 05.002 (B) 		9-09756-034-0 02 1 9903-9903 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) AXLE ISUZU PRODUCTION<8BF> EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 05.002 (B) 		9-09756-034-0 02 1 9904-9909 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D) 05.002 (B) 		9-09756-034-0 02 1 9910-0105 ● ● ● ●
71 04.686 GROMMET; OIL PIPE
FRT&RR 7R-16-8 FRT&RR 5.5FX16-115(ASE),FRT&RR 7.5R-16-8 FRT&RR 6.00GSX16-127(ASF),FRT&RR 205/85R16 16X5.5J-116.5(AXZ),FRT&RR 195/85R16 16X5.5J-116.5(AZX),FRT&RR 7R-16-8 16X5.5F-115(06H),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-16-12 16X5.5F-115(08H), FRT&RR 7.5-16-6 6GSX16-127(09H), FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7 .5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16- 6L 6GSX16-127(13H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5-16-10L 6GSX16-127(15H),FRT&RR 7.5-16-12L 6GSX 16-127(16H),FRT&RR 7.5R-16-8 6GSX16-127(17H),FRT&RR 7.5R-16-10 6GSX16-12 7(18H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7-16-10 5.5FX16-115 T/VLV TR177A H/D(50C),FRT&RR 7-16-12 5.5 FX16-115 H/D(51C),FRT&RR 7.5-16-10 6GSX16-127 H/D(52C),FRT&RR 7-16-8 16X 5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-1 2 16X5.5F-115(96H),FRT&RR 7-16-8L 5.5FX16-115(97H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H),FRT&RR 7-16-12L 5.5FX16-115(99H) G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 05.002 (B) 		9-09756-034-0 02 1 0106- ● ● ● ●

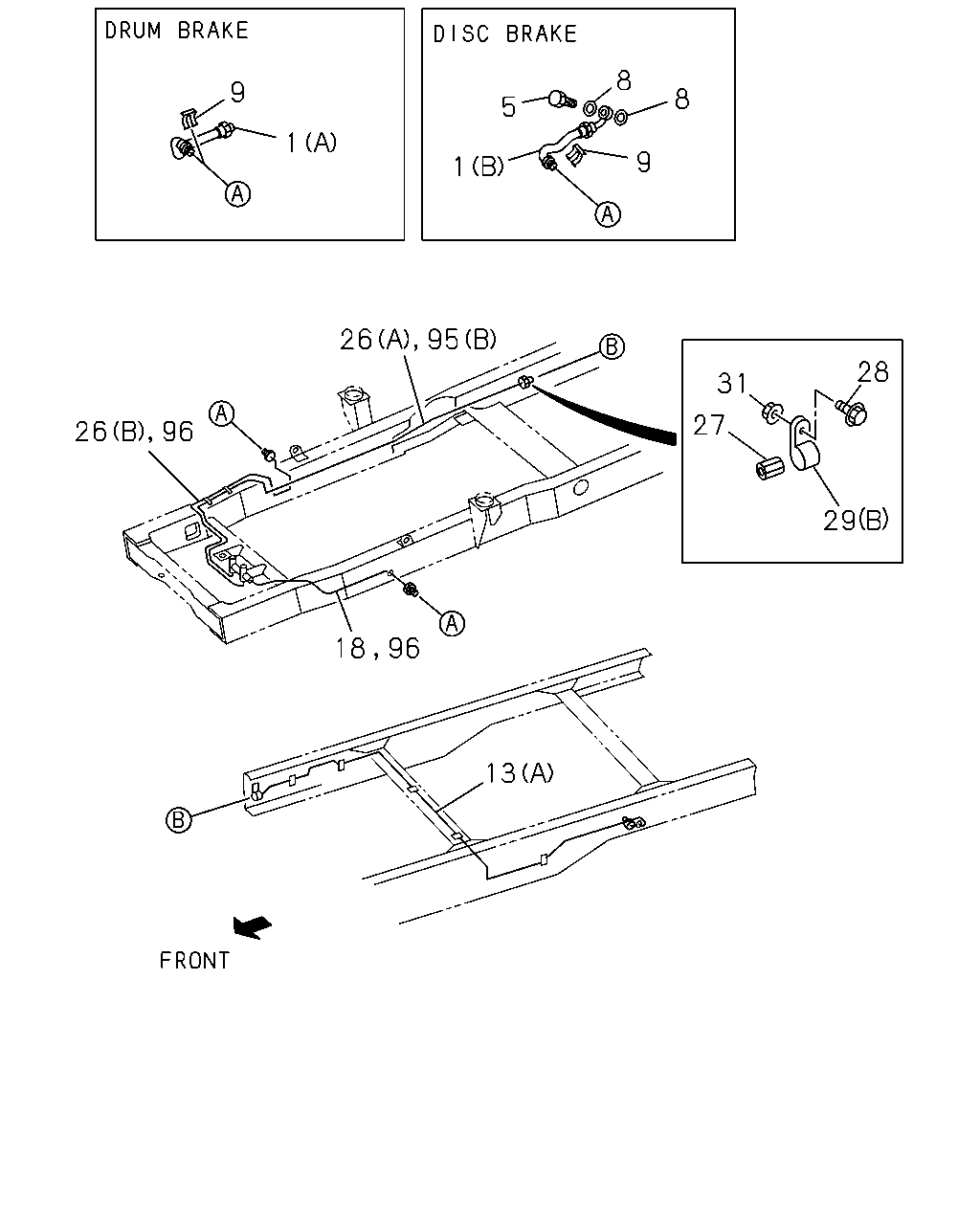

çizim 49606
8 9 8 5 1 9 1 26 95 28 31 27 29 13 18 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-1 02 1 9811- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 9811-0105 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9811- ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97039-542-0 02 1 9811- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9811- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9811- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97091-939-2 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97091-939-2 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97205-716-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-717-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97205-717-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97217-895-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 9811-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 0101-0105 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97081-691-5 01 1 0101-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97081-691-5 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-692-4 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-692-4 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-718-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97217-896-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-719-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-719-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97217-897-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
HYDRO MASTER<7LT> (B) 		8-97217-897-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97205-720-0 01 1 9811- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-952-4 01 1 9811-0105 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97079-952-4 01 1 9811-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-953-3 01 1 9811-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-953-3 01 1 0101-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97079-953-3 01 1 0101-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-3 01 1 9811-0105 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97126-880-3 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9811-0105 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
04.685 (B) 		8-97141-755-0 01 1 9811-0105 ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9811-0105 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0106- ● ● ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0106- ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811- ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811- ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811- ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
28 04.686 BOLT; UNION CLIP
HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9811-0105 ● ● ● ● ●
29 04.686 CLIP; UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0106- ● ● ●
29 04.686 CLIP; UNION
4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0106- ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0106- ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0106- ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97149-839-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) 		8-97149-839-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-369-2 01 1 9811-9912 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97149-838-0 01 1 9811-0105 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97149-838-0 01 1 9811-0105 ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9811-9912 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9811-9912 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-954-1 01 1 9811- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-950-0 01 1 9811- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97079-952-4 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97079-952-4 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97141-754-0 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97141-754-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97177-532-3 01 1 9811-0009 ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97300-045-0 01 1 0010- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97177-531-2 01 1 9811-0009 ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97300-044-0 01 1 0010- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97079-953-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97079-953-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97141-755-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97141-755-0 01 1 0106- ●

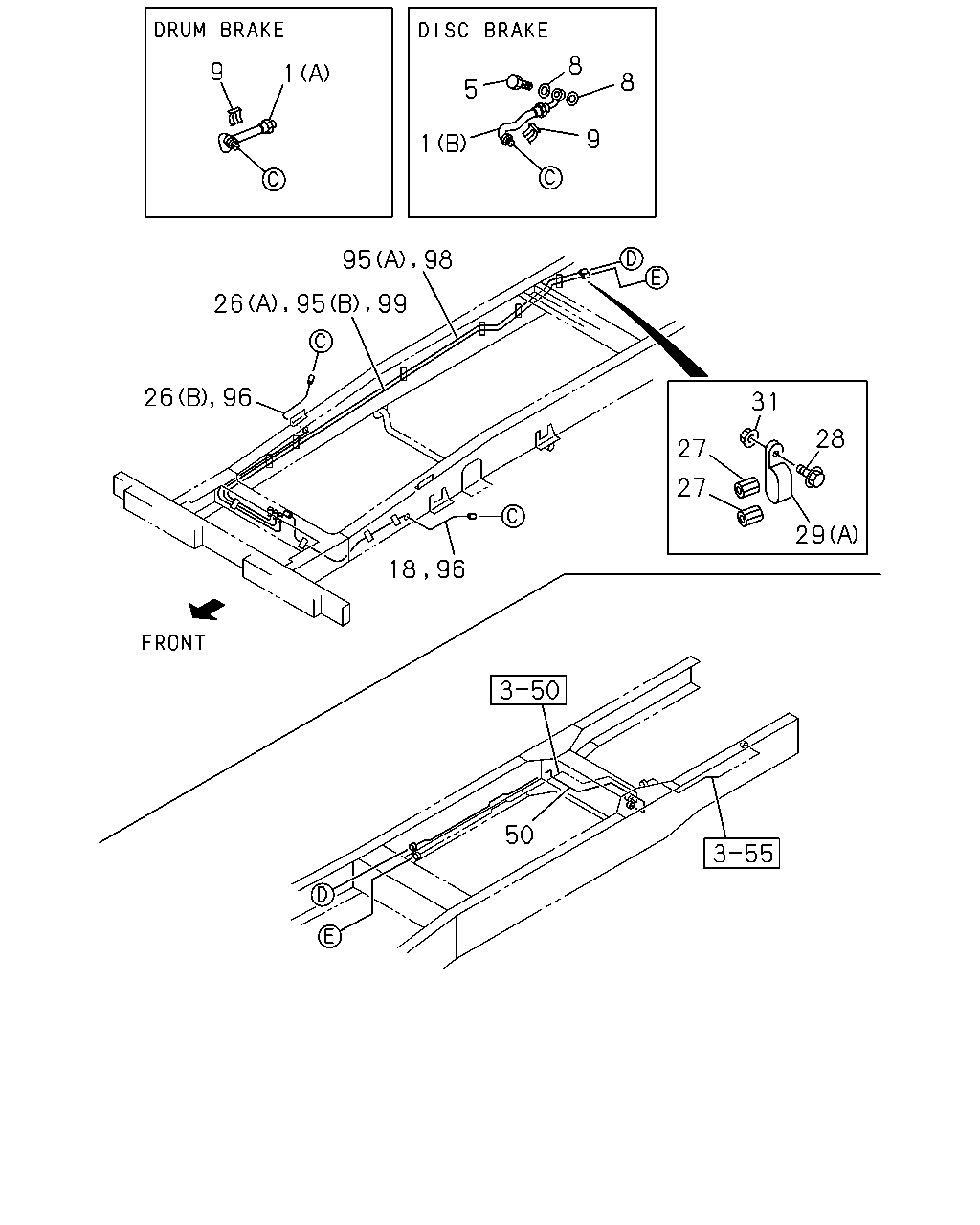

çizim 50064
8 9 1 8 5 9 1 95 98 26 31 28 27 27 29 50 95 99 26 96 18 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-1 02 1 9811- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 9811-0105 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9811- ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97039-542-0 02 1 9811- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 04.665 M10X22 		5-09675-017-0 02 1 9811- ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9811- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-952-4 01 1 9811-0105 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97079-952-4 01 1 9811-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-953-3 01 1 9811-0012 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-953-3 01 1 0101-0105 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97079-953-3 01 1 0101-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97126-880-3 01 1 9811-0105 ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(A) 		8-97126-880-3 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9811-0105 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-754-0 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 (B) 		8-97141-755-0 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
04.685 (B) 		8-97141-755-0 01 1 9811-0105 ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9811-0105 ● ● ● ● ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0106- ● ● ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 02 1 0106- ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811- ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> 08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811- ● ● ●
27 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 01 1 9811- ● ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
28 04.686 BOLT; UNION CLIP
HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 9811-0105 ● ● ● ● ●
29 04.686 CLIP; UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0106- ● ● ●
29 04.686 CLIP; UNION
4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16X2 L=20 		9-09535-533-0 01 1 0106- ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ● ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> 03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0106- ● ● ● ●
29 04.686 CLIP; UNION
03.162 (B) ID=16 L=20 		9-09525-532-0 01 1 0106- ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ● ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ●
31 04.686 NUT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ● ● ● ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0106- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> SERVICED BY L=1600 		5-47411-780-0 01 1 9811- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97173-707-0 01 1 9811-0105 ●
50 04.685 PIPE; BRK,UNION TO VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97173-707-0 01 1 0106- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 SERVICED BY L=2300 		5-47411-785-0 01 1 9811- ● ●
50 04.685 PIPE; BRK,UNION TO VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97143-560-0 01 1 9811-0105 ● ●
50 04.685 PIPE; BRK,UNION TO VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97143-560-0 01 1 0106- ●
50 04.685 PIPE; BRK,UNION TO VLV
4HG1 ENG(RJH) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97143-560-0 01 1 0106- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 05.476 SERVICED BY L=2720 		5-47411-788-0 01 1 9811- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-506-2 01 1 9811-0105 ●
50 04.685 PIPE; BRK,UNION TO VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-506-2 01 1 0106- ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.686 SERVICED BY L=3035 		5-47411-789-0 01 1 9811-0105 ●
50 04.685 PIPE; BRK,UNION TO VLV
BRK WHL LK CONT LSPV<6PH> 04.686 SERVICED BY L=3035 		5-47411-789-0 01 1 0106- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97149-839-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (B) 		8-97149-839-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) 		8-97142-709-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97122-369-2 01 1 9811-9912 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97149-838-0 01 1 9811-0105 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97149-838-0 01 1 9811-0105 ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9811-9912 ● ● ● ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97142-710-0 01 1 9811-9912 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-954-1 01 1 9811- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT> 		8-97096-950-0 01 1 9811- ● ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97079-952-4 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97079-952-4 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97141-754-0 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97141-754-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97177-532-3 01 1 9811-0009 ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97300-045-0 01 1 0010- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97177-531-2 01 1 9811-0009 ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97300-044-0 01 1 0010- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97079-953-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97079-953-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 04.685 		8-97141-755-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97141-755-0 01 1 0106- ●
98 04.686 PIPE ASM; 4/6 WAY
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97122-369-3 01 1 0001-0105 ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97122-369-3 01 1 0106- ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97149-838-0 01 1 0106- ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97149-838-0 01 1 0106- ●
98 04.686 PIPE ASM; 4/6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 		8-97142-710-0 01 1 0001- ● ● ● ● ●
98 04.686 PIPE ASM; 4/6 WAY
4HE1 ENG(RLY) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97142-710-0 01 1 0001- ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 05.476 		8-97126-880-3 01 1 0106- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 05.476 		8-97126-880-3 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 		8-97126-880-3 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97142-709-0 01 1 0106- ● ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97142-709-0 01 1 0106- ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> 		8-97149-839-0 01 1 0106- ● ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97149-839-0 01 1 0106- ●

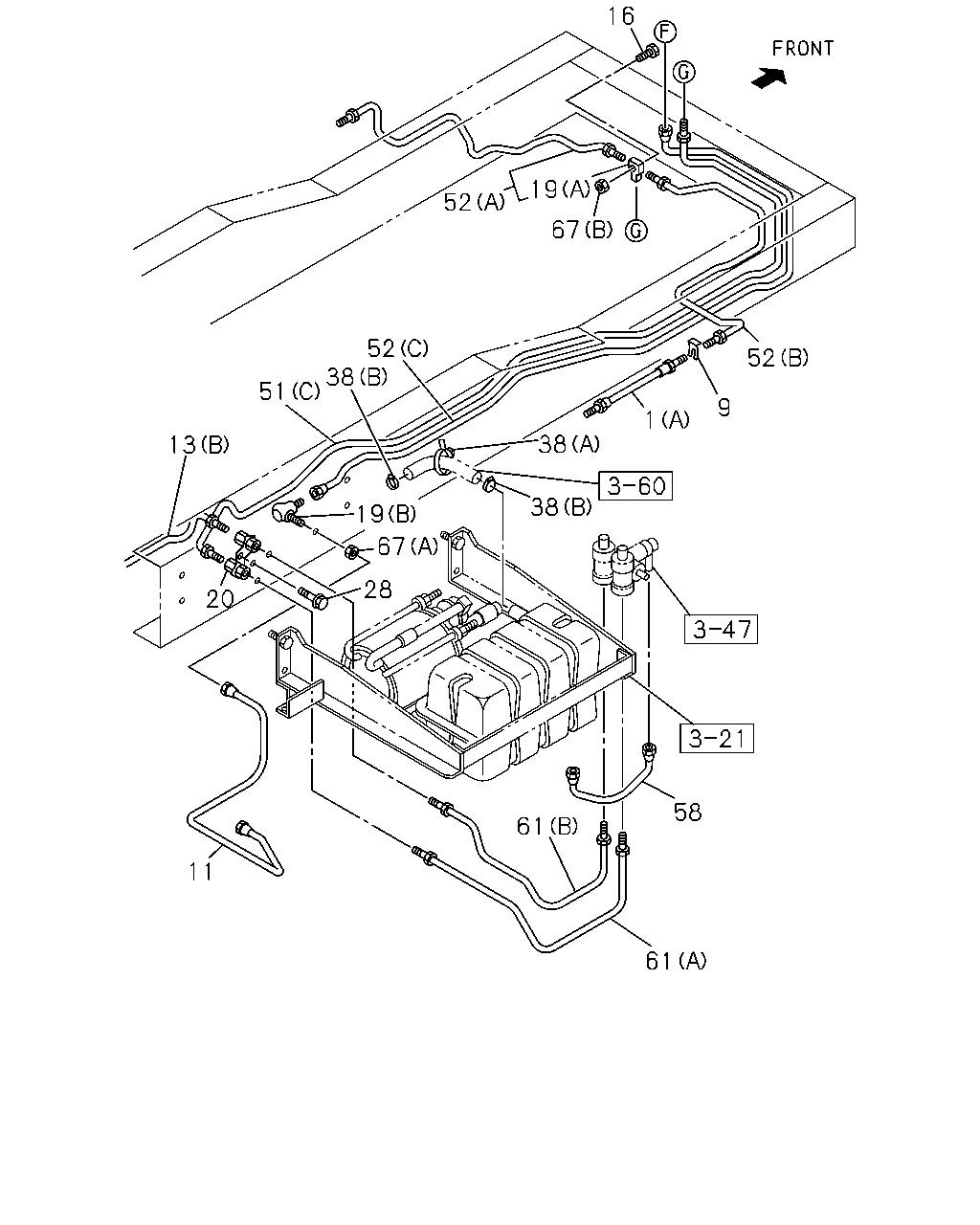

çizim 50067
16 19 52 67 52 38 51 52 9 1 38 13 38 19 67 28 20 58 61 11 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
EXC. DISC BRAKE FRT<J52> (A) 		8-97039-543-1 02 1 9811- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 9811-0105 ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-898-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97039-542-0 02 1 9811- ●
1 04.680 HOSE; FLEX,FRT BRK
(B) 		8-97039-542-0 02 1 9811- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. DISC BRAKE FRT<J52> 04.681 		8-94137-662-0 02 1 9811- ● ● ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-526-1 01 1 9811-0105 ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-526-1 01 1 0106- ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT
HYDRO MASTER<7LT> 		8-97129-526-1 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97091-939-2 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97091-939-2 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97205-716-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-717-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97205-717-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97217-895-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 9811-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 0101-0105 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97081-691-5 01 1 0101-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-691-5 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97081-691-5 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-692-4 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAMESTRAIGHT TYPE<7KJ> (A) 		8-97081-692-4 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-718-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97217-896-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-719-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, HYDROMASTER<7LT> (A) 		8-97205-719-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97217-897-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
HYDRO MASTER<7LT> (B) 		8-97217-897-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
(A) 		8-97205-720-0 01 1 9811- ●
16 04.686 BOLT; 3 WAY CONNECTOR
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8X30 FLANGE 		0-28680-830-0 01 1 9811-0105 ● ● ●
16 04.686 BOLT; 3 WAY CONNECTOR
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8X30 FLANGE 		0-28680-830-0 01 1 0106- ● ●
16 04.686 BOLT; 3 WAY CONNECTOR
HYDRO MASTER<7LT> M8X30 FLANGE 		0-28680-830-0 01 1 0106- ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (A) M10 3WAY 		9-09227-305-0 01 1 9811-0105 ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) M10 3WAY 		9-09227-305-0 01 1 9811-0105 ● ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (A) M10 3WAY 		9-09227-305-0 01 1 0106- ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) M10 3WAY 		9-09227-305-0 01 1 0106- ●
19 04.686 UNION; OIL PIPE
HYDRO MASTER<7LT> (A) M10 3WAY 		9-09227-305-0 01 1 0106- ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.866 (B) M14 		9-09225-208-1 01 1 9811-0105 ● ● ●
19 04.686 UNION; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 04.866 (B) M14 		9-09225-208-1 01 1 0106- ● ●
19 04.686 UNION; OIL PIPE
HYDRO MASTER<7LT> 04.866 (B) M14 		9-09225-208-1 01 1 0106- ●
20 04.686 BRACKET; UNION,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-561-0 01 1 9811-0105 ● ● ●
20 04.686 BRACKET; UNION,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-561-0 01 1 0106- ● ●
20 04.686 BRACKET; UNION,OIL PIPE
HYDRO MASTER<7LT> 		8-97129-561-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ● ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
28 04.686 BOLT; UNION CLIP
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
28 04.686 BOLT; UNION CLIP
HYDRO MASTER<7LT> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ●
38 04.686 CLIP
HYDRO MASTER<7LT> 02.559 (A) L=250 		5-09707-030-1 01 1 9811- ● ● ●
38 04.686 CLIP
HYDRO MASTER<7LT> 04.681 (B) ID=32 		9-09915-005-1 02 1 9811- ● ● ●
51 04.685 PIPE; BRK
(B) 		8-97177-306-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (B) 		8-97177-306-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
(B) 		8-97209-514-0 01 1 9908- ● ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (B) 		8-97209-514-0 01 1 9908- ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97177-307-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97177-307-0 01 1 9811-9907 ● ● ●
51 04.685 PIPE; BRK
(A) 		8-97209-515-0 01 1 9908- ● ● ● ●
51 04.685 PIPE; BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97209-515-0 01 1 9908- ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 9811-0105 ● ● ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 0106- ● ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97180-428-0 01 1 0106- ●
51 04.685 PIPE; BRK
HYDRO MASTER<7LT> (D) 		8-97129-523-0 01 1 9811- ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (A) 		8-97129-532-1 01 1 9811-0105 ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) 		8-97129-532-1 01 1 9811-0105 ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (A) 		8-97129-532-1 01 1 0106- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) 		8-97129-532-1 01 1 0106- ●
52 04.685 PIPE; BRK
HYDRO MASTER<7LT> (A) 		8-97129-532-1 01 1 0106- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (B) 		8-97180-429-0 01 1 9811-0105 ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97180-429-0 01 1 9811-0105 ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. DISC BRAKE FRT<J52> (B) 		8-97180-429-0 01 1 0106- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97180-429-0 01 1 0106- ●
52 04.685 PIPE; BRK
HYDRO MASTER<7LT> (B) 		8-97180-429-0 01 1 0106- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97129-525-0 01 1 9811-0105 ● ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) 		8-97129-525-0 01 1 0106- ● ●
52 04.685 PIPE; BRK
HYDRO MASTER<7LT> (C) 		8-97129-525-0 01 1 0106- ●
58 04.685 PIPE; OIL,HYDROMASTER TO SAFETY
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-527-0 01 1 9811-0105 ● ● ●
58 04.685 PIPE; OIL,HYDROMASTER TO SAFETY
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 		8-97129-527-0 01 1 0106- ● ●
58 04.685 PIPE; OIL,HYDROMASTER TO SAFETY
HYDRO MASTER<7LT> 		8-97129-527-0 01 1 0106- ●
61 04.685 PIPE; BRK,SAFETY VLV
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) 		8-97129-528-0 01 1 9811-0105 ● ● ●
61 04.685 PIPE; BRK,SAFETY VLV
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) 		8-97129-528-0 01 1 0106- ● ●
61 04.685 PIPE; BRK,SAFETY VLV
HYDRO MASTER<7LT> (A) 		8-97129-528-0 01 1 0106- ●
61 04.685 PIPE; BRK,SAFETY VLV
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-529-0 01 1 9811-0105 ● ● ●
61 04.685 PIPE; BRK,SAFETY VLV
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 		8-97129-529-0 01 1 0106- ● ●
61 04.685 PIPE; BRK,SAFETY VLV
HYDRO MASTER<7LT> (B) 		8-97129-529-0 01 1 0106- ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
67 04.686 NUT; UNION
HYDRO MASTER<7LT> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 06.172 (A) M14 		9-99111-414-0 01 1 9811-0105 ● ● ●
67 04.686 NUT; UNION
FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> 06.172 (A) M14 		9-99111-414-0 01 1 0106- ● ●
67 04.686 NUT; UNION
HYDRO MASTER<7LT> 06.172 (A) M14 		9-99111-414-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
