Sayfa 3-31 - Isuzu EPC

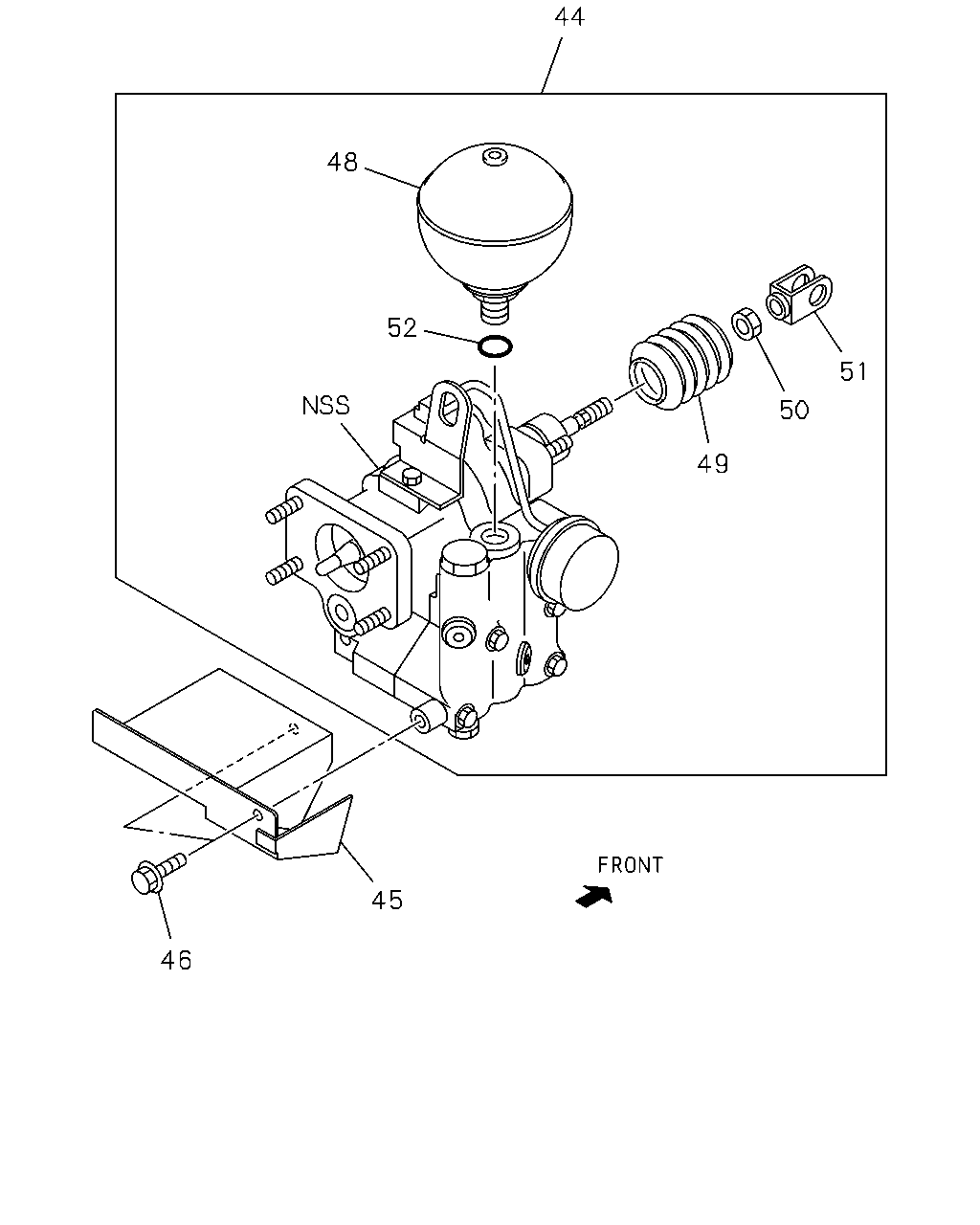

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#22164) — 139 parça

44 48 52 51 50 49 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-97209-212-0	01	1	9811-0105	●	●	●	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-97209-212-0	01	1	9811-0105					●
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-97209-212-0	01	1	0106-		●	●	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-97209-212-0	01	1	0106-					●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER<7QQ>	8-97182-354-1	01	1	9811-0105	●	●	●	●
45	04.901 PROTECTOR; HEAT	8-97182-354-1	01	1	9811-0105					●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER<7QQ>	8-97182-354-1	01	1	0106-		●	●	●
45	04.901 PROTECTOR; HEAT	8-97182-354-1	01	1	0106-					●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9811-0105	●	●	●	●
46	04.901 BOLT; HEAT PROTECTOR 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9811-0105					●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-		●	●	●
46	04.901 BOLT; HEAT PROTECTOR 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-					●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-040-0	01	1	9811-0105	●	●	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-97191-040-0	01	1	9811-0105					●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-040-0	01	1	0106-		●	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-97191-040-0	01	1	0106-					●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-043-0	01	1	9811-0105	●	●	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	9811-0105					●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-043-0	01	1	0106-		●	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	0106-					●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-042-0	01	1	9811-0105	●	●	●	●
50	04.906 NUT; HYDRO BRK BOOSTER 04.662	8-97191-042-0	01	1	9811-0105					●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-042-0	01	1	0106-		●	●	●
50	04.906 NUT; HYDRO BRK BOOSTER 04.662	8-97191-042-0	01	1	0106-					●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-041-0	01	1	9811-0105	●	●	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER 04.662	8-97191-041-0	01	1	9811-0105					●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-041-0	01	1	0106-		●	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER 04.662	8-97191-041-0	01	1	0106-					●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.910	8-97191-038-0	01	1	9811-0105	●	●	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	9811-0105					●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.910	8-97191-038-0	01	1	0106-		●	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	0106-					●

47 17 16 24 15 11 12 11 23 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F	G
1	04.901 MASTER VAC ASM; BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	9811-0012	●	●	●	●	●
1	04.901 MASTER VAC ASM; BRK G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	9811-0012		●	●
1	04.901 MASTER VAC ASM; BRK DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	9811-0012		●
1	04.901 MASTER VAC ASM; BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	0101-0105	●	●	●	●
1	04.901 MASTER VAC ASM; BRK G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	0101-0105		●	●
1	04.901 MASTER VAC ASM; BRK DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	0101-0105		●				●
1	04.901 MASTER VAC ASM; BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	0106-0109	●	●	●	●
1	04.901 MASTER VAC ASM; BRK DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-974-0	01	1	0106-0109		●				●
1	04.901 MASTER VAC ASM; BRK G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97162-800-1	01	1	0110-	●	●	●	●
1	04.901 MASTER VAC ASM; BRK DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97162-800-1	01	1	0110-		●				●
1	04.901 MASTER VAC ASM; BRK G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ>	8-97177-972-1	01	1	9811-0105	●	●	●		●
1	04.901 MASTER VAC ASM; BRK G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97177-972-1	01	1	0106-0109	●	●	●		●
1	04.901 MASTER VAC ASM; BRK G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97162-798-1	01	1	0110-	●	●	●		●
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	9811-0012	●	●	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC	9-83315-319-0	01	1	9811-0012					●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TO N(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0101-0105	●	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0101-0105		●				●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0101-0105				●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0101-0105					●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0106-	●	●	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	9-83315-319-0	01	1	0106-	●	●	●		●	●
11	04.906 FILTER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	9811-0012	●	●	●	●	●
11	04.906 FILTER; M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	9811-0012		●	●
11	04.906 FILTER; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	9811-0012		●
11	04.906 FILTER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	0101-0105	●	●	●	●
11	04.906 FILTER; M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	0101-0105		●	●
11	04.906 FILTER; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	0101-0105		●				●
11	04.906 FILTER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	0106-0109	●	●	●	●
11	04.906 FILTER; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	02	1	0106-0109		●				●
11	04.906 FILTER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ> 04.913	9-83345-063-0	01	1	9811-0105	●	●	●		●
11	04.906 FILTER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.913	9-83345-063-0	01	1	0106-0109	●	●	●		●
11	04.906 FILTER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97205-576-0	01	1	0110-	●	●	●	●
11	04.906 FILTER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	8-97205-576-0	01	1	0110-	●	●	●		●	●
12	04.906 SILENCER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	9811-0012	●	●	●	●	●
12	04.906 SILENCER; M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	9811-0012		●	●
12	04.906 SILENCER; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	9811-0012		●
12	04.906 SILENCER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	0101-0105	●	●	●	●
12	04.906 SILENCER; M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	0101-0105		●	●
12	04.906 SILENCER; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	0101-0105		●				●
12	04.906 SILENCER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	0106-0109	●	●	●	●
12	04.906 SILENCER; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94465-510-0	01	1	0106-0109		●				●
12	04.906 SILENCER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ>	8-94341-722-0	01	1	9811-0105	●	●	●		●
12	04.906 SILENCER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94341-722-0	01	1	0106-0109	●	●	●		●
12	04.906 SILENCER; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97205-577-0	01	1	0110-	●	●	●	●
12	04.906 SILENCER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	8-97205-577-0	01	1	0110-	●	●	●		●	●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	9811-0012	●	●	●	●	●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	9811-0012		●	●
15	04.906 RETAINER; GUARD,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	9811-0012		●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	0101-0105	●	●	●	●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	0101-0105		●	●
15	04.906 RETAINER; GUARD,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	0101-0105		●				●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	0106-0109	●	●	●	●
15	04.906 RETAINER; GUARD,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.922	8-94123-119-0	01	1	0106-0109		●				●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ>	8-94375-083-0	01	1	9811-0105	●	●	●		●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94375-083-0	01	1	0106-0109	●	●	●		●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94375-083-0	01	1	0110-	●	●	●	●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	8-94375-083-0	01	1	0110-	●	●	●		●	●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0106-0109	●	●	●	●
16	04.662 NUT; VLV ROD,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0106-0109		●				●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10	9-09111-410-0	01	1	9811-0012	●	●	●	●	●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10	9-09111-410-0	01	1	9811-0012		●	●
16	04.662 NUT; VLV ROD,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10	9-09111-410-0	01	1	9811-0012		●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10	9-09111-410-0	01	1	0101-0105	●	●	●	●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10	9-09111-410-0	01	1	0101-0105		●	●
16	04.662 NUT; VLV ROD,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 06.822 M10	9-09111-410-0	01	1	0101-0105		●				●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ> M10 FLANGE	8-97096-430-0	01	1	9811-0105	●	●	●		●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	8-97096-430-0	01	1	0106-0109	●	●	●		●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0110-	●	●	●	●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT> M10	1-52139-008-0	01	1	0110-	●	●	●		●	●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	9811-0012	●	●	●	●	●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	9811-0012		●	●
17	04.662 CLEVIS; YOKE,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	9811-0012		●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	0101-0105	●	●	●	●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	0101-0105		●	●
17	04.662 CLEVIS; YOKE,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	0101-0105		●				●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	0106-0109	●	●	●	●
17	04.662 CLEVIS; YOKE,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	5-47829-011-0	01	1	0106-0109		●				●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ>	8-94341-787-0	01	1	9811-0105	●	●	●		●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94341-787-0	01	1	0106-0109	●	●	●		●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97224-610-0	01	1	0110-	●	●	●	●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	8-97224-610-0	01	1	0110-	●	●	●		●	●
23	04.910 SEAL; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	9811-0012	●	●	●	●	●
23	04.910 SEAL; M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	9811-0012		●	●
23	04.910 SEAL; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	9811-0012		●
23	04.910 SEAL; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0101-0105	●	●	●	●
23	04.910 SEAL; M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0101-0105		●	●
23	04.910 SEAL; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0101-0105		●				●
23	04.910 SEAL; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0106-0109	●	●	●	●
23	04.910 SEAL; M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0106-0109		●				●
23	04.910 SEAL; M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0110-	●	●	●	●
23	04.910 SEAL; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	8-97079-350-0	01	1	0110-	●	●	●		●	●
23	04.910 SEAL; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ>	8-94152-349-0	01	1	9811-0105	●	●	●		●
23	04.910 SEAL; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94152-349-0	01	1	0106-0109	●	●	●		●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	9811-0012	●	●	●	●	●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	9811-0012		●	●
24	04.906 GUARD; VLV BODY,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	9811-0012		●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	0101-0105	●	●	●	●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	0101-0105		●	●
24	04.906 GUARD; VLV BODY,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	0101-0105		●				●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	0106-0109	●	●	●	●
24	04.906 GUARD; VLV BODY,M/VAC DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97079-349-0	01	1	0106-0109		●				●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ>	8-94375-084-1	01	1	9811-0105	●	●	●		●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94375-084-1	01	1	0106-0109	●	●	●		●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97205-578-0	01	1	0110-	●	●	●	●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>	8-97205-578-0	01	1	0110-	●	●	●		●	●
47	04.901 SPACER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B RAKE BOOSTER<7QQ> 00.864	8-97167-489-0	01	1	9811-0105	●	●	●		●
47	04.901 SPACER; M/VAC G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 00.864	8-97167-489-0	01	1	0106-0109	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
