1 |

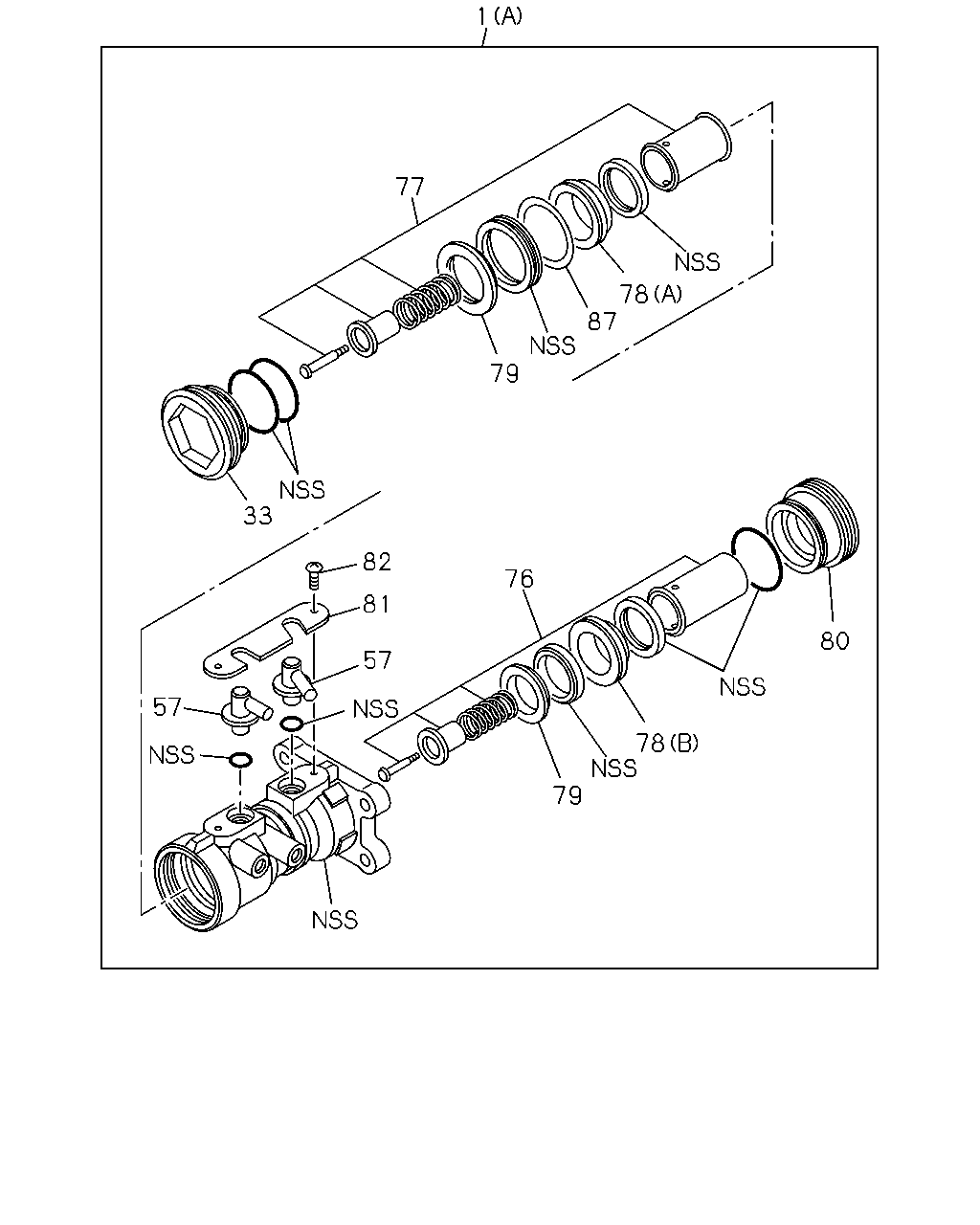

04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97207-684-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
● |
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
(A)
|
8-97207-684-0 |
01 |
1 |
9811-9901 |
|
|
|
|
● |
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-378-0 |
01 |
1 |
9902-0007 |
● |
● |
● |
● |
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
(A)
|
8-97224-378-0 |
01 |
1 |
9902-0007 |
|
|
|
|
● |
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97254-770-0 |
01 |
1 |
0008-0105 |
● |
● |
● |
● |
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
(A)
|
8-97254-770-0 |
01 |
1 |
0008-0105 |
|
|
|
|
● |
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97254-770-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97186-687-0 |
01 |
1 |
9811-9811 |
● |
● |
● |
● |
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97186-687-0 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97186-687-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97219-305-0 |
01 |
1 |
9812-9901 |
● |
● |
● |
● |
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97219-305-0 |
01 |
1 |
9812-9901 |
|
● |
● |
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97219-305-0 |
01 |
1 |
9812-9901 |
|
● |
|
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
9902-0012 |
● |
● |
● |
● |
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
9902-0012 |
|
● |
● |
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
9902-0012 |
|
● |
|
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
0106-0109 |
● |
● |
● |
● |
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97224-372-0 |
01 |
1 |
0106-0109 |
|
● |
|
|
|
|
● |
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-370-0 |
01 |
1 |
0110- |
● |
● |
● |
● |
|
|
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97224-370-0 |
01 |
1 |
0110- |
|
● |
|
|
|
|
● |
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
(A)
|
8-97186-685-0 |
01 |
1 |
9811-9811 |
● |
● |
● |
|
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
(A)
|
8-97219-308-0 |
01 |
1 |
9812-9901 |
● |
● |
● |
|
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
(A)
|
8-97224-375-0 |
01 |
1 |
9902-0105 |
● |
● |
● |
|
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-375-0 |
01 |
1 |
0106-0109 |
● |
● |
● |
|
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97224-373-0 |
01 |
1 |
0110- |
● |
● |
● |
|
|
● |
|
| |
1 |
04.650 CYLINDER ASM; BRK MASTER
HYDRO MASTER<7LT>
(B)
|
8-97129-517-1 |
01 |
1 |
9811- |
|
● |
● |
● |
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-699-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
|
8-97186-699-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-699-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
● |
|
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
9811-0012 |
|
● |
● |
|
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
33 |
04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97186-697-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97186-696-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
|
● |
|
| |
33 |
04.661 PLUG; END,M/CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97186-696-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
57 |
04.651 NIPPLE; BRK M/CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97130-442-0 |
02 |
1 |
0110- |
● |
● |
● |
● |
|
● |
● |
| |
57 |
04.651 NIPPLE; BRK M/CYL
|
8-97130-441-0 |
02 |
1 |
9811-0012 |
● |
|
|
|
● |
● |
|
| |
57 |
04.651 NIPPLE; BRK M/CYL
EXC. HYDRO MASTER<7LT>
|
8-97130-441-0 |
02 |
1 |
9811-0012 |
|
● |
● |
● |
|
|
|
| |
57 |
04.651 NIPPLE; BRK M/CYL
|
8-97130-441-0 |
02 |
1 |
0101-0109 |
● |
|
|
|
● |
● |
● |
| |
57 |
04.651 NIPPLE; BRK M/CYL
EXC. HYDRO MASTER<7LT>
|
8-97130-441-0 |
02 |
1 |
0101-0109 |
|
● |
● |
● |
|
|
|
| |
57 |
04.651 NIPPLE; BRK M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-441-0 |
02 |
1 |
0110- |
|
● |
● |
● |
● |
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-701-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
● |
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
|
8-97170-701-0 |
01 |
1 |
9811-9901 |
|
|
|
|
● |
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-641-0 |
01 |
1 |
9902-0105 |
● |
● |
● |
● |
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
|
8-97224-641-0 |
01 |
1 |
9902-0105 |
|
|
|
|
● |
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-641-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-465-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
● |
|
● |
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-465-0 |
01 |
1 |
9811-9901 |
|
● |
● |
|
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-465-0 |
01 |
1 |
9811-9901 |
|
● |
|
|
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
9902-0012 |
● |
● |
● |
● |
|
● |
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
9902-0012 |
|
● |
● |
|
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
9902-0012 |
|
● |
|
|
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
76 |

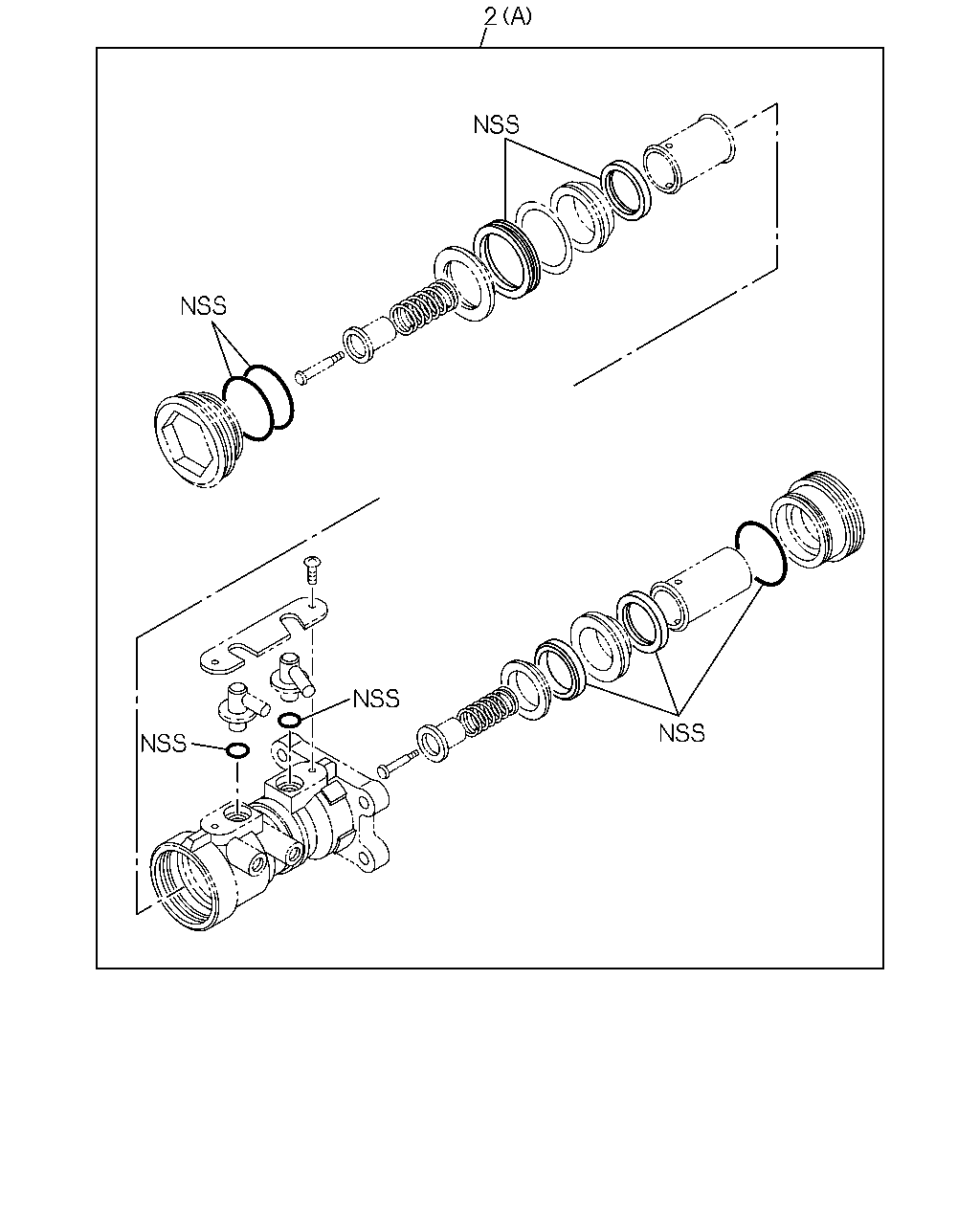

04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
76 |
04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97224-643-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97130-464-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
|
|
● |
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97224-636-0 |
01 |
1 |
9902-0105 |
● |
● |
● |
|
|
● |
|
| |
76 |
04.653 PISTON ASM; PRIMARY
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-636-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
77 |
04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-699-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
● |
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
|
8-97170-699-0 |
01 |
1 |
9811-9901 |
|
|
|
|
● |
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-640-0 |
01 |
1 |
9902-0105 |
● |
● |
● |
● |
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
|
8-97224-640-0 |
01 |
1 |
9902-0105 |
|
|
|
|
● |
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-640-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-467-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
● |
|
● |
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-467-0 |
01 |
1 |
9811-9901 |
|
● |
● |
|
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-467-0 |
01 |
1 |
9811-9901 |
|
● |
|
|
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
9902-0012 |
● |
● |
● |
● |
|
● |
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
9902-0012 |
|
● |
● |
|
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
9902-0012 |
|
● |
|
|
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
77 |
04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97224-642-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97130-466-0 |
01 |
1 |
9811-9901 |
● |
● |
● |
|
|
● |
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97224-635-0 |
01 |
1 |
9902-0105 |
● |
● |
● |
|
|
● |
|
| |
77 |
04.653 PISTON ASM; SECONDARY
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97224-635-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97170-695-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
(A)
|
8-97170-695-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97170-695-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97207-685-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
(B)
|
8-97207-685-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97207-685-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
9811-0012 |
|
● |
● |
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(A)
|
8-97130-455-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97130-457-0 |
01 |
1 |
9811-9811 |
● |
● |
● |
● |
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97130-457-0 |
01 |
1 |
9811-9811 |
|
● |
● |
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97130-457-0 |
01 |
1 |
9811-9811 |
|
● |
|
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
9812-0012 |
● |
● |
● |
● |
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
9812-0012 |
|
● |
● |
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
9812-0012 |
|
● |
|
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
78 |
04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
(B)
|
8-97217-312-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
(A)
|
8-97130-454-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(A)
|
8-97130-454-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
(B)
|
8-97130-456-0 |
01 |
1 |
9811-9811 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
(B)
|
8-97217-310-0 |
01 |
1 |
9812-0105 |
● |
● |
● |
|
|
● |
|
| |
78 |
04.651 BUSHING; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
(B)
|
8-97217-310-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
79 |
04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-698-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
79 |
04.651 SUPPORTER; CUP
|
8-97170-698-0 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-698-0 |
02 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
9811-0012 |
● |
● |
● |
● |
|
● |
|
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
9811-0012 |
|
● |
● |
|
|
|
|
| |
79 |
04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
9811-0012 |
|
● |
|
|
|
|
|
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
79 |
04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
79 |
04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97130-463-0 |
02 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97130-462-0 |
02 |
1 |
9811-0105 |
● |
● |
● |
|
|
● |
|
| |
79 |
04.651 SUPPORTER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-462-0 |
02 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
80 |
04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-692-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
80 |
04.651 COVER; MASTER CYL
|
8-97170-692-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-692-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
● |
|
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
9811-0012 |
|
● |
● |
|
|
|
|
| |
80 |
04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
|
|
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
80 |
04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
80 |
04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97130-449-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97130-448-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
|
● |
|
| |
80 |
04.651 COVER; MASTER CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-448-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
| |
81 |
04.651 HOLDER; NIPPLE
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97130-445-0 |
01 |
1 |
0110- |
● |
● |
● |
● |
|
● |
● |
| |
81 |
04.651 HOLDER; NIPPLE
|
8-97130-444-0 |
01 |
1 |
9811-0109 |
● |
|
|
|
● |
● |
● |
| |
81 |
04.651 HOLDER; NIPPLE
EXC. HYDRO MASTER<7LT>
|
8-97130-444-0 |
01 |
1 |
9811-0109 |
|
● |
● |
● |
|
|
|
| |
81 |
04.651 HOLDER; NIPPLE
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-444-0 |
01 |
1 |
0110- |
|
● |
● |
● |
● |
|
|
| |
82 |
04.651 SCREW; HOLDER
|
8-97130-446-0 |
02 |
1 |
9811- |
● |
|
|
|
● |
● |
● |
| |
82 |
04.651 SCREW; HOLDER
EXC. HYDRO MASTER<7LT>
|
8-97130-446-0 |
02 |
1 |
9811- |
|
● |
● |
● |
|
|
|
| |
87 |
04.662 SPACER; CUP
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-696-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
● |
|
|
|
| |
87 |
04.662 SPACER; CUP
|
8-97170-696-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
|
|
| |
87 |
04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
HYDRO BRAKE BOOSTER<7QQ>
|
8-97170-696-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
|
|
| |
87 |
04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
9811-0012 |
● |
● |
● |
● |
|
● |
|
| |
87 |
04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
9811-0012 |
|
● |
● |
|
|
|
|
| |
87 |
04.662 SPACER; CUP
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
9811-0012 |
|
● |
|
|
|
|
|
| |
87 |
04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
0101-0105 |
● |
● |
● |
● |
|
|
|
| |
87 |
04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV)
MINI BUS CHASSIS<V4B>
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
0101-0105 |
|
● |
● |
|
|
|
|
| |
87 |
04.662 SPACER; CUP
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. MINI BUS CHASSIS<V4B>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
0101-0105 |
|
● |
|
|
|
|
● |
| |
87 |
04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W.
8.0-8.5TON(RPZ)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
0106- |
● |
● |
● |
● |
|
|
|
| |
87 |
04.662 SPACER; CUP
DISC BRAKE FRT<J52>
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 6.0-6.5TON(RPV)
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE
BOOSTER<7QQ>
|
8-97130-459-0 |
01 |
1 |
0106- |
|
● |
|
|
|
|
● |
| |
87 |
04.662 SPACER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,MINI BUS
CHASSIS<V4B>,HYDRO MASTER<7LT>,HYDRO B
RAKE BOOSTER<7QQ>
|
8-97130-458-0 |
01 |
1 |
9811-0105 |
● |
● |
● |
|
|
● |
|
| |
87 |
04.662 SPACER; CUP
G.V.W. 4.0-4.5TON(RPR),G.V.W.
6.0-6.5TON(RPV)
EXC. DISC BRAKE FRT<J52>,HYDRO
MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>
|
8-97130-458-0 |
01 |
1 |
0106- |
● |
● |
● |
|
|
● |
|
