◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#22161) — 601 parça

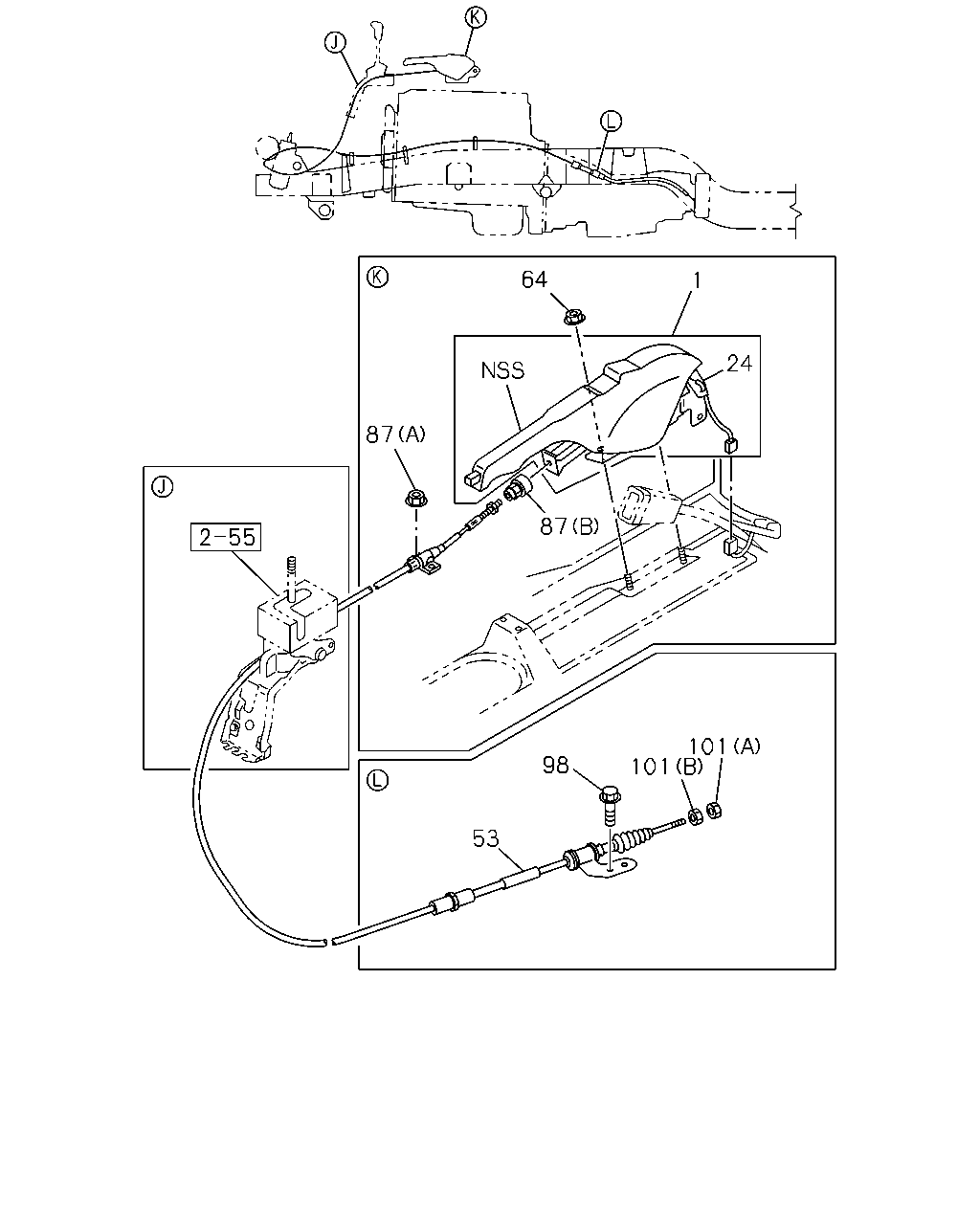

çizim 10142
64 1 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9811-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 9811-0207 ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0208- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0106-0207 ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0208- ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0105 ● ● ● ●
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0105 ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106-0207 ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0208- ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 02.559 (A) M8 		9-09110-408-0 01 1 9811-0105 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 9811-0105 ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 02.559 (A) M8 		9-09110-408-0 01 1 0106-0207 ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0208- ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (B) M8 FLANGE 		9-46259-016-0 01 1 9811-0105 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 9811-0105 ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (B) M8 FLANGE 		9-46259-016-0 01 1 0106-0207 ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0208- ● ● ● ● ● ●

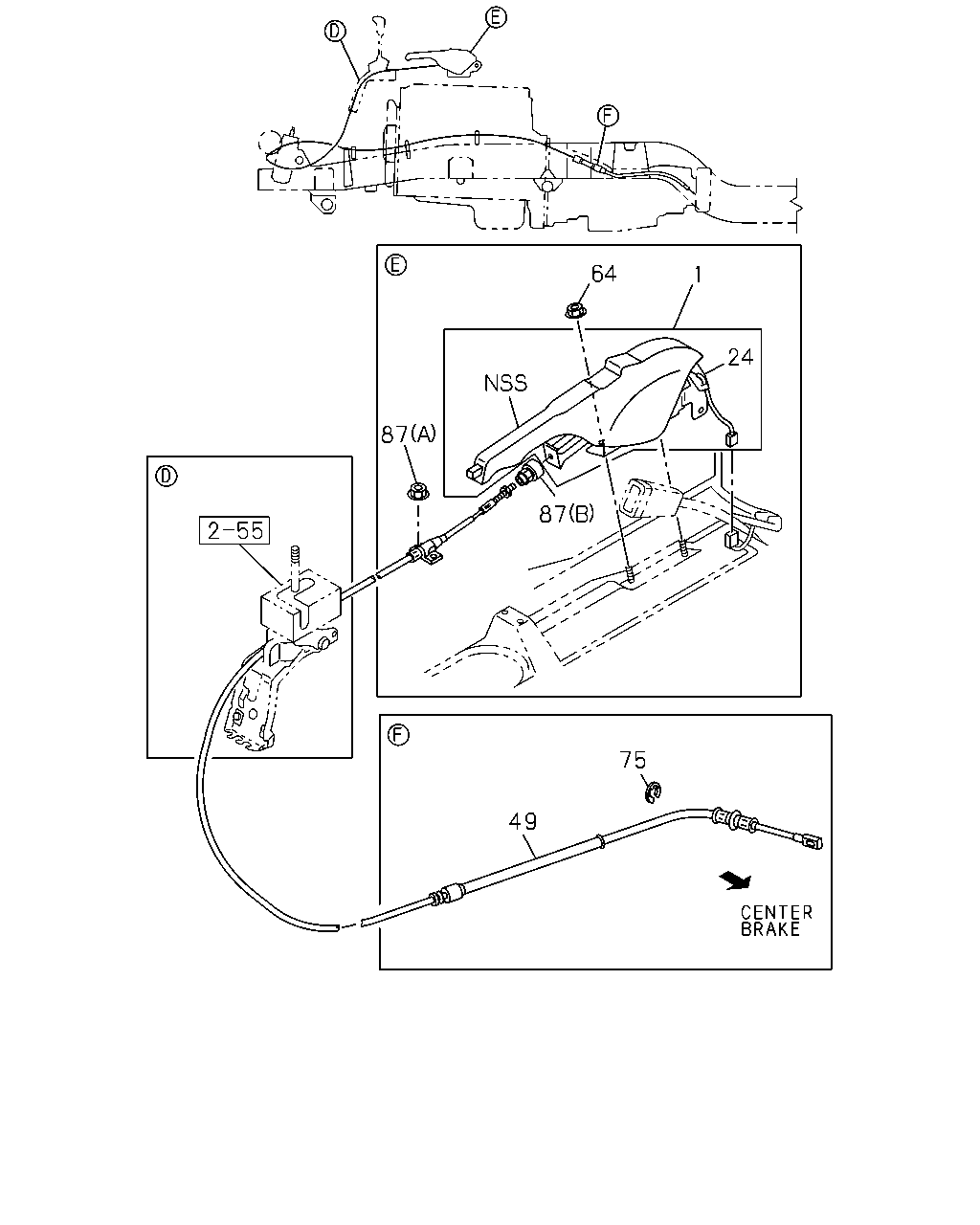

çizim 10494
64 1 24 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9811-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 9811-0105 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 0106- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 9811-0105 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 0106- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-430-1 01 1 9811-0105 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-430-1 01 1 0106- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> 		8-97215-432-0 01 1 9811- ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 9811-0012 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 9811-0012 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0101-0105 ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 0101-0105 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0106- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 0106- ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ● ●

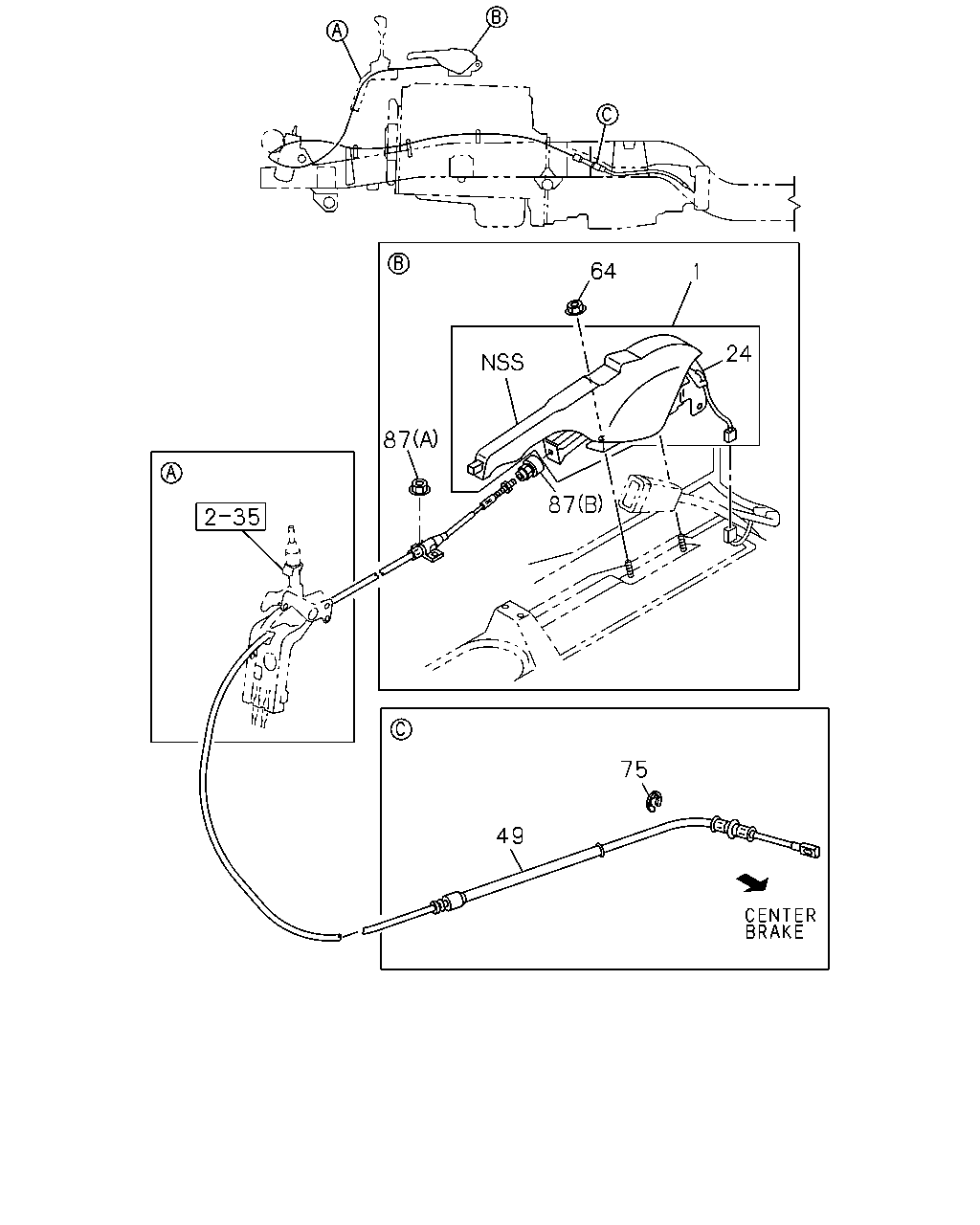

çizim 45933
64 1 24 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9811-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 9811-0105 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> 		8-97215-434-0 01 1 0106- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 9811-0105 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME STRAIGHT TYPE<7KJ> 		8-97215-433-0 01 1 0106- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-430-1 01 1 9811-0105 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97215-430-1 01 1 0106- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) FRAME STRAIGHT TYPE<7KJ> 		8-97215-432-0 01 1 9811- ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 9811-0012 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 9811-0012 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0101-0105 ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 04.681 ID=12 		9-09185-412-0 01 1 0101-0105 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0106- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MXA5R(RMT) 04.681 ID=12 		9-09185-412-0 01 1 0106- ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ● ●

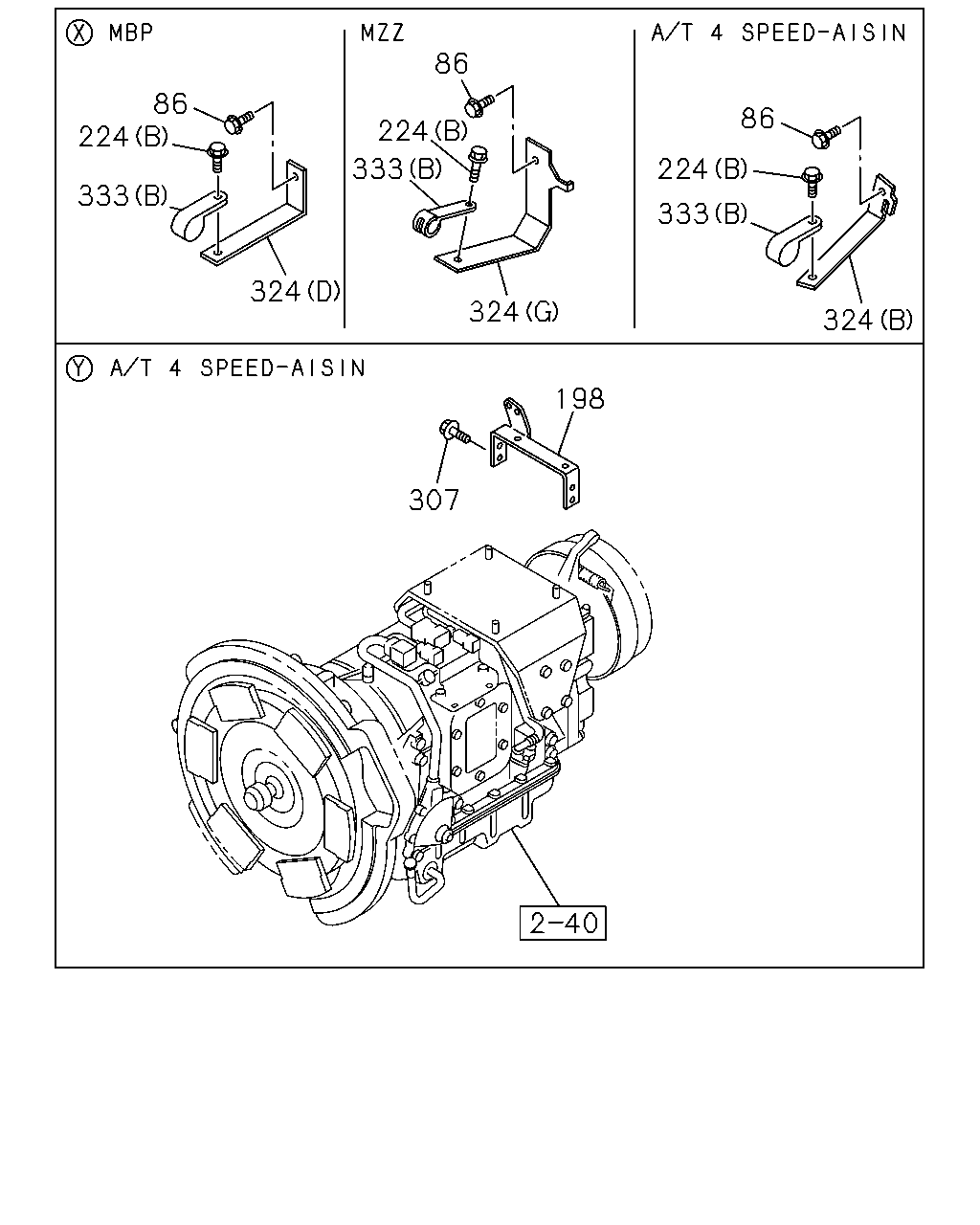

çizim 47322
86 86 224 86 224 333 224 333 333 324 324 324 198 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
86 04.785 BOLT
A/T 4 SPEED-AISIN(RNJ) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811- ● ● ●
86 04.785 BOLT
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9811-0105 ● ● ●
86 04.785 BOLT
03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9811-0105 ●
86 04.785 BOLT
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0106-0207 ● ● ● ● ● ●
86 04.785 BOLT
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0208- ● ● ● ● ● ●
198 04.785 BRACKET; CABLE
A/T 4 SPEED-AISIN(RNJ) 		8-97160-905-2 01 1 9811- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 02.559 M10X16 FLANGE 		0-28081-016-0 04 1 9811-0009 ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 03.417 M10X25 FLANGE 		0-28081-025-0 04 1 0010-0105 ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0106- ● ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97307-874-0 01 1 0208- ● ● ● ● ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 9811- ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F) 		8-97188-151-0 01 1 9811- ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97065-098-1 01 1 9811-0008 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0009-0012 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0101-0105 ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9811-0105 ● ● ●
324 04.785 BRACKET
(D) 		8-97181-745-0 01 1 9811-0105 ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0106- ● ● ● ● ● ●
333 04.785 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 9811-0012 ● ● ● ● ●
333 04.785 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ● ● ● ● ●
333 04.785 CLIP; CABLE
(A) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ●
333 04.785 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 0106- ● ● ● ●
333 04.785 CLIP; CABLE
(A) ID=11 L=28 		9-09525-055-0 01 1 0106- ●
333 04.785 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 9811-0105 ● ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 9811-0105 ● ● ● ●
333 04.785 CLIP; CABLE
(B) ID=11 L=60 		9-09525-096-0 01 1 9811-0105 ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0106-0207 ● ● ● ● ● ●
333 04.785 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0106-0207 ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ● ● ● ●
333 04.785 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ● ●
çizim 47383
24 223 241 324 225 334 181 237 236 85 235 241 238
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 9811-0105 ● ● ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) ID=12 L=70 		1-09700-097-1 01 1 9811-0105 ● ● ● ● ●
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0106- ● ● ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70 		1-09700-097-1 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ● ● ●
181 04.785 BOLT; BRKT
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 9811-0105 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97148-597-3 01 1 9811-0105 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 0106- ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 		8-97148-597-3 01 1 0106- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-0105 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-0105 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ●
241 04.785 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
241 04.785 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97307-874-0 01 1 0208- ● ● ● ● ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 9811- ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F) 		8-97188-151-0 01 1 9811- ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97065-098-1 01 1 9811-0008 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0009-0012 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0101-0105 ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9811-0105 ● ● ●
324 04.785 BRACKET
(D) 		8-97181-745-0 01 1 9811-0105 ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0106- ● ● ● ● ● ●
334 04.785 PROTECTOR; EDGE
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-0105 ● ● ● ● ● ● ●
334 04.785 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0106- ● ● ● ● ● ● ●

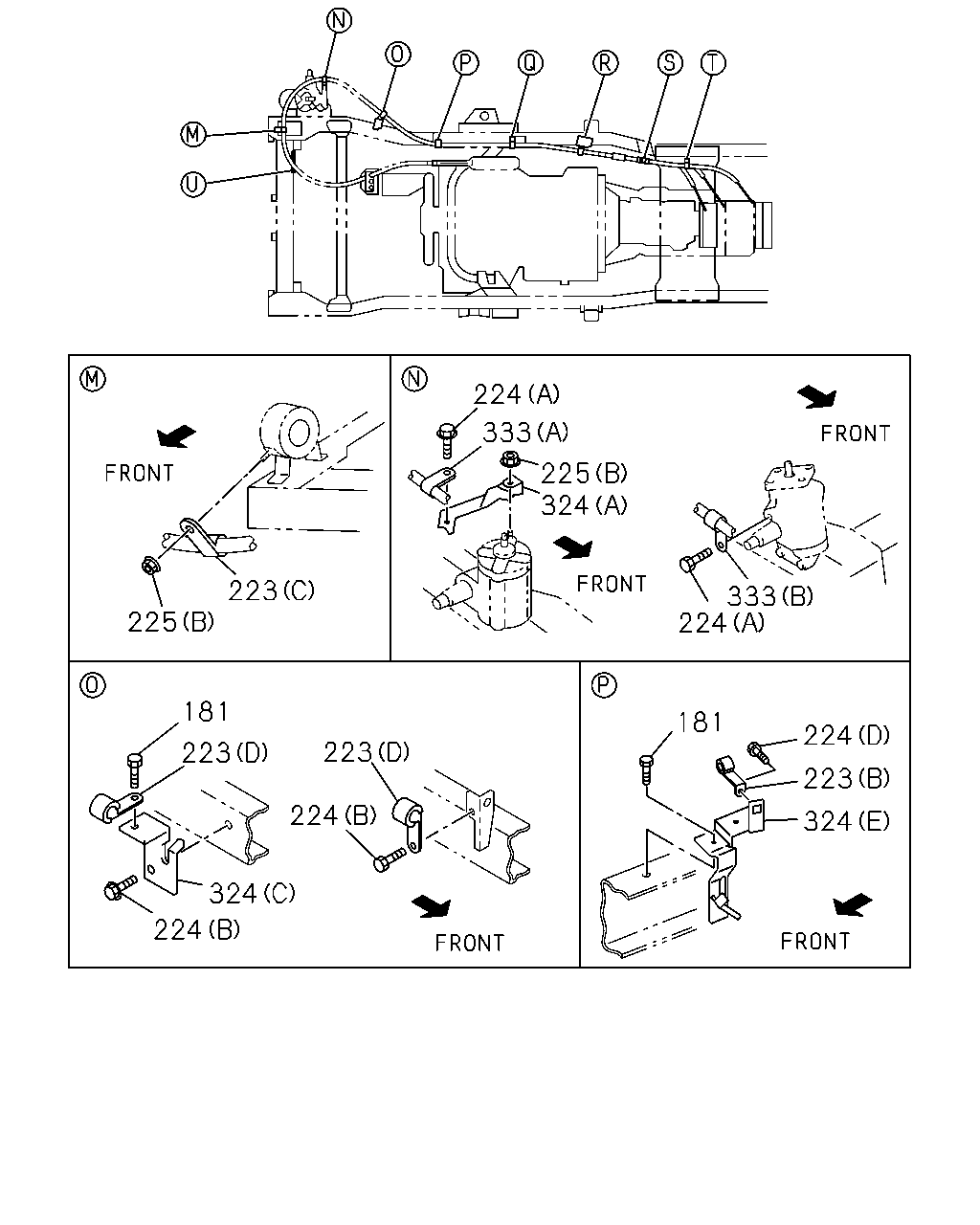

çizim 48244
224 333 225 324 223 333 224 225 181 181 224 223 223 223 224 324 324 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ● ● ●
181 04.785 BOLT; BRKT
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97307-874-0 01 1 0208- ● ● ● ● ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 9811- ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F) 		8-97188-151-0 01 1 9811- ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97065-098-1 01 1 9811-0008 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0009-0012 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0101-0105 ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9811-0105 ● ● ●
324 04.785 BRACKET
(D) 		8-97181-745-0 01 1 9811-0105 ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0106- ● ● ● ● ● ●
333 04.785 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 9811-0012 ● ● ● ● ●
333 04.785 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ● ● ● ● ●
333 04.785 CLIP; CABLE
(A) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ●
333 04.785 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 0106- ● ● ● ●
333 04.785 CLIP; CABLE
(A) ID=11 L=28 		9-09525-055-0 01 1 0106- ●
333 04.785 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 9811-0105 ● ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 9811-0105 ● ● ● ●
333 04.785 CLIP; CABLE
(B) ID=11 L=60 		9-09525-096-0 01 1 9811-0105 ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0106-0207 ● ● ● ● ● ●
333 04.785 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0106-0207 ● ● ● ●
333 04.785 CLIP; CABLE
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ● ● ● ●
333 04.785 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0208- ● ● ● ●
çizim 49687
64 1 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9811-0108 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9811-0108 ● ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 9811-0207 ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0208- ● ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 9811-0105 ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0106-0207 ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MBP6P(RNC),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0208- ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9811- ● ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0105 ● ● ● ●
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9811-0105 ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0106-0207 ● ● ● ● ● ●
98 04.785 BOLT; RR COVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0208- ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 02.559 (A) M8 		9-09110-408-0 01 1 9811-0105 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 9811-0105 ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) 02.559 (A) M8 		9-09110-408-0 01 1 0106-0207 ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0208- ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (B) M8 FLANGE 		9-46259-016-0 01 1 9811-0105 ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 9811-0105 ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) (B) M8 FLANGE 		9-46259-016-0 01 1 0106-0207 ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0208- ● ● ● ● ● ●

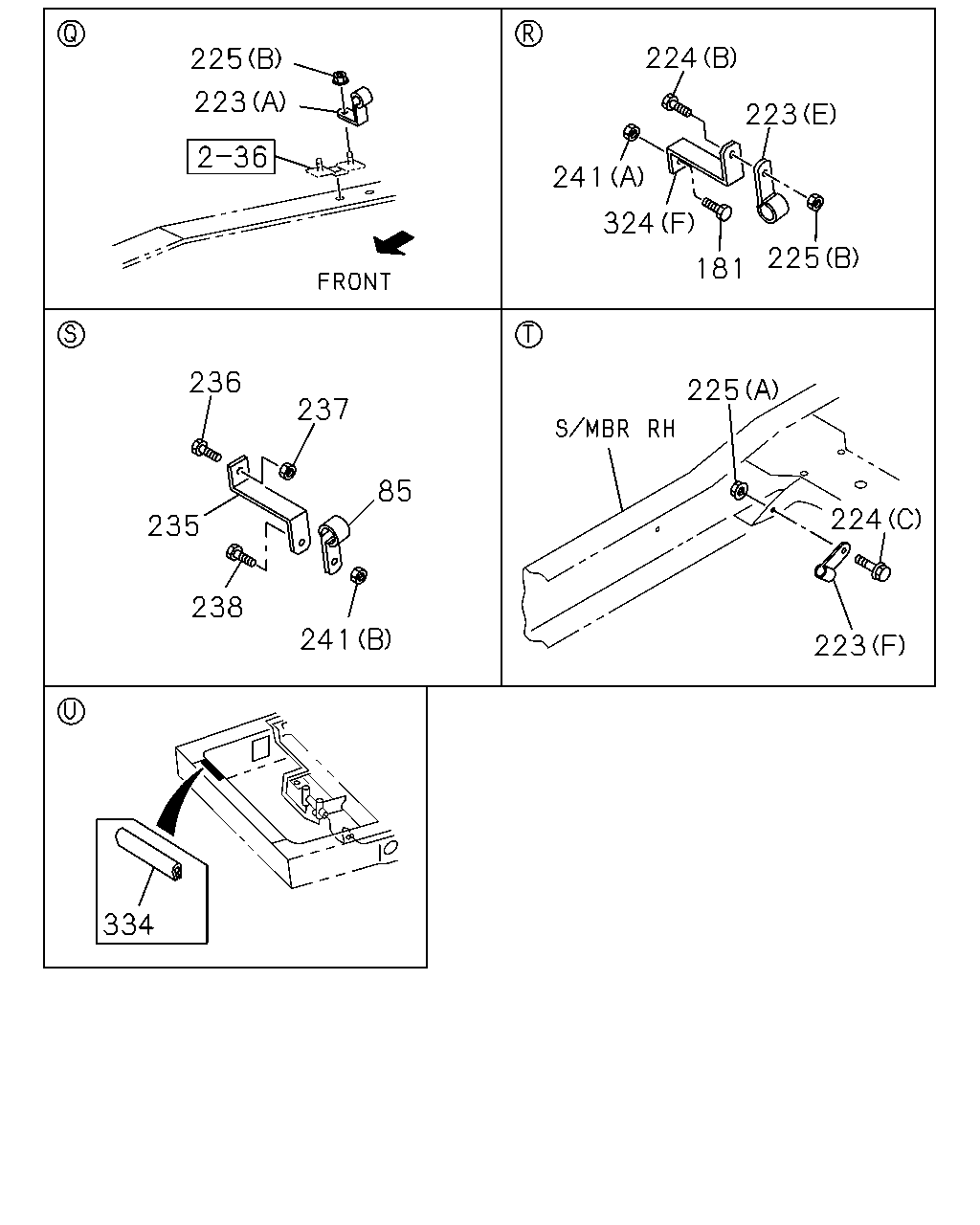

çizim 51136
224 225 223 223 241 225 181 236 225 237 85 224 235 238 241 223 334 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 9811-0105 ● ● ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) ID=12 L=70 		1-09700-097-1 01 1 9811-0105 ● ● ● ● ●
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0106- ● ● ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) ID=12 L=70 		1-09700-097-1 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ● ● ●
181 04.785 BOLT; BRKT
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 9811-0105 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 9811-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0106- ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0106- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 9811-0012 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0101-0105 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0101-0105 ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (F) ID=13 L=20 		1-09701-138-1 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0012 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0101-0105 ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0207 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0208- ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
01.062 (D) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0012 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0101-0105 ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-9903 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9904-0012 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0012 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0101-0105 ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
225 04.785 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0106- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 9811-0105 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 		8-97148-597-3 01 1 9811-0105 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 0106- ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 		8-97148-597-3 01 1 0106- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-0105 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9811-0105 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MXA5R(RMT) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MBP6P(RNC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ● ●
241 04.785 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ● ●
241 04.785 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MXA5S(RNA) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MXA5R(RMT) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (G) 		8-97307-874-0 01 1 0208- ● ● ● ● ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 9811- ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (F) 		8-97188-151-0 01 1 9811- ● ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 9811-0105 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (F) 		8-97103-822-1 01 1 0106- ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97065-098-1 01 1 9811-0008 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0009-0012 ● ● ● ● ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0101-0105 ●
324 04.785 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> 00.854 (A) 		8-97288-446-0 01 1 0106- ● ● ● ●
324 04.785 BRACKET
00.854 (A) 		8-97288-446-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
(C) 		8-97042-771-0 01 1 0106- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 9811-0012 ● ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0101-0105 ● ● ● ● ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0101-0105 ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
(E) 		8-97071-354-2 01 1 0106- ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 9811-0105 ● ● ●
324 04.785 BRACKET
(D) 		8-97181-745-0 01 1 9811-0105 ●
324 04.785 BRACKET
M/T MBP6P(RNC) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97181-745-0 01 1 0106- ● ● ● ● ● ●
334 04.785 PROTECTOR; EDGE
16.225 L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9811-0105 ● ● ● ● ● ● ●
334 04.785 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0106- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
