Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#22159) — 266 parça

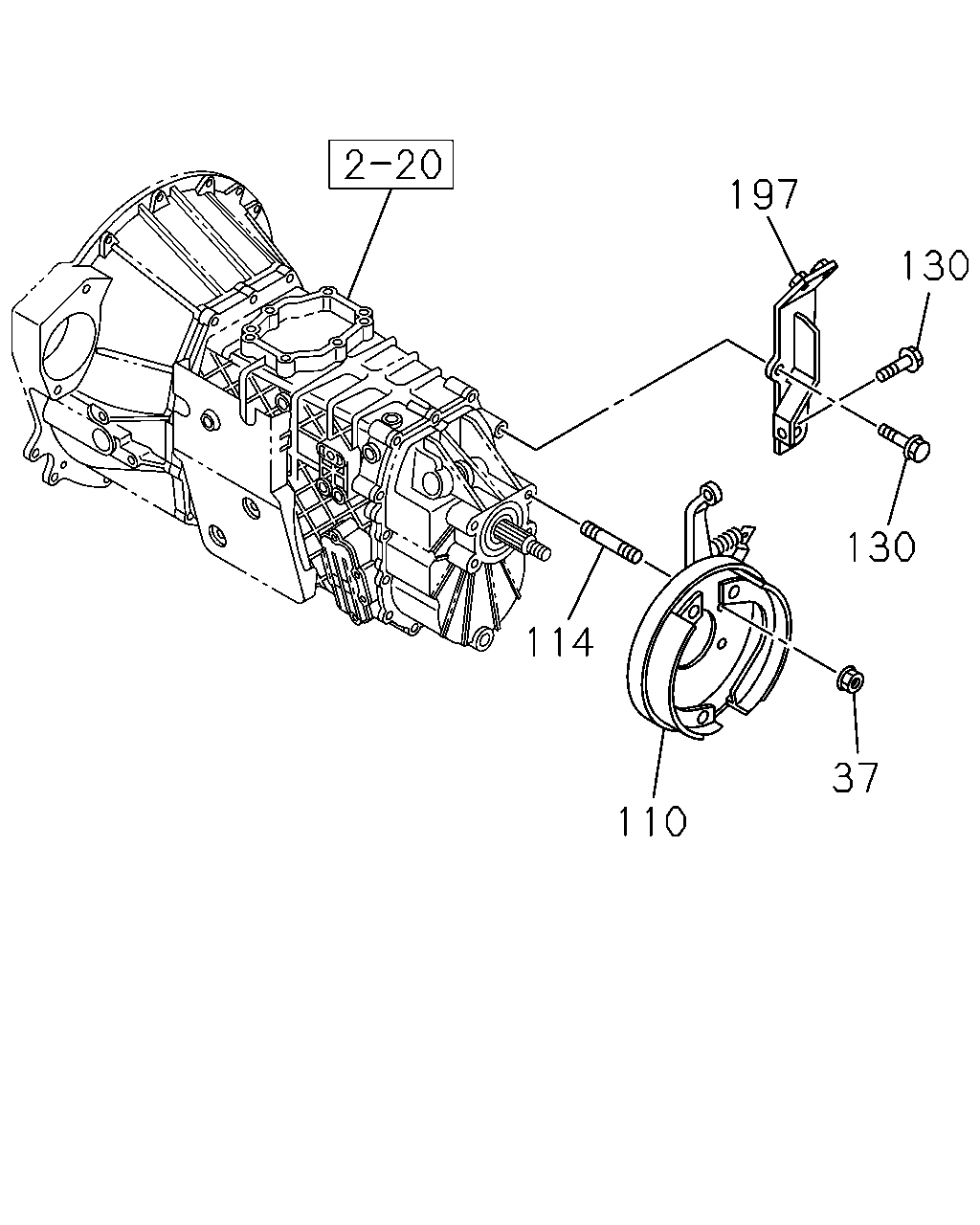

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0106-						●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC) M14 FLANGE	1-09440-048-0	04	1	9811-0207	●	●	●	●	●		●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●		●
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	8-97041-474-3	01	1	0208-		●	●	●
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF)	8-97041-474-3	01	1	0208-							●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9811-0109	●	●	●	●	●		●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	1-46200-260-0	01	1	0110-	●	●	●	●	●		●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-		●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-							●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97289-002-0	04	1	0010-0012	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97289-002-0	04	1	0101-0105	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0106-	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE	8-97289-002-0	04	1	0106-						●
130	05.605 BOLT; BRKT M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0208-		●	●	●
130	05.605 BOLT; BRKT M/T MZZ6U(RSF) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0208-							●
197	05.605 BRACKET; CENTER BRAKE CABLE M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	8-97244-812-0	01	1	0208-		●	●	●
197	05.605 BRACKET; CENTER BRAKE CABLE M/T MZZ6U(RSF)	8-97244-812-0	01	1	0208-							●

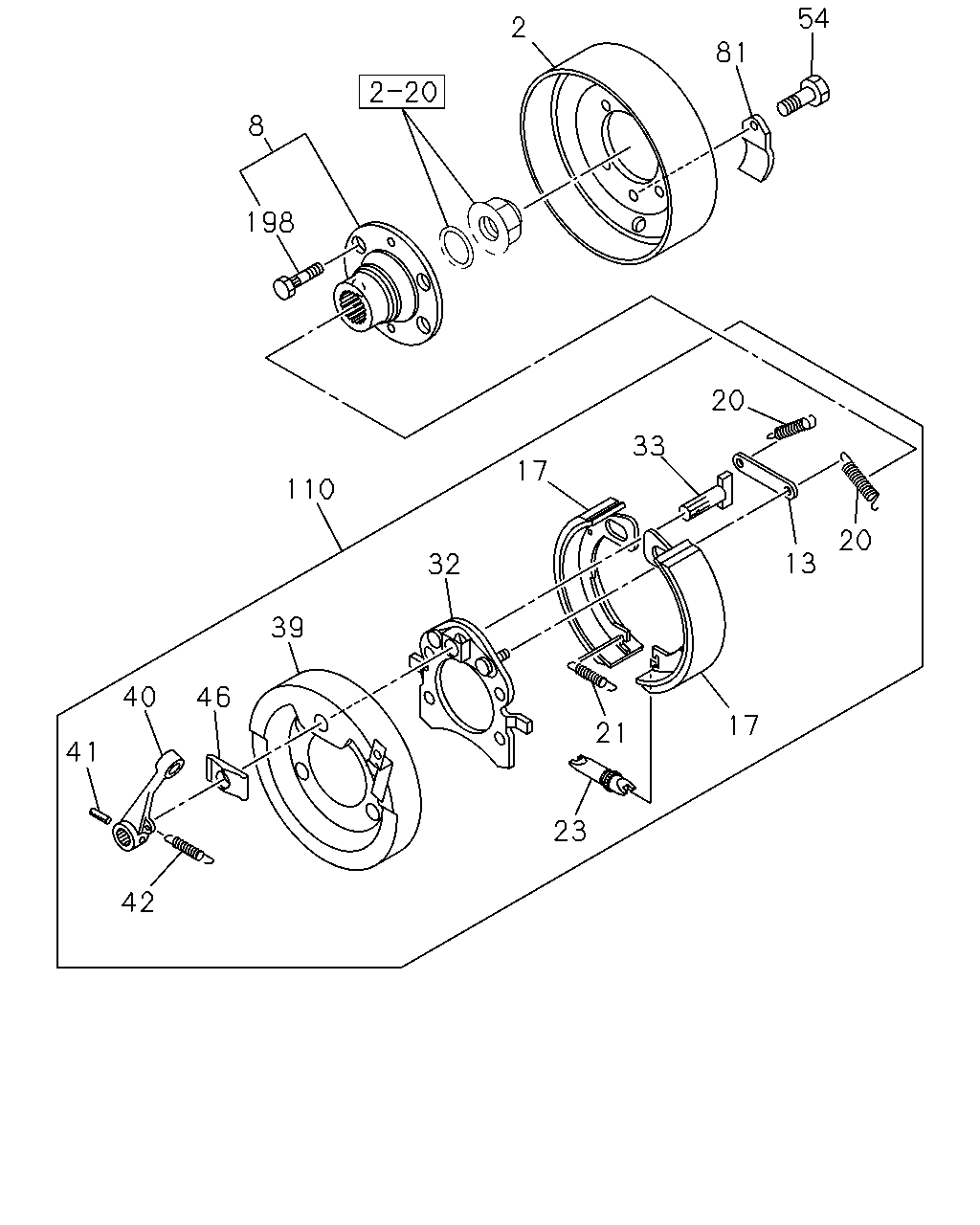

54 2 81 8 198 20 33 17 110 20 13 32 39 40 46 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	1-46211-057-0	01	1	0208-		●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-							●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-AISIN(RNJ)	8-97148-699-2	01	1	9811-	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97033-989-1	01	1	9811-0105	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9811-	●	●	●	●	●		●
8	05.605 FLANGE; PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	8-97252-811-1	01	1	0208-		●	●	●
8	05.605 FLANGE; PARKING BRK M/T MZZ6U(RSF)	8-97252-811-1	01	1	0208-							●
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	9811-	●	●	●	●	●		●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46239-003-0	01	1	9811-0207	●	●	●	●	●		●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46239-003-0	01	1	0208-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97042-934-1	02	1	9811-0207	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97020-250-2	02	1	9811-0105	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09586-002-0	02	1	9811-0207	●	●	●	●	●		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09586-002-0	02	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-280-0	01	1	9811-0207	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.605	8-94132-157-0	02	1	9811-0105	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46240-004-0	01	1	9811-0207	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-47165-025-0	01	1	9811-0105	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-069-0	01	1	9811-0207	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94311-780-1	01	1	9811-0105	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46251-009-0	01	1	9811-0207	●	●	●	●	●		●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46251-009-0	01	1	0208-	●	●	●	●	●		●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-075-0	01	1	9811-0207	●	●	●	●	●		●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-075-0	01	1	0208-	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC)	1-46252-033-1	01	1	0110-	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	9811-0109	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	0110-0207	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	0208-	●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-		●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-				●			●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	9-09878-594-0	01	1	9811-0207	●	●	●	●	●		●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	9-09878-594-0	01	1	0208-	●	●	●	●	●		●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-041-0	01	1	9811-0207	●	●	●	●	●		●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-041-0	01	1	0208-	●	●	●	●	●		●
46	05.605 WASHER; LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09509-057-0	01	1	9811-0207	●	●	●	●	●		●
46	05.605 WASHER; LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09509-057-0	01	1	0208-	●	●	●	●	●		●
54	05.606 BOLT; COVER M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0208-		●	●	●
54	05.606 BOLT; COVER M/T MZZ6U(RSF) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0208-							●
81	05.606 COVER; CHECK HOLE,PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	1-46219-061-1	02	1	0208-		●	●	●
81	05.606 COVER; CHECK HOLE,PARKING BRK M/T MZZ6U(RSF)	1-46219-061-1	02	1	0208-							●
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	8-97041-474-3	01	1	0208-		●	●	●
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF)	8-97041-474-3	01	1	0208-							●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9811-0109	●	●	●	●	●		●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	1-46200-260-0	01	1	0110-	●	●	●	●	●		●
198	05.605 BOLT; KNURL M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5) M12X39	1-09046-001-2	04	1	0208-		●	●	●
198	05.605 BOLT; KNURL M/T MZZ6U(RSF) M12X39	1-09046-001-2	04	1	0208-							●

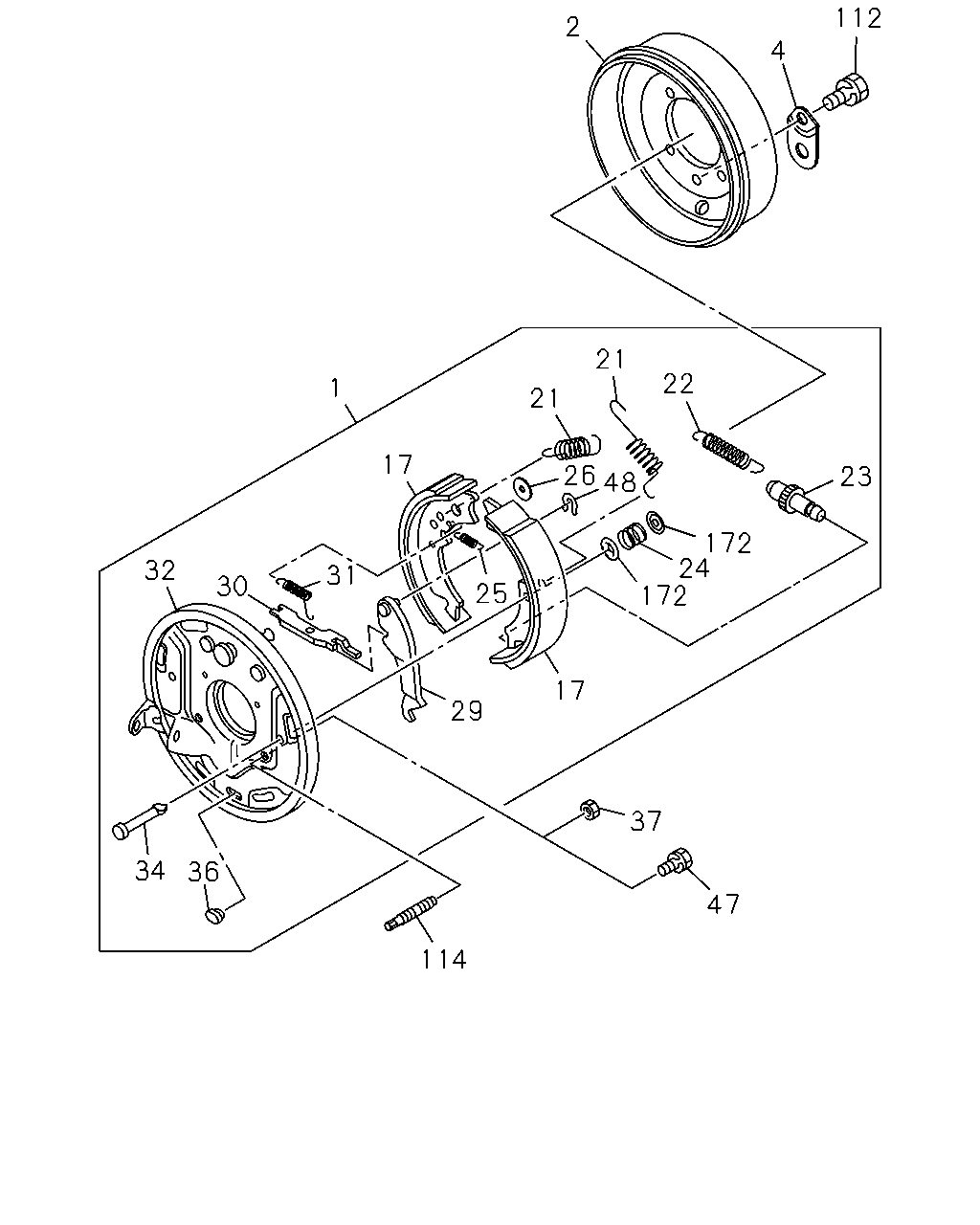

112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 36 34 47 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ)	8-97205-628-0	01	1	9811-0105	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ) EXC. PTO TRANSMISSION SIDE(V66)	8-97205-628-0	01	1	0106-0106	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ)	8-97205-628-0	01	1	0106-	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ) PTO TRANSMISSION SIDE(V66)	8-97041-474-3	01	1	0106-0106	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97100-212-2	01	1	9811-0105	●	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97100-212-2	01	1	0106-	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	1-46211-057-0	01	1	0208-		●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-							●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-AISIN(RNJ)	8-97148-699-2	01	1	9811-	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97033-989-1	01	1	9811-0105	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9811-	●	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46219-061-1	02	1	9811-	●	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-46219-001-0	01	1	9811-0105	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-46219-001-0	01	1	0106-	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97042-934-1	02	1	9811-0207	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97020-250-2	02	1	9811-0105	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-280-0	01	1	9811-0207	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.605	8-94132-157-0	02	1	9811-0105	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.605	8-94107-618-0	01	1	9811-0105	●	●	●	●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.605	8-94107-618-0	01	1	0106-	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46240-004-0	01	1	9811-0207	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-47165-025-0	01	1	9811-0105	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94132-155-0	02	1	9811-0105	●	●	●	●	●	●
24	05.605 SPRING; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94132-155-0	02	1	0106-	●	●	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94132-156-0	01	1	9811-0105	●	●	●	●	●	●
25	05.605 SPRING; SHOE ALIGNMENT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94132-156-0	01	1	0106-	●	●	●	●	●	●
26	05.605 PLATE; SHOE GUIDE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	9-09851-986-0	01	1	9811-0105	●	●	●	●	●	●
26	05.605 PLATE; SHOE GUIDE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	9-09851-986-0	01	1	0106-	●	●	●	●	●	●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.605	8-97027-125-0	01	1	9811-0105	●	●	●	●	●	●
29	04.591 LEVER; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.605	8-97027-125-0	01	1	0106-	●	●	●	●	●	●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94311-779-0	01	1	9811-0105	●	●	●	●	●	●
30	05.605 STRUT; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94311-779-0	01	1	0106-	●	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94132-158-0	01	1	9811-0105	●	●	●	●	●	●
31	05.605 SPRING; SHOE TO STRUT A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94132-158-0	01	1	0106-	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-069-0	01	1	9811-0207	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94311-780-1	01	1	9811-0105	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94132-159-0	02	1	9811-0105	●	●	●	●	●	●
34	05.605 PIN; BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94132-159-0	02	1	0106-	●	●	●	●	●	●
36	05.606 GROMMET; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.117	5-47169-002-0	01	1	9811-0105	●	●	●	●	●	●
36	05.606 GROMMET; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.117	5-47169-002-0	01	1	0106-	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0106-						●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC) M14 FLANGE	1-09440-048-0	04	1	9811-0207	●	●	●	●	●		●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-AISIN(RNJ) M14X30 FLANGE	0-28791-430-0	04	1	9811-	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT) M12X20 FLANGE	8-97213-401-0	04	1	9811-0009	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA) M12X20 FLANGE	8-97213-401-0	04	1	9811-0009					●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9811-		●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.158	9-46349-005-1	01	1	9811-0105	●	●	●	●	●	●
48	05.605 RETAINER; PIN,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.158	9-46349-005-1	01	1	0106-	●	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-AISIN(RNJ) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9811-	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9811-0105	●	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0106-	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-		●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MZZ6U(RSF) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0208-							●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97289-002-0	04	1	0010-0012	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97289-002-0	04	1	0101-0105	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MXA5R(RMT)	8-97289-002-0	04	1	0106-	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE	8-97289-002-0	04	1	0106-						●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.043	9-47162-033-0	04	1	9811-0105	●	●	●	●	●	●
172	05.605 CUP; SHOE HOLD A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.043	9-47162-033-0	04	1	0106-	●	●	●	●	●	●

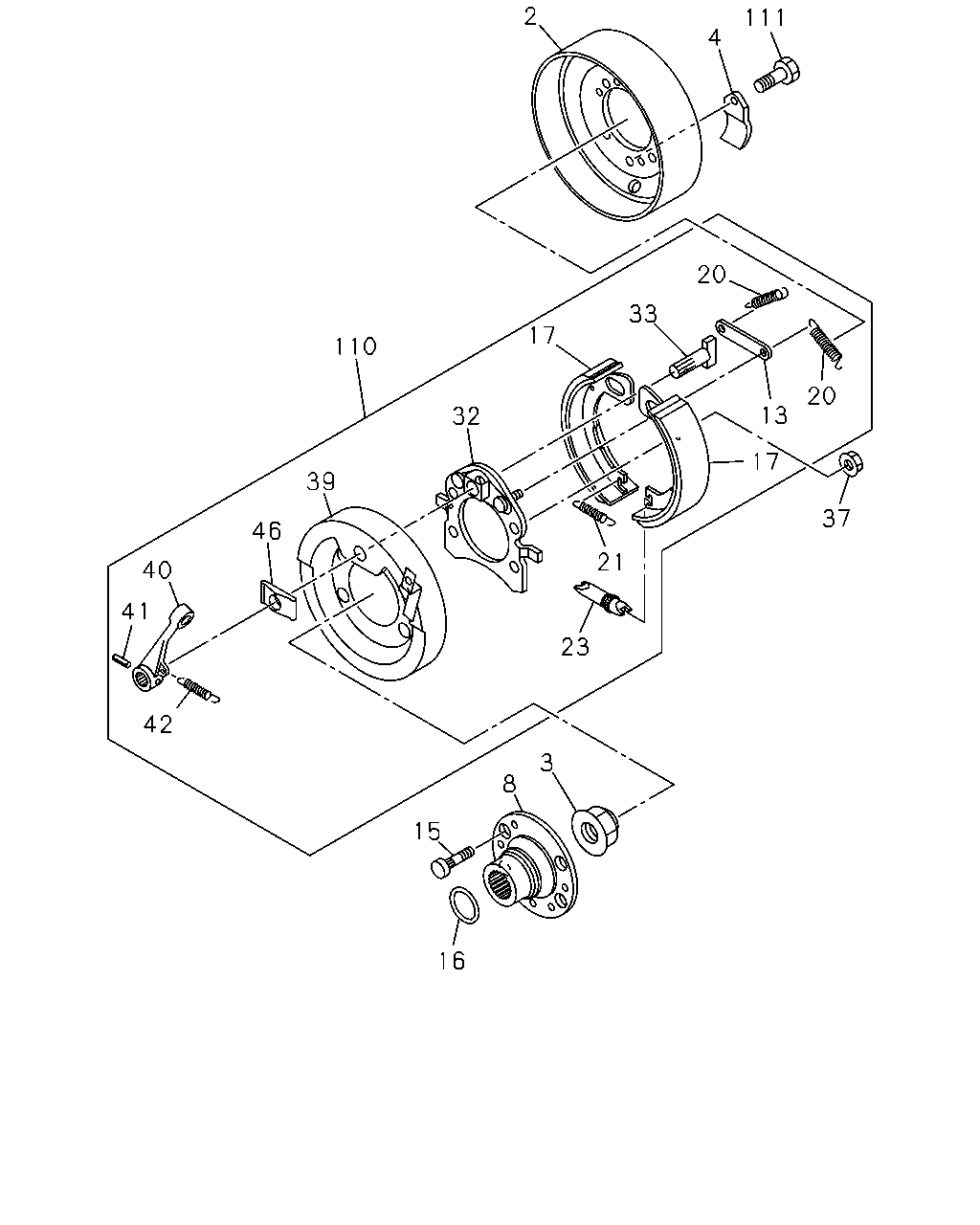

2 111 4 20 33 17 110 20 13 32 17 39 37 46 21 40 41 23 42 3 8 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	1-46211-057-0	01	1	0208-		●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-							●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-AISIN(RNJ)	8-97148-699-2	01	1	9811-	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97033-989-1	01	1	9811-0105	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9811-	●	●	●	●	●		●
3	05.610 NUT; LK M/T MBP6P(RNC) 05.595 M30 FLANGE	1-09449-066-1	01	1	9811-9909		●	●	●			●
3	05.610 NUT; LK M/T MBP6P(RNC) M33 FLANGE	1-09449-077-0	01	1	9910-	●	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46219-061-1	02	1	9811-	●	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-46219-001-0	01	1	9811-0105	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-46219-001-0	01	1	0106-	●	●	●	●	●	●
8	05.605 FLANGE; PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	8-97252-811-1	01	1	0208-		●	●	●
8	05.605 FLANGE; PARKING BRK M/T MZZ6U(RSF)	8-97252-811-1	01	1	0208-							●
8	05.605 FLANGE; PARKING BRK M/T MBP6P(RNC)	1-37243-254-0	01	1	9811-	●	●	●	●	●		●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46239-003-0	01	1	9811-0207	●	●	●	●	●		●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46239-003-0	01	1	0208-	●	●	●	●	●		●
15	05.605 BOLT; FLANGE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) M12X39	1-09046-001-2	04	1	9811-	●	●	●	●	●		●
16	05.606 GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). M/T MBP6P(RNC) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	9811-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97042-934-1	02	1	9811-0207	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97020-250-2	02	1	9811-0105	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09586-002-0	02	1	9811-0207	●	●	●	●	●		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09586-002-0	02	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-280-0	01	1	9811-0207	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.605	8-94132-157-0	02	1	9811-0105	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46240-004-0	01	1	9811-0207	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-47165-025-0	01	1	9811-0105	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-069-0	01	1	9811-0207	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94311-780-1	01	1	9811-0105	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46251-009-0	01	1	9811-0207	●	●	●	●	●		●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46251-009-0	01	1	0208-	●	●	●	●	●		●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA) M12 LOCK NUT	8-97248-173-0	04	1	0010-0105	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MXA5R(RMT) M12 LOCK NUT	8-97248-173-0	04	1	0106-	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-97248-173-0	04	1	0106-						●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC) M14 FLANGE	1-09440-048-0	04	1	9811-0207	●	●	●	●	●		●
37	05.610 NUT; SUPPORT PLATE M/T MBP6P(RNC),M/T MZZ6U(RSF) M14 FLANGE	1-09440-048-0	04	1	0208-	●	●	●	●	●		●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-075-0	01	1	9811-0207	●	●	●	●	●		●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-075-0	01	1	0208-	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC)	1-46252-033-1	01	1	0110-	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	9811-0109	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	0110-0207	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	0208-	●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-		●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-				●			●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	9-09878-594-0	01	1	9811-0207	●	●	●	●	●		●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	9-09878-594-0	01	1	0208-	●	●	●	●	●		●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-041-0	01	1	9811-0207	●	●	●	●	●		●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-041-0	01	1	0208-	●	●	●	●	●		●
46	05.605 WASHER; LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09509-057-0	01	1	9811-0207	●	●	●	●	●		●
46	05.605 WASHER; LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09509-057-0	01	1	0208-	●	●	●	●	●		●
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	8-97041-474-3	01	1	0208-		●	●	●
110	05.610 BRAKE ASM; PARKING M/T MZZ6U(RSF)	8-97041-474-3	01	1	0208-							●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	8-97041-474-3	01	1	9811-0109	●	●	●	●	●		●
110	05.610 BRAKE ASM; PARKING M/T MBP6P(RNC)	1-46200-260-0	01	1	0110-	●	●	●	●	●		●
111	05.606 BOLT; COVER,CHECK HOLE M/T MBP6P(RNC) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9811-	●	●	●	●	●		●

2 112 4 15 20 33 17 1 20 13 32 39 47 40 46 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ)	8-97205-628-0	01	1	9811-0105	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ) EXC. PTO TRANSMISSION SIDE(V66)	8-97205-628-0	01	1	0106-0106	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ)	8-97205-628-0	01	1	0106-	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-AISIN(RNJ) PTO TRANSMISSION SIDE(V66)	8-97041-474-3	01	1	0106-0106	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97100-212-2	01	1	9811-0105	●	●	●	●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97100-212-2	01	1	0106-	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF) NEW ZEALAND EQUIPMENT(PK5)	1-46211-057-0	01	1	0208-		●	●	●
2	05.605 DRUM; PARKING BRK M/T MZZ6U(RSF)	1-46211-057-0	01	1	0208-							●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-AISIN(RNJ)	8-97148-699-2	01	1	9811-	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97033-989-1	01	1	9811-0105	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97033-989-1	01	1	0106-	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK M/T MBP6P(RNC)	1-46211-042-3	01	1	9811-	●	●	●	●	●		●
4	05.606 COVER; ADJ HOLE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46219-061-1	02	1	9811-	●	●	●	●	●		●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-46219-001-0	01	1	9811-0105	●	●	●	●	●	●
4	05.606 COVER; ADJ HOLE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-46219-001-0	01	1	0106-	●	●	●	●	●	●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46239-003-0	01	1	9811-0207	●	●	●	●	●		●
13	05.615 BRACE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46239-003-0	01	1	0208-	●	●	●	●	●		●
15	05.605 BOLT; FLANGE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) M12X39	1-09046-001-2	04	1	9811-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	8-97042-934-1	02	1	9811-0207	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	8-97042-934-1	02	1	0208-	●	●	●	●	●		●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97020-250-2	02	1	9811-0105	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-97020-250-2	02	1	0106-	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09586-002-0	02	1	9811-0207	●	●	●	●	●		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09586-002-0	02	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-280-0	01	1	9811-0207	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-280-0	01	1	0208-	●	●	●	●	●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 05.605	8-94132-157-0	02	1	9811-0105	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 05.605	8-94132-157-0	02	1	0106-	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46240-004-0	01	1	9811-0207	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46240-004-0	01	1	0208-	●	●	●	●	●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	5-47165-025-0	01	1	9811-0105	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	5-47165-025-0	01	1	0106-	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-069-0	01	1	9811-0207	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-069-0	01	1	0208-	●	●	●	●	●		●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA)	8-94311-780-1	01	1	9811-0105	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT)	8-94311-780-1	01	1	0106-	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46251-009-0	01	1	9811-0207	●	●	●	●	●		●
33	05.605 SHAFT; CAM,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46251-009-0	01	1	0208-	●	●	●	●	●		●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46213-075-0	01	1	9811-0207	●	●	●	●	●		●
39	05.610 COVER; DUST,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46213-075-0	01	1	0208-	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC)	1-46252-033-1	01	1	0110-	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	9811-0109	●	●	●	●	●		●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	0110-0207	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ)	1-46252-041-0	01	1	0208-	●
40	05.605 LEVER; CM/SHF,PARKING BRK A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-		●	●
40	05.605 LEVER; CM/SHF,PARKING BRK M/T MZZ6U(RSF)	1-46252-041-0	01	1	0208-				●			●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	9-09878-594-0	01	1	9811-0207	●	●	●	●	●		●
41	05.605 PIN; KNOCK,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	9-09878-594-0	01	1	0208-	●	●	●	●	●		●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09583-041-0	01	1	9811-0207	●	●	●	●	●		●
42	05.605 SPRING; RETURN,LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09583-041-0	01	1	0208-	●	●	●	●	●		●
46	05.605 WASHER; LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ)	1-09509-057-0	01	1	9811-0207	●	●	●	●	●		●
46	05.605 WASHER; LEVER M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF)	1-09509-057-0	01	1	0208-	●	●	●	●	●		●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-AISIN(RNJ) M14X30 FLANGE	0-28791-430-0	04	1	9811-	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT) M12X20 FLANGE	8-97213-401-0	04	1	9811-0009	●	●	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MXA5R(RMT),M/T MXA5S(RNA) M12X20 FLANGE	8-97213-401-0	04	1	9811-0009					●
47	05.610 BOLT; SUPPORT PLATE A/T 4 SPEED-JATCO(RMK) 04.665 M12X32 W/LK WASHER	0-50051-232-0	04	1	9811-		●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-AISIN(RNJ) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9811-	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9811-0105	●	●	●	●	●	●
112	05.606 BOLT; COVER TO BRK DRUM A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0106-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
