◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#22158) — 657 parça

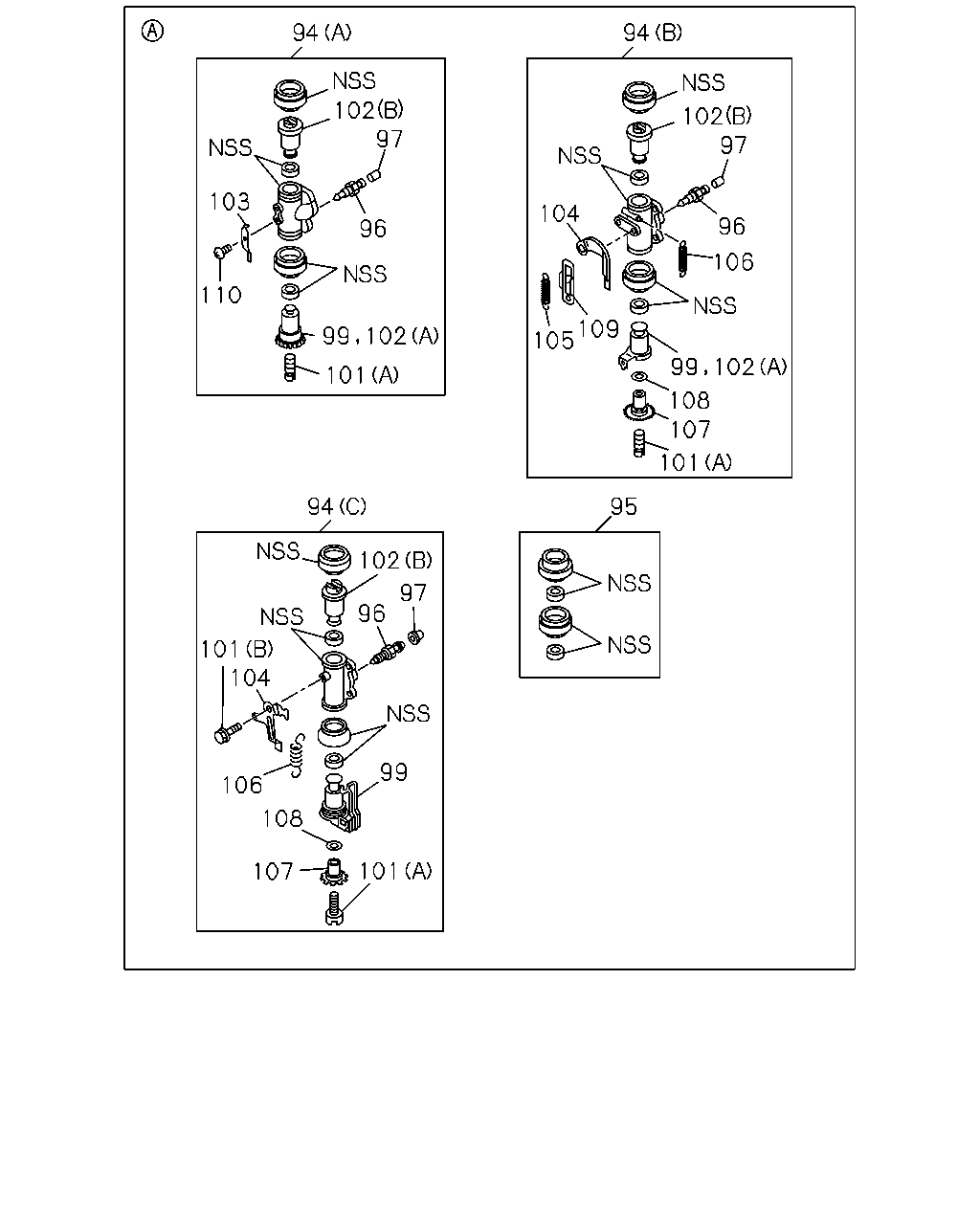

çizim 10586
94 94 102 97 102 97 103 104 96 96 106 110 109 105 101 108 107 101 94 95 102 97 96 101 104 99 106 108 101 107 99 102 99 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97179-352-0 02 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97179-352-0 02 1 0106- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) (A) 		8-97179-352-0 02 1 0106- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (A) 		8-97179-352-0 02 1 0106- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) FRONT 		8-97179-350-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) FRONT 		8-97179-350-0 01 1 0106- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) (A) FRONT 		8-97179-350-0 01 1 0106- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (A) FRONT 		8-97179-350-0 01 1 0106- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) REAR 		8-97179-351-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) REAR 		8-97179-351-0 01 1 0106- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) (A) REAR 		8-97179-351-0 01 1 0106- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (A) REAR 		8-97179-351-0 01 1 0106- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-97139-856-0 02 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97139-856-0 02 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97139-856-0 02 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-856-0 02 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 292MM(G73) (A) 		8-97139-856-0 02 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97139-856-0 02 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97139-856-0 02 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-856-0 02 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-856-0 02 1 0106-0203 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97332-227-0 02 1 0204- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 292MM(G73) (A) FRONT 		8-97139-854-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97139-854-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97139-854-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-854-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 292MM(G73) (A) FRONT 		8-97139-854-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-97139-854-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97139-854-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-854-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-854-0 01 1 0106-0203 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97332-225-0 01 1 0204- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 292MM(G73) (A) REAR 		8-97139-855-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97139-855-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97139-855-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-855-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 292MM(G73) (A) REAR 		8-97139-855-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> (A) REAR 		8-97139-855-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.5-8.0TON(RPY) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97139-855-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-855-0 01 1 0007-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-855-0 01 1 0106-0203 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97332-226-0 01 1 0204- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		8-97147-969-0 02 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97147-969-0 02 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		8-97147-969-0 02 1 0007-0105 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97147-969-0 02 1 0007-0105 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97147-969-0 02 1 0106-0209 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97353-570-0 02 1 0210- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (A) 		8-97168-759-0 02 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97147-967-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97147-967-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97147-967-0 01 1 0007-0105 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97147-967-0 01 1 0007-0105 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97147-967-0 01 1 0106-0209 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97353-572-0 01 1 0210- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97147-968-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97147-968-0 01 1 9811-0006 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97147-968-0 01 1 0007-0105 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97147-968-0 01 1 0007-0105 ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97147-968-0 01 1 0106-0209 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97353-571-0 01 1 0210- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97168-755-0 01 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97168-757-0 01 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97144-801-0 02 1 9811-0005 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97144-801-0 02 1 0006-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97144-801-0 02 1 0106-0203 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97332-224-0 02 1 0204- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97144-799-0 01 1 9811-0005 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97144-799-0 01 1 0006-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97144-799-0 01 1 0106-0203 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97332-222-0 01 1 0204- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97144-800-0 01 1 9811-0005 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97144-800-0 01 1 0006-0105 ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97144-800-0 01 1 0106-0203 ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97332-223-0 01 1 0204- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) (A) 		8-97139-825-0 02 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-825-0 02 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-97139-825-0 02 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97139-825-0 02 1 0106- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) (A) FRONT 		8-97139-822-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-822-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) FRONT 		8-97139-822-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) FRONT 		8-97139-822-0 01 1 0106- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) (A) REAR 		8-97139-824-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-824-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) REAR 		8-97139-824-0 01 1 9811-0105 ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) REAR 		8-97139-824-0 01 1 0106- ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> (B) 		8-97139-850-0 02 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> (B) FRONT 		8-97139-847-0 01 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> (B) REAR 		8-97139-849-0 01 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97139-853-0 02 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97139-853-0 02 1 0106-0206 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97349-705-0 02 1 0207- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> (B) FRONT 		8-97139-851-0 01 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) FRONT 		8-97139-851-0 01 1 0106-0206 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) REAR 		8-97349-706-0 01 1 0207- ●
94 04.665 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> (B) REAR 		8-97139-852-0 01 1 9811-0105 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97139-852-0 01 1 0106-0206 ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) FRONT 		8-97349-708-0 01 1 0207- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) 		8-97139-835-0 02 1 0101- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT 		8-97139-833-0 01 1 0101- ●
94 04.665 CYLINDER; WHEEL,RR BRK
(B) REAR 		8-97139-834-0 01 1 0101- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-87831-621-0 01 1 9811-0105 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-87831-621-0 01 1 0106- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		5-87831-621-0 01 1 0106- ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		5-87831-621-0 01 1 0106- ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-604-0 02 1 9811-9903 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52> 		5-87831-604-0 02 1 9811-9903 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 9811-9903 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> 		5-87831-604-0 02 1 9811-9903 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 9811-9903 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-604-0 02 1 9904-0005 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52> 		5-87831-604-0 02 1 9904-0005 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 9904-0005 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		5-87831-604-0 02 1 9904-0005 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 9904-0005 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-604-0 02 1 0006-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52> 		5-87831-604-0 02 1 0006-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 0006-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		5-87831-604-0 02 1 0006-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 0006-0105 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		5-87831-604-0 02 1 0106-0203 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-604-0 02 1 0106-0203 ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		5-87832-051-0 02 1 0204- ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87832-051-0 02 1 0204- ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		5-87831-567-0 02 1 9811-0006 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-567-0 02 1 9811-0006 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		5-87831-567-0 02 1 0007-0105 ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-567-0 02 1 0007-0105 ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-567-0 02 1 0106-0209 ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87832-080-0 02 1 0210- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 02 1 9811-0105 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> 		5-87831-598-0 02 1 9811-0105 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		5-87831-598-0 02 1 9811-0105 ● ● ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> 		5-87831-598-0 02 1 0106- ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> 		5-87831-622-0 01 1 9811-0012 ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) DISC BRAKE FRT<J52> 		5-87831-622-0 01 1 0101-0105 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0101-0105 ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 0106- ●
95 04.665 CUP SET; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		5-87831-624-0 01 1 9811-0105 ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		5-87831-624-0 01 1 0106-0206 ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		5-87832-070-0 01 1 0207- ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 9811- ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 9811- ● ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97078-622-0 02 1 9811-0105 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97078-622-0 02 1 0106- ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-97078-622-0 02 1 0106- ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97078-622-0 02 1 0106- ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97038-687-0 02 1 0106-0203 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97038-687-0 02 1 0106-0203 ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97332-229-0 02 1 0204- ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97332-229-0 02 1 0204- ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97147-973-0 02 1 9811-0006 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97147-973-0 02 1 9811-0006 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97147-973-0 02 1 0007-0105 ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97147-973-0 02 1 0007-0105 ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97147-973-0 02 1 0106-0209 ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97353-579-0 02 1 0210- ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-770-0 02 1 9811-0105 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-771-0 02 1 9811-0105 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 02 1 9811-0105 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94414-700-1 02 1 9811-0105 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-94414-700-1 02 1 9811-0105 ● ● ● ● ● ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94414-700-1 02 1 0106- ● ● ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> D=25.4 		8-94129-015-1 02 1 9811-0105 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> D=25.4 		8-94128-538-1 02 1 9811-0105 ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-97078-043-0 02 1 9811-0105 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97078-043-0 02 1 0106-0206 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-729-0 02 1 0207- ●
99 04.668 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-97078-044-0 02 1 9811-0105 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97078-044-0 02 1 0106-0206 ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-730-0 02 1 0207- ●
99 04.668 PISTON; RR WHEEL CYL
D=25.4 		8-94129-016-1 02 1 0101- ●
99 04.668 PISTON; RR WHEEL CYL
D=25.4 		8-94128-539-1 02 1 0101- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97349-747-0 04 1 0207- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 05.110 (A) 		8-97078-623-0 04 1 9811-0105 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 05.110 (A) 		8-97078-623-0 04 1 0106- ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 05.110 (A) 		8-97078-623-0 04 1 0106- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 05.110 (A) 		8-97078-623-0 04 1 0106- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 9811-0105 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 0106-0206 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97349-742-0 02 1 0207- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 9811-0105 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 0106-0206 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97349-741-0 02 1 0207- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (A) 		8-94414-702-0 04 1 9811-9903 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94414-702-0 04 1 9811-9903 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 41/6(6YB) (A) 		8-94414-702-0 04 1 9811-9903 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) (A) 		8-94414-702-0 04 1 9811-9903 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-94414-702-0 04 1 9811-9903 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-94414-702-0 04 1 9811-9903 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (A) 		8-94414-702-0 04 1 9904-0005 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94414-702-0 04 1 9904-0005 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/9(S2J),FINAL GEAR RATIO 41/6(6YB) (A) 		8-94414-702-0 04 1 9904-0005 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) (A) 		8-94414-702-0 04 1 9904-0005 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-94414-702-0 04 1 9904-0005 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-94414-702-0 04 1 9904-0005 ● ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (A) 		8-94414-702-0 04 1 0006-0105 ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94414-702-0 04 1 0006-0105 ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/9(S2J),FINAL GEAR RATIO 41/6(6YB) (A) 		8-94414-702-0 04 1 0006-0105 ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) (A) 		8-94414-702-0 04 1 0006-0105 ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) (A) 		8-94414-702-0 04 1 0006-0105 ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-94414-702-0 04 1 0006-0105 ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-94414-702-0 04 1 0106- ● ● ● ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M10 LH THREAD 		5-47622-006-2 02 1 0101- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) M10 		5-47622-005-2 02 1 0101- ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) (B) D=25.4 		8-94128-531-1 04 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> (B) D=25.4 		8-94128-531-1 04 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (B) D=25.4 		8-94128-531-1 04 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (B) D=25.4 		8-94128-531-1 04 1 0106- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) (B) D=25.4 		8-94128-531-1 04 1 0106- ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (B) D=25.4 		8-94128-531-1 04 1 0106- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97078-622-0 02 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> (A) 		8-97078-622-0 02 1 0106- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) (A) 		8-97078-622-0 02 1 0106- ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (A) 		8-97078-622-0 02 1 0106- ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97038-686-0 04 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52> (B) 		8-97038-686-0 04 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> (B) 		8-97038-686-0 04 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97038-686-0 04 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52> (B) 		8-97038-686-0 04 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B) 		8-97038-686-0 04 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97038-686-0 04 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> DISC BRAKE FRT<J52> (B) 		8-97038-686-0 04 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B) 		8-97038-686-0 04 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B) 		8-97038-686-0 04 1 0106-0203 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97038-686-0 04 1 0106-0203 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (B) 		8-97332-043-0 04 1 0204- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97332-043-0 04 1 0204- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) REAR AXLE HEAVY DUTY 292MM(G73) BRK WHL LK CONT LSPV<6PH> (A) 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 9811-9903 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 9904-0005 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 0006-0105 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97038-687-0 02 1 0106-0203 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97038-687-0 02 1 0106-0203 ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97332-229-0 02 1 0204- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97332-229-0 02 1 0204- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (B) 		8-97147-972-0 04 1 9811-0006 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97147-972-0 04 1 9811-0006 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (B) 		8-97147-972-0 04 1 0007-0105 ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97147-972-0 04 1 0007-0105 ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97147-972-0 04 1 0106-0209 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97353-578-0 04 1 0210- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		8-97147-973-0 02 1 9811-0006 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97147-973-0 02 1 9811-0006 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		8-97147-973-0 02 1 0007-0105 ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97147-973-0 02 1 0007-0105 ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97147-973-0 02 1 0106-0209 ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97353-579-0 02 1 0210- ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) (A) 		8-94414-700-1 02 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94414-700-1 02 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-94414-700-1 02 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94414-700-1 02 1 0106- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) (B) D=30.16 		8-94414-701-1 04 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (B) D=30.16 		8-94414-701-1 04 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (B) D=30.16 		8-94414-701-1 04 1 9811-0105 ● ● ● ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (B) D=30.16 		8-94414-701-1 04 1 0106- ● ● ●
102 04.668 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> (B) 		8-97078-045-0 04 1 9811-0105 ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97078-045-0 04 1 0106- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) D=25.4 		8-94128-537-1 04 1 0101- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 9811-0105 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 292MM(G73) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-94128-486-0 04 1 9811-0105 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94128-486-0 04 1 9811-0105 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
MINI BUS CHASSIS<V4B> 		8-94128-486-0 04 1 9811-0105 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-94128-486-0 04 1 9811-0105 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> 		8-94128-486-0 04 1 9811-0105 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0106- ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94128-486-0 04 1 0106- ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97122-877-0 04 1 9811-0005 ● ● ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97122-877-0 04 1 0006-0105 ● ● ● ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97122-877-0 04 1 0106- ● ● ●
104 05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> 		8-94366-174-0 02 1 9811-0105 ●
104 05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94366-174-0 02 1 0106-0206 ●
104 05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-744-0 02 1 0207- ●
104 05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> 		8-94366-173-0 02 1 9811-0105 ●
104 05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94366-173-0 02 1 0106-0206 ●
104 05.103 LEVER; ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-743-0 02 1 0207- ●
104 05.103 LEVER; ADJ 5-47619-040-2 02 1 0101- ●
104 05.103 LEVER; ADJ 5-47619-039-2 02 1 0101- ●
105 05.107 SPRING; OVER TRAVEL,ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> 		5-09583-110-0 04 1 9811-0012 ●
105 05.107 SPRING; OVER TRAVEL,ADJ
DISC BRAKE FRT<J52> 		5-09583-110-0 04 1 0101-0206 ●
105 05.107 SPRING; OVER TRAVEL,ADJ 5-09583-110-0 04 1 0101-0206 ●
105 05.107 SPRING; OVER TRAVEL,ADJ 5-09583-110-0 04 1 0207- ●
106 05.107 SPRING; ADJ LEVER
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> 		5-09585-045-0 04 1 9811-0105 ●
106 05.107 SPRING; ADJ LEVER
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		5-09585-045-0 04 1 0106-0206 ●
106 05.107 SPRING; ADJ LEVER
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-745-0 04 1 0207- ●
106 05.107 SPRING; ADJ LEVER 5-09585-046-0 04 1 0101- ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-772-2 02 1 9811-0105 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-773-2 02 1 9811-0105 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> 		5-47623-006-0 02 1 9811-0105 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> 		5-47623-005-0 02 1 9811-0105 ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-94340-534-0 02 1 9811-0105 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94340-534-0 02 1 0106-0206 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-738-0 02 1 0207- ●
107 05.110 GEAR; ADJ,RR W/CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-94340-533-0 02 1 9811-0105 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-94340-533-0 02 1 0106-0206 ●
107 05.110 GEAR; ADJ,RR W/CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-740-0 02 1 0207- ●
107 05.110 GEAR; ADJ,RR W/CYL 5-47623-008-1 02 1 0101- ●
107 05.110 GEAR; ADJ,RR W/CYL 5-47623-007-1 02 1 0101- ●
108 05.110 WASHER; THRUST,GEAR ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> 		8-97029-304-0 04 1 9811-0105 ●
108 05.110 WASHER; THRUST,GEAR ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97029-304-0 04 1 0106-0206 ●
108 05.110 WASHER; THRUST,GEAR ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97349-736-0 04 1 0207- ●
108 05.110 WASHER; THRUST,GEAR ADJ
ID=8 		5-09503-085-0 04 1 0101- ●
109 04.665 FITTING; AUTO ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> 		5-47619-042-0 04 1 9811-0105 ●
109 04.665 FITTING; AUTO ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		5-47619-042-0 04 1 0106-0206 ●
109 04.665 FITTING; AUTO ADJ 5-47619-041-0 04 1 0101- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94128-727-0 04 1 9811-0105 ● ● ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
MINI BUS CHASSIS<V4B> 		8-94128-727-0 04 1 9811-0105 ● ● ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 9811-0105 ● ● ● ● ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0106- ● ● ● ● ● ●

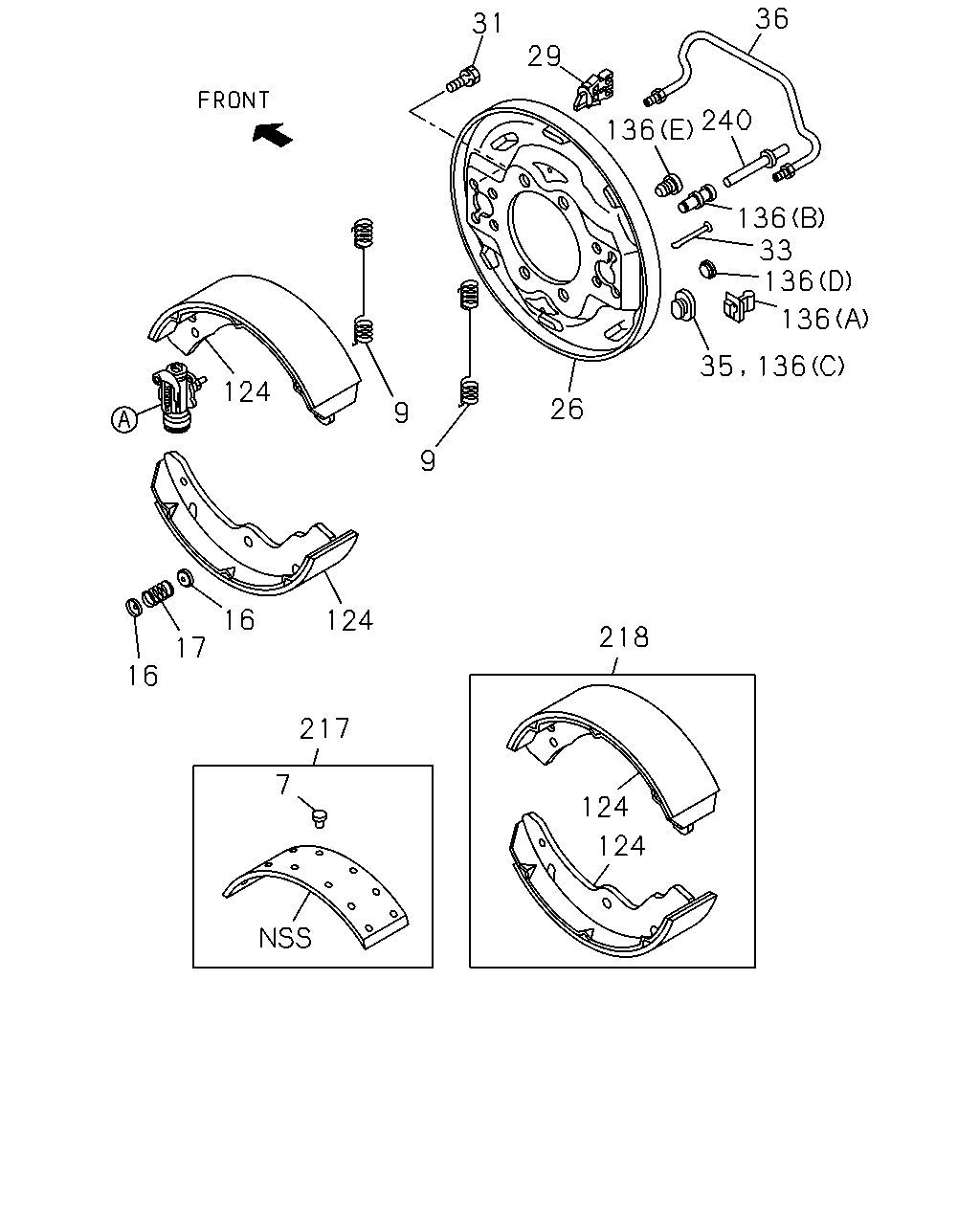

çizim 48961
36 31 29 240 136 136 33 136 136 35 136 124 26 9 9 16 124 218 17 16 217 7 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
7 05.019 RIVET; LINING,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		1-09732-029-0 40 1 9811-0105 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		1-09732-029-0 40 1 9811-0105 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 40 1 9811-0105 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 0106- ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		1-09732-029-0 48 1 0106- ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 9811-0006 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 9811-0006 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		1-09732-029-0 48 1 9811-0006 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		1-09732-029-0 48 1 9811-0006 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		1-09732-029-0 48 1 9811-0006 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 0007-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 0007-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		1-09732-029-0 48 1 0007-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		1-09732-029-0 48 1 0007-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		1-09732-029-0 48 1 0007-0105 ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		1-09732-029-0 40 1 0106- ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		1-09732-029-0 40 1 0106- ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 40 1 0106- ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		1-09732-029-0 64 1 9811-0005 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		1-09732-029-0 64 1 9811-0005 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 9811-0005 ● ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		1-09732-029-0 64 1 0006-0105 ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		1-09732-029-0 64 1 0006-0105 ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 0006-0105 ● ● ● ● ●
7 05.019 RIVET; LINING,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		1-09732-029-0 64 1 0106- ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 4.0-4.5TON(RPR) 		5-09583-118-0 04 1 9811-0105 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		5-09583-118-0 04 1 9811-0105 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		5-09583-118-0 04 1 9811-0105 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-09583-118-0 04 1 0106- ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		5-09583-118-0 04 1 0106- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		5-09583-118-0 04 1 0106- ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 9811-0006 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 9811-0006 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97022-087-0 04 1 9811-0006 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-087-0 04 1 9811-0006 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-087-0 04 1 9811-0006 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0007-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 0007-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97022-087-0 04 1 0007-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-087-0 04 1 0007-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-087-0 04 1 0007-0105 ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0106- ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-087-0 04 1 0106- ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97122-869-0 04 1 9811-0005 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 9811-0005 ● ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97122-869-0 04 1 0006-0105 ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 0006-0105 ● ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-869-0 04 1 0106- ● ● ● ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-774-0 04 1 9811-0105 ●
9 05.026 SPRING; RETURN,BRK SHOE 8-94438-227-0 04 1 0101- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 9811- ● ● ● ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 0101- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 9811- ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0101- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97078-606-0 01 1 9811-0105 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97078-606-0 01 1 0106- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-97078-606-0 01 1 0106- ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97078-606-0 01 1 0106- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97078-605-0 01 1 9811-0105 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97078-605-0 01 1 0106- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-97078-605-0 01 1 0106- ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97078-605-0 01 1 0106- ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97094-501-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-501-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97094-501-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97094-501-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97094-501-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-501-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97094-501-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97094-501-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97094-501-0 01 1 0106-0107 ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 0108- ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97094-500-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-500-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97094-500-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97094-500-0 01 1 9811-0006 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97094-500-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-500-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97094-500-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97094-500-0 01 1 0007-0105 ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97094-500-0 01 1 0106-0107 ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 0108- ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97134-732-0 01 1 9811-0005 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97134-732-0 01 1 9811-0005 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97134-732-0 01 1 0006-0105 ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97134-732-0 01 1 0006-0105 ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-732-0 01 1 0106- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-750-0 01 1 9811-0105 ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97134-731-0 01 1 9811-0005 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97134-731-0 01 1 9811-0005 ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97134-731-0 01 1 0006-0105 ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97134-731-0 01 1 0006-0105 ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97134-731-0 01 1 0106- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-748-0 01 1 9811-0105 ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> 		8-97079-849-0 01 1 9811-0105 ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> 		8-97079-848-0 01 1 9811-0105 ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-97191-494-1 01 1 9811-0105 ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97191-494-1 11 1 0106- ●
26 05.001 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-97191-493-1 01 1 9811-0105 ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97191-493-1 01 1 0106- ●
26 05.001 PLATE; BACK,RR BRK 8-97079-853-0 01 1 0101- ●
26 05.001 PLATE; BACK,RR BRK 8-97079-852-0 01 1 0101- ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94128-306-0 02 1 9811-0105 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-94128-306-0 02 1 9811-0105 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-94128-306-0 02 1 9811-0105 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94128-306-0 02 1 0106- ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-94128-306-0 02 1 0106- ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-94128-306-0 02 1 0106- ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-086-0 02 1 9811-0005 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-086-0 02 1 9811-0005 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-086-0 02 1 9811-0005 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-086-0 02 1 9811-0005 ● ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-086-0 02 1 0006-0105 ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97022-086-0 02 1 0006-0105 ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-086-0 02 1 0006-0105 ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-086-0 02 1 0006-0105 ● ● ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 02 1 0106- ● ● ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-97022-086-0 02 1 0106- ● ● ● ●
29 04.685 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-086-0 02 1 0106- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-09030-016-1 16 1 9811-0012 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		5-09030-016-1 16 1 9811-0012 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		5-09030-016-1 16 1 9811-0012 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR) 		5-09030-016-1 16 1 0101-0105 ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		5-09030-016-1 16 1 0101-0105 ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		5-09030-016-1 16 1 0101-0105 ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0101-0105 ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-09030-016-1 16 1 0106- ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 0106- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97022-088-0 16 1 9811-0105 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-088-0 16 1 9811-0105 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-088-0 16 1 9811-0105 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-088-0 16 1 9811-0105 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97022-088-0 16 1 0106- ● ● ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) 		8-97022-088-0 16 1 0106- ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-088-0 16 1 0106- ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 9811-9903 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97081-305-0 16 1 9811-9903 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 9904-0005 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97081-305-0 16 1 9904-0005 ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 0006-0105 ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97081-305-0 16 1 0006-0105 ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> 		8-97081-305-0 16 1 0106- ● ● ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) 		8-97081-305-0 16 1 0106- ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 4.0-4.5TON(RPR) 		5-47162-001-0 04 1 9811-0105 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		5-47162-001-0 04 1 9811-0105 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		5-47162-001-0 04 1 9811-0105 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-47162-001-0 04 1 0106- ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		5-47162-001-0 04 1 0106- ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		5-47162-001-0 04 1 0106- ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 9811-0006 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 9811-0006 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97022-089-0 04 1 9811-0006 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-089-0 04 1 9811-0006 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-089-0 04 1 9811-0006 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0007-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 0007-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97022-089-0 04 1 0007-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-089-0 04 1 0007-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97022-089-0 04 1 0007-0105 ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 0106- ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97022-089-0 04 1 0106- ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97122-870-0 04 1 9811-0005 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97122-870-0 04 1 9811-0005 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97122-870-0 04 1 9811-0005 ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97122-870-0 04 1 0006-0105 ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97122-870-0 04 1 0006-0105 ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97122-870-0 04 1 0006-0105 ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
G.V.W. 8.0-8.5TON(RPZ) 		8-97122-870-0 04 1 0106- ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
L=52 		9-47162-045-0 04 1 0101- ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 4.0-4.5TON(RPR) 		8-94171-287-0 02 1 9811-0105 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-94171-287-0 02 1 9811-0105 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-94171-287-0 02 1 9811-0105 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94171-287-0 02 1 0106- ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-94171-287-0 02 1 0106- ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-94171-287-0 02 1 0106- ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97017-507-0 06 1 9811-0105 ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 0106- ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 		8-97017-507-0 02 1 0106- ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97017-507-0 02 1 0106- ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 02 1 9811-0005 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97017-507-0 02 1 9811-0005 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97017-507-0 02 1 9811-0005 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97017-507-0 02 1 9811-0005 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97017-507-0 02 1 9811-0005 ● ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97017-507-0 02 1 0006-0105 ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97017-507-0 02 1 0006-0105 ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-97017-507-0 02 1 0006-0105 ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97017-507-0 02 1 0006-0105 ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97017-507-0 02 1 0006-0105 ● ● ● ● ●
35 05.002 GROMMET; CHECK HOLE 8-94438-228-0 04 1 0101- ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 4.0-4.5TON(RPR) 		8-94154-916-0 02 1 9811-0105 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-94154-916-0 02 1 9811-0105 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-94154-916-0 02 1 9811-0105 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94154-916-0 02 1 0106- ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-94154-916-0 02 1 0106- ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-94154-916-0 02 1 0106- ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 9811-0006 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 9811-0006 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97192-215-0 02 1 9811-0006 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97192-215-0 02 1 9811-0006 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97192-215-0 02 1 9811-0006 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 0007-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97192-215-0 02 1 0007-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97192-215-0 02 1 0007-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97192-215-0 02 1 0007-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97192-215-0 02 1 0007-0105 ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 0106- ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97192-215-0 02 1 0106- ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97079-847-0 02 1 9811-0005 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97079-847-0 02 1 9811-0005 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 9811-0005 ● ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97079-847-0 02 1 0006-0105 ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97079-847-0 02 1 0006-0105 ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 0006-0105 ● ● ● ● ●
36 04.685 PIPE; OIL,RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		8-97079-847-0 02 1 0106- ● ● ● ●
36 04.685 PIPE; OIL,RR BRK 8-94438-145-0 02 1 0101- ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 4.0-4.5TON(RPR) 		8-97066-695-0 04 1 9811-0105 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		8-97066-695-0 04 1 9811-0105 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97066-695-0 04 1 9811-0105 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97066-695-0 04 1 0106- ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		8-97066-695-0 04 1 0106- ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97066-695-0 04 1 0106- ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97201-061-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97201-061-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97201-061-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97201-061-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0007-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97201-061-0 04 1 0007-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97201-061-0 04 1 0007-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97201-061-0 04 1 0007-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		8-97201-061-0 04 1 0007-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0106- ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97201-061-0 04 1 0106- ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97188-455-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97188-455-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97188-455-0 04 1 9811-0006 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		8-97188-455-0 04 1 0007-0105 ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97188-455-0 04 1 0007-0105 ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97188-455-0 04 1 0007-0105 ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97188-455-0 04 1 0106-0108 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		8-97188-455-0 04 1 0109- ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97134-733-2 04 1 9811-0005 ● ● ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97134-733-2 04 1 0006-0105 ● ● ● ●
124 05.017 SHOE ASM; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97134-733-2 04 1 0106-0108 ● ● ●
124 05.017 SHOE ASM; BRK,RR 8-97217-753-0 04 1 0101- ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) 		9-09756-034-0 04 1 9811-0105 ● ● ● ● ● ●
136 05.002 GROMMET
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		9-09756-034-0 04 1 9811-0105 ● ● ● ● ● ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> (A) 		9-09756-034-0 04 1 0106- ● ● ● ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> (A) 		9-09756-034-0 04 1 0106- ● ● ● ●
136 05.002 GROMMET
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> BRK WHL LK CONT LSPV<6PH> (A) 		8-97044-742-1 02 1 9811-0006 ● ● ● ● ● ●
136 05.002 GROMMET
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> BRK WHL LK CONT LSPV<6PH> (A) 		8-97044-742-1 02 1 0007-0105 ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> (A) 		8-97044-742-1 02 1 0106- ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> EXC. MINI BUS CHASSIS<V4B> (B) 		8-94366-295-0 04 1 9811-0105 ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (B) 		8-94366-295-0 04 1 0106-0206 ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 04.670 (E) 		1-47154-008-0 04 1 0207- ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> (A) 		9-09756-034-0 02 1 9811-0105 ● ● ● ● ● ●
136 05.002 GROMMET
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (A) 		9-09756-034-0 02 1 0106- ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-97044-742-1 04 1 9811-0005 ● ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4 3/7(R42) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> (A) 		8-97044-742-1 04 1 0006-0105 ● ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97044-742-1 04 1 0106- ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) (A) 		8-97044-742-1 04 1 0106- ● ● ● ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> (C) 		8-94171-287-0 04 1 9811-0012 ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) DISC BRAKE FRT<J52> (C) 		8-94171-287-0 04 1 0101-0105 ●
136 05.002 GROMMET
(C) 		8-94171-287-0 04 1 0101-0105 ●
136 05.002 GROMMET
(C) 		8-94171-287-0 04 1 0106- ●
136 05.002 GROMMET
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> (C) 		8-97017-507-0 04 1 9811-0105 ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97017-507-0 04 1 0106- ●
136 05.002 GROMMET
(D) 		8-94438-228-0 04 1 0101- ●
217 05.018 LINING KIT; RR BRK
G.V.W. 4.0-4.5TON(RPR) 		5-88300-002-0 01 1 9811-0105 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,MINI BUS CHASSIS<V4B> 		5-88300-002-0 01 1 9811-0105 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		5-88300-002-0 01 1 9811-0105 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-88300-002-0 01 1 0106- ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		5-88300-002-0 01 1 0106- ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		5-88300-002-0 01 1 0106- ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-774-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-774-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		5-87831-774-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		5-87831-774-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0007-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-774-0 01 1 0007-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-774-0 01 1 0007-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		5-87831-774-0 01 1 0007-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
4HF1 ENG(RLS) G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS<V4B> 		5-87831-774-0 01 1 0007-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0106- ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		5-87831-774-0 01 1 0106- ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		5-87831-692-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		5-87831-692-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-692-0 01 1 9811-0006 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH> 		5-87831-692-0 01 1 0007-0105 ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		5-87831-692-0 01 1 0007-0105 ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-692-0 01 1 0007-0105 ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-692-0 01 1 0106-0108 ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-692-0 01 1 0109- ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87870-032-0 01 1 9811-0005 ● ● ● ● ● ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87870-032-0 01 1 0006-0105 ● ● ● ●
217 05.018 LINING KIT; RR BRK
G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-87870-032-0 01 1 0106-0108 ● ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-088-0 01 1 0204- ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0204- ● ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		5-87831-775-0 01 1 0204- ●
218 05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		5-87832-046-0 01 1 0204- ● ● ● ●
218 05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) 		5-87832-046-0 01 1 0204- ● ●
218 05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		5-87832-046-0 01 1 0204- ● ●
218 05.017 SHOE KIT; BRK,RR
G.V.W. 8.0-8.5TON(RPZ) 		5-87831-693-0 01 1 0204- ● ● ● ●
240 05.020 PIN; AUTO ADJ
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 		8-97168-792-0 04 1 9811-0105 ●
240 05.020 PIN; AUTO ADJ
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) DISC BRAKE FRT<J52> G.V.W. 4.0-4.5TON(RPR) BRK WHL LK CONT LSPV<6PH> 		8-97078-700-0 04 1 9811-0105 ●
240 05.020 PIN; AUTO ADJ
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. MINI BUS CHASSIS<V4B> 		8-97078-047-0 04 1 9811-0105 ●
240 05.020 PIN; AUTO ADJ
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97078-047-0 04 1 0106-0206 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
