Sayfa 2-85 - Isuzu EPC

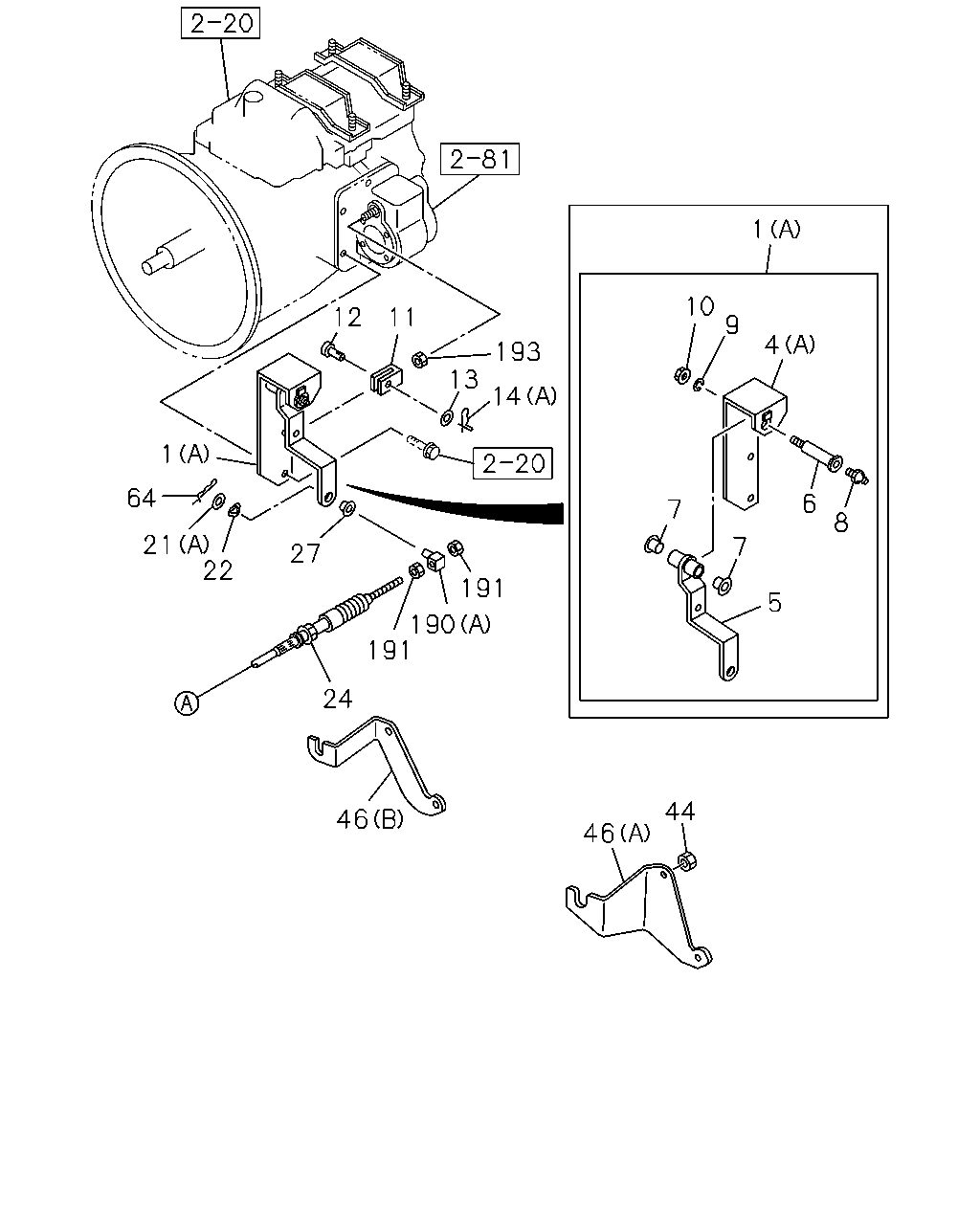

2-85 — POWER TAKE OFF CONTROL (#22155) — 241 parça

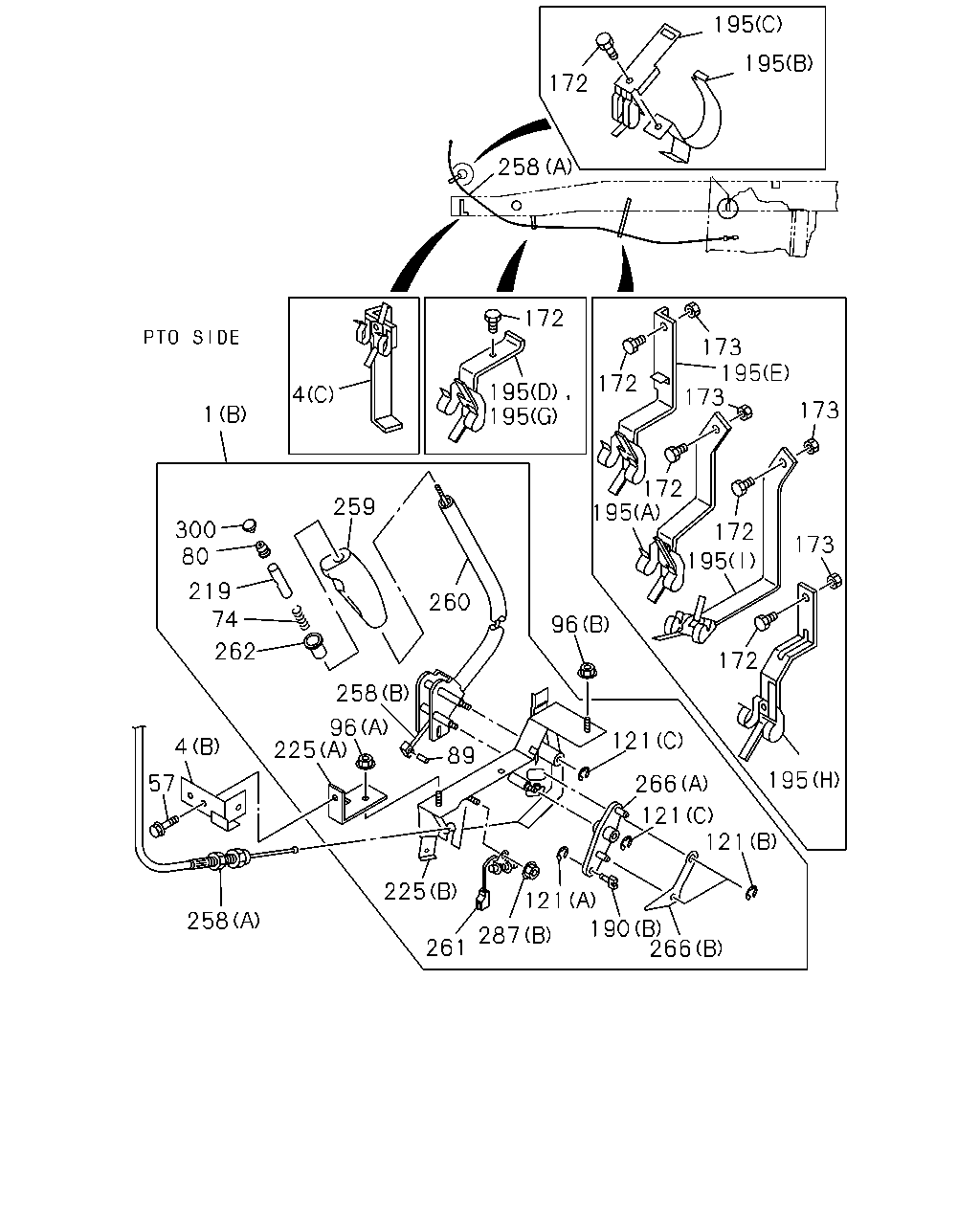

195 195 172 258 172 173 195 173 172 195 195 4 173 1 172 195 259 300 80 172 173 195 219 74 260 96 262 172 258 96 225 89 121 4 195 57 266 121 121 225 121 190 266 258 287 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97210-807-0	01	1	9811-	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9811-0105	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	0106-	●
4	04.439 BRACKET; PTO CONT DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97078-944-2	01	1	9811-	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9811-0105	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	0106-	●
4	04.439 BRACKET; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97114-534-1	01	1	9811-0105	●	●
4	04.439 BRACKET; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97114-534-1	01	1	0106-	●
57	04.439 BOLT; BRKT DUMP BODY LONG SHINMEIWA(RS9) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9811-	●
74	04.439 SPRING; RETURN,CONT LEVER DUMP BODY LONG SHINMEIWA(RS9)	1-79997-061-1	01	1	0106-	●
80	04.439 COVER; CONT LEVER DUMP BODY LONG SHINMEIWA(RS9)	8-97122-741-0	01	1	9811-	●
89	04.439 PIN; JOINT ROD DUMP BODY LONG SHINMEIWA(RS9) 04.435	8-94244-536-0	01	1	9811-	●
96	04.439 NUT DUMP BODY LONG SHINMEIWA(RS9) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9811-	●
96	04.439 NUT DUMP BODY LONG SHINMEIWA(RS9) 00.413 (B) M6	9-09110-506-0	01	1	9811-	●
121	04.439 RING; SNAP DUMP BODY LONG SHINMEIWA(RS9) 04.040 (A) ID=4	9-09185-404-0	01	1	9811-	●
121	04.439 RING; SNAP DUMP BODY LONG SHINMEIWA(RS9) 04.040 (B) ID=6	9-09185-406-0	02	1	9811-	●
121	04.439 RING; SNAP DUMP BODY LONG SHINMEIWA(RS9) 08.934 (C) ID=10	9-09185-410-0	02	1	9811-	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9811-9812	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-9912	●	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0001-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●		●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	0106-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9811-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0106-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-9812	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9901-9912	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9901-9912	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0001-0105	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-			●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-9812	●	●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	9901-9912	●	●	●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0001-0105	●	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●		●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-9812	●	●	●
173	04.439 NUT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-9912	●	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9901-9912	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0001-0105	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	9811-			●	●
190	04.439 BOSS; LEVER,PTO DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97178-885-0	01	1	9811-	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307 (A)	8-94366-842-1	01	1	9811-0105	●	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307 (A)	8-94366-842-1	01	1	0106-	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	9811-9903	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	9904-0105	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	0106-	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97085-695-3	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97085-695-3	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	9811-9912	●	●	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0001-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (H)	8-97076-428-6	01	1	9901-9904	●	●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (H)	8-97229-563-0	01	1	9905-9912	●	●	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (H)	8-97229-563-0	01	1	0001-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (H)	8-97229-563-0	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> (A)	8-97210-766-0	01	1	9811-9903			●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> (I)	8-97227-060-0	01	1	9904-9907			●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (I)	8-97231-502-0	01	1	9908-			●	●
219	04.439 KNOB; LEVER DUMP BODY LONG SHINMEIWA(RS9)	8-97122-736-0	01	1	9811-	●
225	04.439 BRACKET; CONT LEVER DUMP BODY LONG SHINMEIWA(RS9) (A)	8-97066-493-1	01	1	9811-	●
225	04.439 BRACKET; CONT LEVER DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97177-813-0	01	1	9811-	●
258	04.439 CABLE; DUMP CONT DUMP BODY LONG SHINMEIWA(RS9) (B) L=484	8-97122-738-1	01	1	9811-	●
258	04.439 CABLE; DUMP CONT DUMP BODY LONG SHINMEIWA(RS9) (A) L=4117	8-97187-099-0	01	1	9811-	●
259	04.439 GRIP; CONT LEVER DUMP BODY LONG SHINMEIWA(RS9)	8-97141-653-0	01	1	9811-	●
260	04.439 LEVER; DUMP CONT DUMP BODY LONG SHINMEIWA(RS9)	8-97122-739-0	01	1	9811-	●
261	04.439 SWITCH; DUMP CONT DUMP BODY LONG SHINMEIWA(RS9)	8-97038-838-0	01	1	9811-0009	●
261	04.439 SWITCH; DUMP CONT DUMP BODY LONG SHINMEIWA(RS9)	8-97300-136-0	01	1	0010-0109	●
261	04.439 SWITCH; DUMP CONT DUMP BODY LONG SHINMEIWA(RS9)	8-97306-670-1	01	1	0110-	●
262	04.439 RETAINER; SPRING DUMP BODY LONG SHINMEIWA(RS9)	8-97129-397-0	01	1	9811-	●
266	04.439 LINK; CONT DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97118-982-0	01	1	9811-	●
266	04.439 LINK; CONT DUMP BODY LONG SHINMEIWA(RS9) (A)	8-97210-814-0	01	1	9811-	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP BODY LONG SHINMEIWA(RS9) 16.176 (B) M6	9-09110-406-0	01	1	9811-	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9811-0105	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	0106-	●		●	●
300	04.439 CAP; KNOB DUMP BODY LONG SHINMEIWA(RS9)	8-97122-740-0	01	1	9811-	●

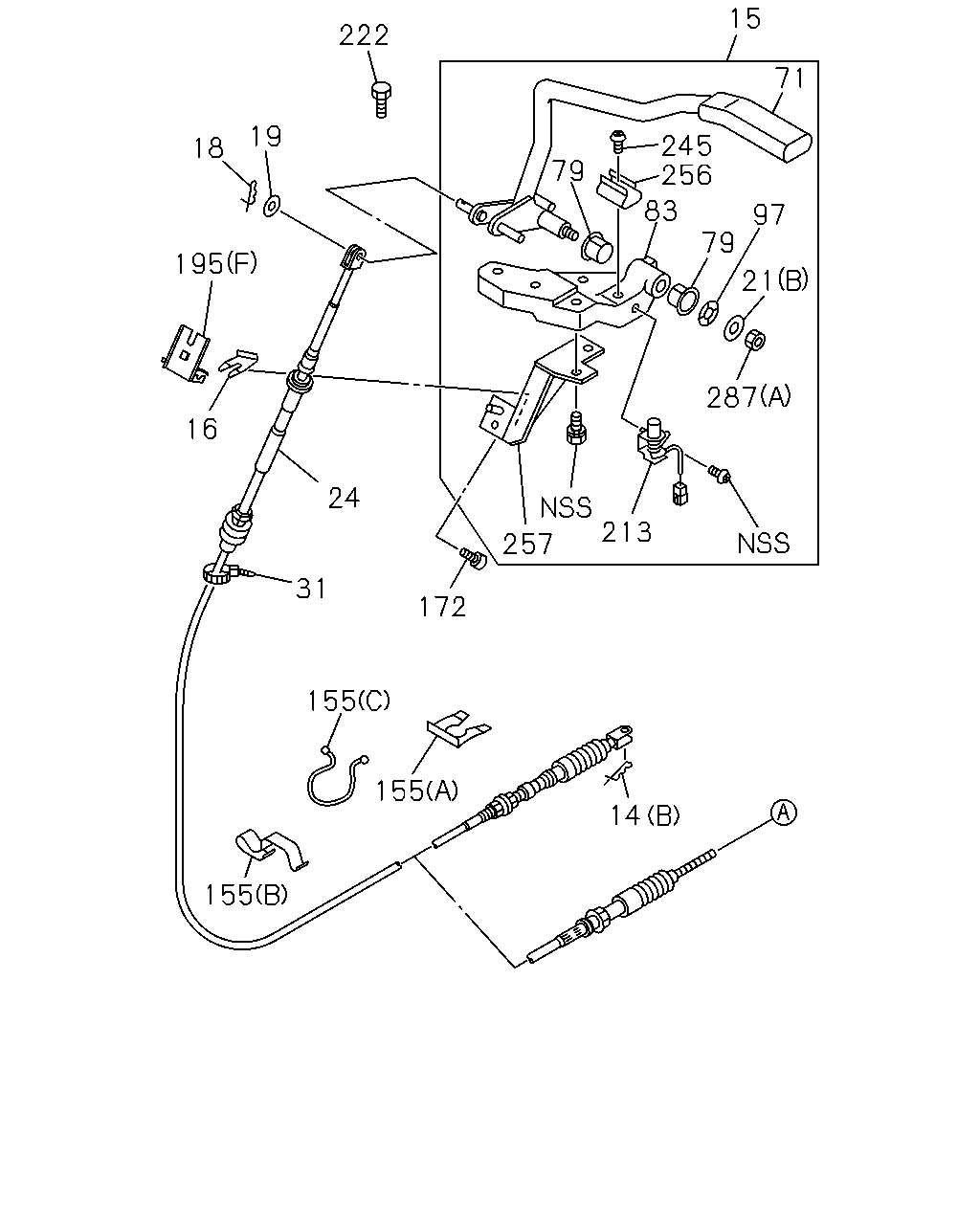

15 222 71 19 245 256 18 79 83 97 79 195 21 287 16 24 213 257 31 172 155 155 14 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	9811-0105	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0106-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 (B) OD=2.8 L=18	9-08113-018-0	01	1	9811-			●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-1	01	1	9811-0105	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-2	01	1	0106-	●		●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9811-0105	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0106-	●		●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-0105	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-	●		●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9811-0105	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0106-	●		●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9811-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9811-0105	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●		●	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-				●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-				●
24	04.439 CABLE; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9811-0105	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	0106-	●
24	04.439 CABLE; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9811-0105	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	0106-	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=3259	8-97142-491-1	01	1	9811-0105	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=3259	8-97142-491-1	01	1	0106-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3282	8-97184-373-0	01	1	9811-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9811-			●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-0105	●	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-0105	●	●	●
31	04.439 CLIP; BAND,CABLE DUMP BODY LONG SHINMEIWA(RS9) 02.559 L=250	5-09707-030-1	01	1	9811-0105	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0106-	●		●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0106-	●		●
31	04.439 CLIP; BAND,CABLE DUMP BODY LONG SHINMEIWA(RS9) 02.559 L=250	5-09707-030-1	01	1	0106-	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	9811-0105	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	0106-	●		●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9811-0105	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	0106-0204	●		●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-	●		●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	9811-0105	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	0106-	●		●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	9811-0105	●	●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	0106-	●		●	●
155	04.439 CLIP; CABLE DUMP BODY LONG SHINMEIWA(RS9) 02.525 (B) T=9.2 & 9	5-09709-025-0	01	1	9811-	●
155	04.439 CLIP; CABLE DUMP BODY LONG SHINMEIWA(RS9) 04.027 (A)	8-94152-900-0	01	1	9811-	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 (C) ID=15	1-09709-003-0	01	1	9811-0105	●	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 (C) ID=15	1-09709-003-0	01	1	0106-	●		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9811-9812	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-9912	●	●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0001-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●		●	●
172	04.439 BOLT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	0106-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9811-0105	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0106-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-9812	●	●	●
172	04.439 BOLT; BRKT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9901-9912	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9901-9912	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0001-0105	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9811-			●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	9811-9903	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	9904-0105	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	0106-	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97085-695-3	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (G)	8-97085-695-3	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97079-557-3	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97079-558-3	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-559-2	01	1	9811-9912	●	●	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0001-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9811-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (H)	8-97076-428-6	01	1	9901-9904	●	●	●
195	04.439 BRACKET; CONT CABLE 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (H)	8-97229-563-0	01	1	9905-9912	●	●	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (H)	8-97229-563-0	01	1	0001-0105	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (H)	8-97229-563-0	01	1	0106-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> (A)	8-97210-766-0	01	1	9811-9903			●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> (I)	8-97227-060-0	01	1	9904-9907			●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (I)	8-97231-502-0	01	1	9908-			●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	9811-0105	●	●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	0106-	●		●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9811-0105	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	0106-	●		●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9811-0105	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0106-	●		●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	9811-0105	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	0106-	●		●	●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	9811-0105	●	●	●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	0106-	●		●	●
287	04.439 NUT; SWITCH,CONT LEVER DUMP BODY LONG SHINMEIWA(RS9) 16.176 (B) M6	9-09110-406-0	01	1	9811-	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9811-0105	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	0106-	●		●	●

1 10 9 12 11 4 193 13 14 1 64 6 7 8 21 22 7 27 191 5 190 191 24 44 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97210-807-0	01	1	9811-	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9811-0105	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	0106-	●
4	04.439 BRACKET; PTO CONT DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97078-944-2	01	1	9811-	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9811-0105	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	0106-	●
4	04.439 BRACKET; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97114-534-1	01	1	9811-0105	●	●
4	04.439 BRACKET; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97114-534-1	01	1	0106-	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97017-115-0	01	1	9811-0105	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97017-115-0	01	1	0106-	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9811-0105	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	0106-	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9811-0105	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0106-	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9811-0105	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9811-0105	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0106-	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9811-0105	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0106-	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9811-0105	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0106-	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9811-0105	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0106-	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9811-0105	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0106-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	9811-0105	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0106-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 08.938 (B) OD=2.8 L=18	9-08113-018-0	01	1	9811-			●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9811-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9811-0105	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●		●	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9811-0105	●	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0106-	●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0208-				●
24	04.439 CABLE; PTO CONT 4HE1 ENG(RLY) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0208-				●
24	04.439 CABLE; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	9811-0105	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	0106-	●
24	04.439 CABLE; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	9811-0105	●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3077	8-97204-988-0	01	1	0106-	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=3259	8-97142-491-1	01	1	9811-0105	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=3259	8-97142-491-1	01	1	0106-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> CHARGE AIR COOLER<6PL> L=3282	8-97184-373-0	01	1	9811-			●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3208	8-97142-498-1	01	1	9811-			●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	9811-0105	●	●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0106-	●
44	04.439 NUT; BRKT DUMP BODY LONG SHINMEIWA(RS9) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-97022-848-1	01	1	9811-9812	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-97219-994-0	01	1	9901-9910	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (B)	8-97240-638-0	01	1	9911-0105	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (B)	8-97240-638-0	01	1	0106-	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-0105	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-	●
190	04.439 BOSS; LEVER,PTO DUMP BODY LONG SHINMEIWA(RS9) (B)	8-97178-885-0	01	1	9811-	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307 (A)	8-94366-842-1	01	1	9811-0105	●	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307 (A)	8-94366-842-1	01	1	0106-	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9811-0105	●	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0106-	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9811-0105	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
