2-55 — AUTO TRANS SHIFT CONTROL LEVER (#22152) — 37 parça

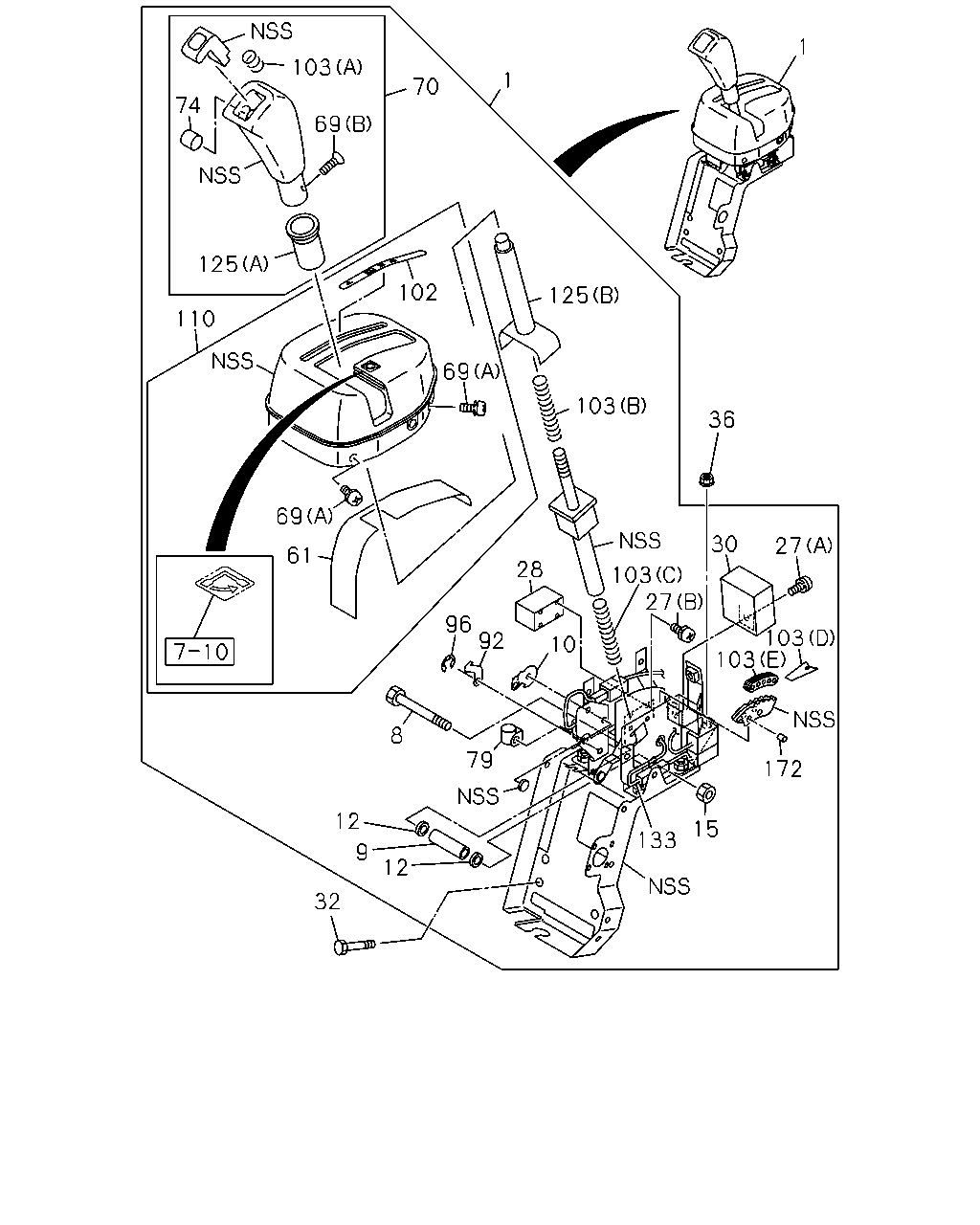

çizim 8940
1 103 1 70 74 69 125 102 125 110 69 103 36 69 30 27 61 28 103 27 96 92 103 103 10 8 79 172 12 15 133 9 12 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 LEVER; SHIFT,A/T
DARK GRAY 		8-97155-991-2 01 1 9811-9908 ●
1 04.006 LEVER; SHIFT,A/T
DARK GRAY 		8-97293-330-2 01 1 9909- ●
1 04.006 LEVER; SHIFT,A/T
DARK GRAY 		8-97196-564-0 01 1 9811-9908 ●
1 04.006 LEVER; SHIFT,A/T
DARK GRAY 		8-97293-332-2 01 1 9909- ●
8 04.008 PIN; SELECT GATE 8-97100-848-0 01 1 9811- ● ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97100-764-0 01 1 9811- ● ●
10 04.006 LEVER; A/T CONT 8-97173-358-0 01 1 9811- ● ●
12 04.008 BUSHING; SELECT LEVER 8-97100-765-0 02 1 9811- ● ●
15 04.042 NUT; LEVER TO SHAFT
01.540 M8 FLANGE 		0-91150-208-0 01 1 9811- ● ●
27 04.022 SCREW; INDICATOR TO BRKT
02.485 (B) M4X8 W/WASHER 		9-03920-408-0 03 1 9811- ●
27 04.022 SCREW; INDICATOR TO BRKT
14.865 (A) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 9811- ● ●
28 04.006 SOLENOID ASM 8-97140-486-0 01 1 9811- ● ●
30 04.006 CONTROLLER; A/T 8-97140-481-0 01 1 9811- ● ●
32 04.008 BOLT; CONT LEVER TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9811- ● ●
36 04.008 NUT; CONT LEVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ●
61 04.030 PANEL; SHIFT LEVER 8-97173-352-0 01 1 9811- ● ●
69 04.012 SCREW; COVER,SHIFT LEVER
(B) 		8-97173-340-0 02 1 9811- ● ●
69 04.012 SCREW; COVER,SHIFT LEVER
16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 04 1 9811- ● ●
70 04.006 KNOB; SHIFT LEVER
DARK GRAY 		8-97158-968-0 01 1 9811-9909 ● ●
70 04.006 KNOB; SHIFT LEVER
DARK GRAY 		8-97294-590-0 01 1 9910- ● ●
74 04.057 SWITCH; OVERDRIVE,A/T CONT LEVER
DARK GRAY 		8-97158-969-0 01 1 9811- ● ●
79 04.057 CLIP; LAMP CABLE,A/T CONT LEVER 8-97116-312-0 01 1 9811- ● ●
92 04.030 GUIDE; SLIDER 8-97173-357-0 01 1 9811- ● ●
96 04.057 RING; SNAP
ID=5 		9-09185-405-0 02 1 9811- ● ●
102 04.030 PLATE; SELECT 8-97173-354-0 01 1 9811- ●
102 04.030 PLATE; SELECT 8-97219-282-0 01 1 9811- ●
103 04.008 SPRING; PLATE
(A) 		8-97173-339-0 01 1 9811- ● ●
103 04.008 SPRING; PLATE
(B) 		8-97173-345-0 01 1 9811- ● ●
103 04.008 SPRING; PLATE
(C) 		8-97173-346-0 01 1 9811- ● ●
103 04.008 SPRING; PLATE
(D) 		8-97173-355-0 01 1 9811- ● ●
103 04.008 SPRING; PLATE
(E) 		8-97173-356-0 01 1 9811- ● ●
110 04.030 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97158-972-1 01 1 9811- ●
110 04.030 COVER; INDICATOR,A/T CONT
DARK GRAY 		8-97199-881-1 01 1 9811- ●
125 04.020 COVER; SHIFT LEVER
(A) DARK GRAY 		8-97158-970-0 01 1 9811- ● ●
125 04.020 COVER; SHIFT LEVER
(B) DARK GRAY 		8-97158-971-0 01 1 9811- ● ●
133 04.030 HARNESS; INDICATOR 8-97173-344-1 01 1 9811- ● ●
172 04.008 PIN; SPRING 8-97173-349-0 02 1 9811- ● ●
