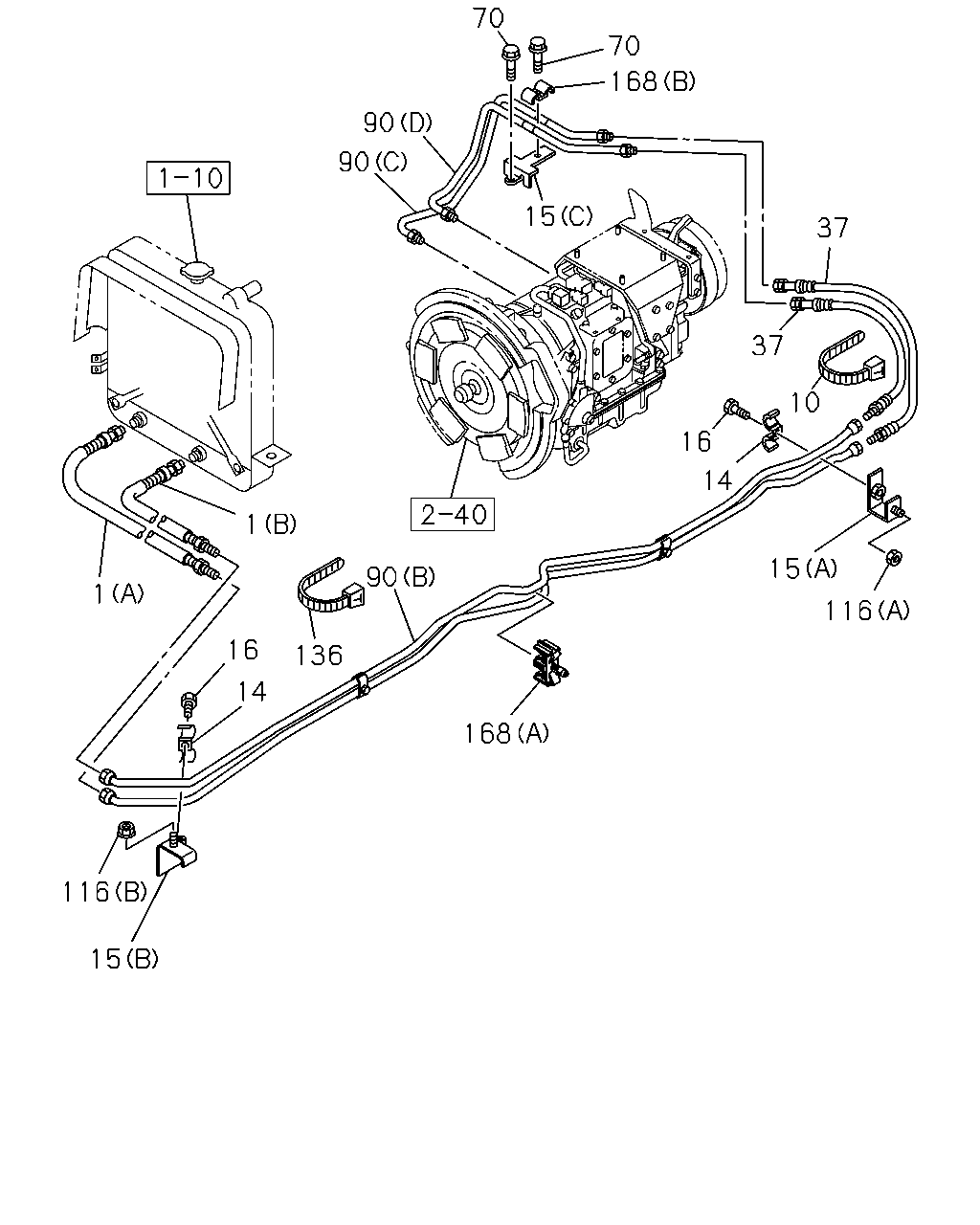

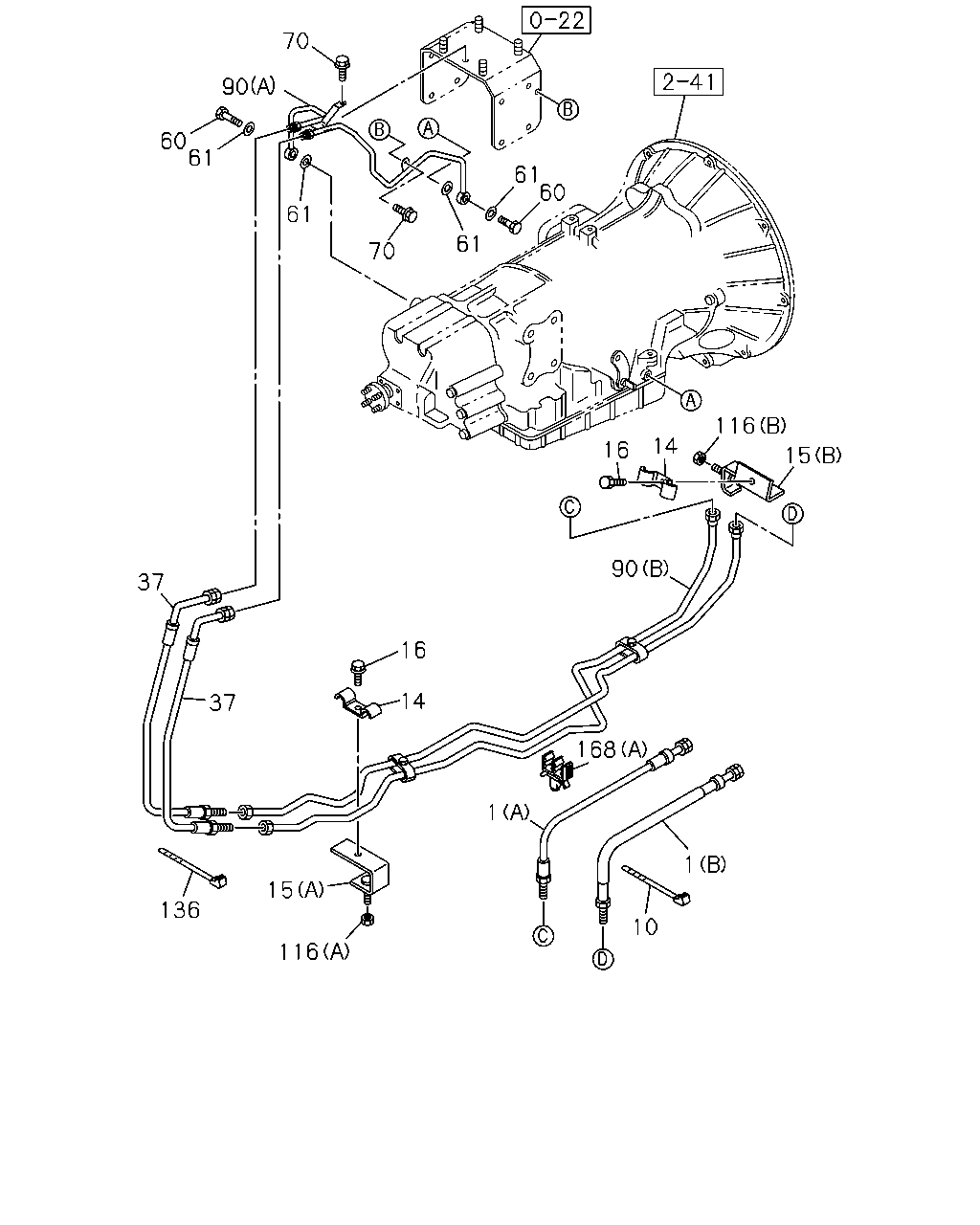

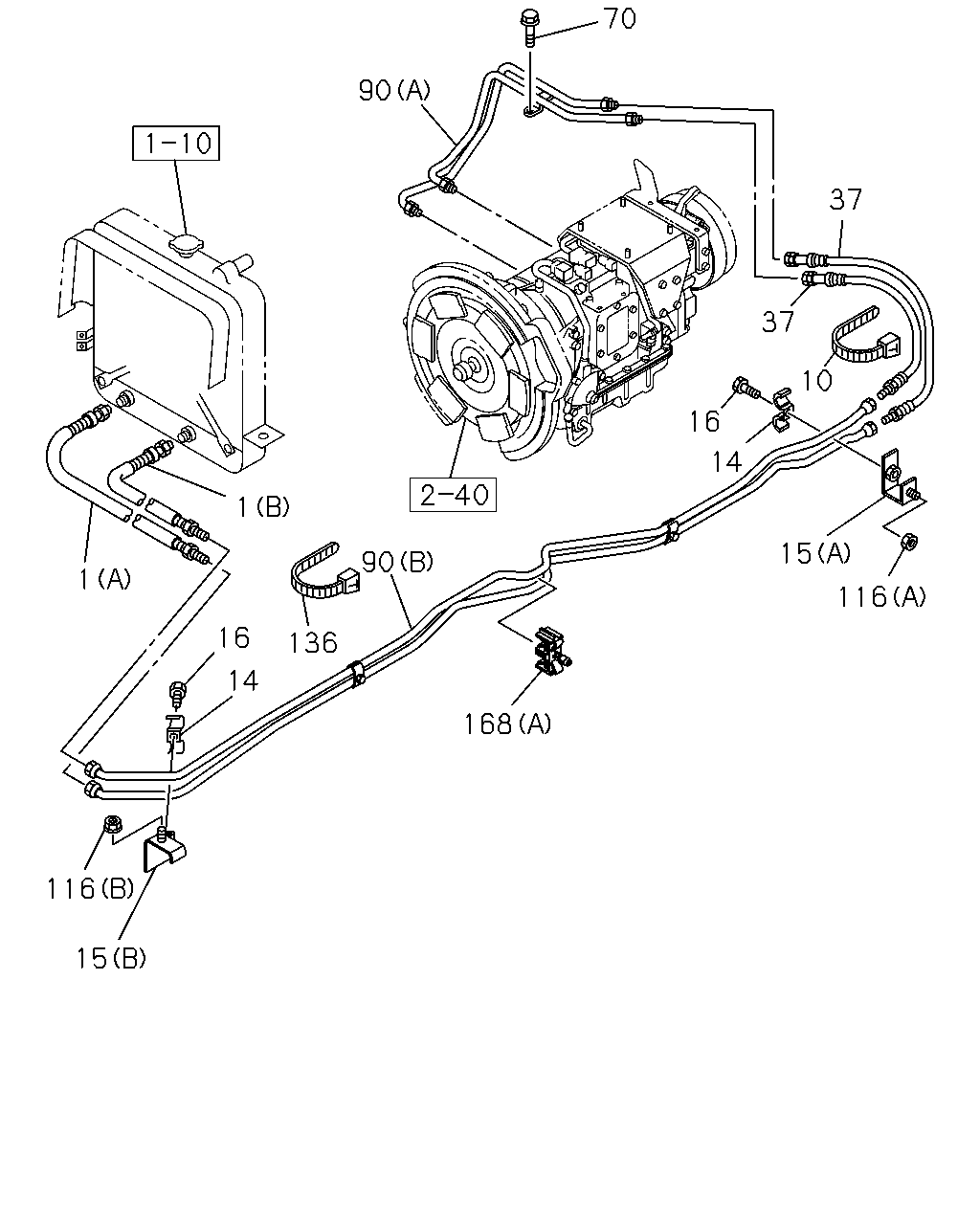

2-53 — TRANSMISSION OIL COOLER SYSTEM (#22151) — 74 parça

70 90 60 61 61 60 61 61 70 116 14 16 15 90 37 16 14 37 168 1 1 15 136 10 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9811-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9811-	●	●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-637-0	01	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	9901-		●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-	●	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ>	8-97171-165-0	02	1	9811-	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9811-		●
60	04.128 BOLT; EYE,ATF PIPE 4HG1 ENG(RJH)	1-09675-033-0	02	1	9811-	●
61	04.128 GASKET; EYE BOLT,ATF PIPE 4HG1 ENG(RJH) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9811-	●
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9811-		●
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-630-0	01	1	9811-	●
90	04.128 PIPE ASM; ATF 4HG1 ENG(RJH) (A)	8-97037-222-6	01	1	9811-	●
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9811-9812		●
90	04.128 PIPE ASM; ATF (C)	8-97220-025-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF (D)	8-97220-028-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-629-1	01	1	9811-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-	●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9811-	●	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-	●	●
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9901-		●

70 90 37 37 10 16 14 1 15 90 1 116 16 136 14 168 116 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9811-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9811-	●	●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-637-0	01	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	9901-		●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-	●	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ>	8-97171-165-0	02	1	9811-	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9811-		●
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9811-		●
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-630-0	01	1	9811-	●
90	04.128 PIPE ASM; ATF 4HG1 ENG(RJH) (A)	8-97037-222-6	01	1	9811-	●
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9811-9812		●
90	04.128 PIPE ASM; ATF (C)	8-97220-025-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF (D)	8-97220-028-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-629-1	01	1	9811-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-	●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9811-	●	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-	●	●
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9901-		●

70 70 168 90 90 15 37 37 10 16 14 1 15 90 1 116 16 136 14 168 116 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (A) L=420	8-97012-838-1	01	1	9811-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> (B) L=630	8-97180-927-0	01	1	9811-	●	●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> 04.047 ID=13 & 13 L=16 & 16	1-09700-072-0	02	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97148-826-1	01	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-637-0	01	1	9811-	●	●
15	04.128 BRACKET; ATF PIPE (C)	8-97219-721-0	01	1	9901-		●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-	●	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ>	8-97171-165-0	02	1	9811-	●
37	04.128 HOSE; FLEX,OIL COOLER PIPE TO A/ FRAME STRAIGHT TYPE<7KJ> 04.197 L=480	8-94455-052-2	02	1	9811-		●
70	04.128 BOLT; CLIP,A/T SIDE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●
70	04.128 BOLT; CLIP,A/T SIDE 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9811-		●
70	04.128 BOLT; CLIP,A/T SIDE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-630-0	01	1	9811-	●
90	04.128 PIPE ASM; ATF 4HG1 ENG(RJH) (A)	8-97037-222-6	01	1	9811-	●
90	04.128 PIPE ASM; ATF (A)	8-97148-540-2	01	1	9811-9812		●
90	04.128 PIPE ASM; ATF (C)	8-97220-025-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF (D)	8-97220-028-0	01	1	9901-		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> (B)	8-97215-629-1	01	1	9811-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9811-	●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> 03.162 L=140	5-09707-031-1	01	1	9811-	●	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-	●	●
168	04.128 CLIP; A/T SIDE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9901-		●
