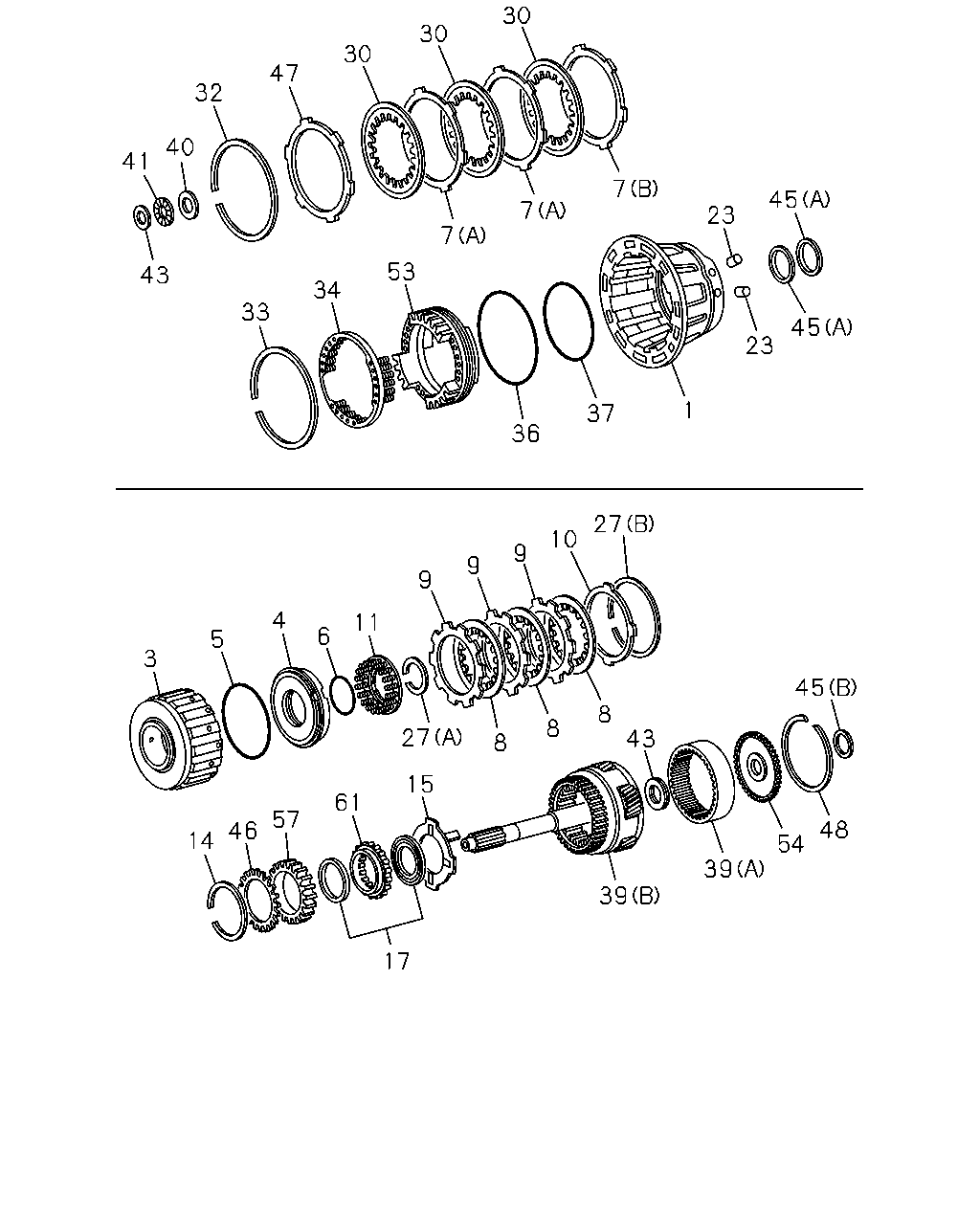

2-52 — AUTO TRANS OVERDRIVE GEAR (#22150) — 80 parça

30 30 30 47 32 40 41 7 45 7 23 7 53 43 34 33 45 23 1 37 36 27 10 9 9 9 4 11 6 5 3 45 8 8 27 43 8 15 61 57 48 46 14 54 39 39 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.455 CASE ASM; OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-018-0	01	1	9811-0105
1	04.455 CASE ASM; OVERDRIVE,A/T	8-97257-018-0	01	1	0106-
3	04.468 DRUM; CLU,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-039-0	01	1	9811-0105
3	04.468 DRUM; CLU,OVERDRIVE,A/T	8-97257-039-0	01	1	0106-
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-040-0	01	1	9811-0105
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T	8-97257-040-0	01	1	0106-
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI EXC. PTO TRANSMISSION SIDE(V66)	8-97256-963-0	01	1	9811-0105
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI	8-97256-963-0	01	1	0106-
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI EXC. PTO TRANSMISSION SIDE(V66)	8-97257-041-0	01	1	9811-0105
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI	8-97257-041-0	01	1	0106-
7	04.468 PLATE; CLU CUSHION EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-021-0	02	1	9811-0105
7	04.468 PLATE; CLU CUSHION (A)	8-97257-021-0	02	1	0106-
7	04.468 PLATE; CLU CUSHION EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-022-0	01	1	9811-0105
7	04.468 PLATE; CLU CUSHION (B)	8-97257-022-0	01	1	0106-
8	04.455 DISC; CLU,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-043-0	03	1	9811-0105
8	04.455 DISC; CLU,OVERDRIVE,A/T	8-97257-043-0	03	1	0106-
9	04.455 DISC ASM; CLU & FACING,OVERDRIVE EXC. PTO TRANSMISSION SIDE(V66)	8-97256-969-0	03	1	9811-0105
9	04.455 DISC ASM; CLU & FACING,OVERDRIVE	8-97256-969-0	03	1	0106-
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) T=4.60	8-97257-044-0	01	1	9811-0105
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T T=4.60	8-97257-044-0	01	1	0106-
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) T=4.77	8-97257-045-0	01	1	9811-0105
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T T=4.77	8-97257-045-0	01	1	0106-
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) T=4.94	8-97257-046-0	01	1	9811-0105
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T T=4.94	8-97257-046-0	01	1	0106-
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) T=5.11	8-97257-047-0	01	1	9811-0105
10	04.455 PLATE; CLU BACKING,OVERDRIVE,A/T T=5.11	8-97257-047-0	01	1	0106-
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-042-0	01	1	9811-0105
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T	8-97257-042-0	01	1	0106-
14	04.472 RING; RET,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-038-0	01	1	9811-0105
14	04.472 RING; RET,OVERDRIVE,A/T	8-97257-038-0	01	1	0106-
15	04.468 WASHER; THRUST,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-032-0	01	1	9811-0105
15	04.468 WASHER; THRUST,OVERDRIVE,A/T	8-97257-032-0	01	1	0106-
17	04.468 RACE; ONEWAY CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) 04.485	8-97257-033-0	01	1	9811-0105
17	04.468 RACE; ONEWAY CLU,A/T 04.485	8-97257-033-0	01	1	0106-
23	04.472 RING; RET,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-926-0	03	1	9811-0105
23	04.472 RING; RET,OVERDRIVE,A/T	8-97256-926-0	03	1	0106-
27	04.472 RING; RET,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-966-0	01	1	9811-0105
27	04.472 RING; RET,OVERDRIVE,A/T (A)	8-97256-966-0	01	1	0106-
27	04.472 RING; RET,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-048-0	01	1	9811-0105
27	04.472 RING; RET,OVERDRIVE,A/T (B)	8-97257-048-0	01	1	0106-
30	04.455 DISC; CLU,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-023-0	03	1	9811-0105
30	04.455 DISC; CLU,OVERDRIVE,A/T	8-97257-023-0	03	1	0106-
32	04.472 RING; RET,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) 04.485	8-97256-933-0	01	1	9811-0105
32	04.472 RING; RET,OVERDRIVE,A/T 04.485	8-97256-933-0	01	1	0106-
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI EXC. PTO TRANSMISSION SIDE(V66)	8-97256-933-0	01	1	9811-0105
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI	8-97256-933-0	01	1	0106-
34	04.467 SPRING; BRK RETURN,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-020-0	01	1	9811-0105
34	04.467 SPRING; BRK RETURN,OVERDRIVE,A/T	8-97257-020-0	01	1	0106-
36	04.460 GASKET; PISTON,OUTER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-931-0	01	1	9811-0105
36	04.460 GASKET; PISTON,OUTER,A/T	8-97256-931-0	01	1	0106-
37	04.460 GASKET; PISTON,INNER,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-930-0	01	1	9811-0105
37	04.460 GASKET; PISTON,INNER,A/T	8-97256-930-0	01	1	0106-
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97257-028-0	01	1	9811-0105
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T (A)	8-97257-028-0	01	1	0106-
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-031-0	01	1	9811-0105
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T (B)	8-97257-031-0	01	1	0106-
40	04.470 RACE; THRUST BRG,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-025-0	01	1	9811-0105
40	04.470 RACE; THRUST BRG,OVERDRIVE,A/T	8-97257-025-0	01	1	0106-
41	04.472 BEARING; THRUST,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-027-0	01	1	9811-0105
41	04.472 BEARING; THRUST,OVERDRIVE,A/T	8-97257-027-0	01	1	0106-
43	04.472 RACE; THRUST BRG,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-026-0	01	1	9811-0105
43	04.472 RACE; THRUST BRG,OVERDRIVE,A/T	8-97257-026-0	01	1	0106-
45	04.472 RING; SEAL,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-928-0	02	1	9811-0105
45	04.472 RING; SEAL,OVERDRIVE,A/T (A)	8-97256-928-0	02	1	0106-
45	04.472 RING; SEAL,OVERDRIVE,A/T EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97256-960-0	01	1	9811-0105
45	04.472 RING; SEAL,OVERDRIVE,A/T (B)	8-97256-960-0	01	1	0106-
46	04.468 PLATE; RET,OVERDRIVE CLU EXC. PTO TRANSMISSION SIDE(V66)	8-97257-035-0	01	1	9811-0105
46	04.468 PLATE; RET,OVERDRIVE CLU	8-97257-035-0	01	1	0106-
47	04.467 FLANGE; OVERDRIVE BRK,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-024-0	01	1	9811-0105
47	04.467 FLANGE; OVERDRIVE BRK,A/T	8-97257-024-0	01	1	0106-
48	04.472 RING; SNAP,PLANETARY RING GEAR,O EXC. PTO TRANSMISSION SIDE(V66)	8-97257-030-0	01	1	9811-0105
48	04.472 RING; SNAP,PLANETARY RING GEAR,O	8-97257-030-0	01	1	0106-
53	04.180 CAM; OVERDRIVE ROLLER CLU EXC. PTO TRANSMISSION SIDE(V66)	8-97257-019-0	01	1	9811-0105
53	04.180 CAM; OVERDRIVE ROLLER CLU	8-97257-019-0	01	1	0106-
54	04.175 FLANGE; PLANETARY RING GEAR,OVER EXC. PTO TRANSMISSION SIDE(V66)	8-97257-029-0	01	1	9811-0105
54	04.175 FLANGE; PLANETARY RING GEAR,OVER	8-97257-029-0	01	1	0106-
57	04.166 CLUTCH; FWD EXC. PTO TRANSMISSION SIDE(V66)	8-97257-034-0	01	1	9811-0105
57	04.166 CLUTCH; FWD	8-97257-034-0	01	1	0106-
61	04.485 RETAINER; ONEWAY CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-033-0	01	1	9811-0105
61	04.485 RETAINER; ONEWAY CLU,A/T	8-97257-033-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
