2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#22148) — 96 parça

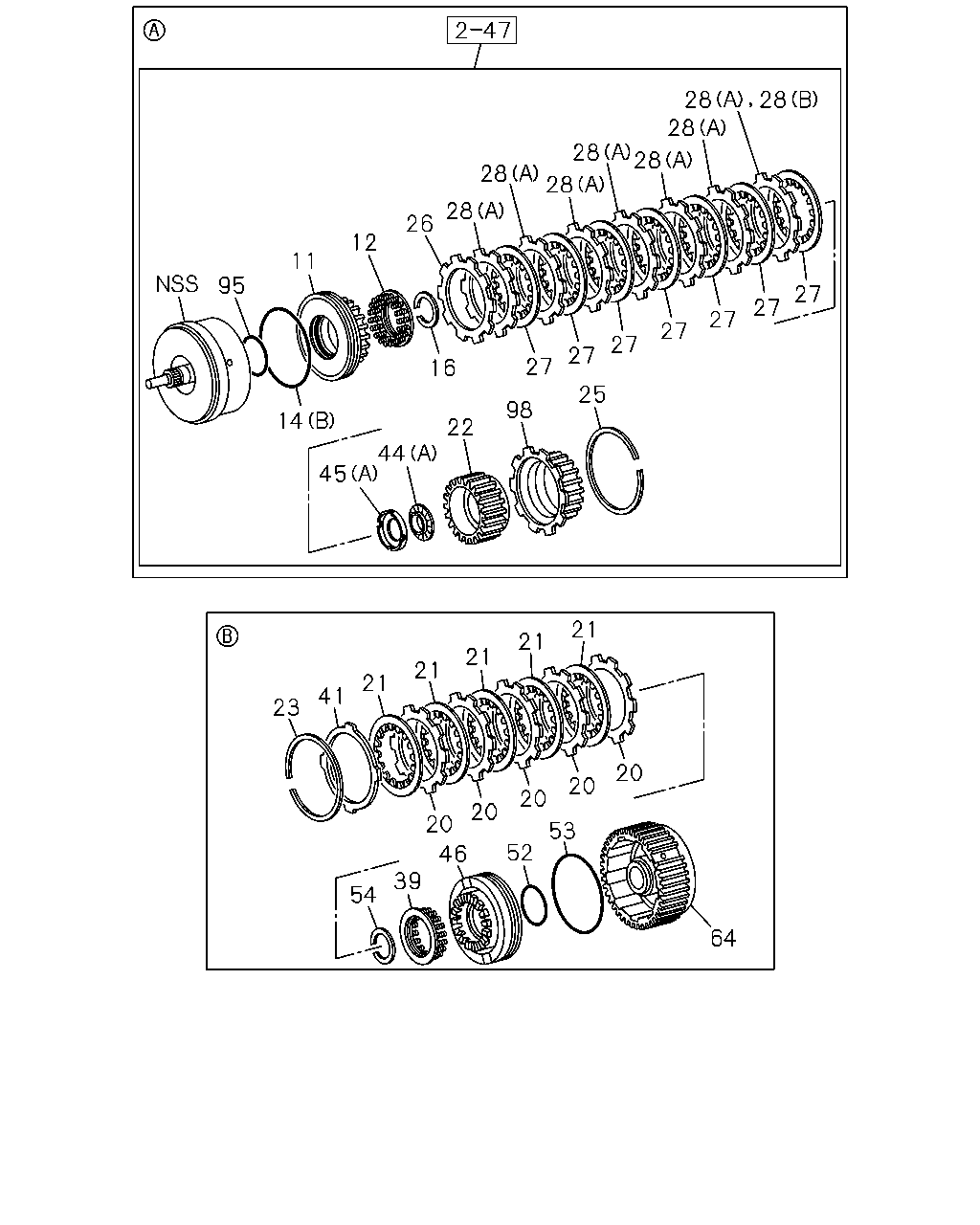

28 28 28 28 28 28 28 28 26 12 11 95 27 27 27 27 27 27 27 16 25 98 14 22 44 45 21 21 21 21 21 41 23 20 20 20 20 20 53 52 46 39 54 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	04.166 PISTON ASM; CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-961-0	01	1	9811-0105
11	04.166 PISTON ASM; CLU,A/T	8-97256-961-0	01	1	0106-
12	04.164 SPRING; CLU RETURN,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-964-0	01	1	9811-0105
12	04.164 SPRING; CLU RETURN,A/T	8-97256-964-0	01	1	0106-
14	04.166 GASKET; OUTER,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-927-0	03	1	9811-0105
14	04.166 GASKET; OUTER,CLU,A/T (A)	8-97256-927-0	03	1	0106-
14	04.166 GASKET; OUTER,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) 04.460 (B)	8-97256-963-0	01	1	9811-0105
14	04.166 GASKET; OUTER,CLU,A/T 04.460 (B)	8-97256-963-0	01	1	0106-
16	04.166 RING; SNAP,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) 04.472	8-97256-966-0	01	1	9811-0105
16	04.166 RING; SNAP,CLU,A/T 04.472	8-97256-966-0	01	1	0106-
20	04.163 DISC; CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-972-0	05	1	9811-0105
20	04.163 DISC; CLU,A/T	8-97256-972-0	05	1	0106-
21	04.163 DISC ASM; CLU & FACING,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-973-0	05	1	9811-0105
21	04.163 DISC ASM; CLU & FACING,A/T	8-97256-973-0	05	1	0106-
22	04.164 HUB; FWD CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-977-0	01	1	9811-0105
22	04.164 HUB; FWD CLU,A/T	8-97256-977-0	01	1	0106-
23	04.164 RING; RET,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-979-0	01	1	9811-0105
23	04.164 RING; RET,CLU,A/T	8-97256-979-0	01	1	0106-
25	04.164 RING; RET,BACKING PLATE,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-979-0	01	1	9811-0105
25	04.164 RING; RET,BACKING PLATE,A/T	8-97256-979-0	01	1	0106-
26	04.163 PLATE; CLU,BACKING,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-968-0	01	1	9811-0105
26	04.163 PLATE; CLU,BACKING,A/T	8-97256-968-0	01	1	0106-
27	04.163 DISC ASM; CLU & FACING,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-973-0	07	1	9811-0105
27	04.163 DISC ASM; CLU & FACING,A/T	8-97256-973-0	07	1	0106-
28	04.163 DISC; CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) (A) T=1.8	8-97256-967-0	07	1	9811-0105
28	04.163 DISC; CLU,A/T (A) T=1.8	8-97256-967-0	07	1	0106-
28	04.163 DISC; CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) T=2.0	8-97256-970-0	01	1	9811-0105
28	04.163 DISC; CLU,A/T (B) T=2.0	8-97256-970-0	01	1	0106-
28	04.163 DISC; CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) T=2.2	8-97256-971-0	01	1	9811-0105
28	04.163 DISC; CLU,A/T (B) T=2.2	8-97256-971-0	01	1	0106-
28	04.163 DISC; CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) (B) T=2.4	8-97256-972-0	01	1	9811-0105
28	04.163 DISC; CLU,A/T (B) T=2.4	8-97256-972-0	01	1	0106-
39	04.164 SPRING; DIRECT CLU RETURN EXC. PTO TRANSMISSION SIDE(V66)	8-97257-149-0	01	1	9811-0105
39	04.164 SPRING; DIRECT CLU RETURN	8-97257-149-0	01	1	0106-
41	04.164 FLANGE; DIRECT CLU EXC. PTO TRANSMISSION SIDE(V66) T=5.0	8-97257-145-0	01	1	9811-0105
41	04.164 FLANGE; DIRECT CLU T=5.0	8-97257-145-0	01	1	0106-
41	04.164 FLANGE; DIRECT CLU EXC. PTO TRANSMISSION SIDE(V66) T=5.2	8-97257-146-0	01	1	9811-0105
41	04.164 FLANGE; DIRECT CLU T=5.2	8-97257-146-0	01	1	0106-
41	04.164 FLANGE; DIRECT CLU EXC. PTO TRANSMISSION SIDE(V66) T=4.6	8-97257-147-0	01	1	9811-0105
41	04.164 FLANGE; DIRECT CLU T=4.6	8-97257-147-0	01	1	0106-
41	04.164 FLANGE; DIRECT CLU EXC. PTO TRANSMISSION SIDE(V66) T=4.8	8-97257-148-0	01	1	9811-0105
41	04.164 FLANGE; DIRECT CLU T=4.8	8-97257-148-0	01	1	0106-
44	04.164 BEARING; THRUST,INPUT SHAFT RR EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-976-0	01	1	9811-0105
44	04.164 BEARING; THRUST,INPUT SHAFT RR (A)	8-97256-976-0	01	1	0106-
44	04.164 BEARING; THRUST,INPUT SHAFT RR EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-049-0	01	1	9811-0105
44	04.164 BEARING; THRUST,INPUT SHAFT RR (B)	8-97257-049-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-975-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (A)	8-97256-975-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (B) T=0.8	8-97257-050-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (B) T=0.8	8-97257-050-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (B) T=1.0	8-97257-051-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (B) T=1.0	8-97257-051-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (B) T=1.4	8-97257-052-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (B) T=1.4	8-97257-052-0	01	1	0106-
46	04.166 PISTON; DIRECT CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-144-0	01	1	9811-0105
46	04.166 PISTON; DIRECT CLU,A/T	8-97257-144-0	01	1	0106-
52	04.167 GASKET; PISTON INNER,DIRECT CLU, EXC. PTO TRANSMISSION SIDE(V66) 04.166	8-97256-962-0	01	1	9811-0105
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 04.166	8-97256-962-0	01	1	0106-
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, EXC. PTO TRANSMISSION SIDE(V66)	8-97256-948-0	01	1	9811-0105
53	04.167 GASKET; PISTON OUTER,DIRECT CLU,	8-97256-948-0	01	1	0106-
54	04.166 RING; SNAP,PISTON RETURN SPRING EXC. PTO TRANSMISSION SIDE(V66) 04.472	8-97256-966-0	01	1	9811-0105
54	04.166 RING; SNAP,PISTON RETURN SPRING 04.472	8-97256-966-0	01	1	0106-
64	04.169 DRUM ASM; DIRECT CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-143-0	01	1	9811-0105
64	04.169 DRUM ASM; DIRECT CLU,A/T	8-97257-143-0	01	1	0106-
95	04.166 GASKET; CLU HUB EXC. PTO TRANSMISSION SIDE(V66)	8-97256-962-0	01	1	9811-0105
95	04.166 GASKET; CLU HUB	8-97256-962-0	01	1	0106-
98	04.166 HOUSING; CLU EXC. PTO TRANSMISSION SIDE(V66)	8-97256-978-0	01	1	9811-0105
98	04.166 HOUSING; CLU	8-97256-978-0	01	1	0106-

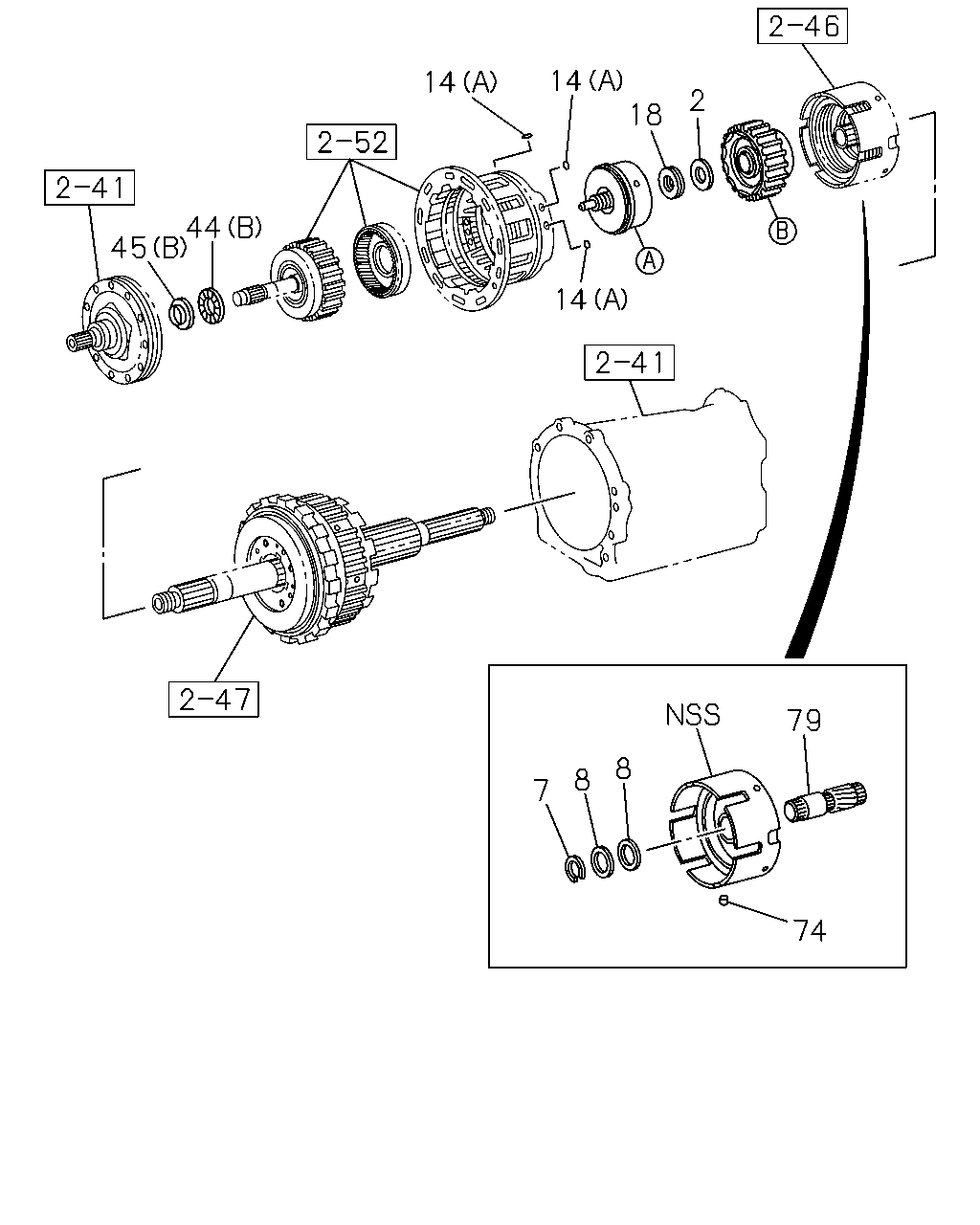

14 18 14 2 44 45 14 79 8 8 7 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.164 RACE; THRUST BRG,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-975-0	01	1	9811-0105
2	04.164 RACE; THRUST BRG,A/T	8-97256-975-0	01	1	0106-
7	04.159 RING; RET,PLANETARY GEAR,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97257-017-0	01	1	9811-0105
7	04.159 RING; RET,PLANETARY GEAR,A/T	8-97257-017-0	01	1	0106-
8	04.169 RING; SEAL,PLANETARY GEAR,A/T EXC. PTO TRANSMISSION SIDE(V66) 04.472	8-97256-928-0	02	1	9811-0105
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 04.472	8-97256-928-0	02	1	0106-
14	04.166 GASKET; OUTER,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-927-0	03	1	9811-0105
14	04.166 GASKET; OUTER,CLU,A/T (A)	8-97256-927-0	03	1	0106-
14	04.166 GASKET; OUTER,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66) 04.460 (B)	8-97256-963-0	01	1	9811-0105
14	04.166 GASKET; OUTER,CLU,A/T 04.460 (B)	8-97256-963-0	01	1	0106-
18	04.164 BEARING; THRUST,CLU,A/T EXC. PTO TRANSMISSION SIDE(V66)	8-97256-976-0	01	1	9811-0105
18	04.164 BEARING; THRUST,CLU,A/T	8-97256-976-0	01	1	0106-
44	04.164 BEARING; THRUST,INPUT SHAFT RR EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-976-0	01	1	9811-0105
44	04.164 BEARING; THRUST,INPUT SHAFT RR (A)	8-97256-976-0	01	1	0106-
44	04.164 BEARING; THRUST,INPUT SHAFT RR EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97257-049-0	01	1	9811-0105
44	04.164 BEARING; THRUST,INPUT SHAFT RR (B)	8-97257-049-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (A)	8-97256-975-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (A)	8-97256-975-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (B) T=0.8	8-97257-050-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (B) T=0.8	8-97257-050-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (B) T=1.0	8-97257-051-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (B) T=1.0	8-97257-051-0	01	1	0106-
45	04.164 RACE; THRUST BRG,INPUT SHAFT EXC. PTO TRANSMISSION SIDE(V66) (B) T=1.4	8-97257-052-0	01	1	9811-0105
45	04.164 RACE; THRUST BRG,INPUT SHAFT (B) T=1.4	8-97257-052-0	01	1	0106-
74	04.262 RING; RET EXC. PTO TRANSMISSION SIDE(V66) 04.472	8-97256-926-0	03	1	9811-0105
74	04.262 RING; RET 04.472	8-97256-926-0	03	1	0106-
79	04.262 GEAR ASM; INPUT SUN EXC. PTO TRANSMISSION SIDE(V66)	8-97257-016-0	01	1	9811-0105
79	04.262 GEAR ASM; INPUT SUN	8-97257-016-0	01	1	0106-
